Description

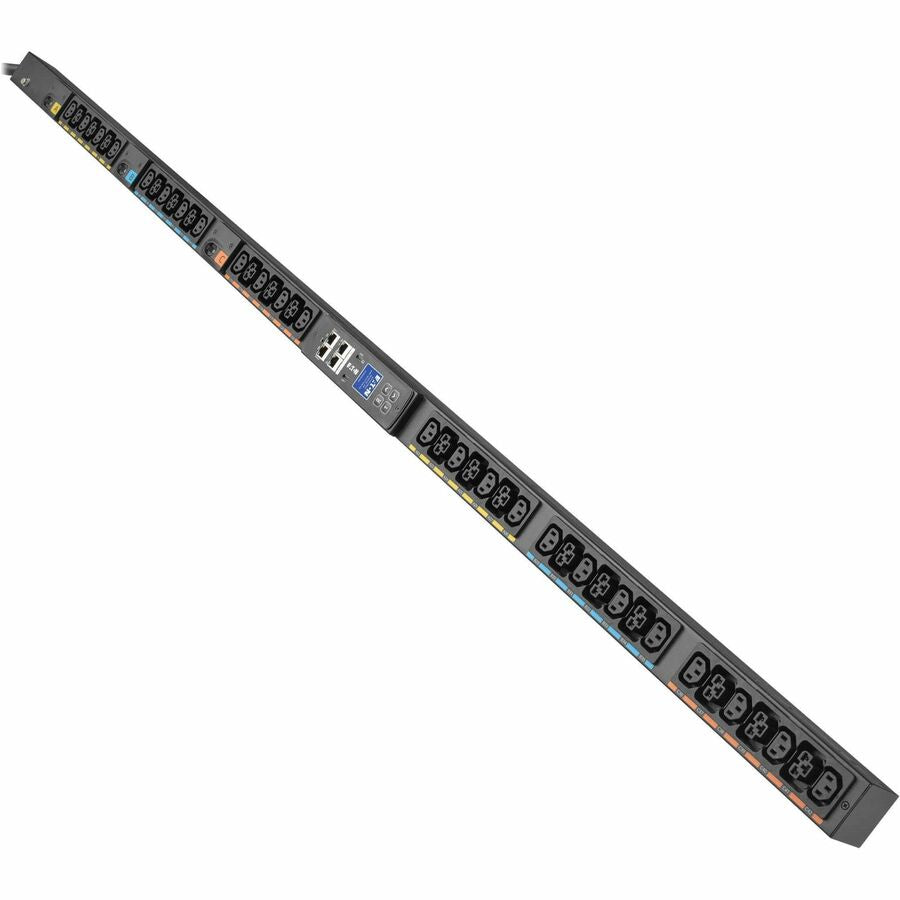

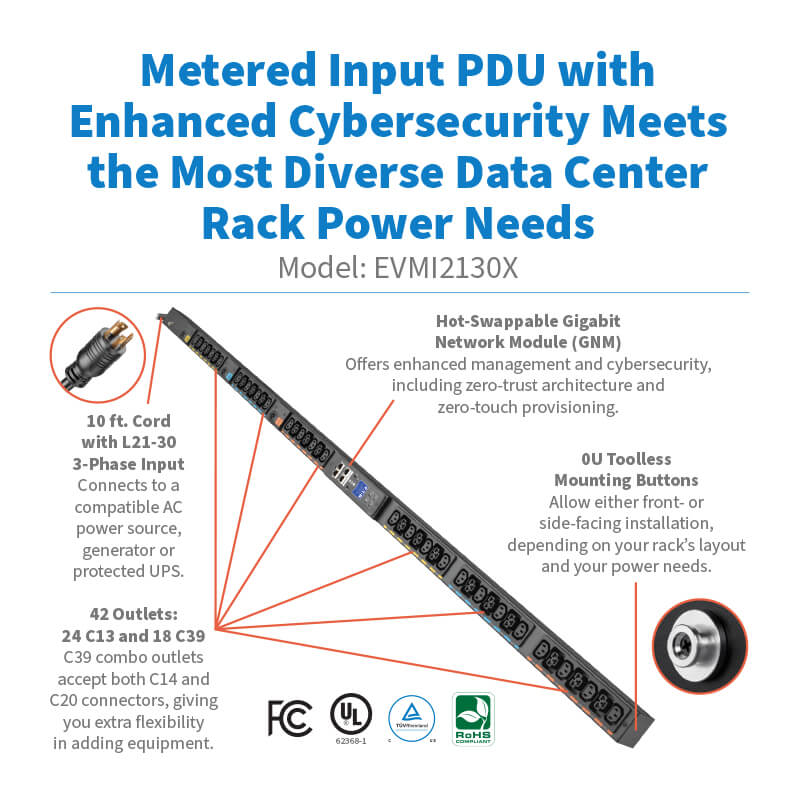

The Eaton EVMI2130X is a 3-phase Metered Input Rack PDU (G4) engineered to deliver secure and reliable power distribution in enterprise and colocation data centers. With a power rating of 8.6kW, this 0U vertical PDU features 42 outlets—24 C13 and 18 universal C39 combo outlets—for maximum deployment flexibility. Designed with a 10-foot cord and L21-30P input plug, it supports 120/208V three-phase input and includes enhanced cybersecurity through an embedded Gigabit Network Module (GNM).
This PDU is ideal for IT professionals seeking real-time monitoring, remote management, and advanced load balancing with color-coded load banks. Optional environmental sensors further enhance infrastructure insight. The EVMI2130X mounts tool-free in standard 42U racks and can be cascaded with up to 40 units for scalable deployments—all with individual IP addresses.
| Specification | Details |
|---|---|
| Model Number | EVMI2130X |
| PDU Type | Metered Input, Vertical (0U) |
| Input Voltage | 120/208V (3-Phase) |

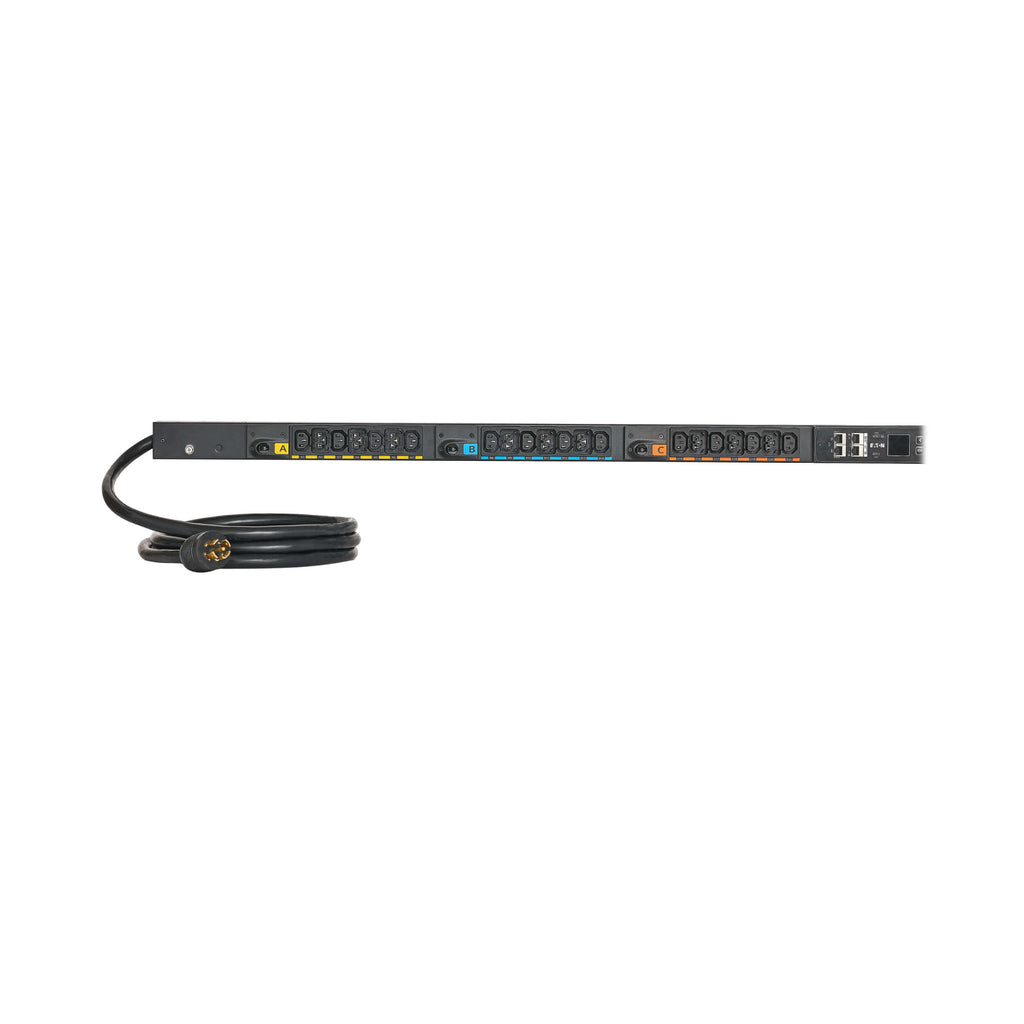

| Input Plug | NEMA L21-30P |
| Input Cord Length | 10 ft. (3.05 m) |
| Maximum Input Amps | 30A |
| Output Capacity | 8.6kW / 24A per phase |
| Outlet Types | 24 x C13, 18 x C39 |
| Outlet Configuration | 6 Color-coded Load Banks |
| Circuit Breakers | 3 x 20A (2-pole), Low Profile |
| Mounting | Toolless, Vertical 0U |
| Network Management | Embedded GNM, SNMP, Remote Access |
| Chaining Capability | Cascade up to 40 Units |
| Material | Aluminum Housing |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
| Dimensions (HxWxD) | 68.1 x 2 x 2.08 in (172.97 x 5.08 x 5.28 cm) |
| Weight | 16.54 lbs (7.50 kg) |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 3-Year Limited Warranty |
