Description

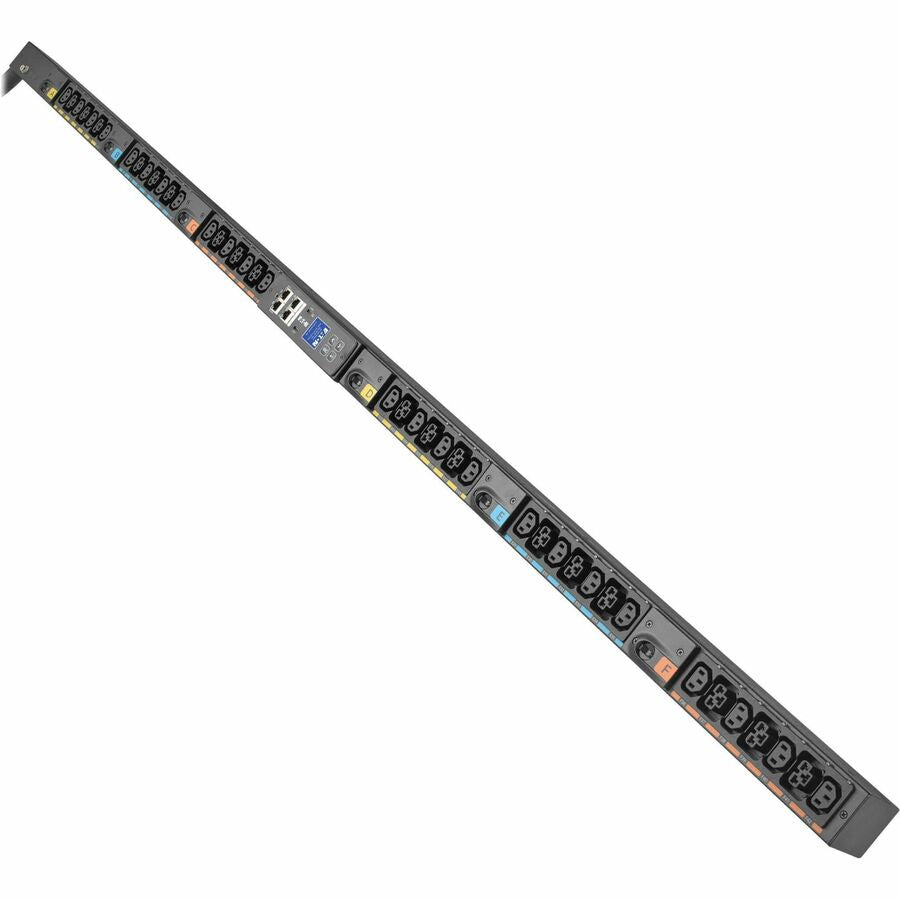

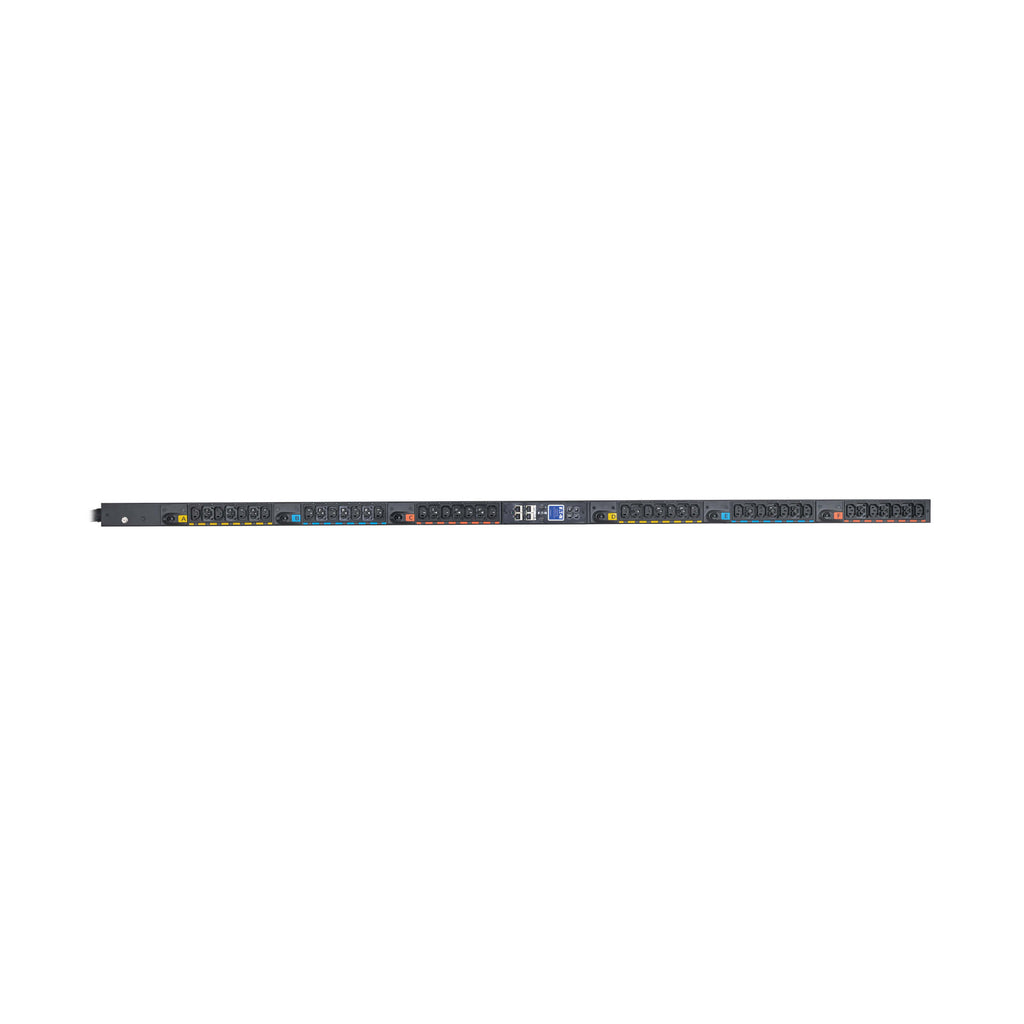

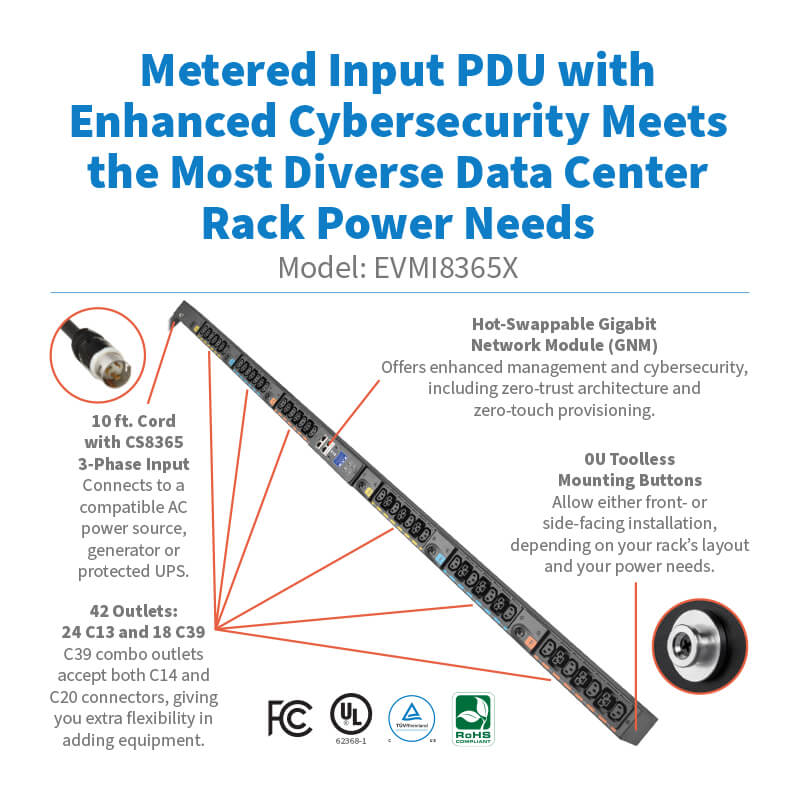

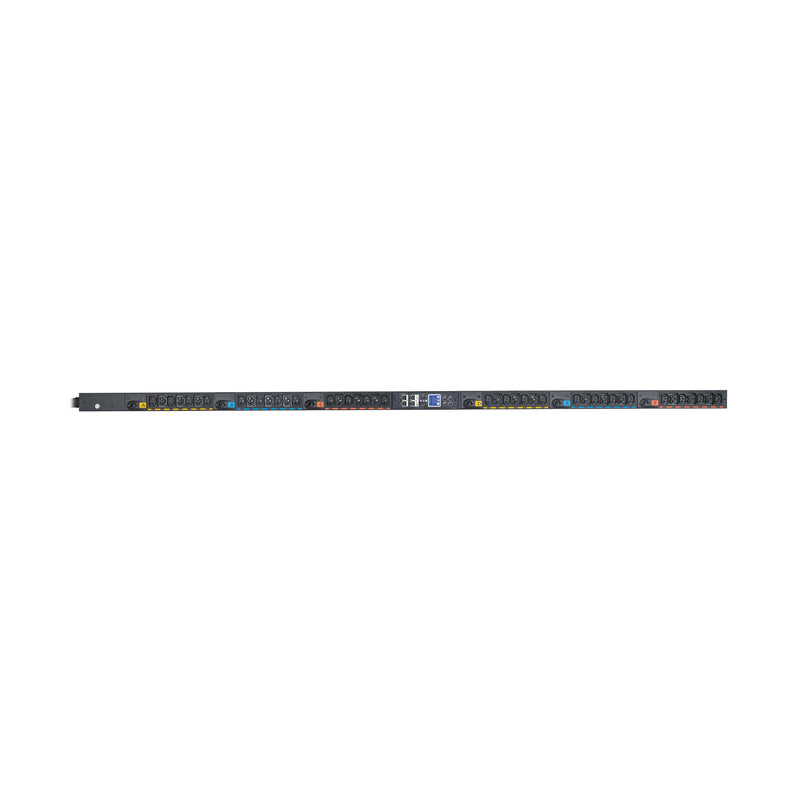

The Eaton EVMI8365X is a 3-phase metered input rack PDU (rPDU) G4 engineered for enterprise and colocation data centers. With a 208V input, 40A maximum per phase, and a total capacity of 14.4kW, this 0U vertical PDU delivers exceptional reliability, flexibility, and efficiency. Featuring 24 C13 and 18 universal C39 outlets across six color-coded load banks, it enables excellent load balancing and streamlined equipment connections.
Its embedded Gigabit Network Module (GNM) enhances cybersecurity through zero-trust architecture, chain-of-trust encryption, and zero-touch provisioning. Real-time monitoring, remote troubleshooting, and environmental alert support make it ideal for demanding IT environments.

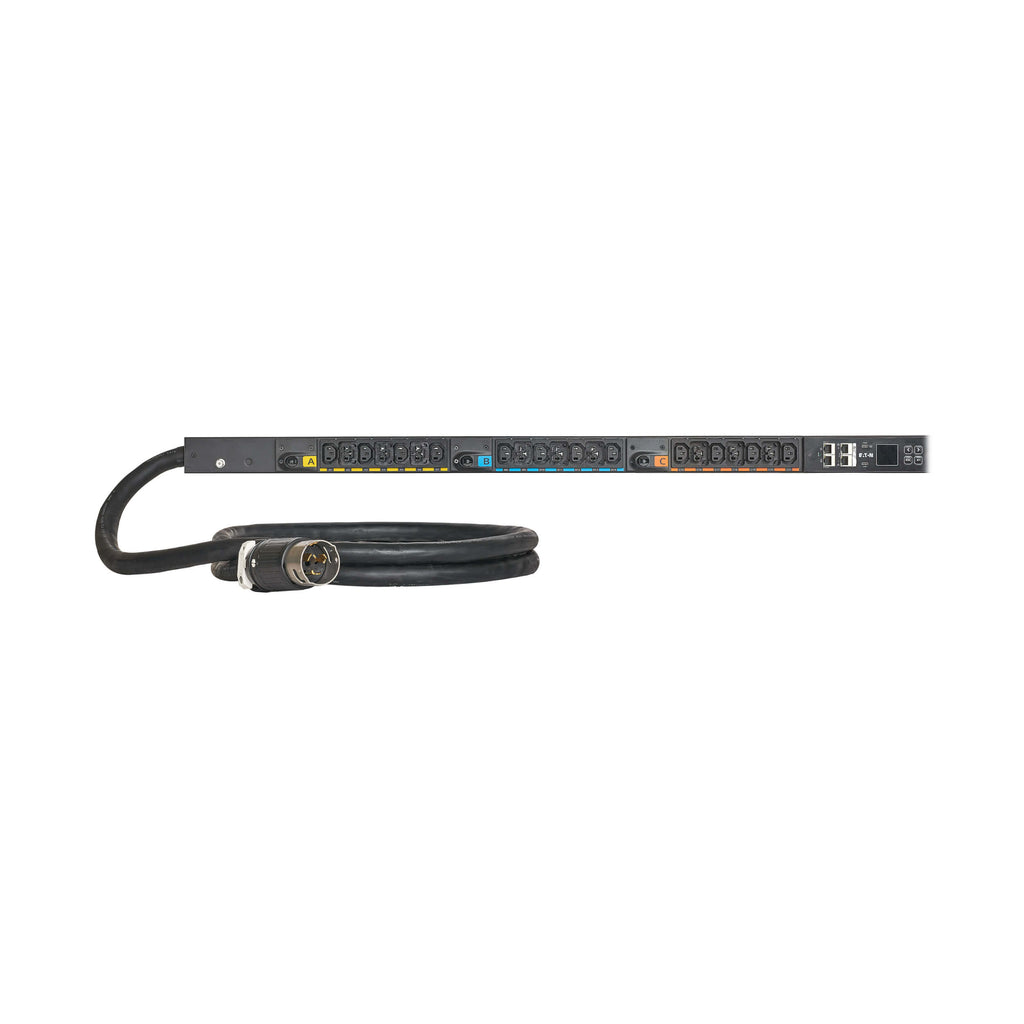

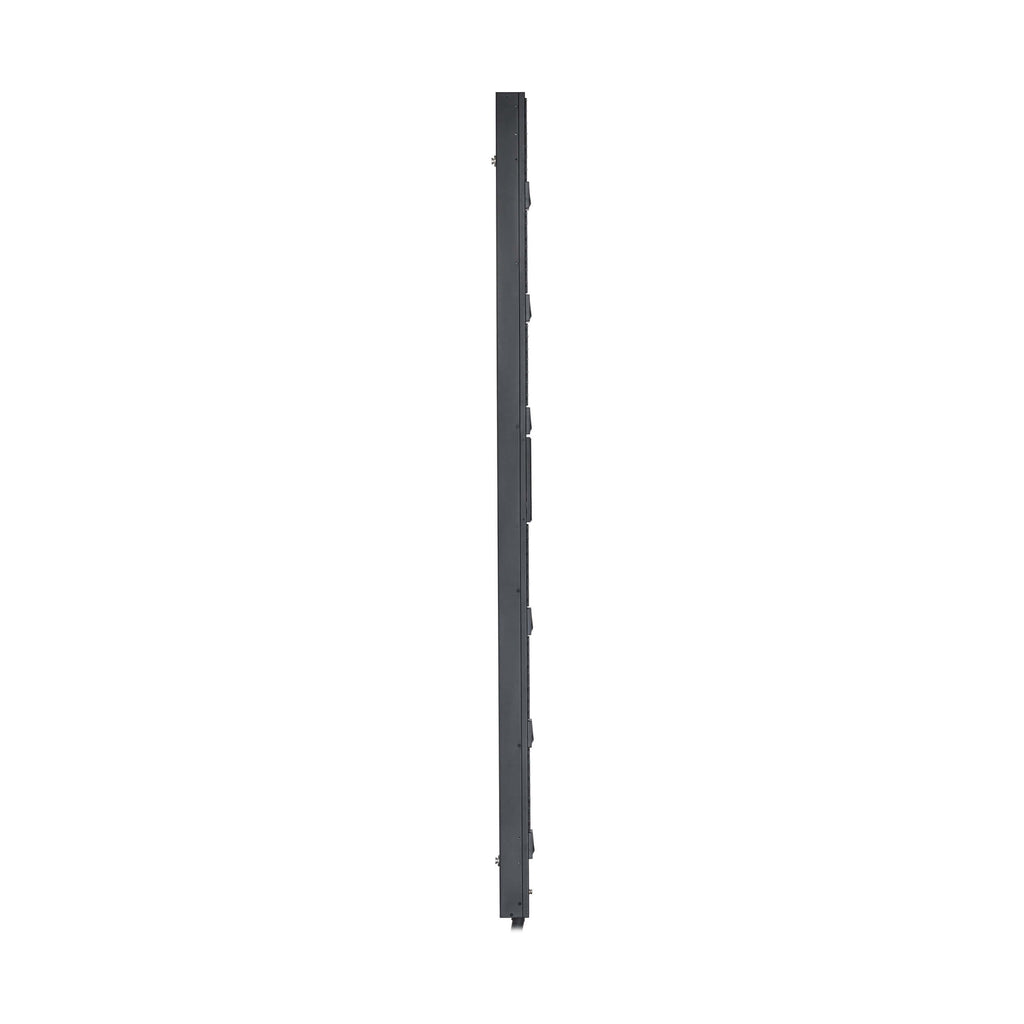

The EVMI8365X is built with lightweight, low-profile aluminum housing and mounts tool-free in standard 42U racks. With a 10-foot CS8365 power cord and the ability to cascade up to 40 units, it’s a future-ready solution for scalable and secure power distribution.
| Feature | Details |
|---|---|
| Model Number | EVMI8365X |
| Input Voltage | 208V, 3-Phase |
| Input Plug Type | CS8365 |
| Input Cord Length | 10 ft (3.05 m) |
| Max Input Current | 50A |
| Output Capacity | 14.4kW (208V), 40A per phase |
| Outlet Count & Type | 42 Outlets – 24 × C13, 18 × C39 |
| Load Banks | 6 Color-coded, with individual 20A breakers |
| Form Factor | 0U Vertical |
| Mounting Options | Toolless buttons (front/side); 61.25" spacing |
| Network Interface | Gigabit Ethernet with GNM (SNMP, web, daisy-chain) |
| Cybersecurity | Secure firmware boot, encryption, zero-trust |
| Display | Multi-color touchscreen with diagnostics |
| Cascade Support | Up to 40 PDUs, individual IPs |
| Material | Lightweight black aluminum chassis |
| Unit Dimensions (H×W×D) | 72 × 2 × 2.56 in (182.88 × 5.08 × 6.50 cm) |
| Unit Weight | 25.35 lbs (11.50 kg) |
| Operating Temp | 32–140°F (0–60°C) |
| Certifications | UL 62368-1, FCC Class A, RoHS, ICES |
| Warranty | 3-Year Limited |
