Description

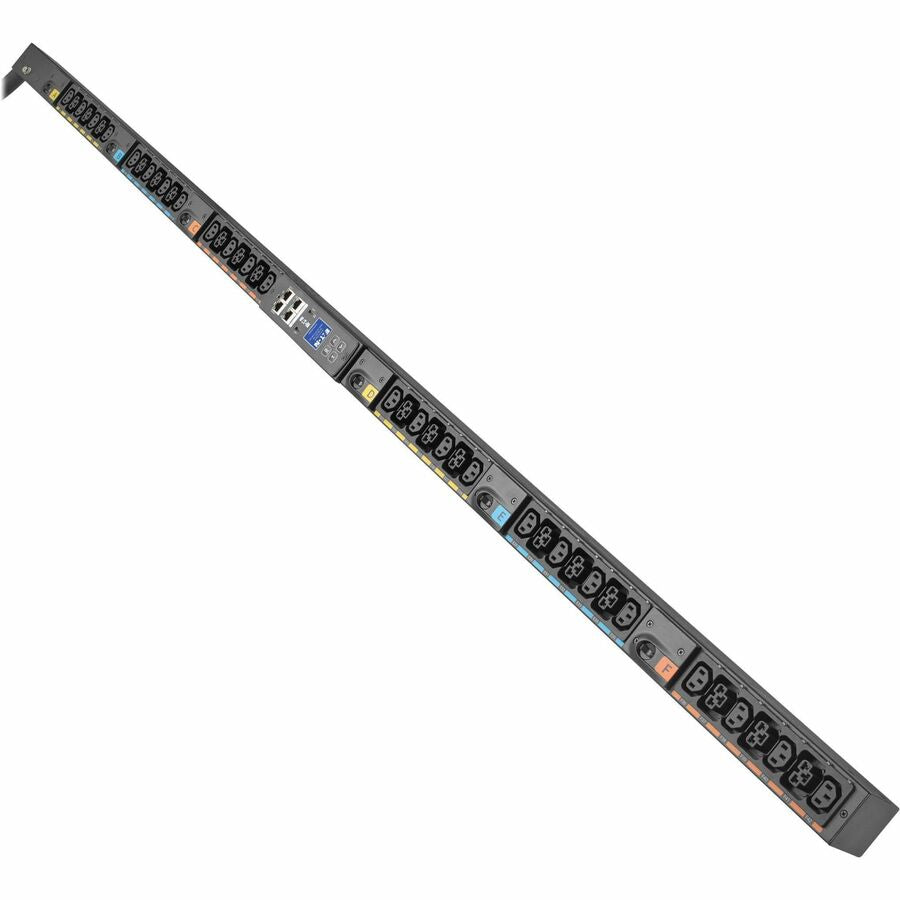

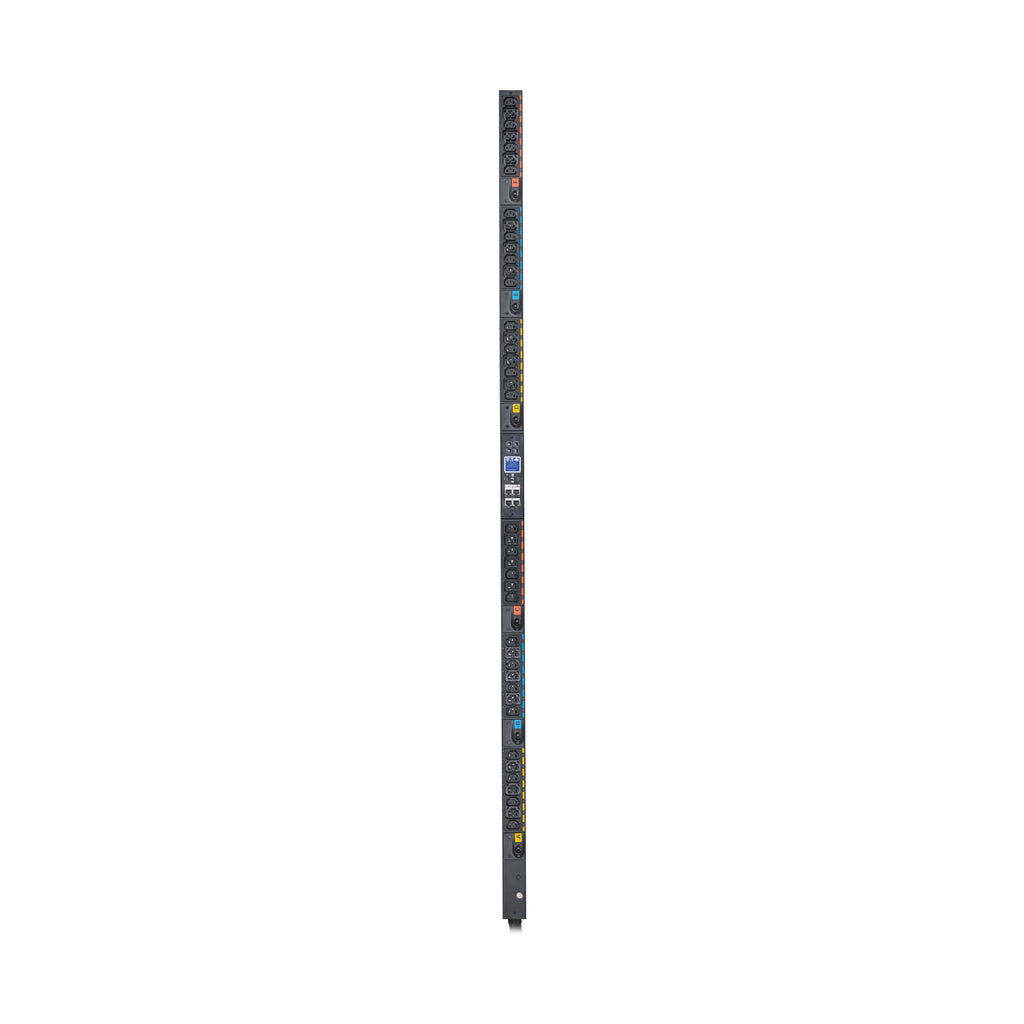

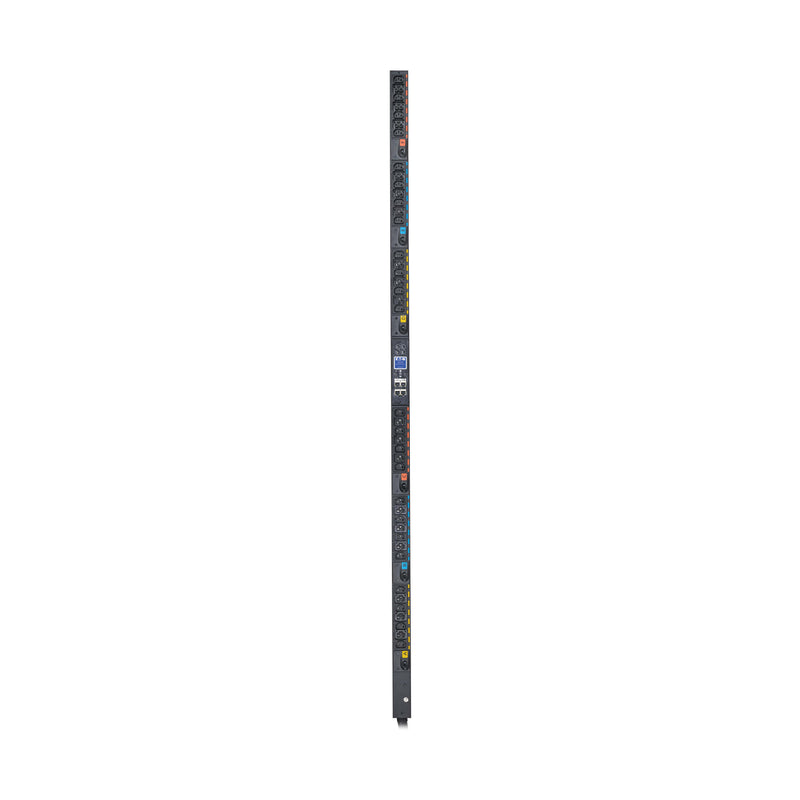

The Eaton EVMI4609X Metered Input Rack PDU G4 delivers enterprise-grade power distribution with 42 outlets in a space-saving 0U vertical form factor. Designed for 3-phase 208V environments, this PDU supports high-density deployments with a 17.3kW capacity and 48A max per phase.

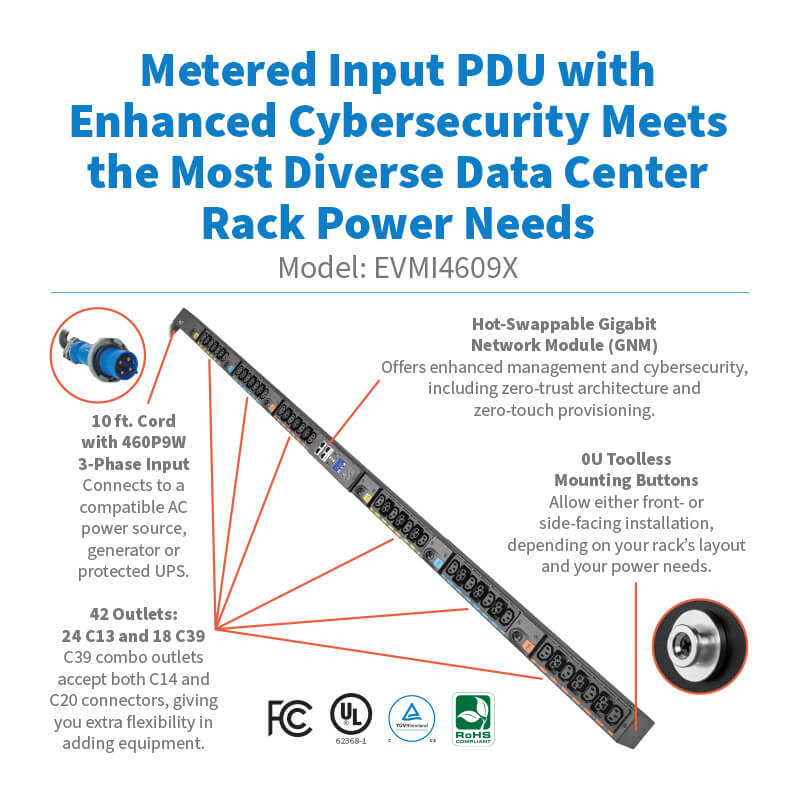

Equipped with 24 C13 and 18 C39 (C14/C20 compatible) outlets across 6 color-coded load banks, each with its own circuit breaker, the EVMI4609X enhances load balancing and organization. The embedded hot-swappable Gigabit Network Module (GNM) provides advanced cybersecurity, zero-touch provisioning, and seamless integration with Eaton’s Brightlayer Data Centers suite.
Toolless mounting, cascading capabilities, and support for optional environmental sensors make the EVMI4609X ideal for data centers and distributed IT environments seeking secure, scalable, and reliable power distribution.
| Specification | Details |
|---|---|
| Model Number | EVMI4609X |
| Form Factor | 0U Vertical |
| Input Voltage | 208V, 3-Phase |

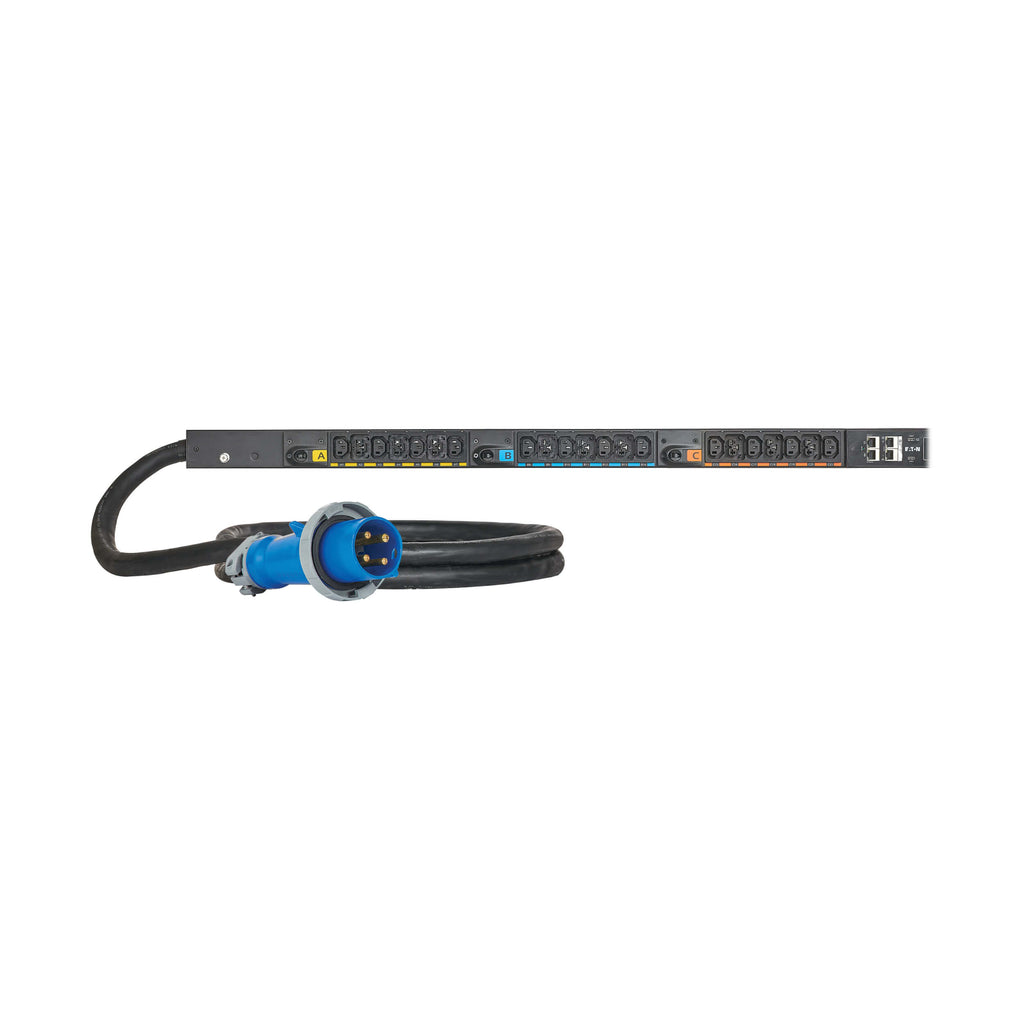

| Input Plug Type | 460P9W |
| Input Cord Length | 10 ft (3.05 m) |
| Maximum Input Current | 60A |
| Output Capacity | 17.3kW / 48A per phase |
| Outlets | 24 x C13, 18 x C39 (C14/C20 compatible) |
| Load Banks | 6 color-coded banks, each with 20A breaker |
| Network Interface | Gigabit Ethernet with Serial, SNMP, Daisy Chain |
| Management Module | Embedded Gigabit Network Module G4 |
| Cybersecurity Features | Chain-of-trust encryption, secure boot, zero-trust architecture |

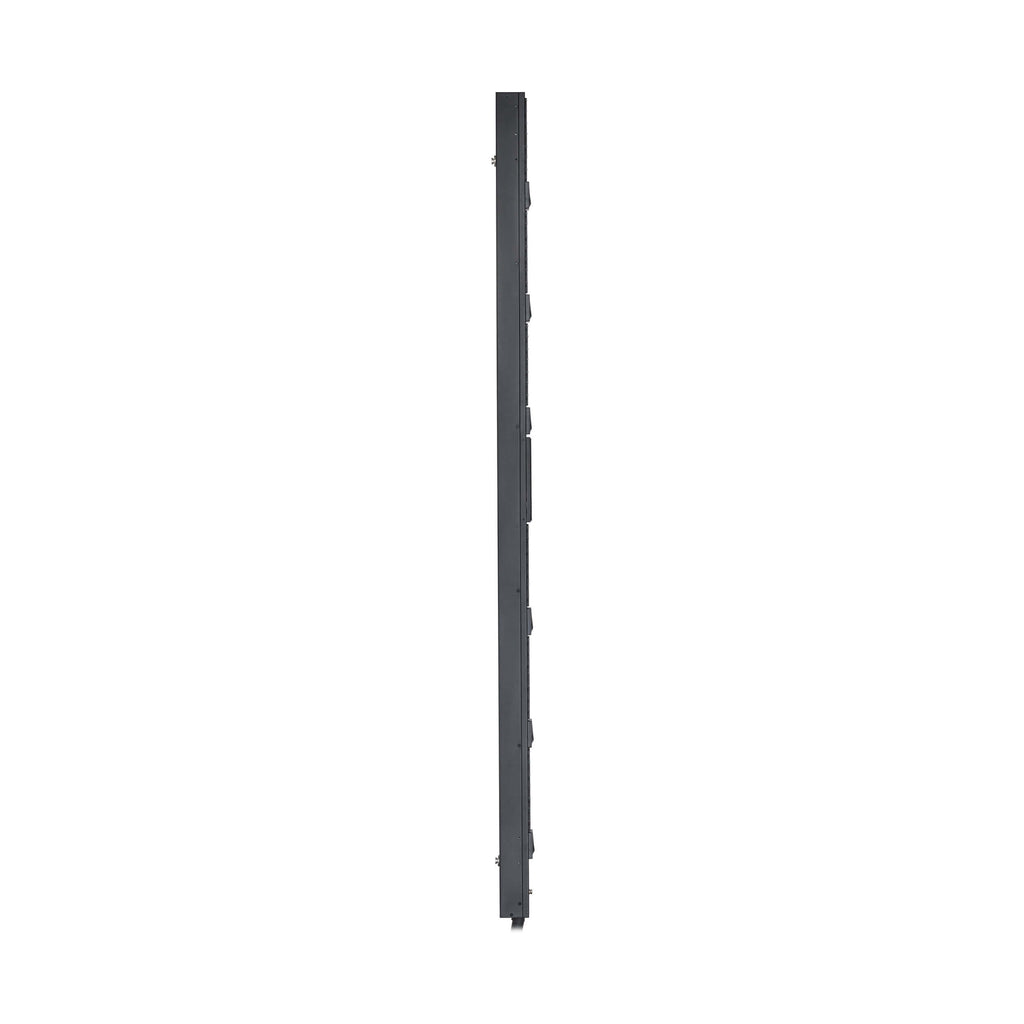

| Mounting | Toolless button mounts (front or side) |
| Construction | Black aluminum, 2 in. wide chassis |
| Display | LCD with pixel display and auto shut-off |
| Certifications | UL 62368-1, cTUVus, ICES, FCC Part 15 Class A, RoHS |
| Operating Temperature | 32° to 140°F (0° to 60°C) |
| Warranty | 3-Year Limited Warranty |
| Shipping Dimensions | 79 x 9.29 x 5.40 in (200.66 x 23.60 x 13.72 cm) |
| Unit Dimensions | 72 x 2 x 2.56 in (182.88 x 5.08 x 6.50 cm) |
| Weight | 25.35 lbs (11.5 kg) |
