Description

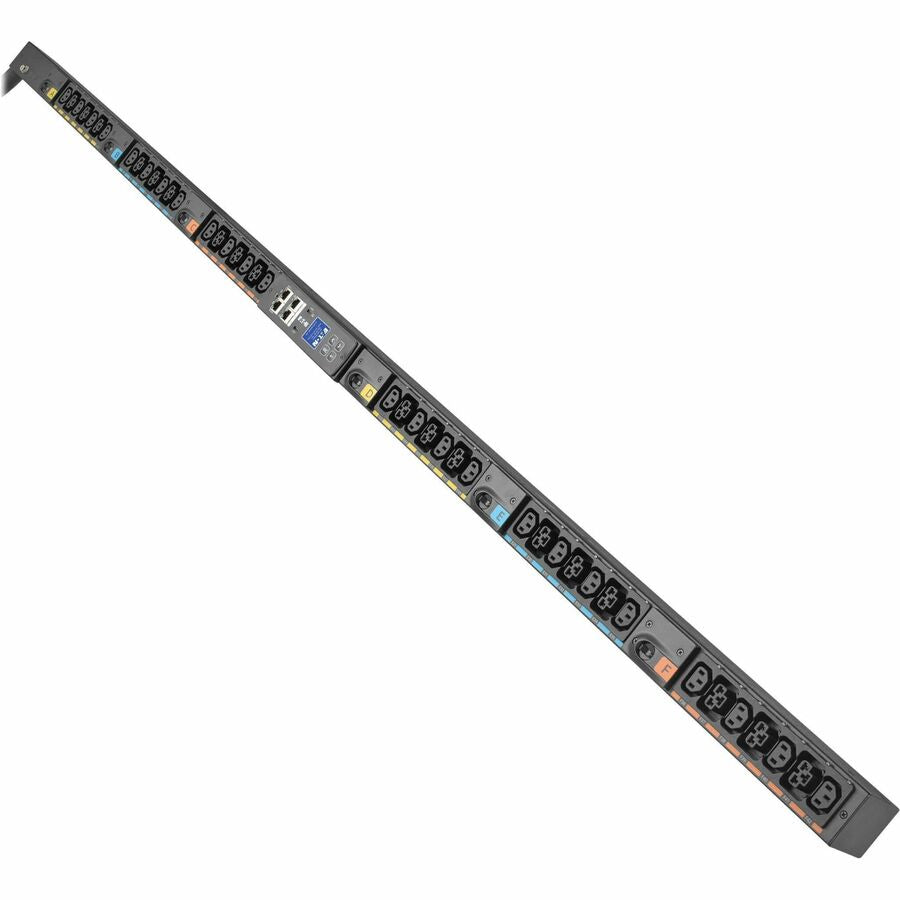

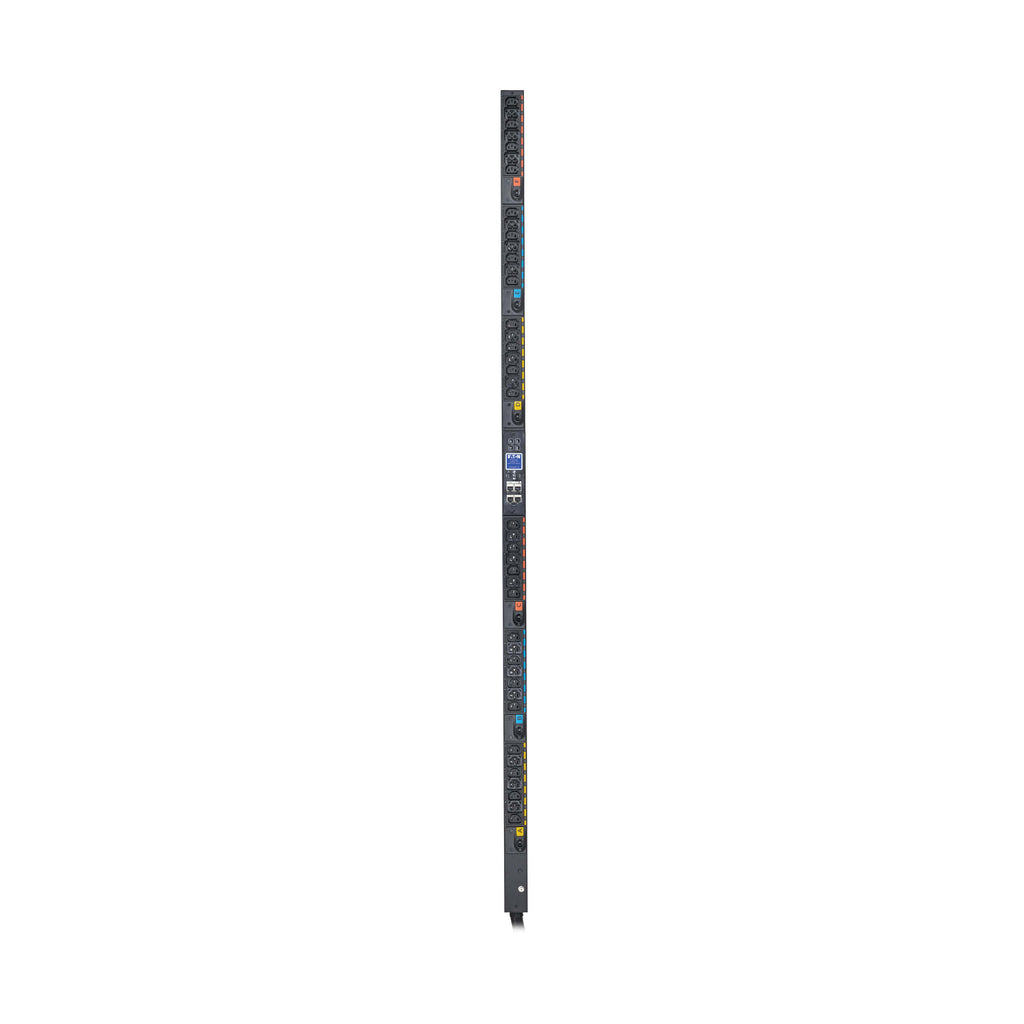

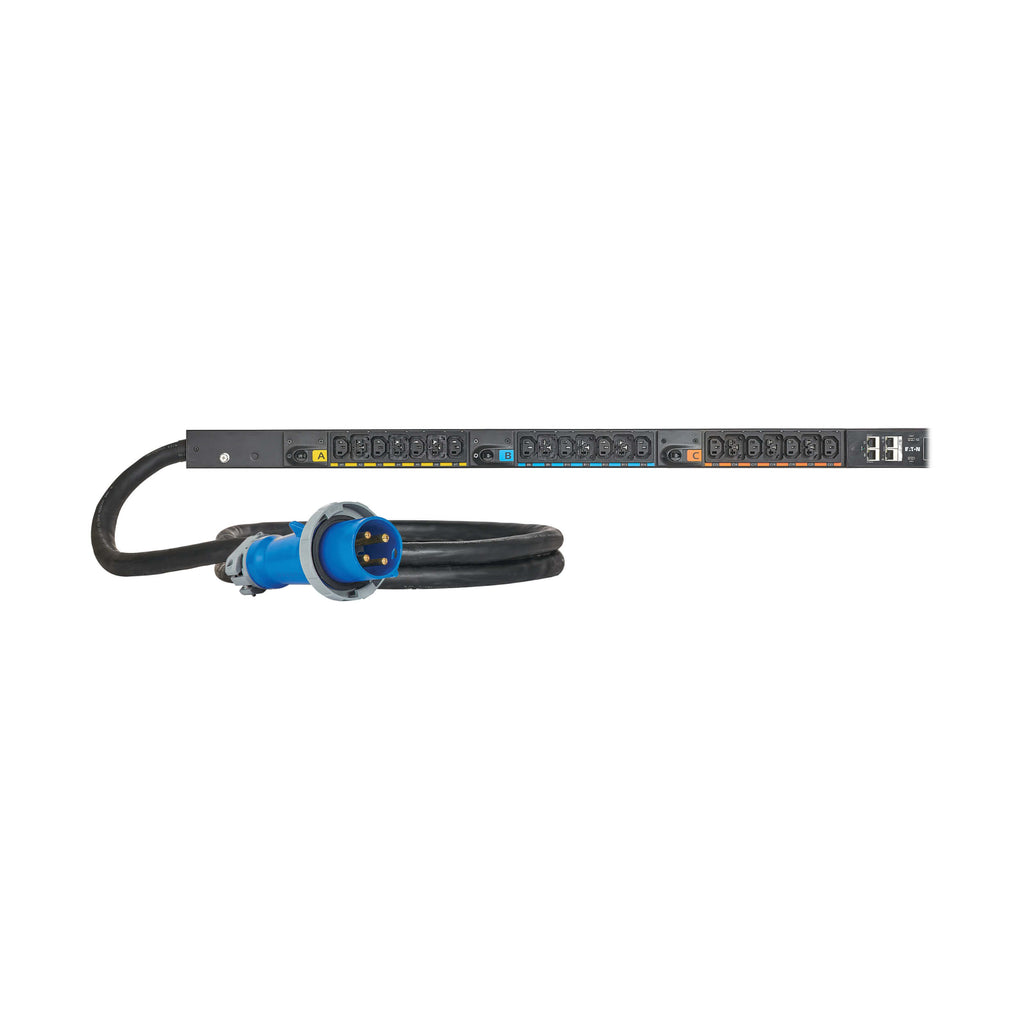

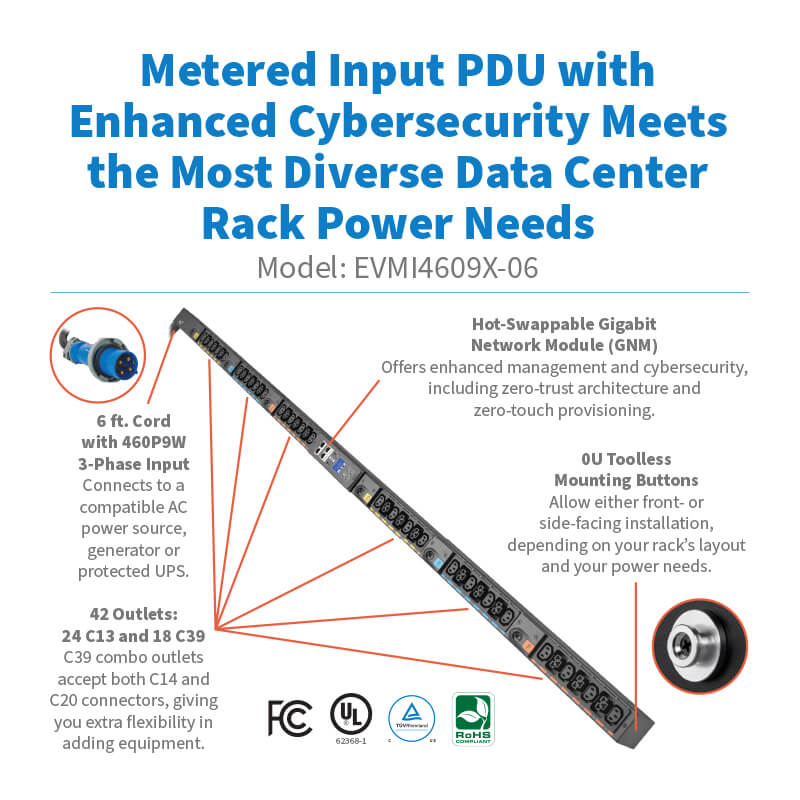

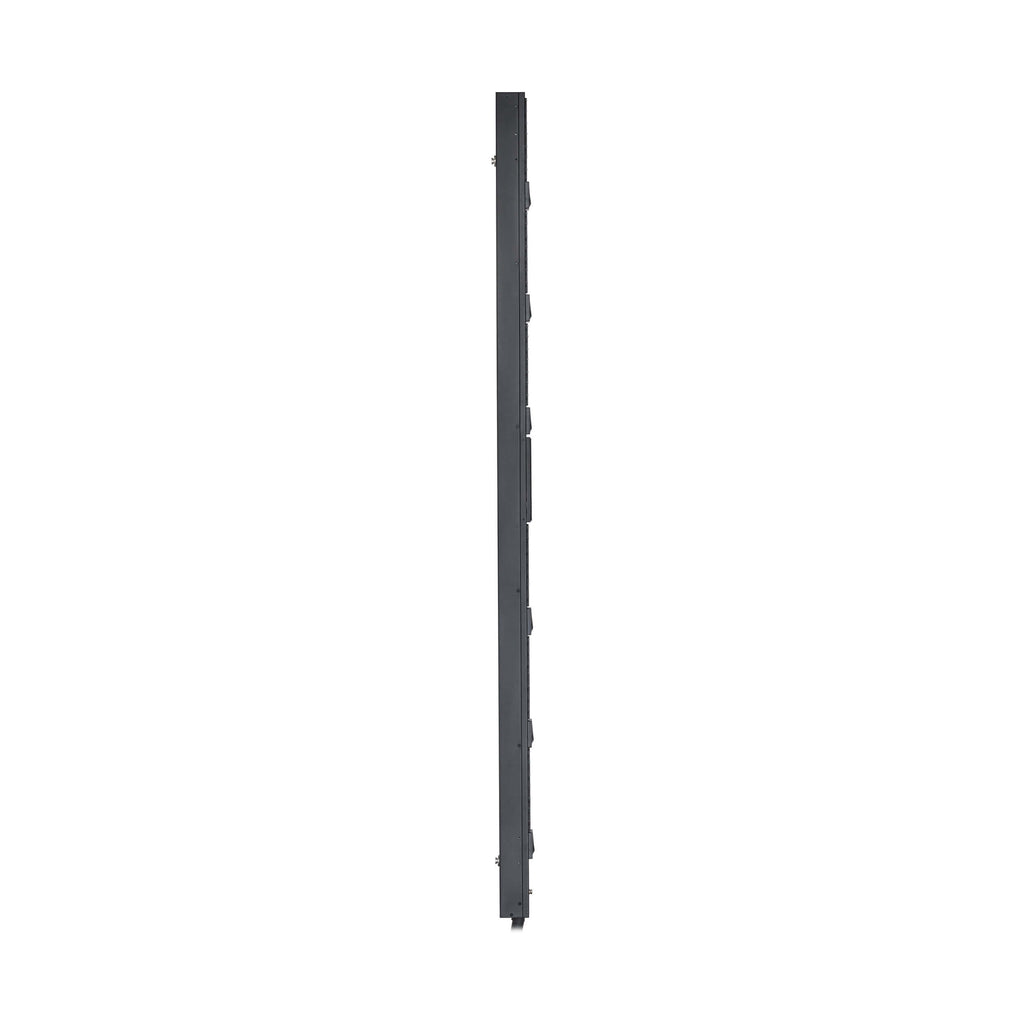

The Eaton EVMI4609X-06 is a 3-phase Metered Input Rack PDU (G4) designed for enterprise data centers and distributed IT environments that require robust, secure, and intelligent power distribution. With 42 outlets (24 C13 and 18 C39 universal), this vertical 0U PDU supports up to 17.3kW and features a 460P9W input plug with a 6-foot cord.
This PDU includes an embedded hot-swappable Gigabit Network Module (GNM) that offers remote monitoring, enhanced cybersecurity with zero-trust architecture, and compatibility with Eaton Brightlayer Data Centers suite. Toolless mounting, color-coded load banks, and individually protected outlet groups make it easy to install and manage.
From flexible load balancing to cascading up to 40 units, the EVMI4609X-06 is purpose-built to streamline your power infrastructure with accuracy, reliability, and security.
| Specification | Details |
|---|---|
| Model Number | EVMI4609X-06 |
| PDU Type | Metered Input |
| Input Voltage | 208V AC, 3-Phase |
| Input Plug Type | 460P9W |
| Max Input Current | 60A (48A per output phase) |
| Power Capacity | 17.3kW / 17,300W |
| Frequency Compatibility | 50/60 Hz |
| Outlet Configuration | 24 x C13, 18 x C39 (C14/C20 compatible) |
| Cord Length | 6 ft (1.83 m) |
| Vertical Rack Units (U) | 0U |
| Mounting Style | Toolless, front or side mounting |
| Network Management | Gigabit Network Module, SNMP, Serial, Ethernet |
| Daisy-Chain Capability | Up to 40 units |
| Measurement Accuracy | ±1% for current, voltage, power |
| Display | LCD for real-time data and alarms |
| Circuit Protection | 6 x 2-pole 20A breakers (color-coded banks) |
| Certifications | UL 62368-1, cTUVus, ICES, RoHS, FCC Class A |
| Operating Temperature | 0° to 60°C (32° to 140°F) |
| Warranty | 3-Year Limited |
| Dimensions (HxWxD) | 72 x 2 x 2.56 in (182.88 x 5.08 x 6.50 cm) |
| Weight | 25.35 lbs (11.5 kg) |
