Description

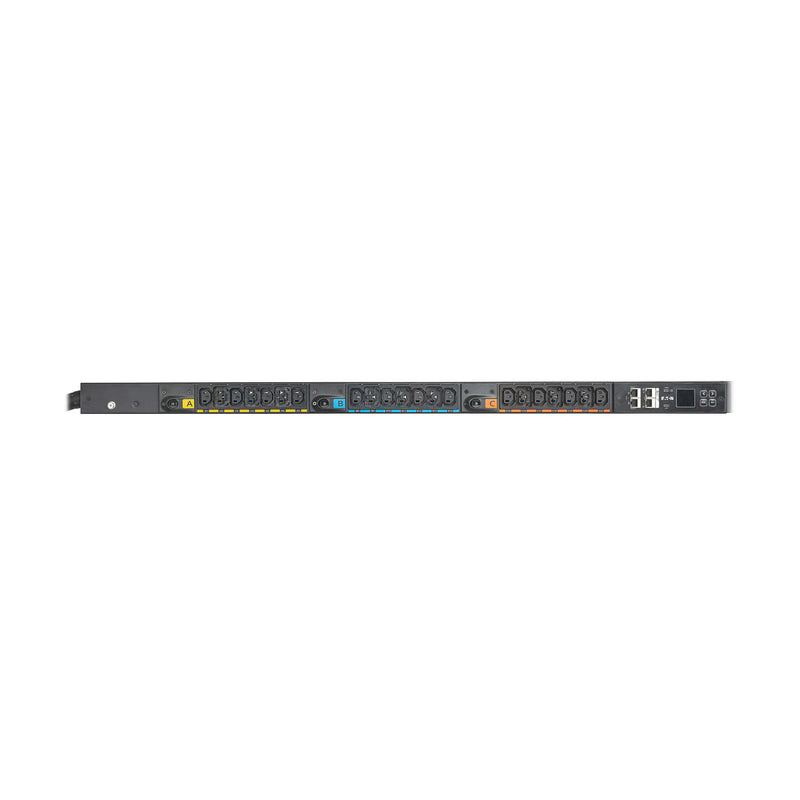

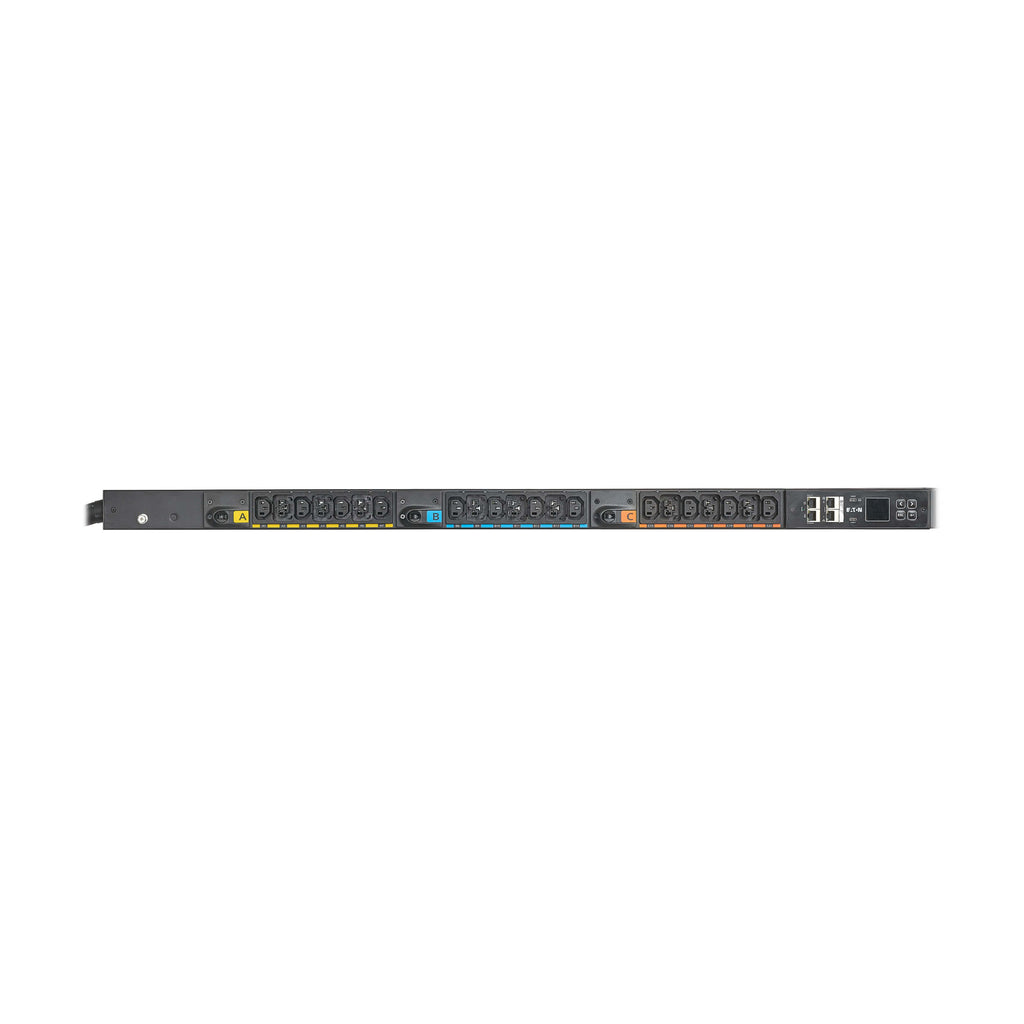

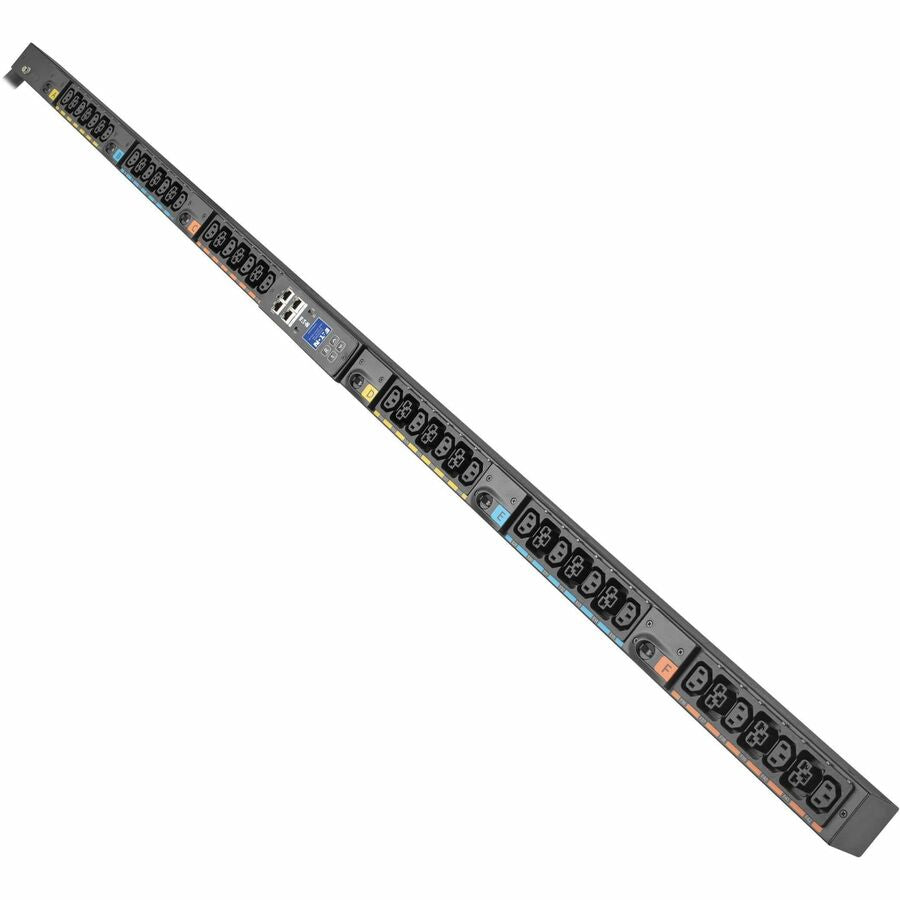

The Eaton EVMIG332X is a 3-phase metered input rack PDU G4 designed for secure, high-density power distribution in enterprise data centers and colocation facilities. Featuring a 240/415V input and 17.3kW output capacity, it offers 42 total outlets—24 C13 and 18 C39 universal—to support a wide range of IT equipment.

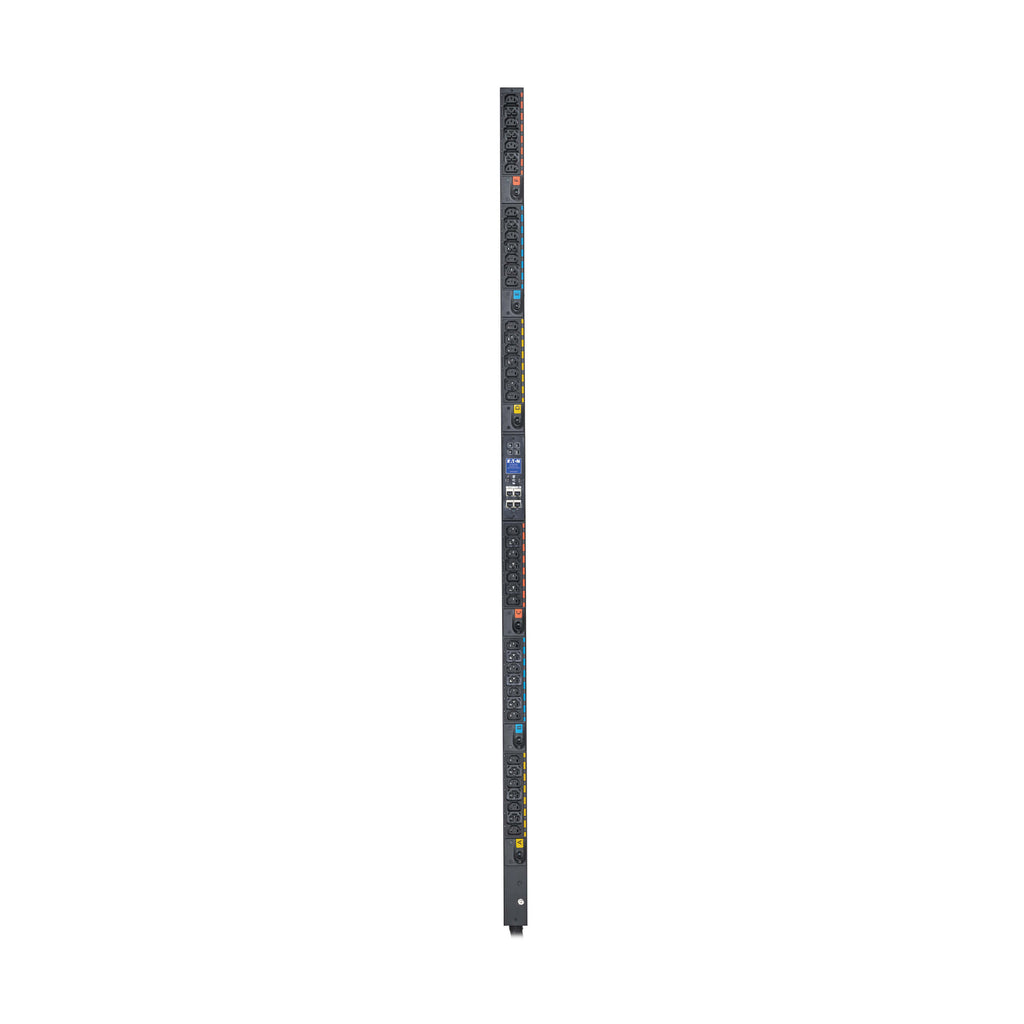

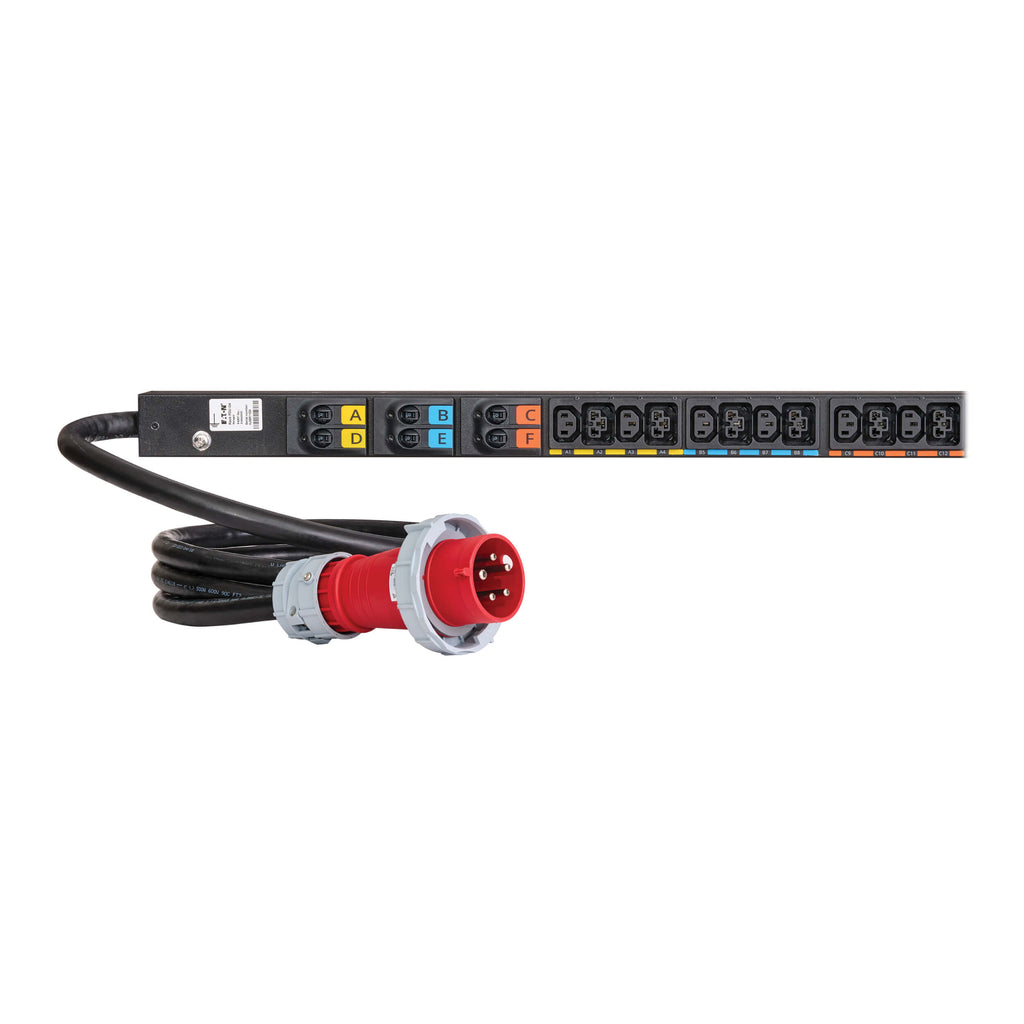

This 0U vertical PDU includes a 10 ft. cord with a 532P6W plug and supports streamlined, tool-less installation. Its embedded Gigabit Network Module (GNM) enhances cybersecurity with secure firmware, zero-trust architecture, and remote monitoring capabilities. Six color-coded load banks, each protected by its own 20A circuit breaker, help with load balancing and cable management. With cascading support for up to 40 PDUs and real-time monitoring via Brightlayer-compatible software, the EVMIG332X is built for scalable, secure power management.
| Specification | Details |
|---|---|
| Model Number | EVMIG332X |
| PDU Type | Metered Input Rack PDU G4 |
| Input Voltage | 240/415V 3-Phase Wye |
| Input Plug Type | 532P6W |
| Input Cord Length | 10 ft. (3.05 m) |
| Maximum Input Current | 32A |
| Output Capacity | 17.3kW (24A per phase UL / 32A per phase CE) |
| Output Receptacles | 24 × C13, 18 × C39 (universal C14/C20 compatible) |
| Circuit Protection | 6 × 20A (1 per load bank), low-profile breakers |
| Mounting | 0U Vertical, Toolless buttons (front or side-facing) |
| Cybersecurity | Embedded GNM, Secure boot, Zero-trust, Zero-touch |
| Network Interfaces | Serial/Ethernet, SNMP, Gigabit support |
| Cascading Support | Up to 40 units, each with its own IP address |
| Display | LCD screen with outlet-level readings |
| Material & Color | Aluminum, Black |
| Unit Dimensions (HWD) | 68.1 × 2.09 × 2.05 in (172.97 × 5.08 × 5.28 cm) |
| Unit Weight | 16.54 lbs (7.5 kg) |
| Certifications | UL 62368-1, CE, FCC Class A, RoHS, ICES, cTUVus |
| Operating Temperature | 0° to 60°C (32° to 140°F) |
| Warranty | 3-Year Limited Warranty |
