Description

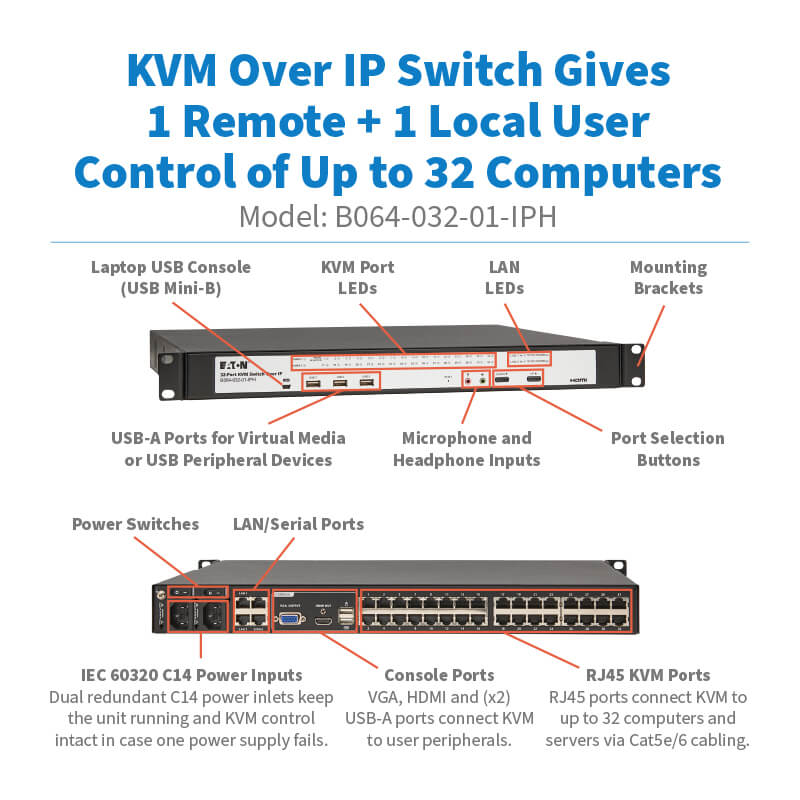

The Eaton B064-032-01-IPH is a 32-port Cat5e KVM over IP switch designed for enterprise-level control of servers and computers from any location. Supporting both local and remote users (1 local, 1 remote), it features high-resolution HDMI and VGA outputs, virtual media capability for remote file access, and dual redundant power inlets for continuous uptime. This 1U rack-mountable unit is ideal for centralized server management in data centers, government installations, and industrial networks. TAA compliant for federal procurement, it includes USB, VGA/HDMI console support, strong encryption standards, and multi-language OSD.
| Category | Details |
|---|---|
| Model Number | B064-032-01-IPH |
| Product Type | Cat5e KVM over IP Switch with Virtual Media |
| Number of Ports | 32 RJ45 Computer Ports |
| User Access | 2 Users (1 Local, 1 Remote) |
| Console Ports | HDMI, VGA, USB |
| Max Video Resolution | 1920 x 1200 @ 60 Hz |
| Supported Protocols | IPv4, IPv6, DHCP |
| Security | 128-bit SSL, 1024-bit RSA, AES-256, DES-56, FIPS 140-2 |
| Virtual Media Support | Yes, via USB |
| Server Interface Units | Requires B055-001-USB, B055-001-USB-V2, etc. (sold separately) |
| Max Cascade Connections | Up to 256 Computers |
| Power Supply | Dual Redundant C14 Inlets (100–240V AC, 50/60 Hz, 1A) |
| Power Cord | (2) C13 to C14, 6.6 ft. (2 m) |
| Mounting | 1U Rackmount, Hardware Included |
| Dimensions (HWD) | 1.72 x 17.06 x 16.27 in. (43.7 x 433.2 x 413.3 mm) |
| Weight | 7.75 lbs. (3.52 kg) |
| Operating Temp | 32° to 104°F (0° to 40°C) |
| Compliance | TAA, FIPS 140-2, CE, FCC, RoHS, REACH, UKCA, UL 62368-1 |
| Warranty | 3-Year Limited Warranty |

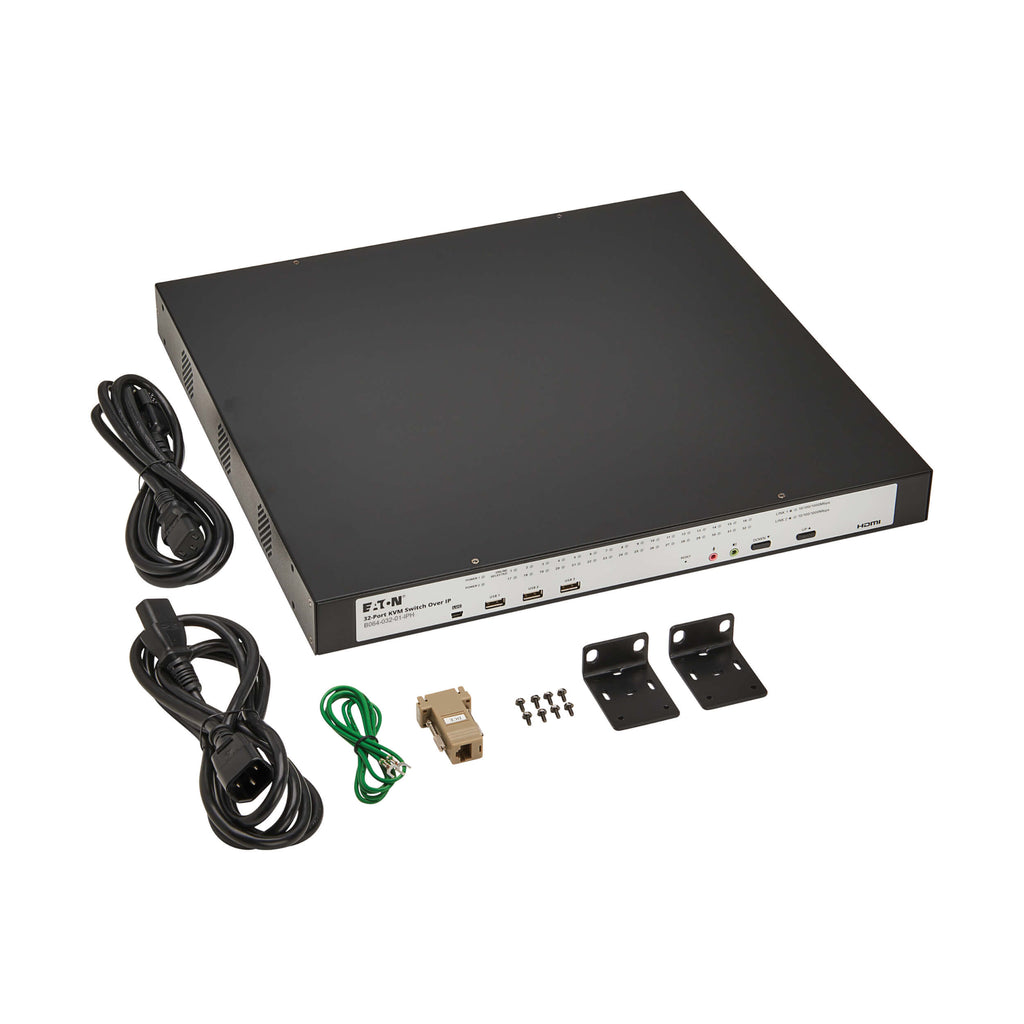

| Included Accessories | Power Cords, Grounding Wire, Foot Pads, Rackmount Kit, Installation Manual |
