Description

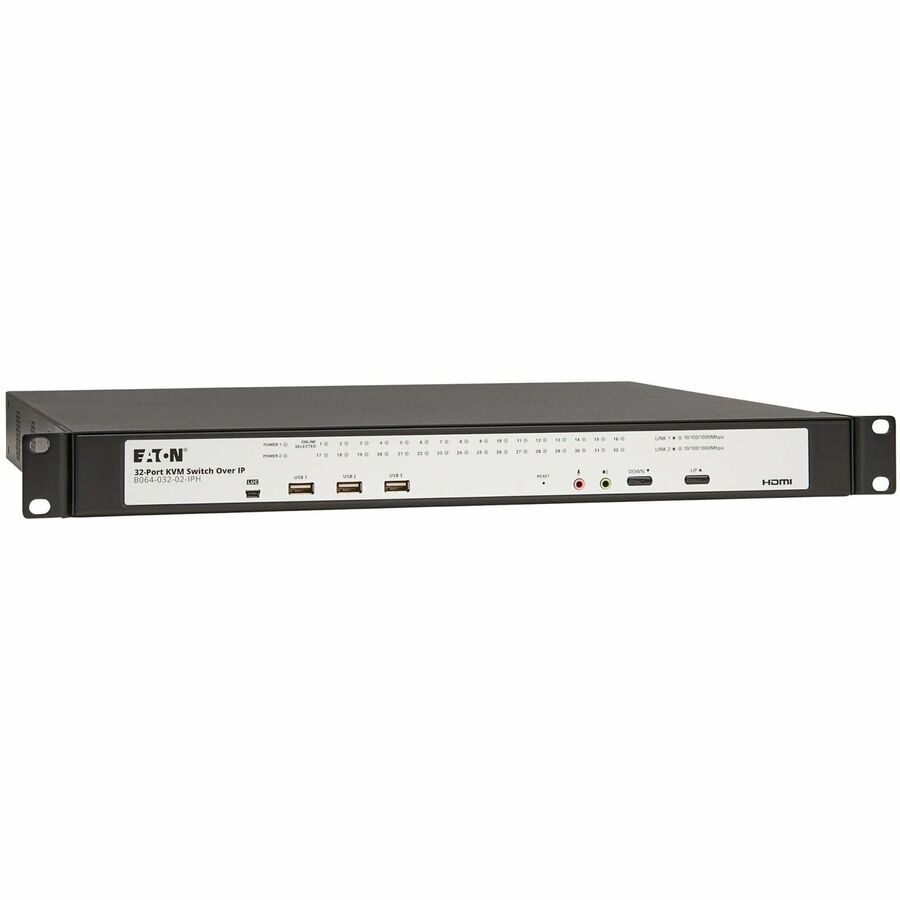

The Eaton B064-032-02-IPH NetDirector® Cat5e KVM over IP Switch lets you control up to 32 computers or servers, including blade servers, using a single monitor, USB keyboard, and mouse—whether you're onsite or remote. With support for 2 remote and 1 local user, this 1U rack-mountable unit offers flexible BIOS-level access via Cat5e cabling, HDMI or VGA output, and an intuitive multi-language GUI.
Designed for enterprise environments, the switch features dual redundant C14 power inlets, Virtual Media support for remote file transfers, and advanced encryption standards including FIPS 140-2. Access is streamlined with pushbuttons, hotkeys, OSD, or remote GUI. Manage equipment via any major web browser with no server-resident software required.
| Specification | Details |
|---|---|
| Model Number | B064-032-02-IPH |
| Form Factor | 1U Rackmount |
| Number of Ports | 32 RJ45 Cat5e |
| Number of Users | 2 Remote + 1 Local |
| Console Interfaces | HDMI, VGA, USB |
| Max Video Resolution | 1920 x 1200 @ 60Hz, 24-bit |
| Power Input | Dual IEC-320-C14, 100–240V AC, 50/60Hz |
| Power Redundancy | Yes (Dual C14) |
| USB Support | USB 2.0, Virtual Media (front-panel ports) |
| Cascadable | Yes, up to 256 computers |
| Security Protocols | FIPS 140-2, 256-bit AES, 128-bit SSL, 1024-bit RSA |
| Authentication | LDAP, LDAPS, RADIUS |
| Hotkey / OSD / GUI Control | Yes |
| Operating Temp | 0° to 40°C (32° to 104°F) |
| Humidity | 0–80% non-condensing |
| Chassis Material | Metal |
| Unit Dimensions (HWD) | 1.72 x 17.06 x 16.27 in. |
| Unit Weight | 7.75 lbs (3.52 kg) |
| TAA Compliant | Yes |
| Standards & Certifications | CE, FCC, RoHS, REACH, UL 62368-1, FIPS 140-2, UKCA |
| Warranty | 3-Year Limited Warranty |
| Package Includes | KVM Switch, (2) Power Cords, Grounding Wire, Rackmount Kit, Foot Pads, Instructions |
