Description

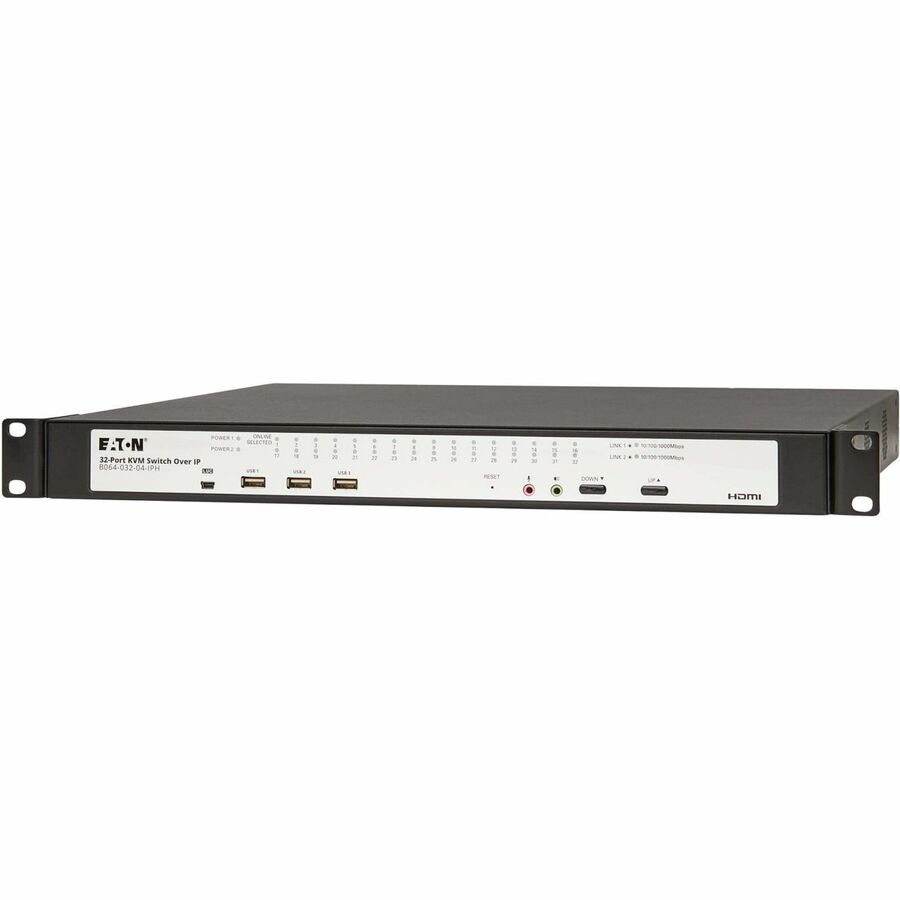

The Eaton B064-032-04-IPH is a high-performance 32-port Cat5e KVM over IP switch designed for enterprise-grade control and flexibility. Supporting up to 3 remote users and 1 local user simultaneously, it enables BIOS-level access to servers from virtually anywhere. With Virtual Media support, users can remotely mount USB drives, DVDs, or CDs for file transfer, diagnostics, or software installation.
Featuring both HDMI and VGA console outputs and compatibility with Windows, macOS, Linux, and Unix, this 1U rack-mountable KVM is ideal for scalable data center environments. It includes dual redundant power inlets, LUC (Laptop USB Console) port, and Java-free software with advanced encryption and multi-user authentication via LDAP, RADIUS, or Active Directory. TAA compliance ensures it's eligible for GSA procurement.
| Specification | Details |
|---|---|
| Model Number | B064-032-04-IPH |
| Ports | 32 x RJ45 for computers/servers |
| Users | 4 (3 Remote, 1 Local) |
| Virtual Media | Yes, via USB and B055-Series interface units |
| Video Output | HDMI and VGA (simultaneous) |
| Max Video Resolution | 1920 x 1200 @ 60Hz |
| Console Ports | USB (keyboard/mouse), HDMI/VGA (monitor) |
| Laptop Console Port | USB Mini-B (LUC) |
| Cascading Support | Yes, up to 256 total systems |
| Authentication | LDAP, LDAPS, RADIUS, Active Directory |
| Encryption | FIPS 140-2, SSL, AES, RSA, DES |
| Rack-Mountable | Yes, 1U height |
| Redundant Power | Dual IEC-320-C14 input inlets |
| Power Requirements | 100–240V AC, 50/60Hz, 1A |
| Operating Temp | 0° to 40°C (32° to 104°F) |
| Storage Temp | -20° to 60°C (-4° to 140°F) |
| Humidity | 0–80% RH, non-condensing |
| Dimensions (HxWxD) | 1.72 x 17.06 x 16.27 in (43.7 x 433.4 x 413.2 mm) |
| Weight | 7.75 lbs (3.52 kg) |
| Certifications | TAA, FIPS 140-2, CE, FCC, RoHS, UL 62368-1, UKCA, REACH |
| Warranty | 3-year limited warranty |
| Package Includes | KVM switch, 2x C13–C14 power cords, grounding wire, foot pads, rack kit |
