Description

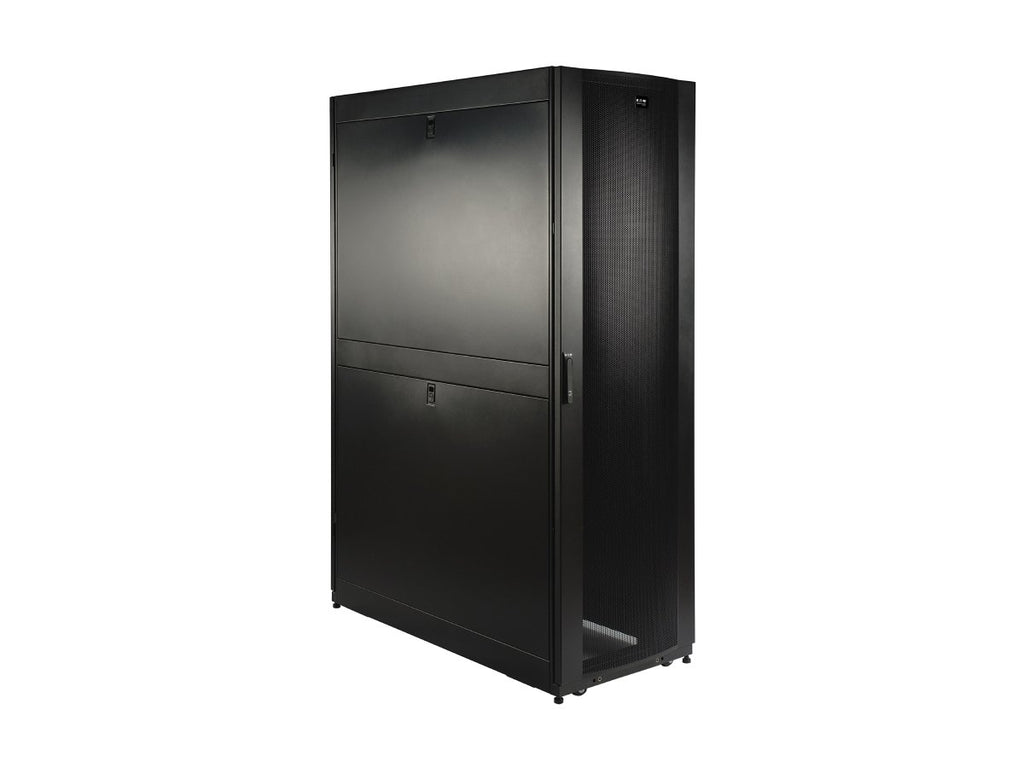

The Eaton Tripp Lite SR42UBDPSP1 42U SmartRack Deep Rack Enclosure Cabinet is designed for high-density server, network, UPS, and data center equipment installations that require additional mounting depth and robust equipment protection. Its deep enclosure design provides extra room for cable management and equipment with rear-mounted or hot-swappable power supplies.

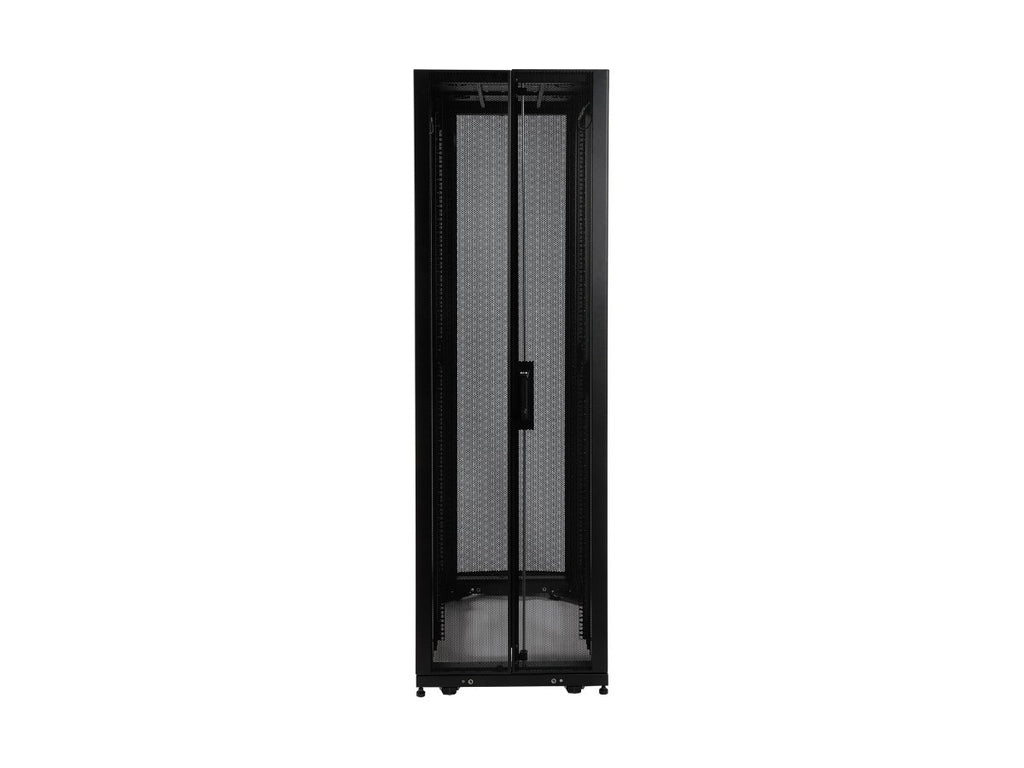

The 42U enclosure features adjustable front and rear vertical mounting rails, built-in cable management, high-capacity ventilation, removable side panels, and locking, reversible doors. Pre-installed casters and leveling feet simplify positioning and deployment, while the enclosure supports up to 3,500 lb (1,588 kg) stationary and 2,250 lb (1,021 kg) rolling. It also features grounding provisions, an open-bottom design for cable access, and a removable top panel with cable routing openings.
With compatibility for servers, network switches, patch panels, and UPS systems, this SmartRack enclosure provides a versatile infrastructure solution for enterprise IT environments, server rooms, and data centers.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| SKU / Model | SR42UBDPSP1 |
| Product Type | Rack Enclosure Cabinet |
| Rack Type | Enclosure |
| Rack Height | 42U |
| Rack Depth | Deep |
| Color | Black |
| Device Compatibility | Patch Panel, Network Switch, UPS, Server |
| Factory Preset Rack Depth | 28.125 in. (714 mm) |
| Maximum Device Depth | 42 in. (1,067 mm) |
| Minimum Device Depth | 4 in. (102 mm) |
| Unit Dimensions (H × W × D) | 78.500 × 23.630 × 48.500 in. |
| Unit Dimensions (Metric) | 199.39 × 60.02 × 123.19 cm |
| Unit Weight | 315 lb (142.88 kg) |
| Stationary Load Capacity | 3,500 lb (1,588 kg) |
| Rolling Load Capacity | 2,250 lb (1,021 kg) |
| Vertical Mounting Rails | 4 |
| Built-in Cable Management | Yes |
| Pre-Installed Casters | Yes |
| Grounding | Front and back door frames |
| Outdoor Use | No |
| Shipping Dimensions (H × W × D) | 85.00 × 33.50 × 50.00 in. |
| Shipping Weight | 365 lb (165.56 kg) |
| Product Certification | UL 60950-1 |
| Compliance | RoHS, CE (Europe), UKCA |
| Warranty | 5-Year Limited Warranty |
