Description

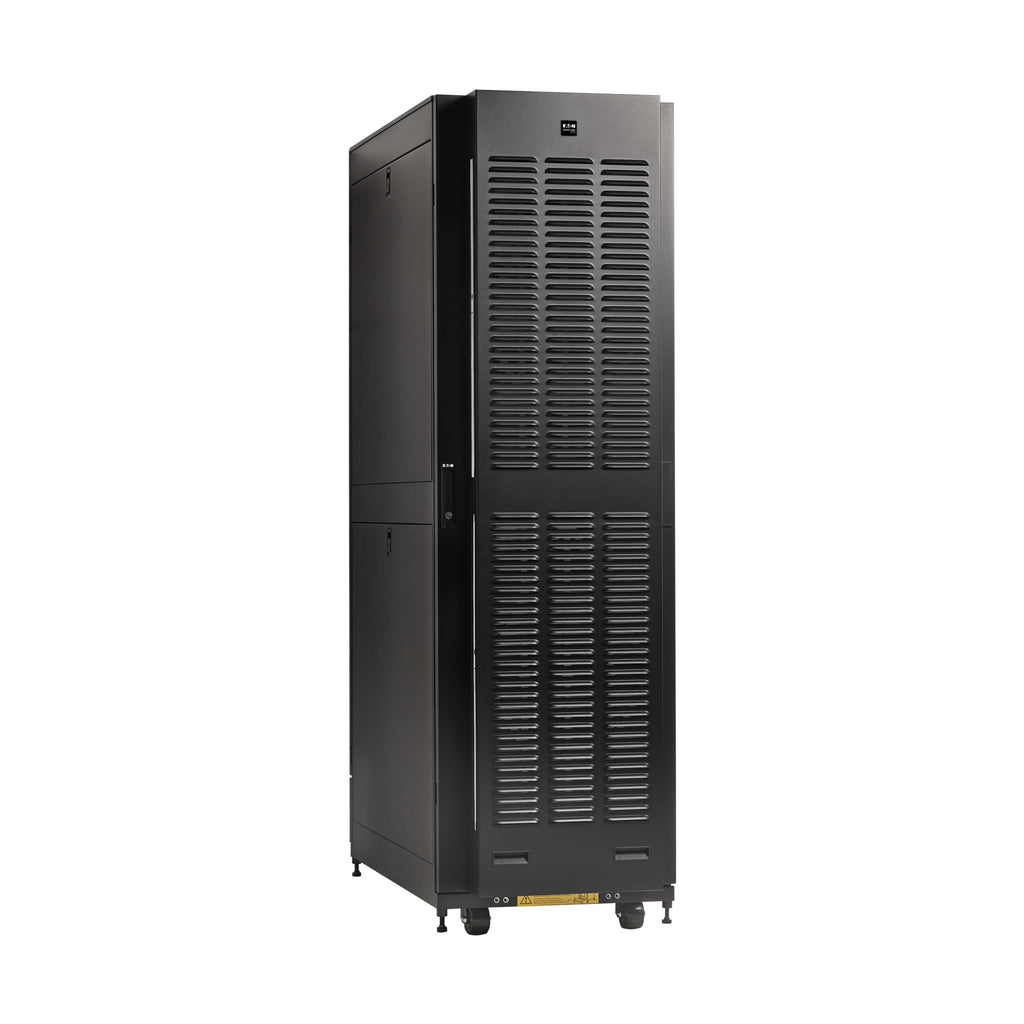

The Eaton Tripp Lite SR42UBEISSP1 SmartRack 42U Industrial Rack Enclosure is engineered to protect mission-critical IT and networking equipment in harsh industrial environments. Designed for factories, warehouses, construction sites, utility plants, and processing facilities, this IP54-rated enclosure helps safeguard servers, UPS systems, network switches, and patch panels from dust, dirt, drips, splashes, and accidental contact.

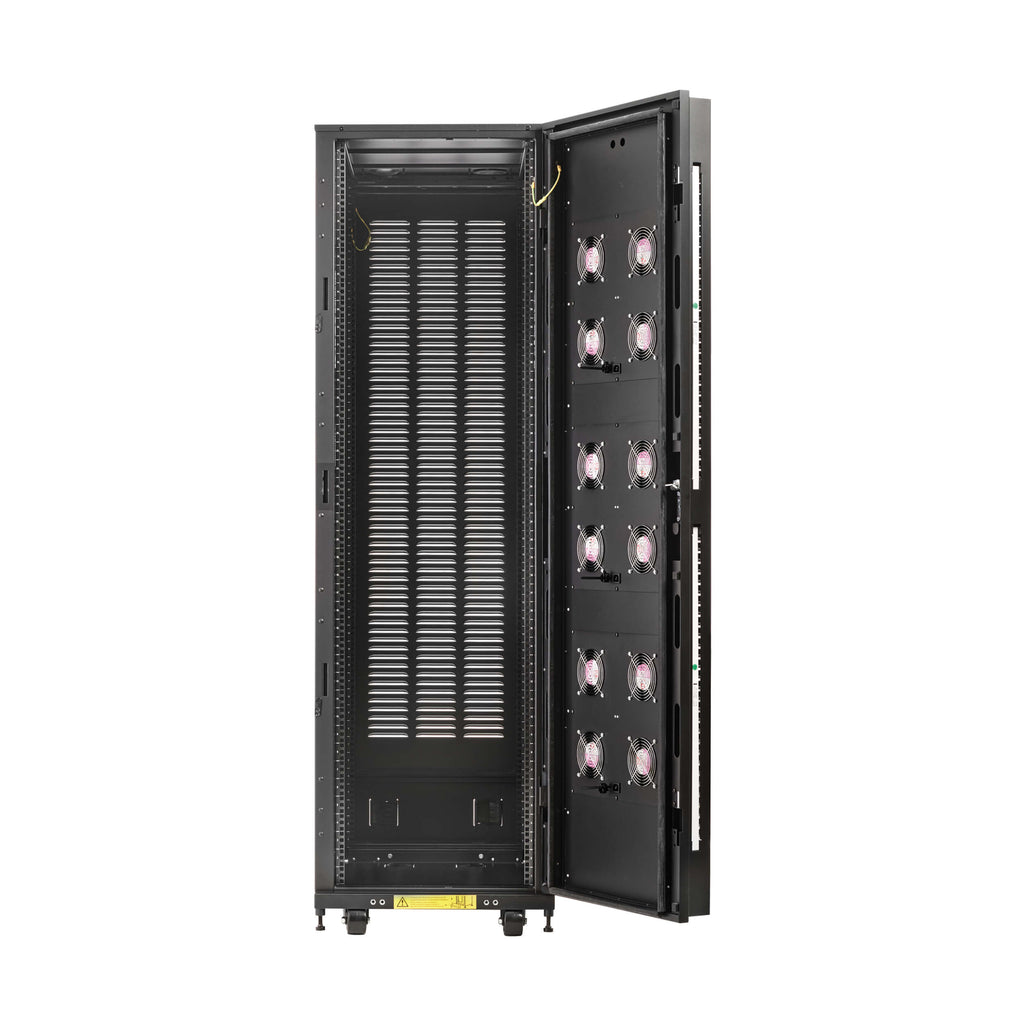

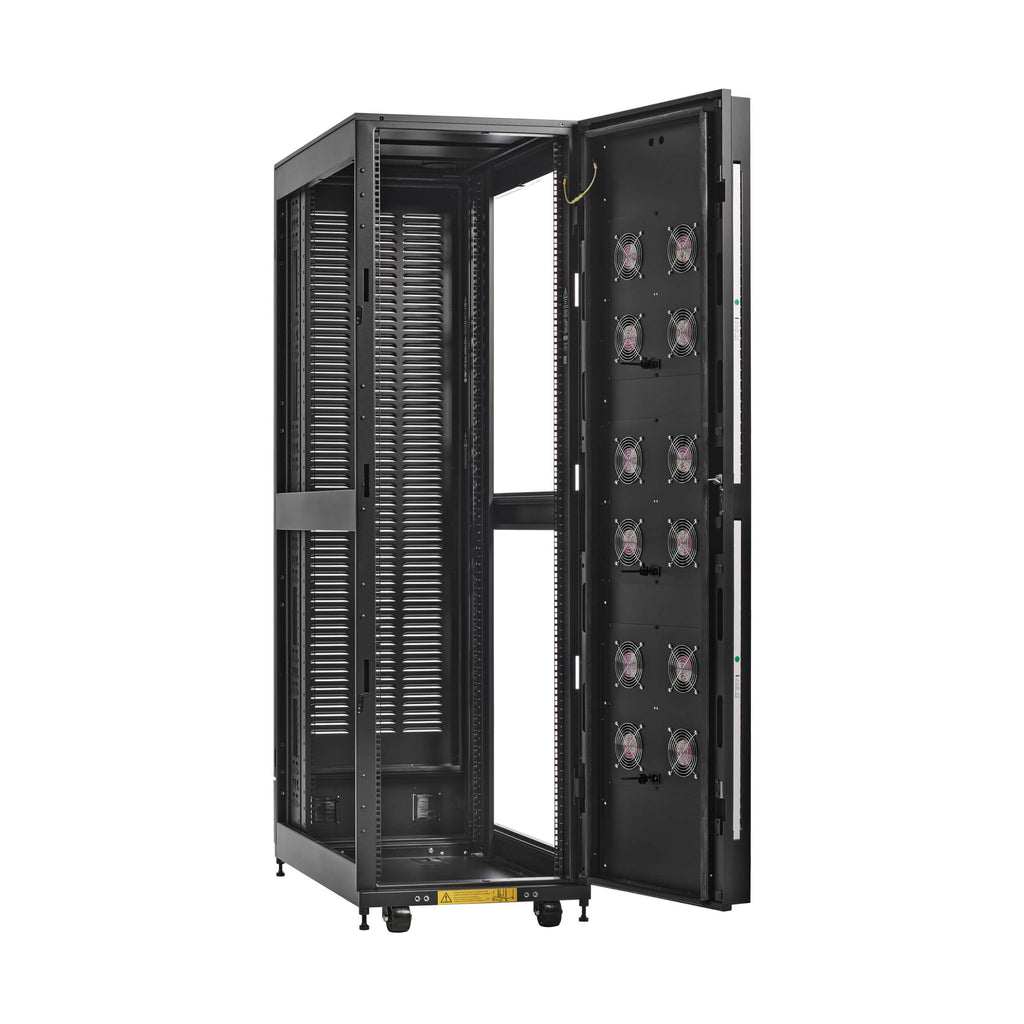

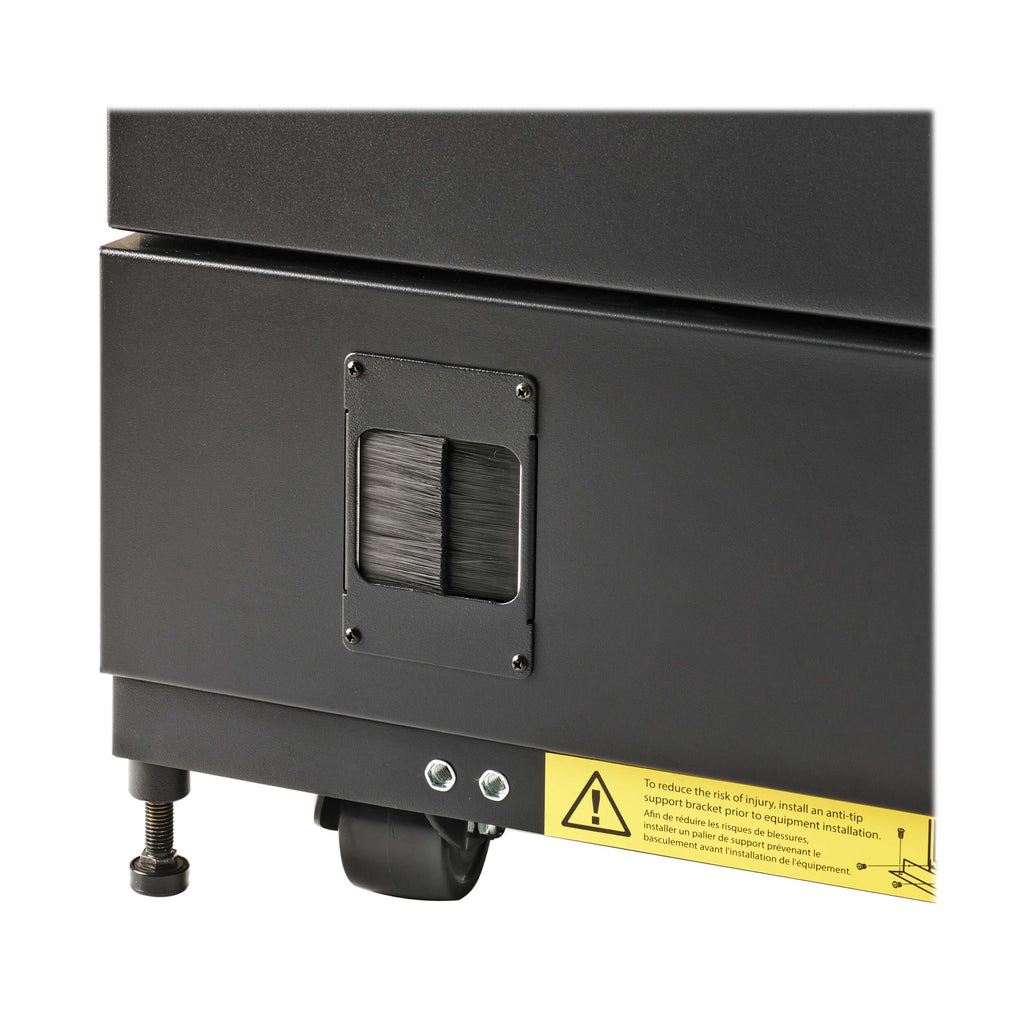

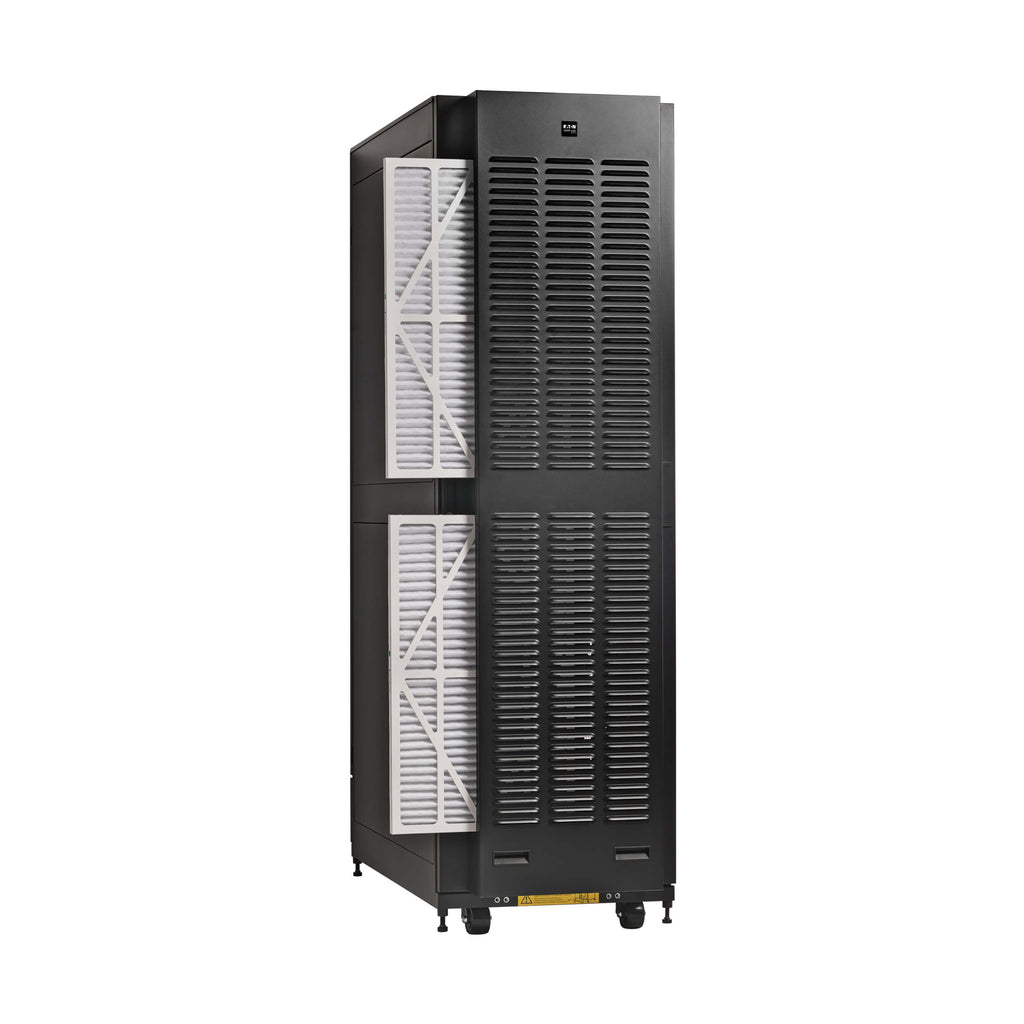

The enclosure features louvered front and rear doors with sealing gaskets, removable dust filters, and twelve high-performance cooling fans that create positive air pressure to help keep contaminants out while maintaining proper airflow. Six self-sealing cable entry ports preserve environmental protection without compromising cable management.
Built with a heavy-duty steel frame, the SR42UBEISSP1 supports up to 3,500 lbs (1,588 kg) of stationary equipment and includes industrial-grade casters for mobility, making it ideal for demanding industrial deployments. It ships fully assembled for rapid installation and accommodates standard 19-inch rack equipment.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| Model | SR42UBEISSP1 |
| Product Type | Industrial Rack Enclosure Cabinet |
| Rack Height | 42U |
| Rack Width | Standard 19-inch |
| Rack Depth | Standard Depth |
| Protection Rating | IP54 |
| Construction | Heavy-duty steel |
| Color | Black |
| Maximum Stationary Load Capacity | 3,500 lbs (1,588 kg) |
| Maximum Rolling Load Capacity | 2,250 lbs (1,021 kg) |
| Cooling System | 12 high-performance front-door fans |
| Airflow Design | Positive air pressure system |
| Dust Protection | Replaceable removable dust filters |
| Door Design | Louvered doors with sealing gaskets |
| Cable Management | Six self-sealing cable access ports |
| Mounting Rails | 4 Vertical Rails |
| Device Compatibility | Servers, UPS Systems, Network Switches, Patch Panels |
| Factory Rack Depth | 27.75 in (705 mm) |
| Maximum Equipment Depth | 37 in (940 mm) |
| Unit Dimensions (H × W × D) | 79.82 × 23.63 × 47.25 in |
| Unit Weight | 390 lbs (176.9 kg) |
| Input Power | 120V AC, 50/60 Hz |
| Input Plug | NEMA 5-15P |
| Input Cord Length | 6 ft (1.83 m) |
| Pre-installed Casters | Yes |
| Built-in Cable Management | Yes |
| Compliance | RoHS, EIA/ECA-310-E |
| Warranty | 2-Year Limited Warranty |
