Description

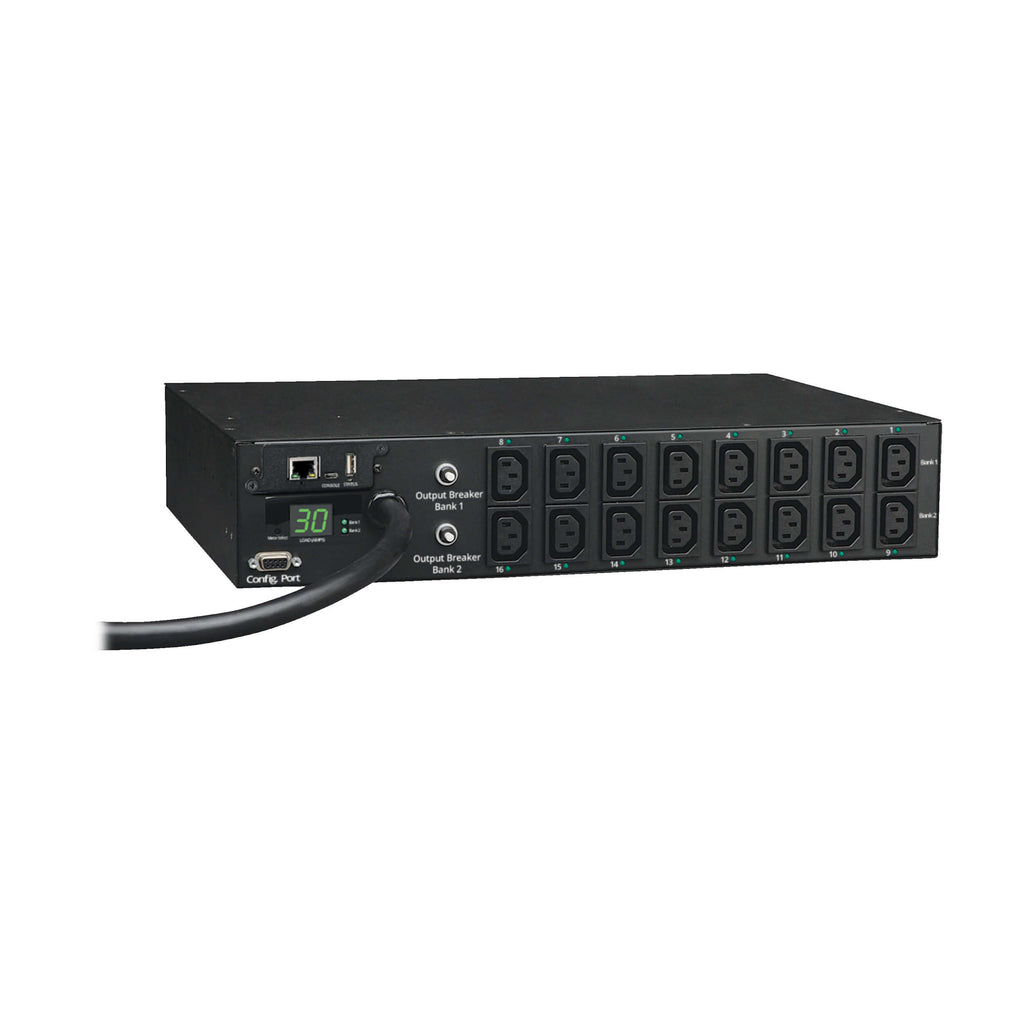

The Eaton Tripp Lite PDUMH30HVNET is a high-capacity, network-managed switched power distribution unit designed for enterprise data centers and critical IT environments. Delivering up to 5.5kW of power at 208/230V, this 2U horizontal rack-mount PDU provides reliable, remote outlet-level control for efficient power management.
Equipped with 16 individually switched IEC C13 outlets, the PDUMH30HVNET allows administrators to remotely power on, power off, or reboot connected equipment to reduce downtime and simplify maintenance. The integrated network interface supports web-based management, SNMP monitoring, email alerts, and programmable load control, giving full visibility into power usage and system health.
A front-panel digital display shows real-time load levels by outlet bank and total output, helping prevent overloads and optimize capacity planning. Designed for reliability and compliance, this PDU features a rugged metal housing, a NEMA L6-30P input plug with a 12-foot cord, and TAA compliance for government and regulated deployments.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| Model | PDUMH30HVNET |
| PDU Type | Switched, Network-Managed |
| Form Factor | 2U Horizontal Rack-Mount |
| Input Voltage | 208V / 230V |
| Input Plug | NEMA L6-30P |
| Input Cord Length | 12 ft (3.66 m) |
| Maximum Input Current | 24A (continuous) |
| Output Capacity | 5.5kW @ 230V / 5kW @ 208V |
| Output Receptacles | 16 × IEC C13 |
| Outlet Control | Individual outlet on/off/reboot |
| Overload Protection | Dual 15A circuit breakers |
| Load Monitoring | Digital LCD (Bank 1, Bank 2, Total) |
| Network Interface | 10/100 Ethernet (RJ45) |
| Management Protocols | Web UI, SNMP, Email Alerts |
| Mounting Options | 2-post, 4-post, wall, under-counter |
| Construction | Metal chassis |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Compliance | TAA, RoHS, FCC Class A |
| Warranty | 2-Year Limited Warranty |
