Description

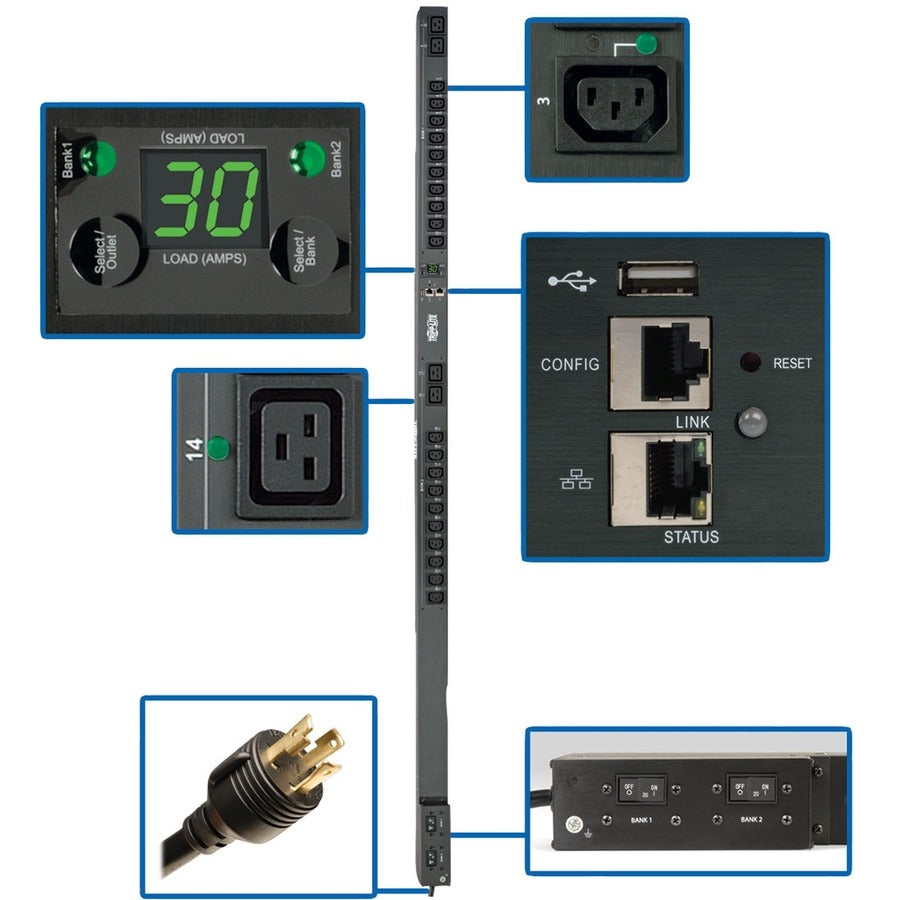

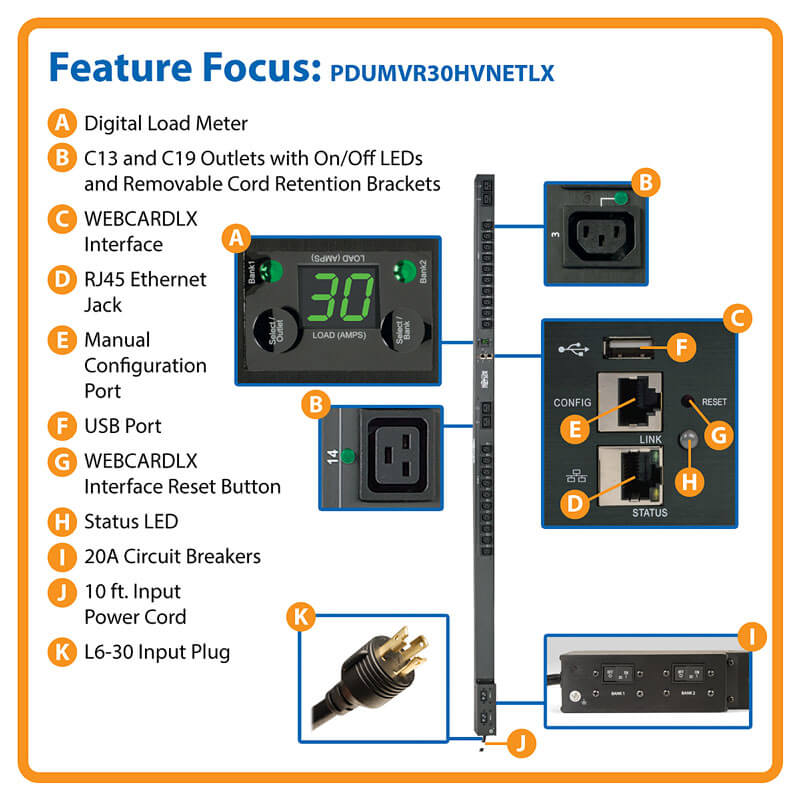

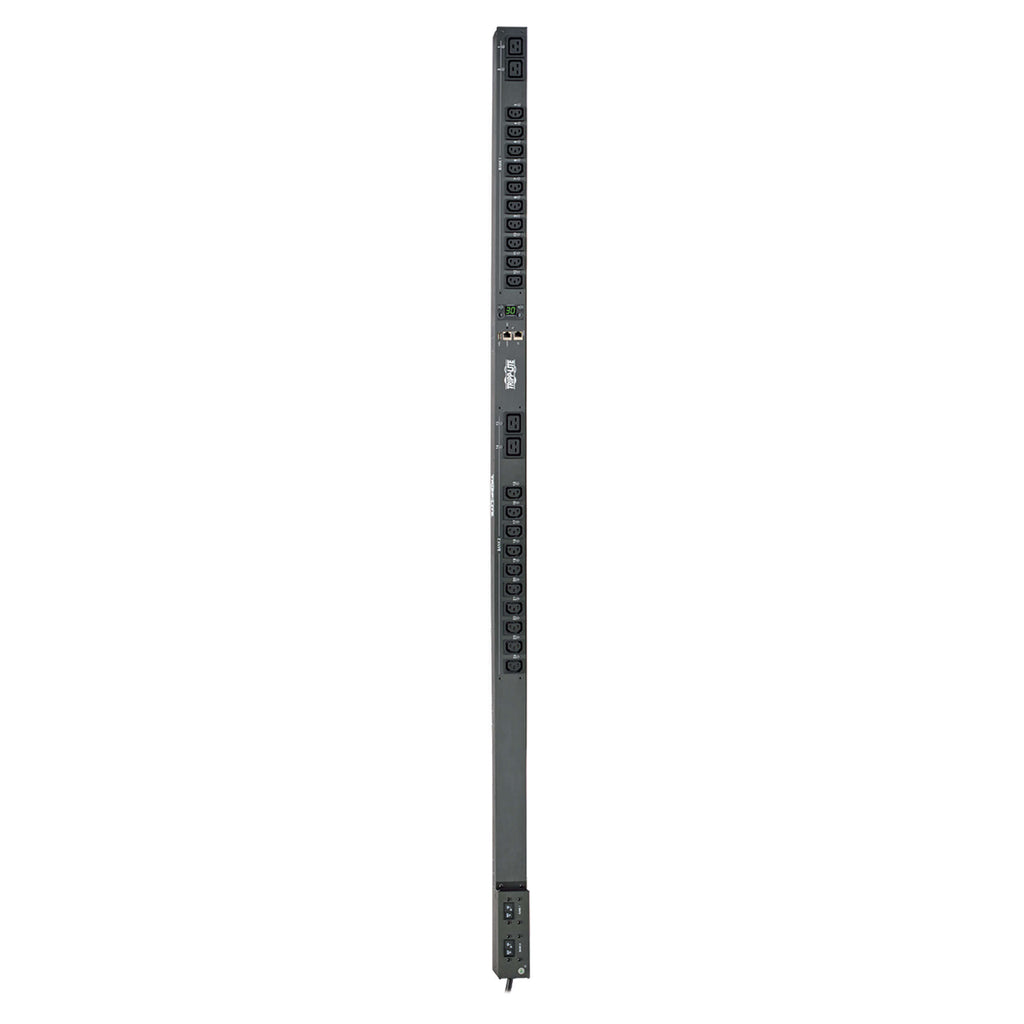

The Eaton PDUMVR30HVNETLX is a high-efficiency 5.5kW single-phase switched PDU ideal for managing critical IT and industrial applications. It features 24 individually controllable outlets (20 C13 & 4 C19), advanced outlet-level monitoring, and a built-in HTML5-based LX interface for remote access, load management, and environmental monitoring. Its 0U vertical rackmount design includes a 10-ft NEMA L6-30P input cord, dual 20A circuit breakers, and plug-lock inserts for secure connections. TAA-compliant and equipped with PowerAlert Device Manager, this unit is perfect for centralized power management in enterprise environments.
| Specification | Details |
|---|---|
| Model Number | PDUMVR30HVNETLX |
| PDU Type | Switched |
| Input Voltage | 208/230V (Single-Phase) |
| Input Plug Type | NEMA L6-30P |
| Input Cord Length | 10 ft (3.05 m) |
| Maximum Input Amps | 24A (Agency de-rated) |
| Output Capacity | 5.5kW (230V), 5kW (208V) |
| Output Receptacles | 20 × C13, 4 × C19 |
| Outlet Control | Individual outlet switching |
| Load Monitoring | Outlet-level current monitoring (±1% accuracy) |
| Network Interface | Pre-installed WEBCARDLX (HTML5, SNMP, SSH) |
| Communication Ports | RJ45 Ethernet, RJ45 Serial Config, USB-A |
| Mounting Style | 0U Vertical Rackmount |
| Form Factor | Vertical (0U), Toolless or bracket mounting |
| Material | Metal |
| Dimensions (H × W × D) | 70.0 × 2.2 × 2.6 in (178 × 5.6 × 6.6 cm) |
| Weight | 12 lbs (5.44 kg) |
| Operating Temp. Range | 32° to 104°F (0° to 40°C) |
| Standards Compliance | TAA, UL 60950-1, FCC Class A, RoHS |
| Warranty | 2-Year Limited Warranty |
