Description

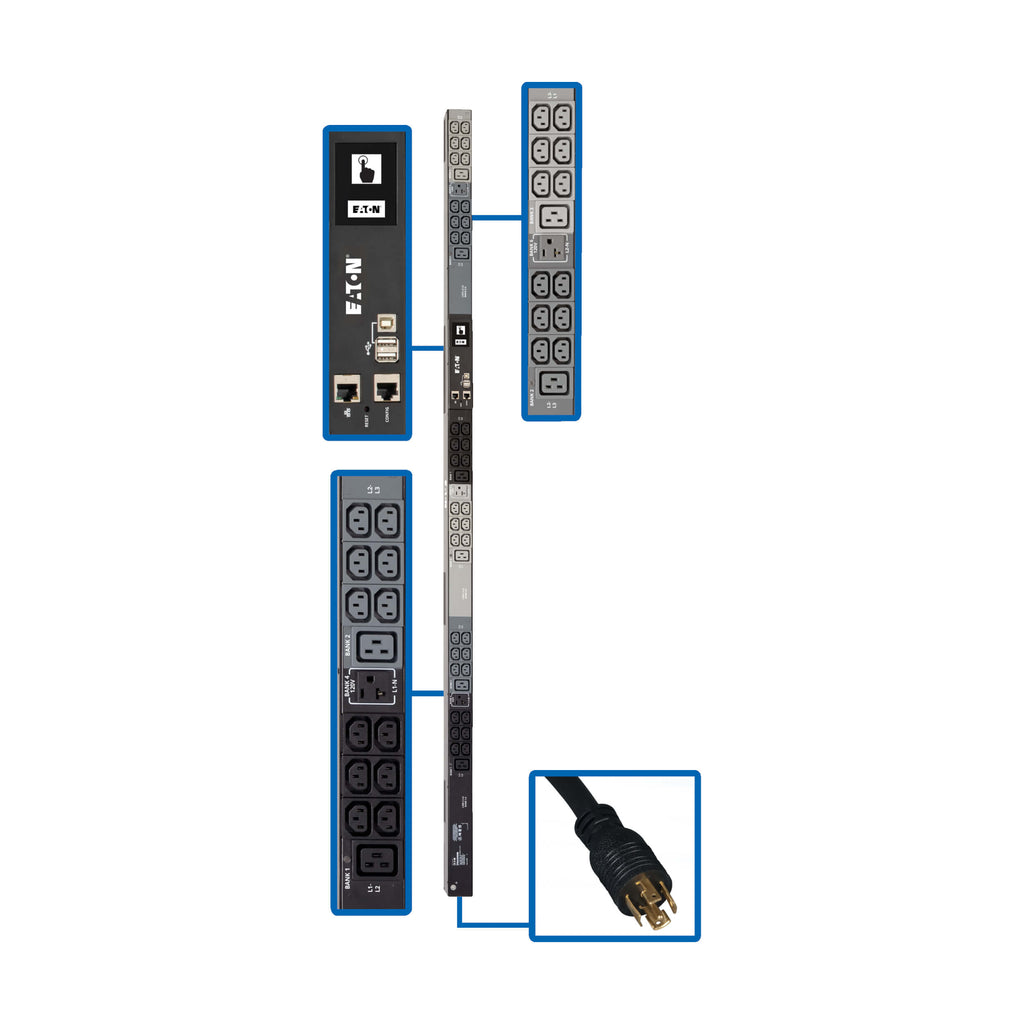

The Eaton Tripp Lite PDU3EVN6L2120 is a high-capacity 5.8kW three-phase monitored power distribution unit designed for enterprise data centers, server rooms, and industrial IT environments. Delivering both 208V and 120V output, this vertical 0U PDU supports a wide range of rack-mounted equipment while providing precise, real-time power visibility.
Equipped with a built-in Gigabit Ethernet network interface and advanced remote monitoring capabilities, the PDU enables continuous tracking of input phase current and individual load bank output. A color touchscreen LCD provides at-a-glance access to electrical data, network status, and environmental readings when compatible sensors are connected.
With 45 total outlets across six individually monitored load banks, secure plug-lock sleeves, and tool-less vertical mounting, the PDU3EVN6L2120 delivers reliable, scalable power distribution for mission-critical infrastructure. Its TAA compliance makes it suitable for government and regulated deployments.
| Category | Specification |
|---|---|
| PDU Type | Monitored |
| Form Factor | Vertical (0U) |
| Total Power Capacity | 5.8 kW |
| Input Voltage | 208V |
| Output Voltage | 208V / 120V |
| Input Phase | 3-Phase |
| Input Plug Type | NEMA L21-20P |
| Maximum Input Current | 16A (continuous) |
| Frequency | 50 / 60 Hz |
| Total Outlets | 45 |
| Outlet Configuration | 36 × C13, 6 × C19, 3 × NEMA 5-15/20R |
| Load Banks | 6 individually monitored |
| Network Interface | Gigabit Ethernet |
| Monitoring Accuracy | ±1% (current, voltage, power) |
| Display | Color touchscreen LCD |
| Mounting | Tool-less vertical rack mounting |
| Rack Height | 0U |
| Cord Length | 6 ft (1.8 m) |
| Dimensions (H × W × D) | 70 × 2.17 × 2.52 in |
| Weight | 13.5 lb |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Compliance | TAA, RoHS, FCC Class A |
| Warranty | 2-year limited |
