Description
The Eaton 5P 1550G is a high-performance line-interactive UPS designed to protect critical IT and network equipment in small data centers, network closets, and enterprise environments. Delivering 1550VA / 1100W of true sine wave output, it provides up to 20% more usable power than traditional UPS systems—ideal for servers, switches, VoIP systems, storage devices, and PoE equipment.

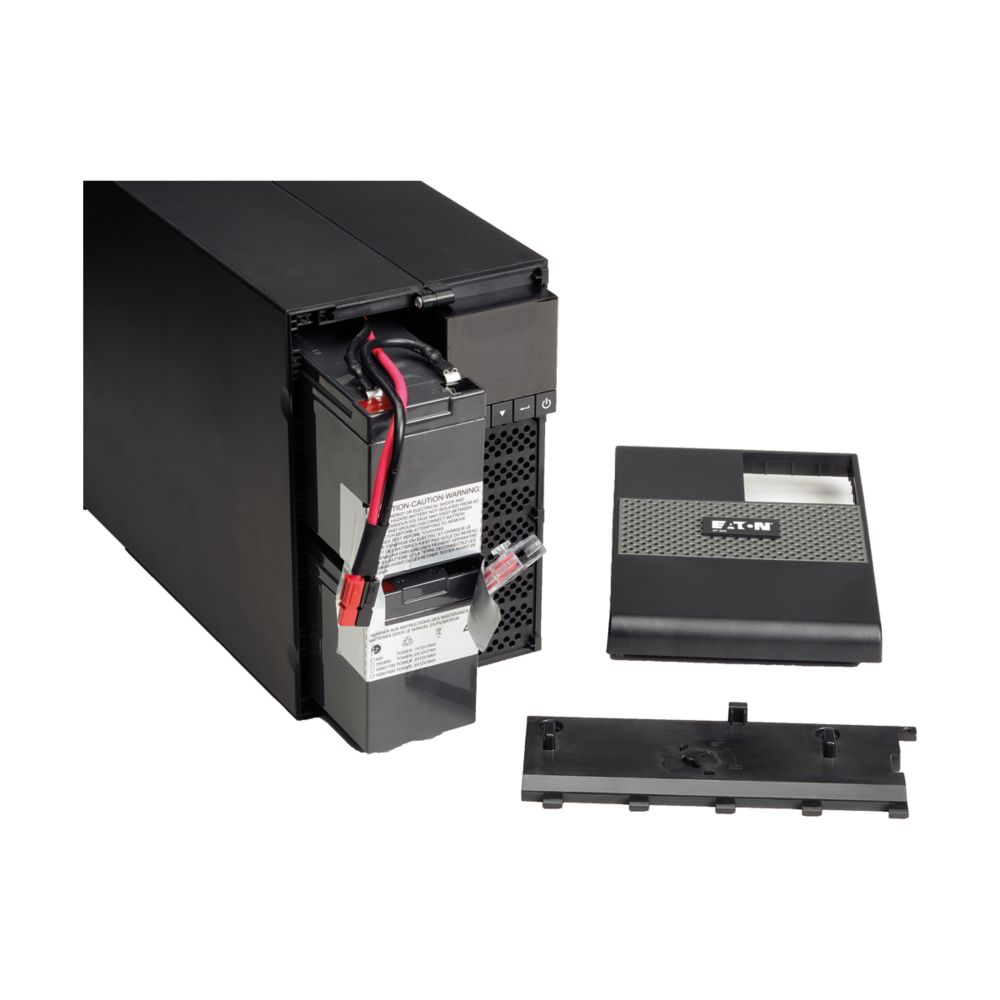

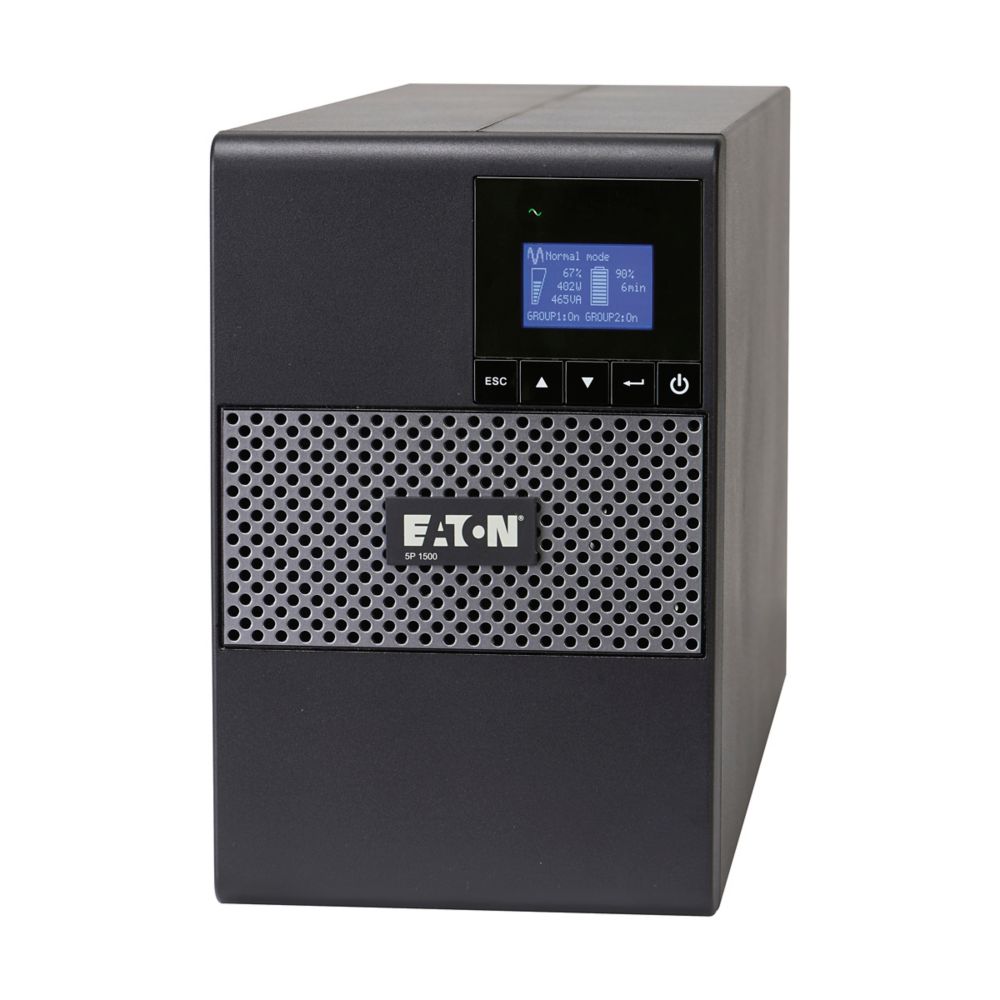

Built with Eaton’s Advanced Battery Management (ABM) technology, the 5P1550G extends battery service life while continuously monitoring battery health to reduce unexpected downtime. Its intuitive graphical LCD interface offers real-time visibility into load levels, power status, and system events.

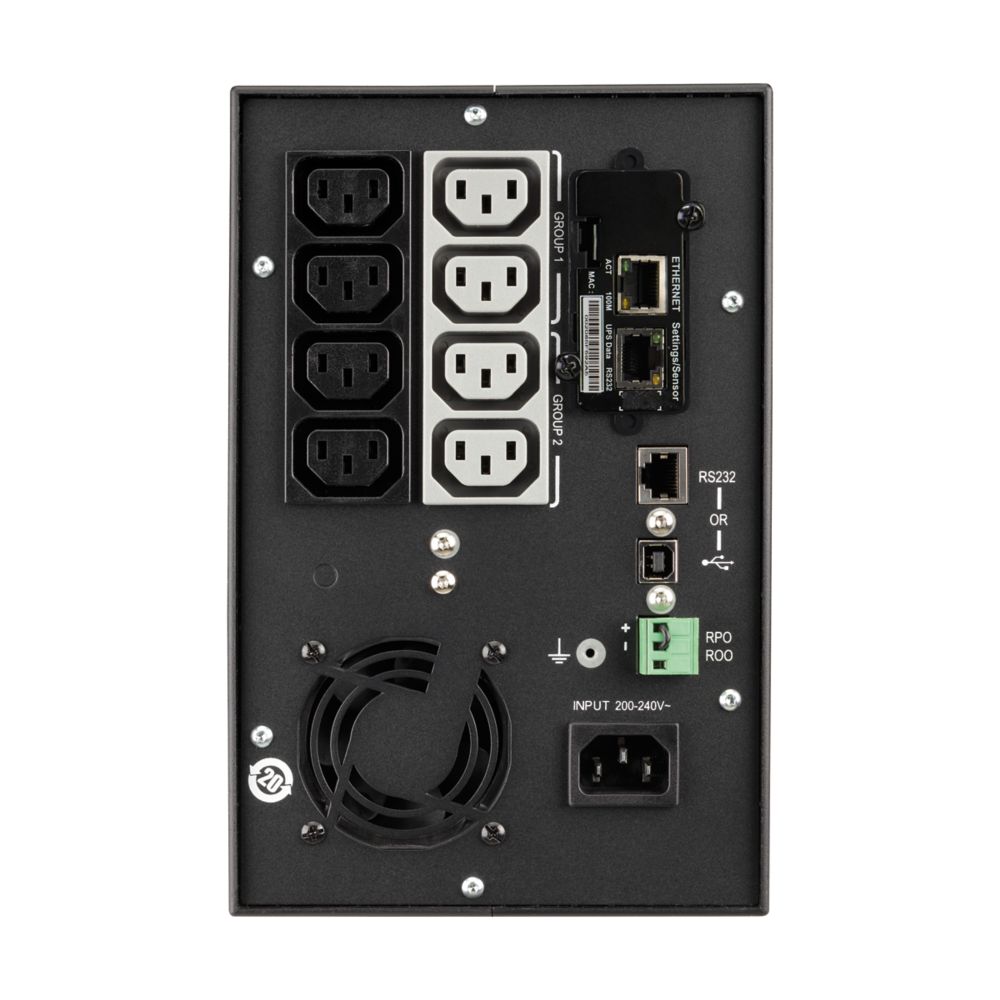

The UPS features eight C13 outlets, organized into two independently controllable load banks, allowing non-critical equipment to be shed to extend runtime for essential devices. Optional network management capability enables secure remote monitoring, configuration, and safe shutdown—making the 5P1550G a reliable and scalable power protection solution for modern IT environments.
| Specification | Details |
|---|---|
| Manufacturer | Eaton |
| Model Number | 5P1550G |
| UPS Type | Line-Interactive |
| Form Factor | Tower |
| Power Capacity | 1550 VA / 1100 W |
| Nominal Voltage | 200–240V AC |
| Output Waveform | True Sine Wave |
| Input Connection | C14 Inlet |
| Output Receptacles | 8 × C13 |
| Load Banks | 2 Switchable Outlet Groups |
| Battery Type | Valve-Regulated Lead Acid (VRLA) |
| Runtime (Half Load) | Up to 13 minutes |
| Runtime (Full Load) | Up to 4 minutes |
| Battery Management | Advanced Battery Management (ABM) |
| User Interface | 5-Button Graphical LCD |
| Communications | USB, RS-232 |
| Network Management | Optional Network Card Support |
| Surge Protection Rating | 350 Joules |
| Efficiency (AC Mode) | Up to 99% |
| Operating Temperature | 0°C to 40°C |
| Dimensions (H × W × D) | 9.1 × 5.9 × 17.5 in |
| Weight | 34.4 lb (15.6 kg) |
| Typical Applications | Servers, Network Switches, Storage, VoIP, IT Closets |
