Description

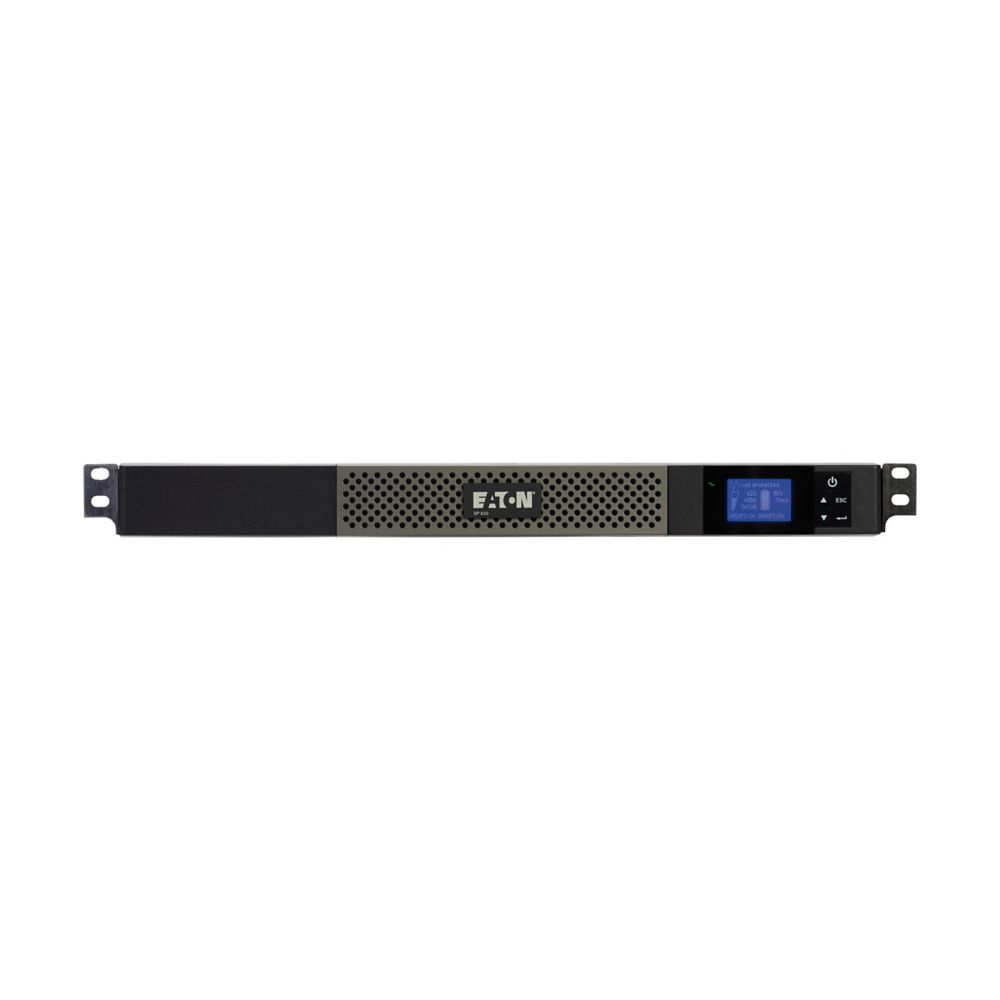

The Eaton 5P850GR is a compact, enterprise-class line-interactive UPS designed to protect servers, network switches, VoIP systems, and critical IT equipment in small network closets and data centers. Delivering 850VA / 600W of pure sine wave output, it provides up to 20% more usable power than traditional UPS systems, ensuring reliable operation during power disturbances.
Advanced Automatic Voltage Regulation (AVR) corrects minor voltage fluctuations without using battery power, while Eaton’s ABM® three-stage charging technology extends battery life and provides early warnings for battery replacement. The intuitive graphical LCD offers real-time visibility into load, runtime, and system status at a glance.
With four managed C13 outlets organized into two controllable load banks, the 5P850GR allows selective load shedding to maximize runtime for mission-critical equipment. Optional network management support enables secure remote monitoring, control, and graceful shutdowns, making this UPS an ideal solution for modern IT environments requiring dependable power protection in a 1U rack-mount form factor.
| Specification | Details |
|---|---|
| Model Number | 5P850GR |
| UPS Type | Line-Interactive |
| Capacity | 850VA / 600W |
| Output Waveform | Pure Sine Wave |
| Nominal Voltage | 200V / 208V / 220V / 230V / 240V |
| Frequency | 50 / 60 Hz |
| Input Connection | C14 inlet |

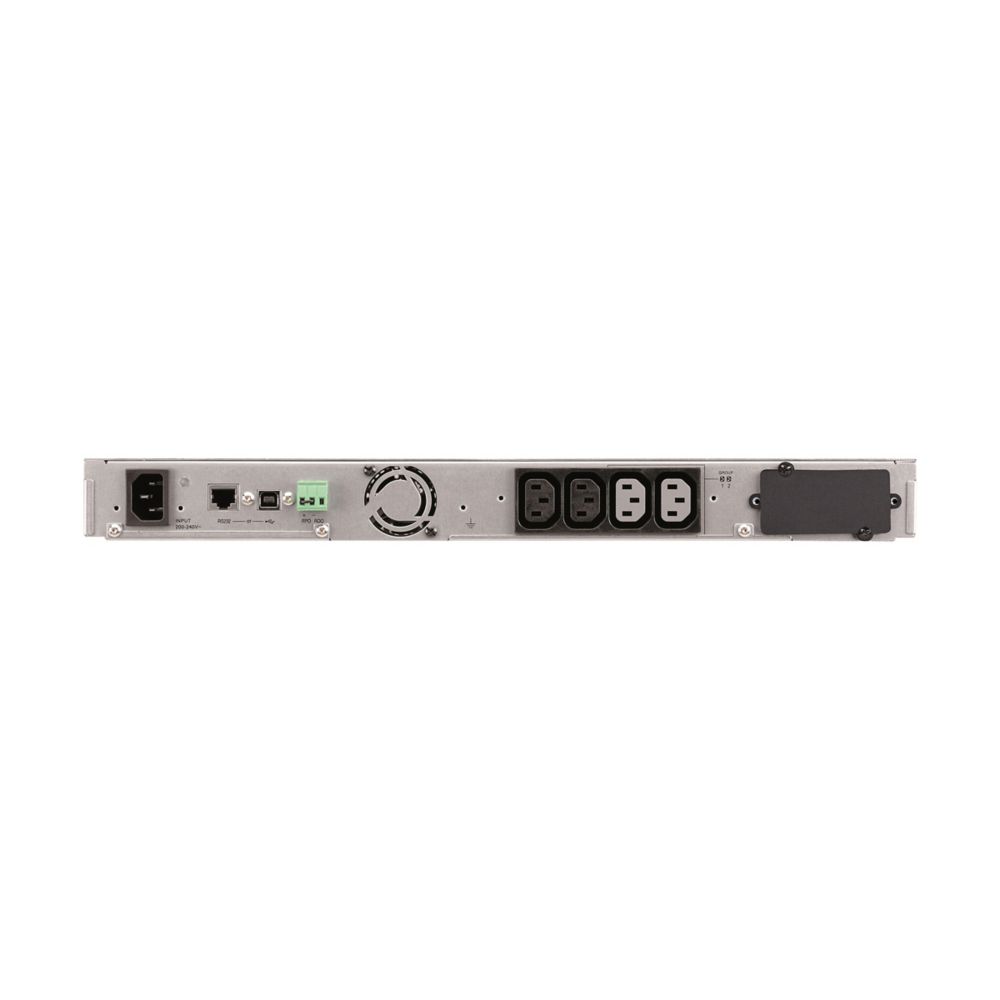

| Output Receptacles | 4 × C13 |
| Load Banks | 2 switchable outlet groups |
| Battery Type | Valve-Regulated Lead Acid (VRLA) |
| Runtime (Full Load) | Up to 4 minutes |
| Runtime (Half Load) | Up to 12 minutes |
| Battery Management | ABM® three-stage charging |
| Display | Graphical LCD with status indicators |
| Communications | USB, RS-232 |
| Network Management | Optional network card support |
| Form Factor | Rackmount |
| Rack Height | 1U |

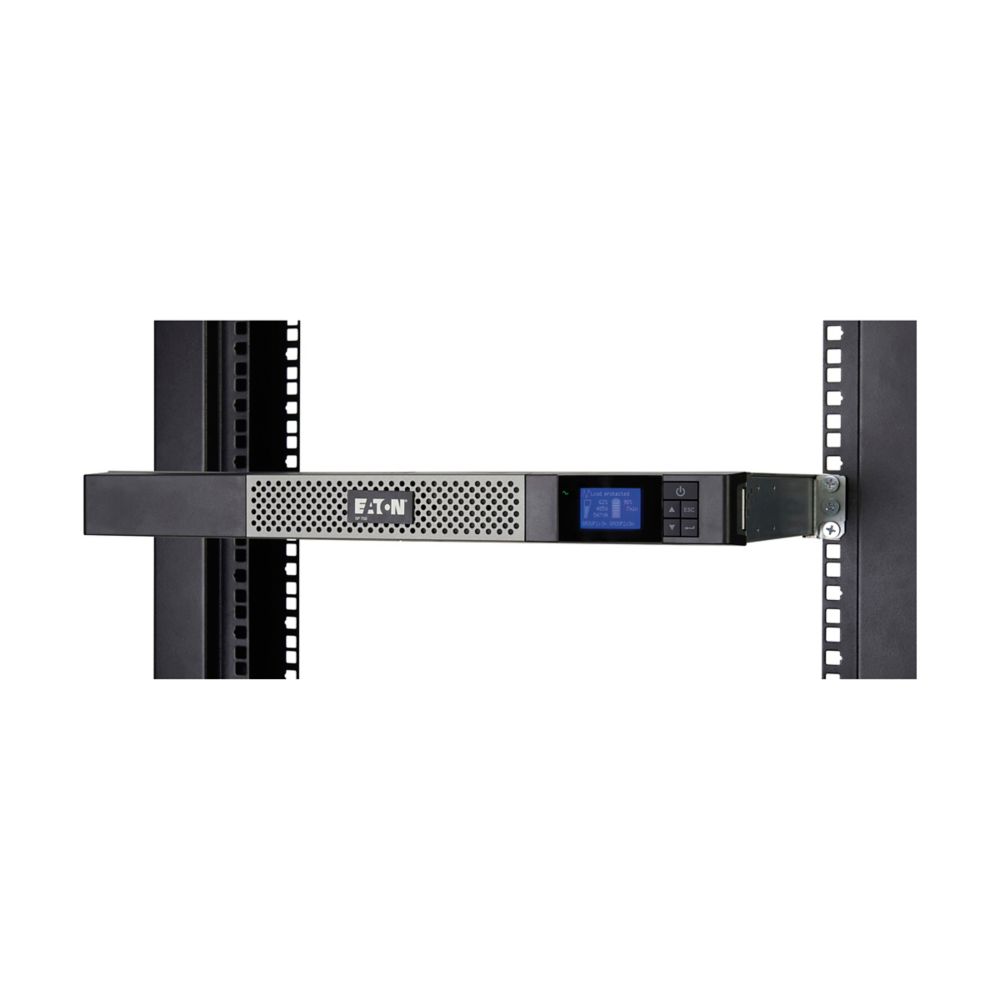

| Mounting | 4-post rack, wall-mount capable |
| Dimensions (H × W × D) | 1.7 × 17.4 × 20 in (43 × 442 × 508 mm) |
| Weight | 30.4 lb (13.79 kg) |
| Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Efficiency (AC Mode) | Up to 99% |
