Description

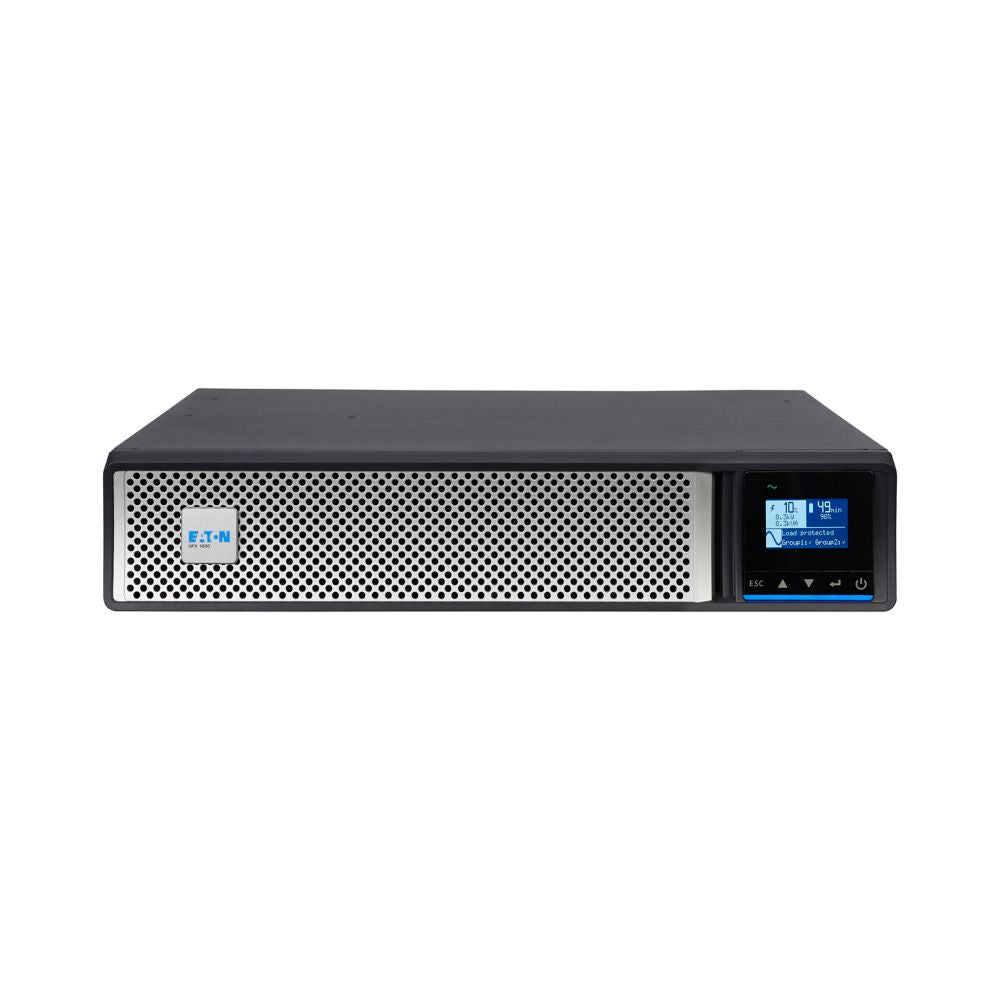

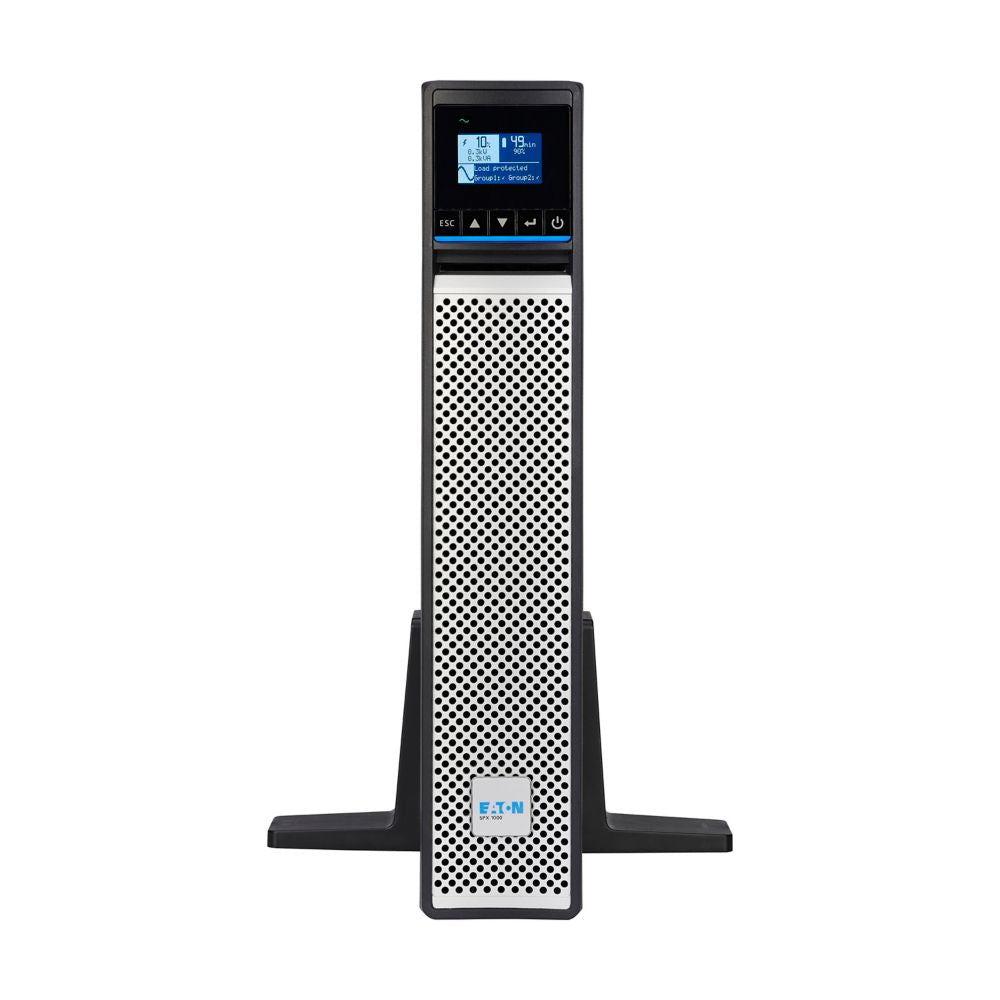

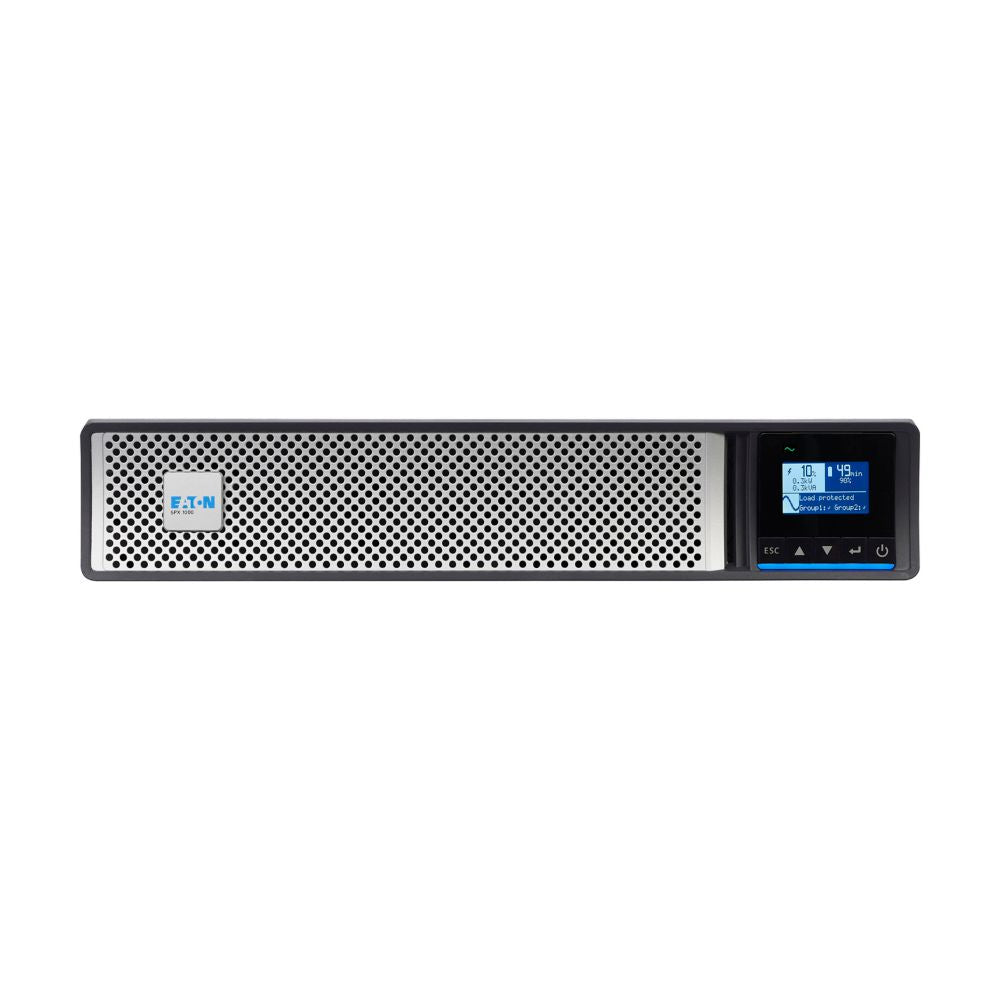

The Eaton 5PX1000RTNG2 is a next-generation line-interactive UPS designed to deliver intelligent power protection for IT and network infrastructure. With a 1000VA/1000W output, this 2U rack/tower convertible UPS provides reliable backup and voltage regulation for servers, storage, and networking equipment.
Equipped with ABM® battery management technology, the 5PX G2 extends battery life and provides real-time monitoring of energy consumption through its intuitive LCD interface. This Netpack version includes a Gigabit Network (Network-M2) card, enabling secure remote monitoring and management via SNMP, web, or Eaton Intelligent Power Manager software.
With an efficiency of over 96% in normal mode, programmable outlet groups, and support for up to four Extended Battery Modules (EBMs), the Eaton 5PX1000RTNG2 delivers outstanding flexibility, manageability, and performance for mission-critical environments.
| Category | Specification |
|---|---|
| Model Number | 5PX1000RTNG2 |
| Power Rating | 1000VA / 1000W |
| Form Factor | Rack/Tower Convertible (2U) |
| Input Voltage | 100–125V (adjustable 80–151V) |
| Input Frequency | 50/60Hz (auto-sensing) |
| Input Connection | NEMA 5-15P |
| Output Voltage | 100/110/120/125V selectable |
| Output Frequency | Follows input (50/60Hz) |
| Output Connections | (4) NEMA 5-15R Primary, (2) NEMA 5-15R Group1, (2) NEMA 5-15R Group2 |
| Efficiency | >96% (normal mode) |
| Topology | Line-Interactive with Automatic Voltage Regulation (AVR) |
| Battery Type | Sealed, maintenance-free VRLA |
| Battery Configuration | 48VDC (4 × 12V, 7Ah) |

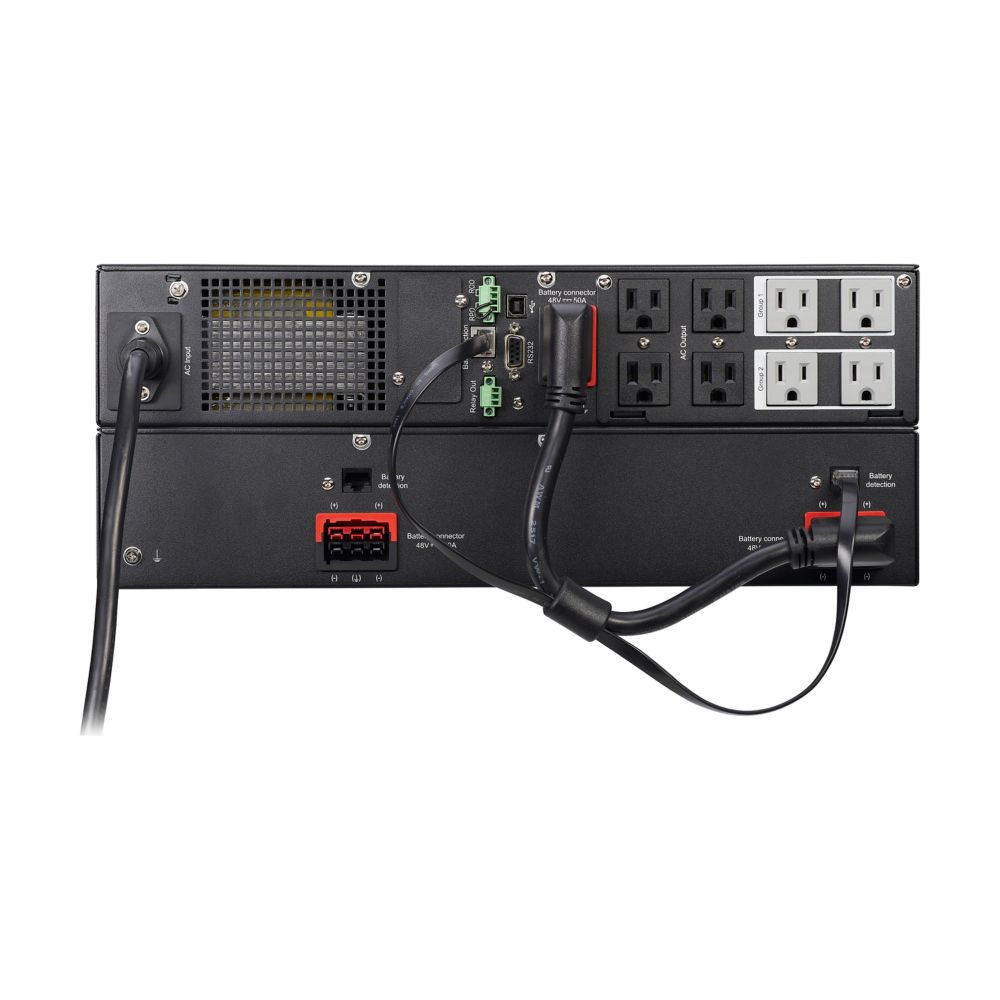

| Extended Battery Support | Up to 4 EBMs (5PXEBM48RTG2) |

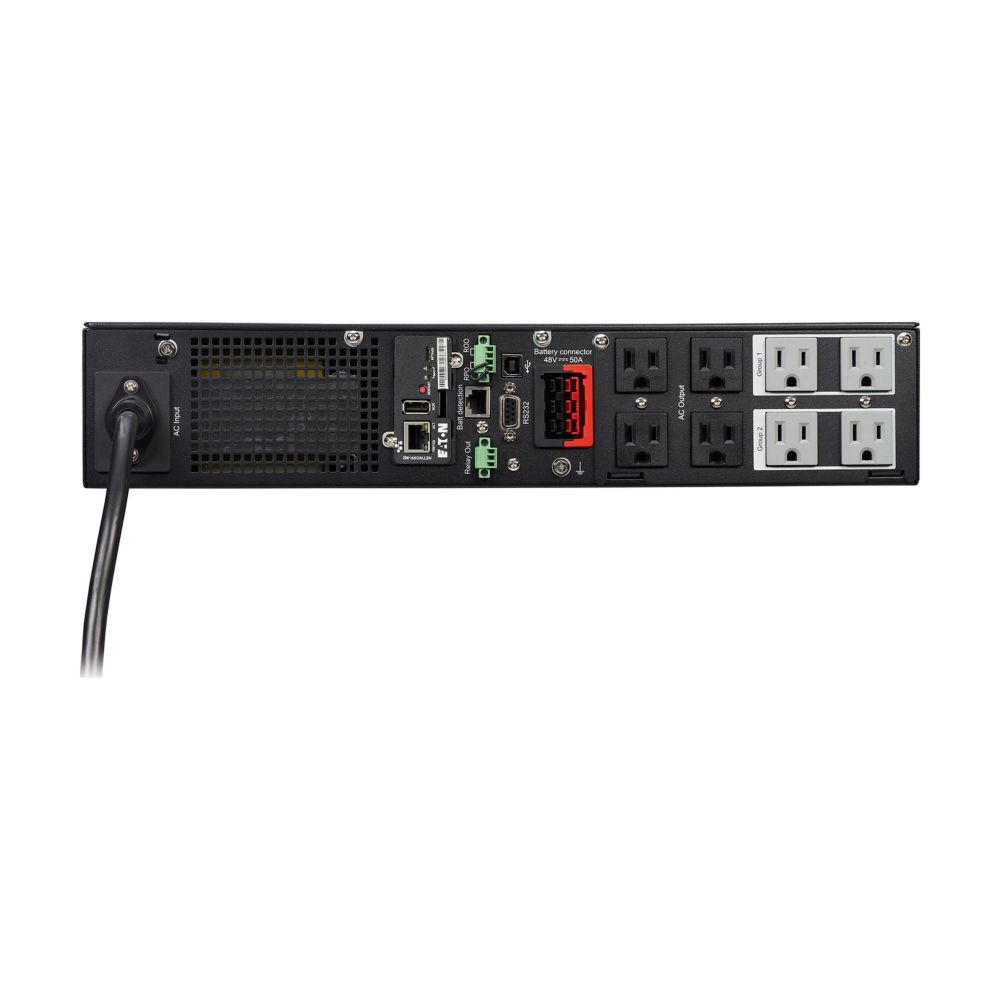

| Communication Ports | USB, RS-232, Relay output, Slot for optional communication card |
| Pre-installed Card | Gigabit Network Card (Network-M2, SNMP v1/v3, IPv4/IPv6) |
| Software Compatibility | Eaton Intelligent Power Manager & Eaton IPP Suite |
| Indicators/Display | Graphical LCD with LED status bar |
| Operating Temperature | 0–40°C (32–104°F) |
| Noise Level | <40 dB (Line mode) |
| Dimensions (D×W×H) | 17.6 × 17.2 × 3.4 in (448 × 438 × 85.5 mm) |
| Weight | 44.5 lb / 20.2 kg |
| Certifications | UL1778 5th Edition, CSA 22.2, CE, FCC Class B, ENERGY STAR® |
| Warranty | 3 Years (Electronics), 2 Years (Battery) |
| Extended Runtime Options | 5PXEBM48RTG2 – 48VDC Extended Battery Module |
