Description

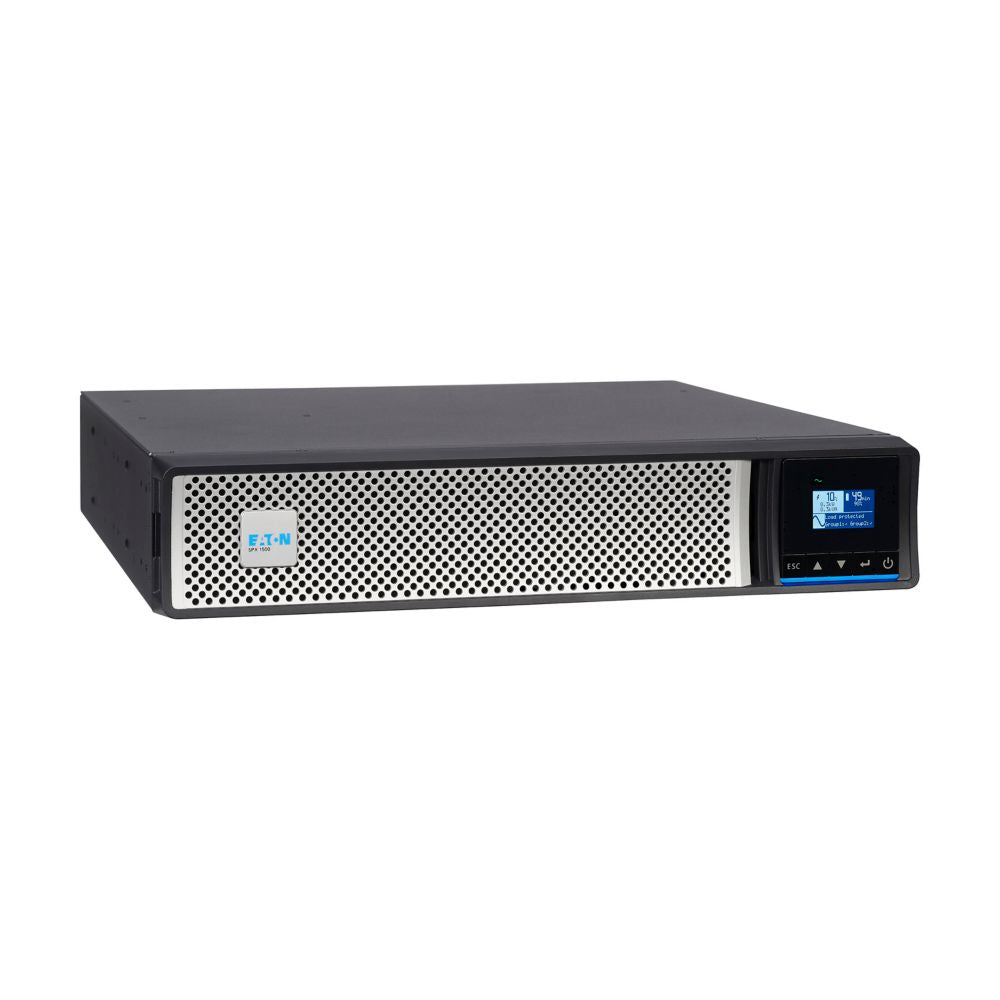

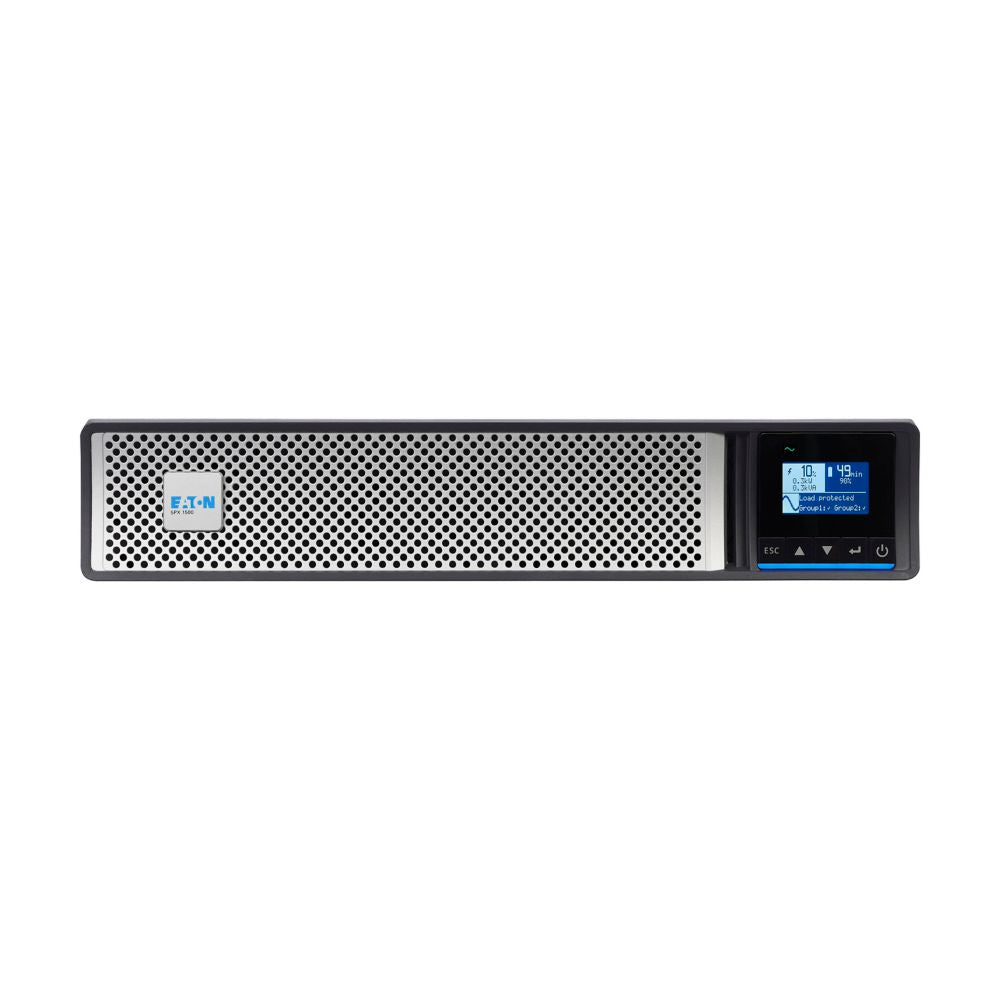

The Eaton 5PX1500RTG2 is a versatile line-interactive UPS designed for modern IT environments, combining reliability, efficiency, and advanced management. Delivering 1440VA / 1440W of pure sine wave power, it ensures clean, stable energy for servers, storage systems, and networking equipment. Featuring ABM™ three-stage charging technology, it extends battery service life by up to 50% and provides proactive replacement alerts.

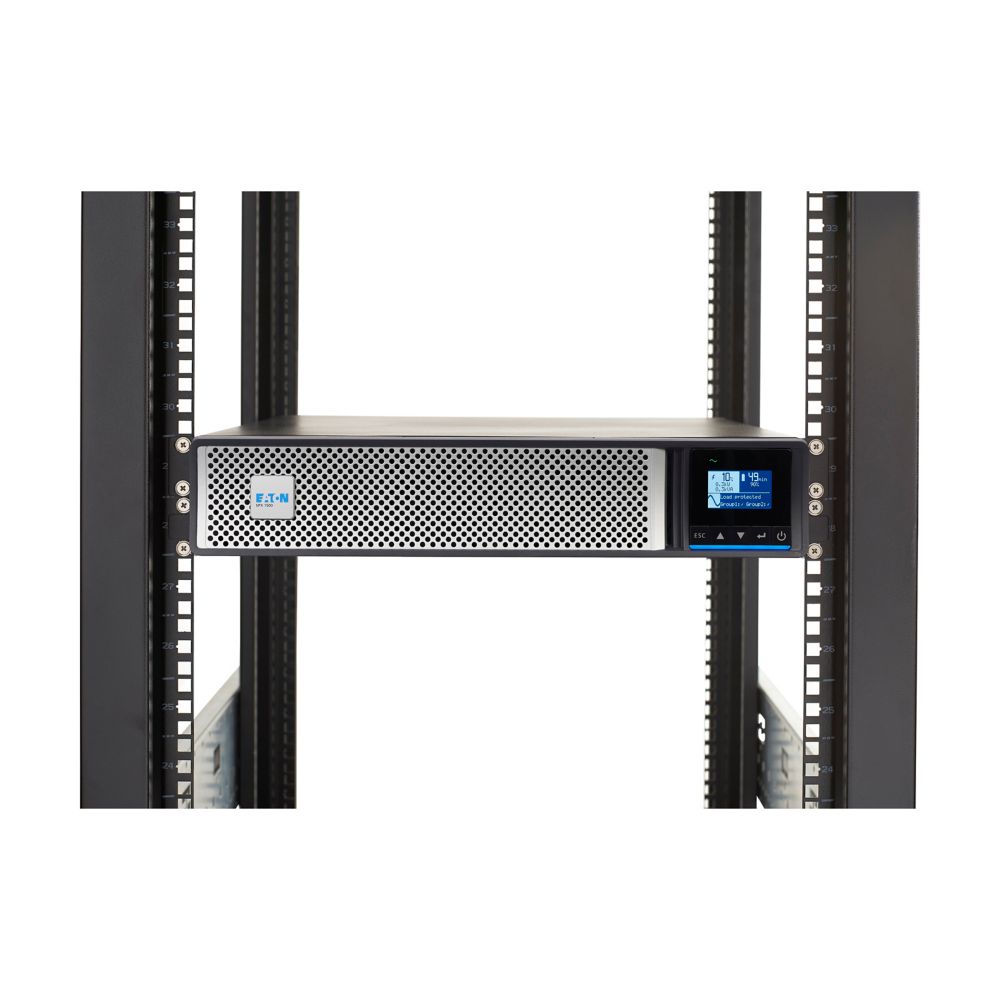

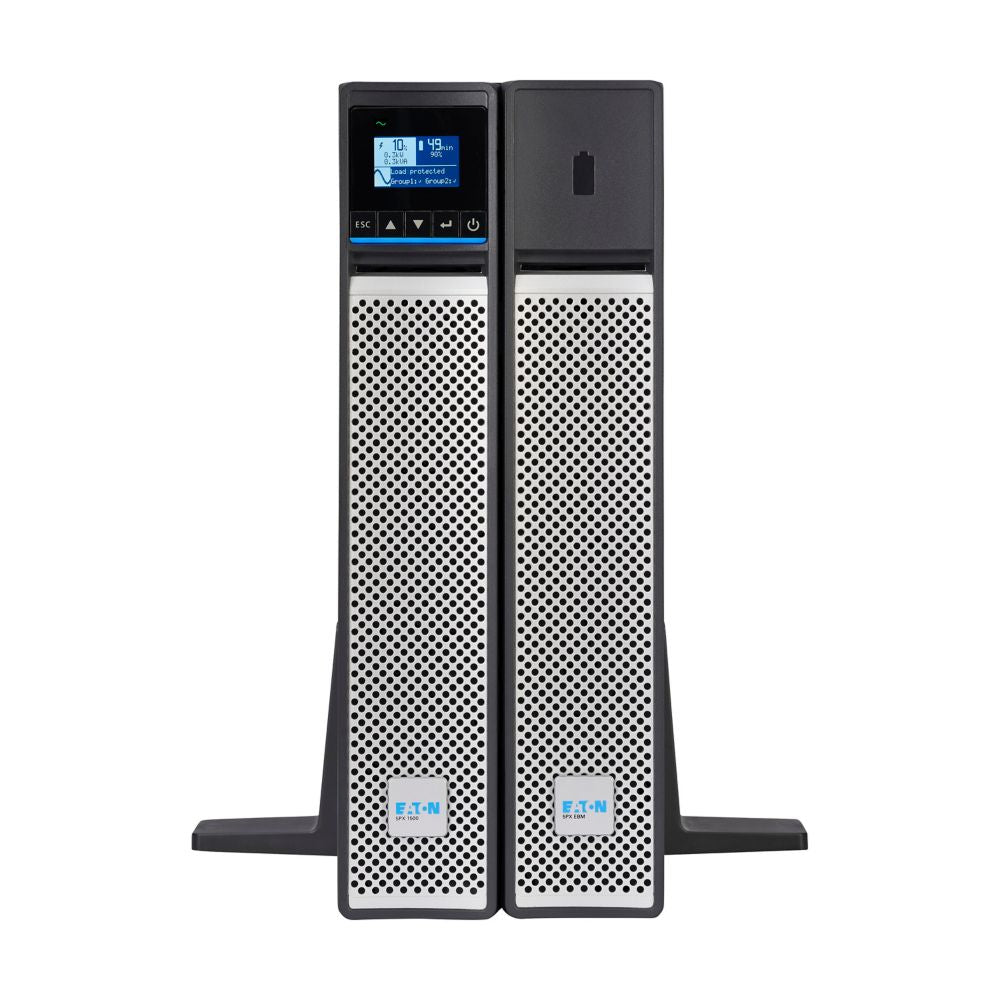

With a 2U rack/tower form factor, the 5PX G2 supports flexible installation and integrates easily with Brightlayer™ Data Centers suite for centralized monitoring. The LCD graphical display provides real-time power status, while optional Gigabit Network-M3 cards enable remote management. The UPS supports up to four external battery modules (5PXEBM48RTG2) for extended runtime, making it ideal for mission-critical deployments.
Built with ENERGY STAR® certification, 98% efficiency, and robust three-year warranty coverage on both electronics and batteries, the Eaton 5PX1500RTG2 delivers enterprise-grade protection and long-term value for small to medium data centers, edge IT, and distributed networks.
| Category | Specification |
|---|---|
| Model | Eaton 5PX1500RTG2 |
| Topology | Line-interactive |
| Power Rating | 1440 VA / 1440 W |
| Input Voltage | 120V |
| Input Connection | NEMA 5-15P |
| Input Cord Length | 10 ft |
| Output Receptacles | (8) NEMA 5-15R |
| Nominal Frequency | 50/60 Hz |
| Input Power Factor | 1 |
| Efficiency (Max Load) | 98% |
| Form Factor | Rack/Tower Convertible |
| Rack Size | 2U |
| Dimensions (HxWxD) | 3.4 × 17.2 × 17.6 in |
| Weight | 50.7 lb |
| Battery Type | Sealed, lead-acid |
| Battery Management | ABM 3-stage charging technology |
| Extended Battery Option | Up to 4 EBMs (5PXEBM48RTG2) |
| User Interface | LCD Graphical Display |
| Software Compatibility | Brightlayer Data Centers suite |
| Expansion Slot | One slot (optional Gigabit Network-M3 card) |
| BTU Rating | Online: 106 / Battery: 699 |
| Compliance | CE, REACH |
| Certifications | cULus, RoHS, NOM, ENERGY STAR, IEC 62040-1 |
| Warranty | 3 years on electronics and batteries (with registration) |
| Included Accessories | Tower pedestal feet, 4-post rail kit, USB & RS-232 cables, Quick start and safety guides |
| Optional Service Plans | 5-year depot repair (5SW5Y-1750UC), On-site upgrades (WUN72XXX-2509UC / FLN73XXX-2509UC) |
