Description
The Eaton 5PX1500RTNG2 is a next-generation line-interactive UPS designed for IT professionals and edge network environments. Delivering 1440 VA/1440 W of reliable power, this 2U rack/tower convertible unit features (8) 5-15R output receptacles and a 5-15P input plug with a 10-ft cord. With advanced ABM battery management technology and 98% efficiency at full load, it offers superior battery lifespan and energy savings. The UPS comes pre-installed with Eaton’s Gigabit Network Card (NETWORK-M2) for seamless remote monitoring and management through the Brightlayer Data Centers suite. Extended runtime is supported with optional battery modules.
In the Box
-
Eaton 5PX1500RTNG2 UPS
-
Gigabit Network Card (NETWORK-M2)
-
Four-post rail kit
-
Tower pedestal feet
-
USB cable
-
RS-232 cable
-
Quick start and safety guides
| Specification | Details |
|---|---|
| Model | Eaton 5PX G2 UPS |
| Catalog Number | 5PX1500RTNG2 |
| Form Factor | Rack/Tower Convertible (2U) |
| Power Capacity | 1440 VA / 1440 W |
| Topology | Line-interactive |
| Input Voltage | 120V |
| Input Connection | 5-15P |
| Input Cord Length | 10 ft |
| Output Receptacles | (8) 5-15R |
| Efficiency (Max Load) | 98% |
| Battery Type | Sealed Lead-Acid |
| Battery Management | ABM 3-stage charging |
| User Replaceable Battery | Yes |

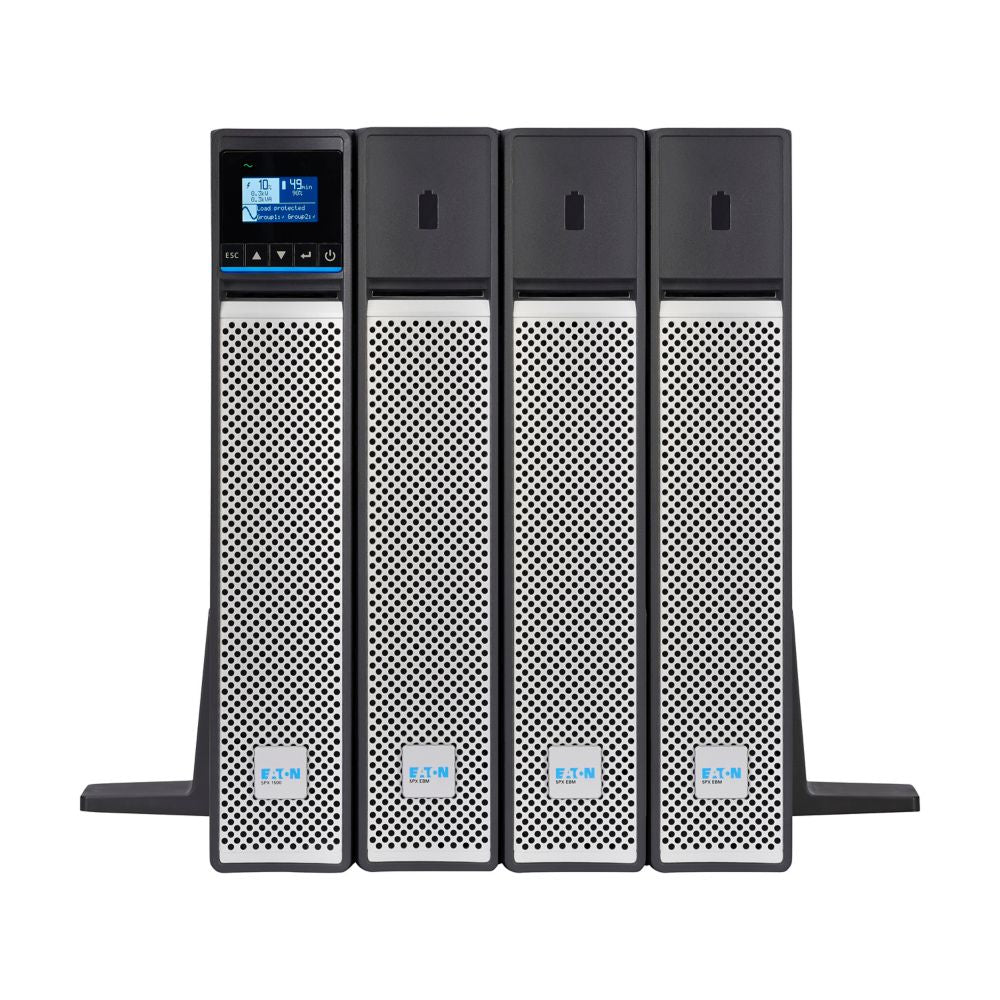

| Extended Battery Support | Up to 4 EBMs (5PXEBM48RTG2) |
| Communications Slot | 1 Slot (Includes NETWORK-M2 Card) |
| LCD Display | Yes (Graphical) |
| Software Compatibility | Brightlayer Data Centers suite |
| BTU Rating | 106 (Online) / 699 (Battery) |
| Certifications | ENERGY STAR, cULus, RoHS, NOM, IEC 62040-1 |
| Compliance | CE Marked, REACH |
| Dimensions (HxWxD) | 3.4 x 17.2 x 17.6 in |
| Weight | 50.7 lb |
| Warranty | 3 years on electronics & batteries with registration |
