Description

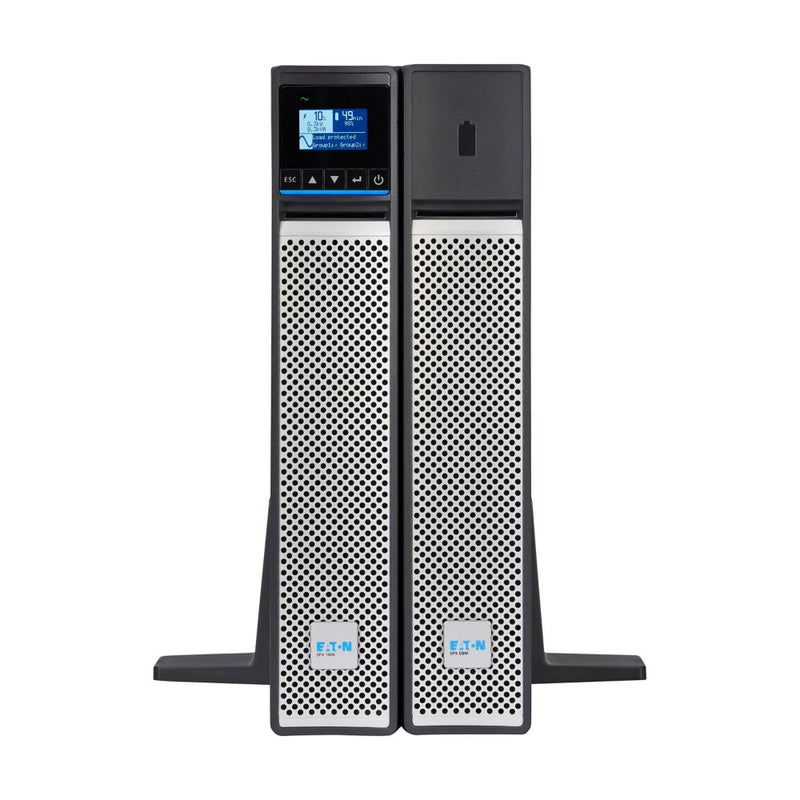

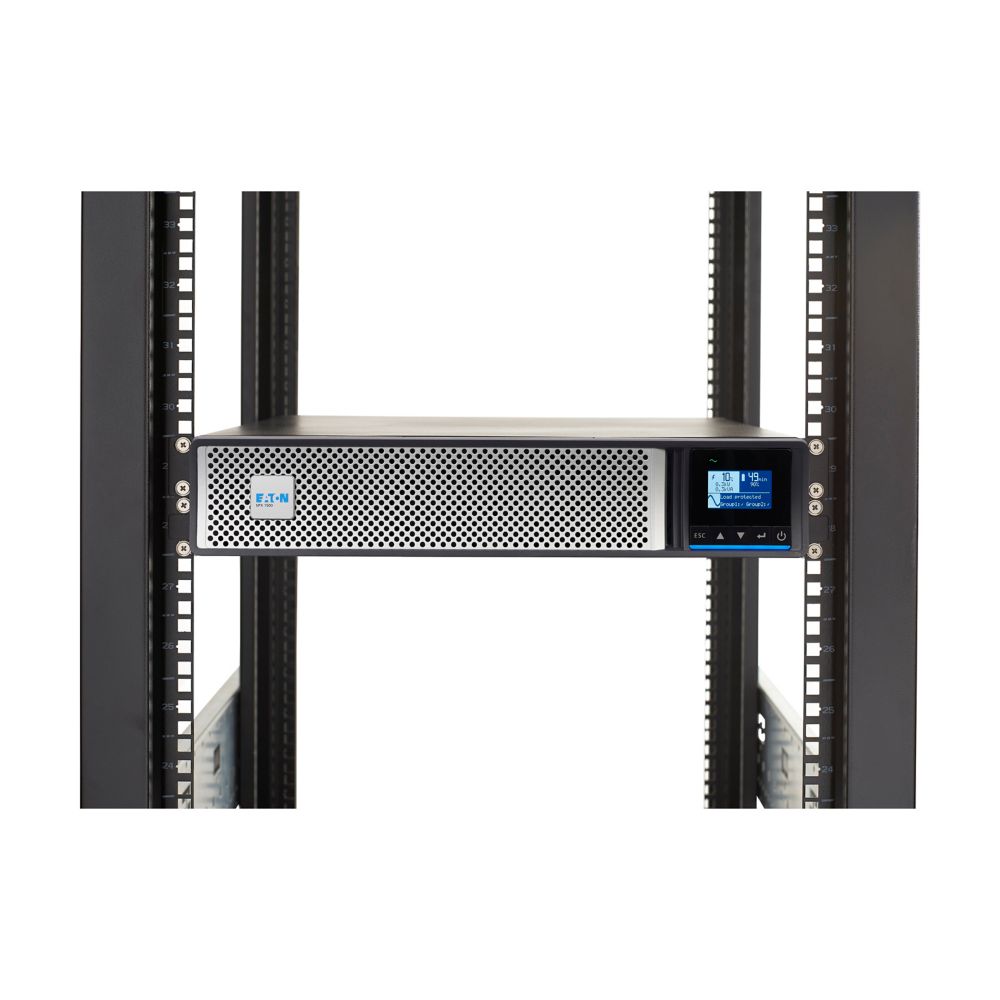

The Eaton 5PX2000RTG2 is a high-efficiency, line-interactive UPS that delivers 1950 VA/1950 W of reliable backup power in a versatile 2U rack/tower form factor. Designed for IT professionals and network closets, it features a 5-20P input and seven output receptacles—(1) L5-20R and (6) 5-20R—supporting 120V applications. With advanced LCD display, ABM battery management technology for extended battery life, and optional extended runtime with up to 4 EBMs (5PXEBM72RTG2), this ENERGY STAR® certified UPS ensures optimal performance and scalability. Includes rail kit, pedestal feet, USB/RS-232 cables, and a 3-year warranty.
| Specification | Details |
|---|---|
| Model Number | 5PX2000RTG2 |
| Form Factor | Rack/Tower (2U) |
| Power Capacity | 1950 VA / 1950 W |
| Input Voltage | 120V |
| Input Connection | 5-20P |
| Input Cord Length | 10 ft |

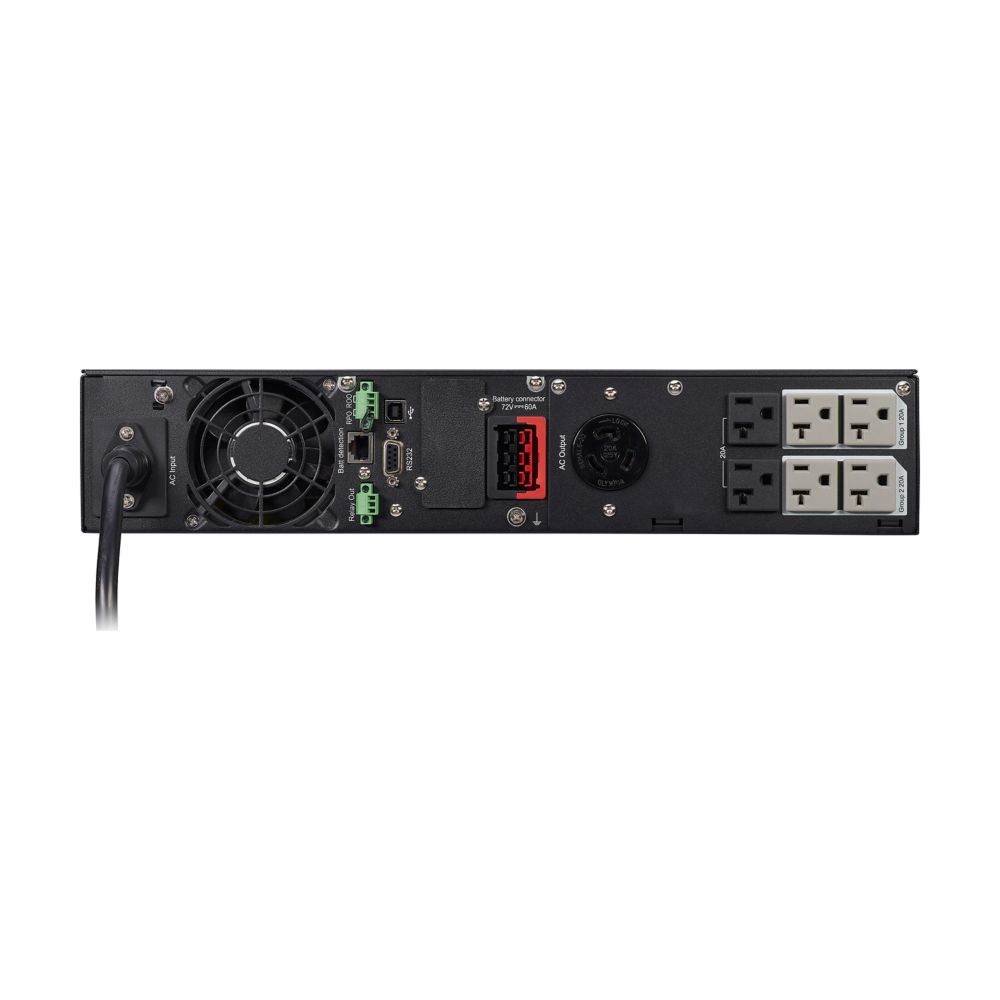

| Output Connections | (1) L5-20R, (6) 5-20R |
| Topology | Line-Interactive |
| Efficiency (Max Load) | 98% |
| User Interface | LCD Graphical Display |
| Battery Type | Sealed Lead-Acid |
| Battery Management | ABM Technology (3-stage charging) |
| Hot-swappable Battery | Yes (User replaceable EBP-1616) |
| Extended Battery Support | Yes – up to 4x 5PXEBM72RTG2 |
| Rack Size | 2U |
| Dimensions (L x W x H) | 23.7 x 17.2 x 3.4 in |
| Weight | 65.3 lb |
| Communications | 1 Expansion Slot, USB, RS-232 |
| Software Compatibility | Brightlayer Data Centers Suite |
| Certifications | ENERGY STAR, cULus, NOM, RoHS, IEC 62040-1 |
| Warranty | 3-Year (electronics & battery w/ registration) |
| Package Includes | UPS, rail kit, pedestal feet, USB & RS-232 cables, guides |
