Description

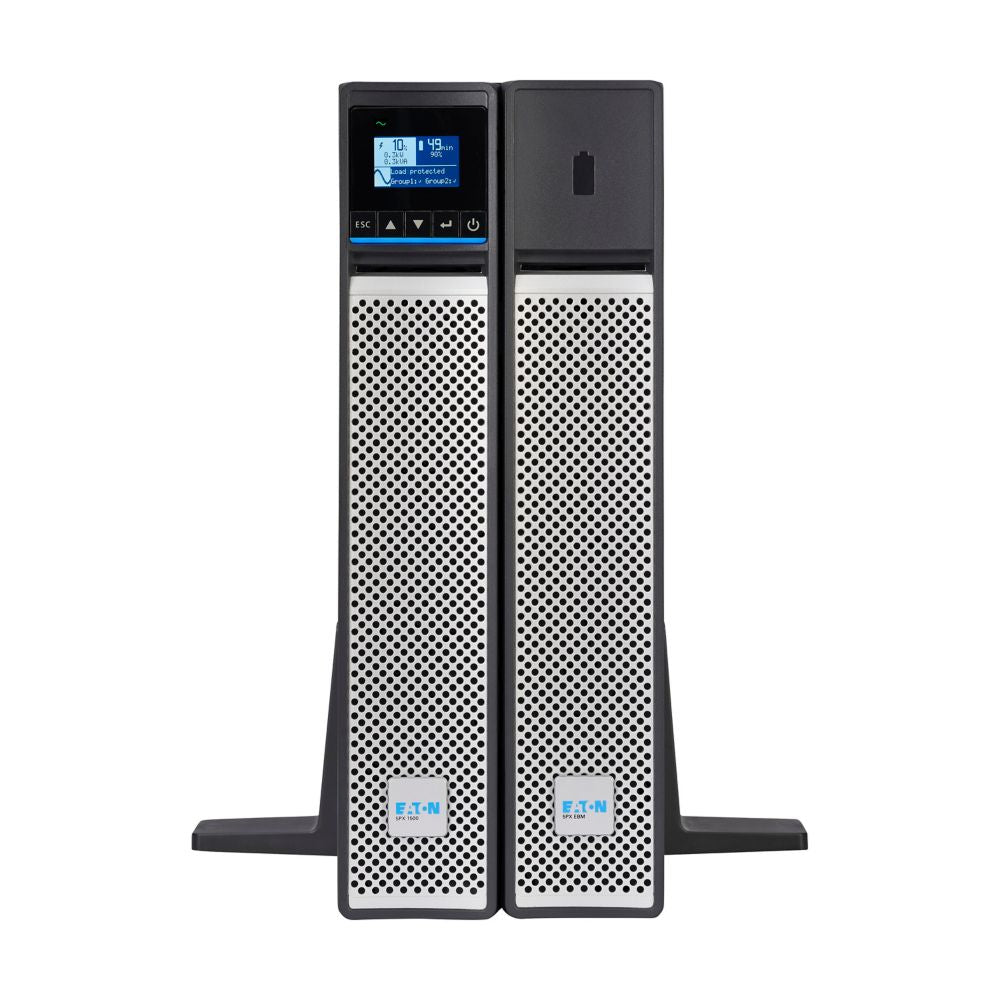

The Eaton 5PX3000RTG2 is a high-performance 2U rack/tower uninterruptible power supply (UPS) designed to deliver reliable backup power for critical IT systems. With a 3000VA/3000W output capacity, it features a line-interactive topology and advanced ABM battery management to extend battery service life. Equipped with (1) L5-30R and (6) 5-20R outlets, this UPS supports up to four extended battery modules (EBMs) for scalable runtime. A user-friendly LCD display and optional Gigabit Network-M3 card ensure easy monitoring and remote management.
| Specification | Details |
|---|---|
| Product Name | Eaton 5PX G2 UPS |
| Model Number | 5PX3000RTG2 |
| Form Factor | Rack/Tower |
| Rack Size | 2U |
| VA Rating | 3000 VA |
| Wattage | 3000 W |
| Input Connection | L5-30P |
| Input Voltage | 120V |
| Input Cord Length | 10 ft |
| Input Frequency | 50/60 Hz |

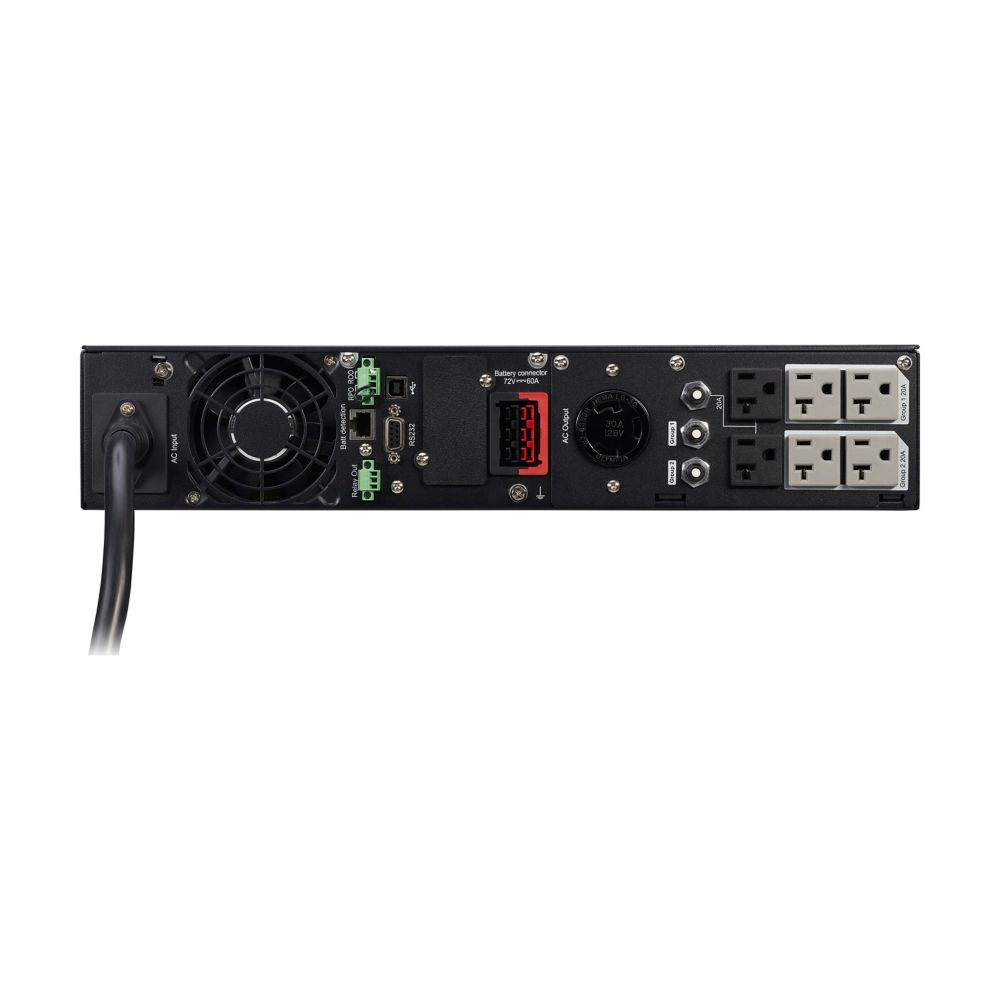

| Output Receptacles | (1) L5-30R, (6) 5-20R |
| Topology | Line-interactive |
| Efficiency (Max Load) | 98% |
| Battery Type | Sealed lead-acid |
| Battery Management | ABM 3-stage charging |
| Battery Replacement | User-replaceable (EBP-1617) |
| Extended Battery Support | Up to 4 EBMs (5PXEBM72RTG2) |
| Communication Slot | 1 slot (supports optional Network-M3 card) |
| Software Compatibility | Brightlayer Data Centers suite |
| User Interface | LCD graphical display |
| BTU Rating | Online: 208, Battery: 1136 |
| Dimensions (HxWxD) | 3.4 x 17.2 x 23.7 in |
| Weight | 74.5 lb |
| Certifications | ENERGY STAR, cULus, RoHS, NOM, BSMI, CE |
| Compliances | REACH, IEC 62040-1 |
| Warranty | 3-year factory warranty (parts/electronics/batteries) |
