Description

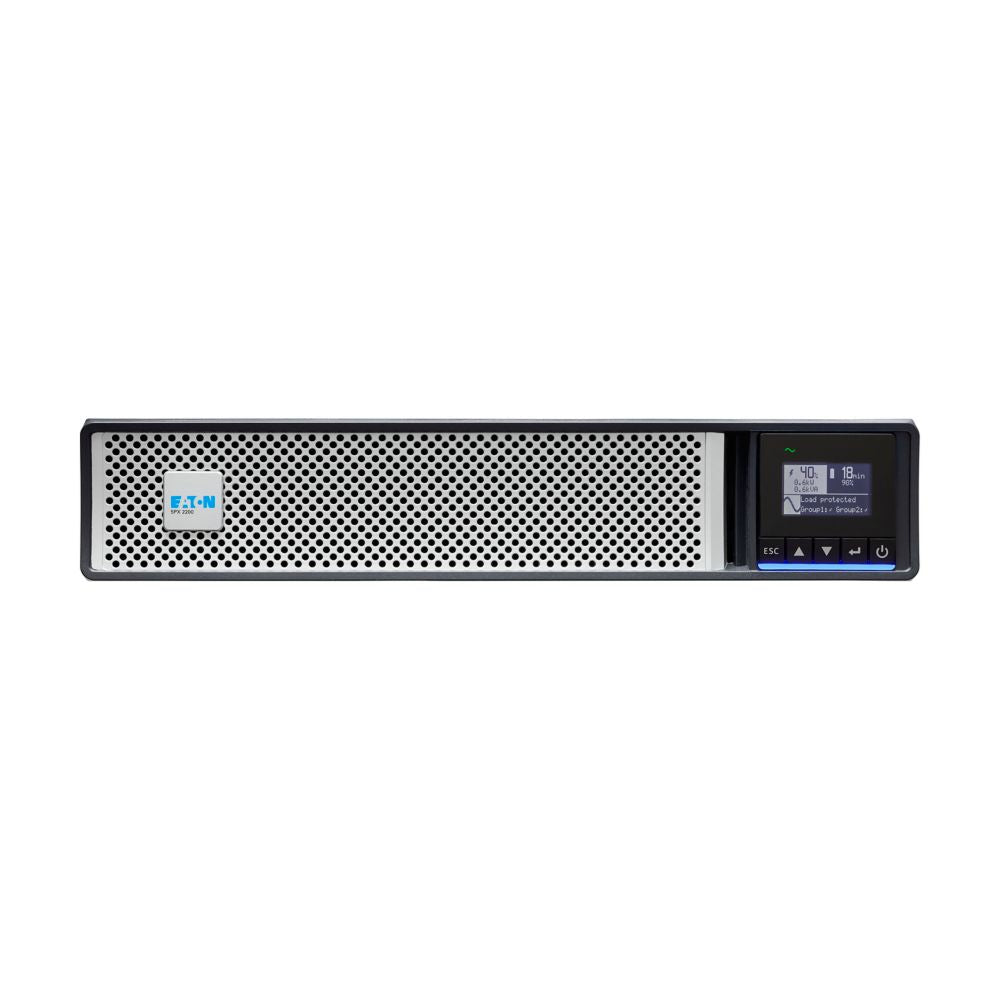

The Eaton 5PX3000HRTNG2 is a high-efficiency, line-interactive UPS designed for enterprise, telecom, and distributed IT environments. Delivering 3000 VA/3000 W of reliable power with a 208V input, this 2U rack/tower convertible unit features an L6-20P input and (2) C19 and (8) C13 output receptacles.
This UPS includes Eaton’s advanced ABM technology to extend battery life by up to 50%, and supports up to four extended battery modules for additional runtime. With a pre-installed Gigabit Network Card (NETWORK-M2), seamless remote monitoring and management is built in. It also features a user-friendly LCD interface, ENERGY STAR certification, and support for Eaton’s Brightlayer Data Centers software suite.
| Specification | Details |
|---|---|
| Model Number | 5PX3000HRTNG2 |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Power Rating | 3000 VA / 3000 W |
| Input Voltage | 208V nominal |
| Input Connection | L6-20P |
| Input Cord Length | 6 ft detachable |
| Output Receptacles | (2) C19, (8) C13 |
| Topology | Line-Interactive |
| Efficiency (Max Load) | Up to 98% |
| Battery Type | Sealed, lead-acid (User-replaceable) |
| Battery Management | ABM 3-stage charging technology |
| Extended Battery Support | Supports up to 4 EBMs (5PXEBM72RTG2) |
| Communication Slot | (1) Gigabit Network Card (pre-installed) |
| User Interface | LCD Graphical Display |
| Software Compatibility | Brightlayer Data Centers Suite |
| Certifications | ENERGY STAR, cULus, RoHS, CE, REACH |
| BTU Rating | 208 (online), 1136 (battery mode) |
| Dimensions (HxWxD) | 3.4 x 17.2 x 23.7 in |
| Weight | 69.9 lb |
| Warranty | 3-Year UPS & Battery Warranty (with registration) |
| Included Accessories | Rail kit, pedestal feet, USB & RS-232 cables, jumper cables, documentation |
