Description

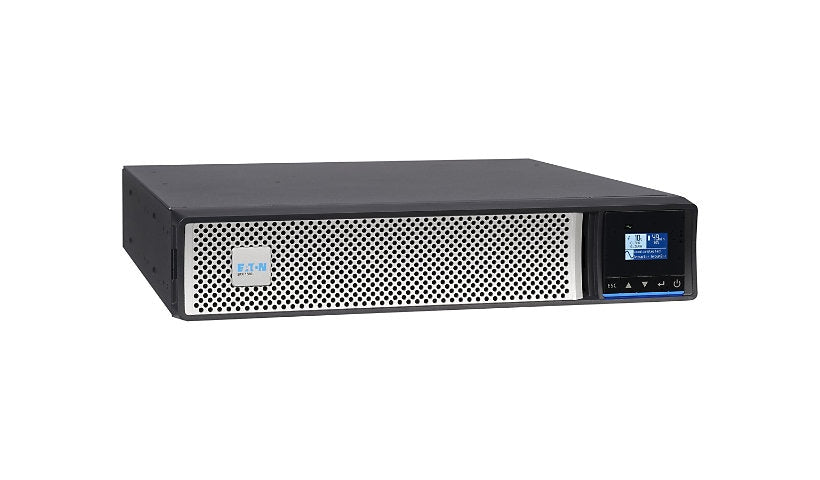

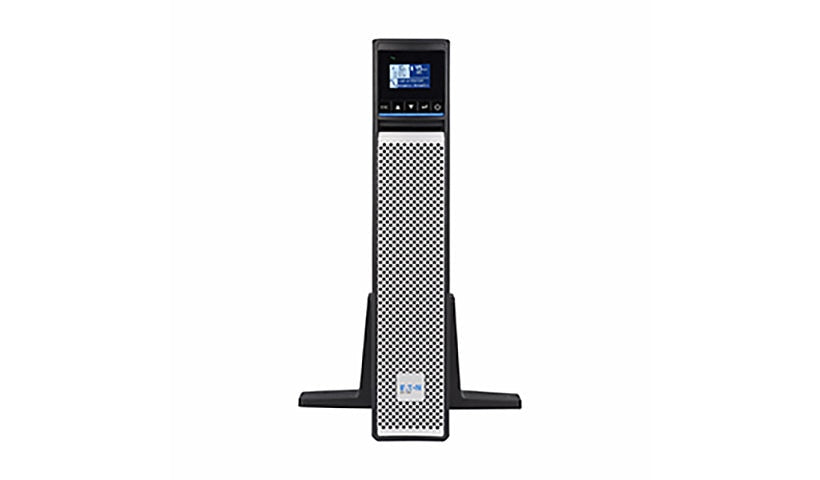

The Eaton 5PX3000HRTG2 is a line-interactive UPS that delivers 3000VA/3000W of reliable battery backup and premium power protection for mission-critical equipment in IT, healthcare, retail, education, and telecom environments. Operating at 208V with a unity power factor, this 2U rack/tower convertible UPS is equipped with hot-swappable batteries, Advanced Battery Management (ABM) technology, and optional external battery modules to extend runtime.
This ENERGY STAR® certified UPS also features a rotating LCD for real-time diagnostics, a tri-color LED status bar, and managed outlets for prioritized load shedding. With the optional NETWORK-M2 card, you gain remote management capabilities and cybersecure firmware updates, ensuring minimal downtime and advanced monitoring.
| Feature | Details |
|---|---|
| Model | Eaton 5PX3000HRTG2 |
| Form Factor | 2U Rack/Tower Convertible |
| Power Capacity | 3000 VA / 3000 W |
| Input Voltage | 208V (160–294V range) |
| Input Plug | NEMA L6-20P |
| Output Voltage | 200/208/220/230/240V |
| Output Connections | (8) IEC C13, (2) IEC C19 |
| Waveform | Pure Sine Wave |
| Battery Type | Sealed, Maintenance-Free Lead Acid |
| Hot-Swappable Batteries | Yes |
| Battery Runtime | 3 min (full load), 9 min (half load) |
| Extended Battery Option | Yes, supports up to 4 x 5PXEBM72RTG2 (sold separately) |
| Display | Rotating LCD + Tri-color LED Status Bar |
| Management Ports | RS-232, USB, Dry Contact, RPO/ROO |
| Network Management | Optional NETWORK-M2 card (sold separately) |
| Efficiency | Up to 96% (AC mode), 85% (Battery mode) |
| Operating Temp / Humidity | 32°F–104°F (0°C–40°C), 20–90% (non-condensing) |
| Rack Mount Kit | Included (4-post); Optional 2-post kit available |
| Dimensions (HxWxD) | 3.4 in x 17.2 in x 23.7 in |
| Weight | 69.89 lbs (31.7 kg) |
| Certifications | ENERGY STAR®, UL 1778 5th, FCC Part 15 Class B, IEC 62040, EN 55011, etc. |
| Warranty | 3-Year Limited (UPS and Batteries) |
