Description

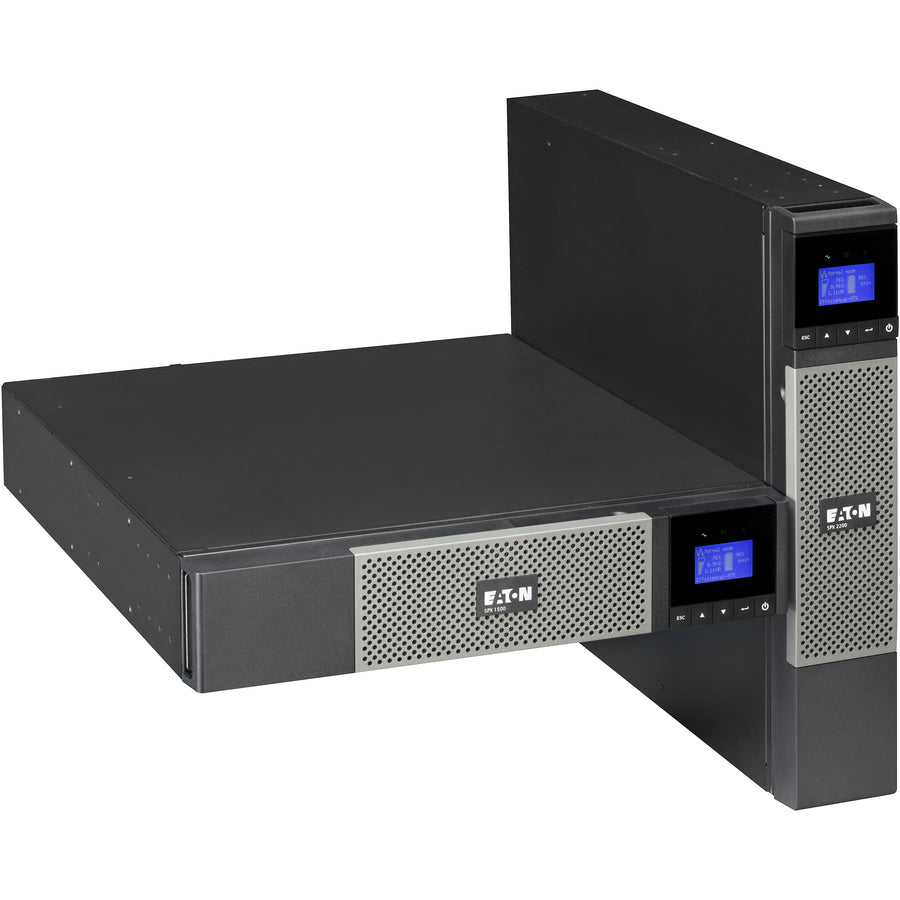

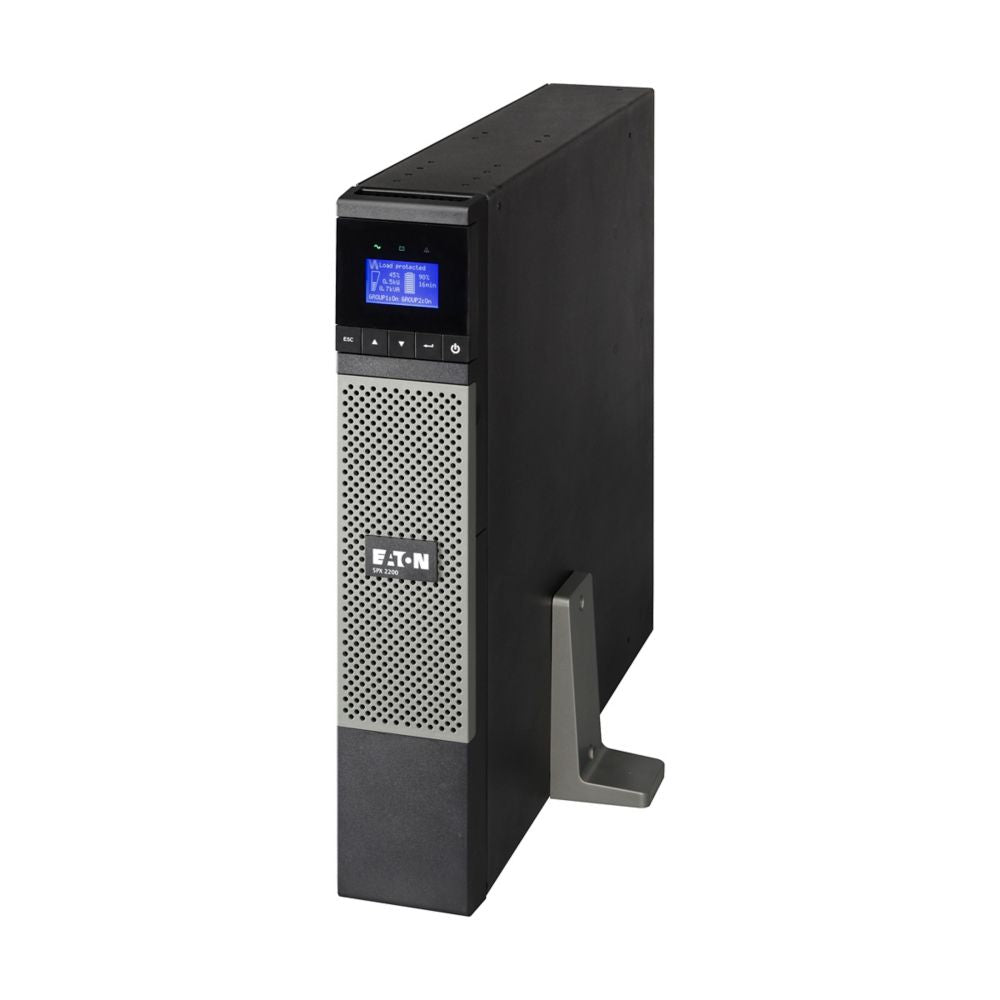

The Eaton 5PX3000IRTN is a versatile 2U rack/tower line-interactive UPS delivering 3000 VA / 2700 W of reliable power with advanced management features. Designed to protect critical equipment while reducing energy consumption, this UPS features a 0.9 power factor, clean sinewave output, and LCD graphical display for real-time monitoring. It comes with a network management card, rack-mounting kit, and tower supports. Ideal for IT, server, and network environments, it supports up to 4 extended battery modules for longer runtimes and integrates seamlessly with Eaton’s Intelligent Power Manager software and leading virtualization platforms.
| Feature | Details |
|---|---|
| Model | Eaton 5PX3000IRTN |
| Topology | Line-interactive |
| Form Factor | Rack/Tower (2U) |
| Power Rating | 3000 VA / 2700 W |
| Output Power Factor | 0.9 |
| Input Voltage | 230V (adjustable: 200/208/220/230/240V) |
| Input Connection | C20 with 1.8m cord |

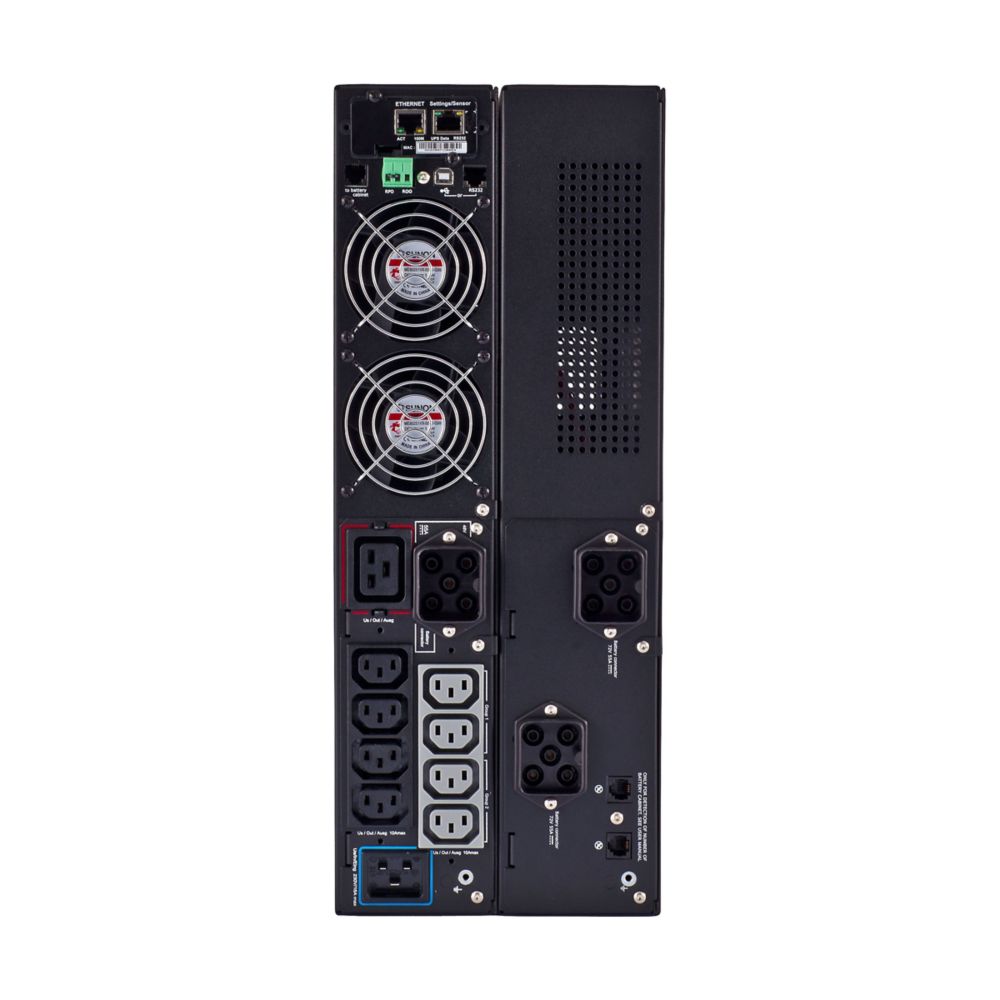

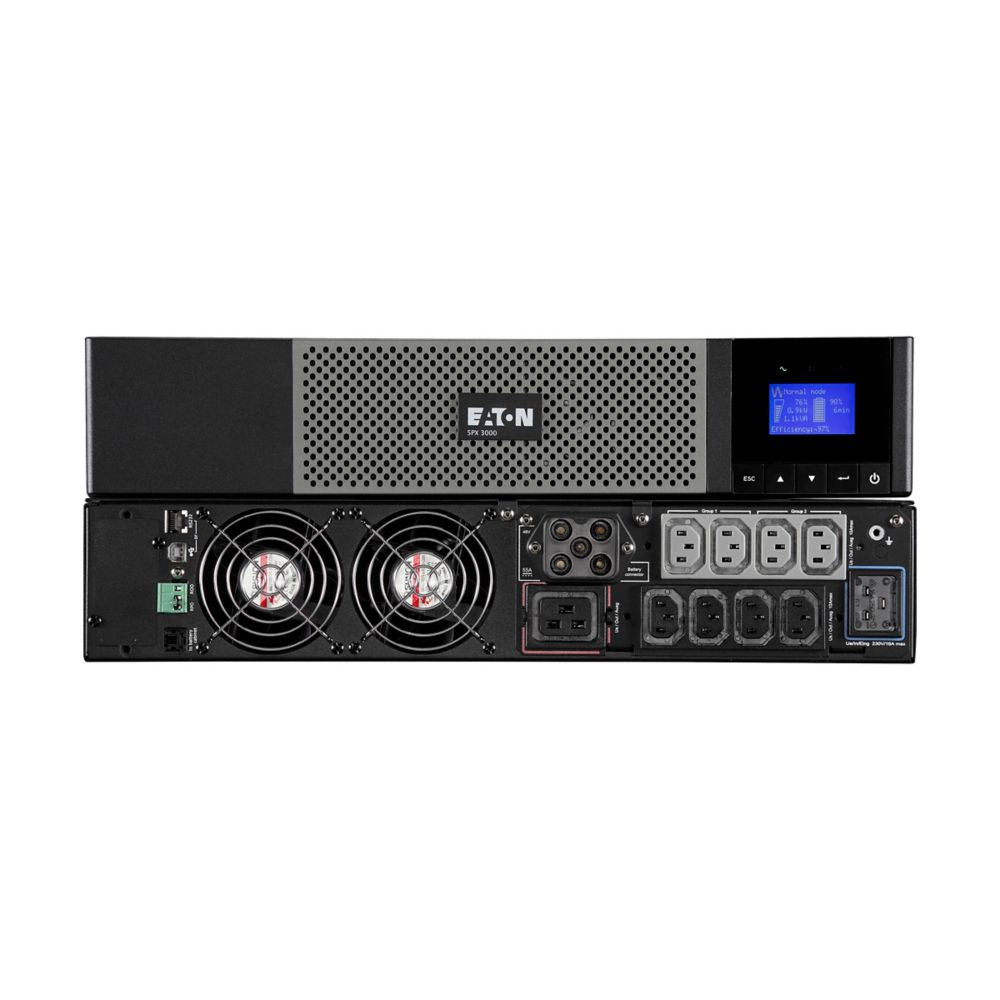

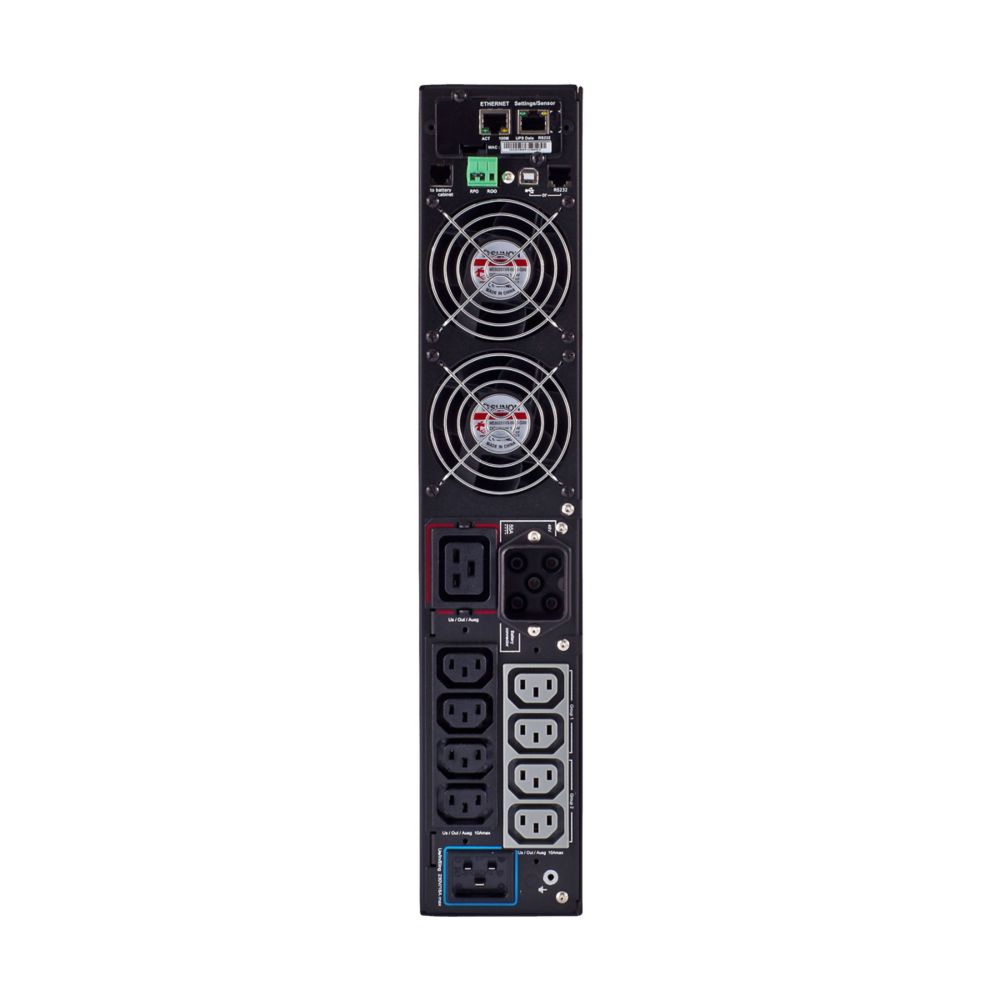

| Output Receptacles | (8) C13, (1) C19 |
| Output Voltage | 230V default (range: 200–240V) |
| Output Waveform | Sine wave |
| Output Frequency | 50/60 Hz |
| Efficiency at Max Load | Up to 97% |
| Runtime at Half Load | 10 minutes |
| Runtime at Full Load | 3 minutes |

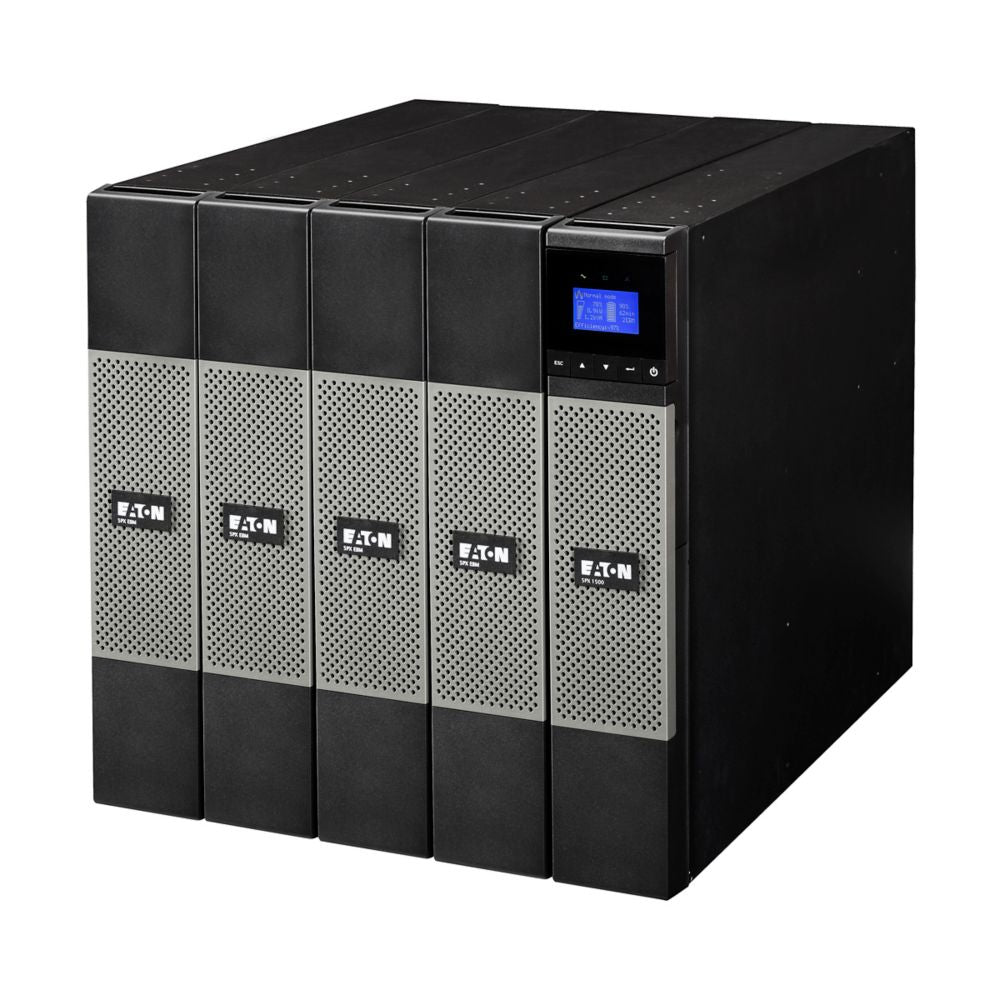

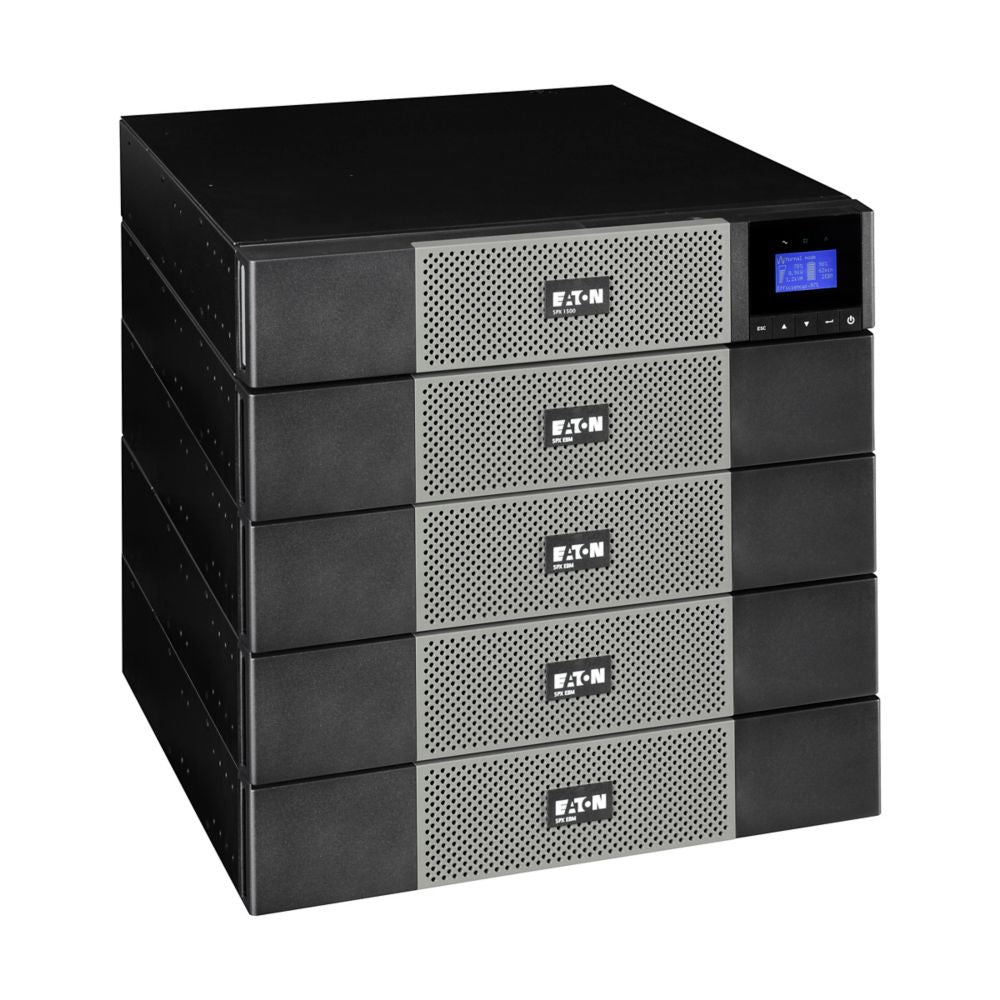

| Extended Battery Modules | Supports up to 4 EBMs |
| Battery Type | Maintenance-free, user-replaceable lead-acid |
| Battery Quantity | 6 batteries (12V / 9Ah) |
| Battery Management | ABM, temp-compensated charging, auto test |
| Interface Ports | USB, RS232, Mini-terminal, Dry contacts, Network (SNMP) |
| Display | Multilingual Graphical LCD |
| Color | Black/Silver |
| Mounting Accessories | Rack-mount kit, tower supports, cable lock system |
| Certifications | UL 1778, CE, IEC/EN 62040-1/-2, cTUVus, EAC, TUV |
| Dimensions (HxWxD) | 86.2 x 647 x 441 mm |
| Weight | 38.08 kg |
| Operating Temperature | 0–40°C |
| Relative Humidity | 0–90% non-condensing |
| Altitude | Up to 3000 meters |
| Noise Level | <40 dB @ 1 meter |
| Software Compatibility | Eaton Intelligent Power Manager & Power Protector |
| Virtualization Compatibility | VMware, Hyper-V, Citrix Xen, Redhat |
