Description

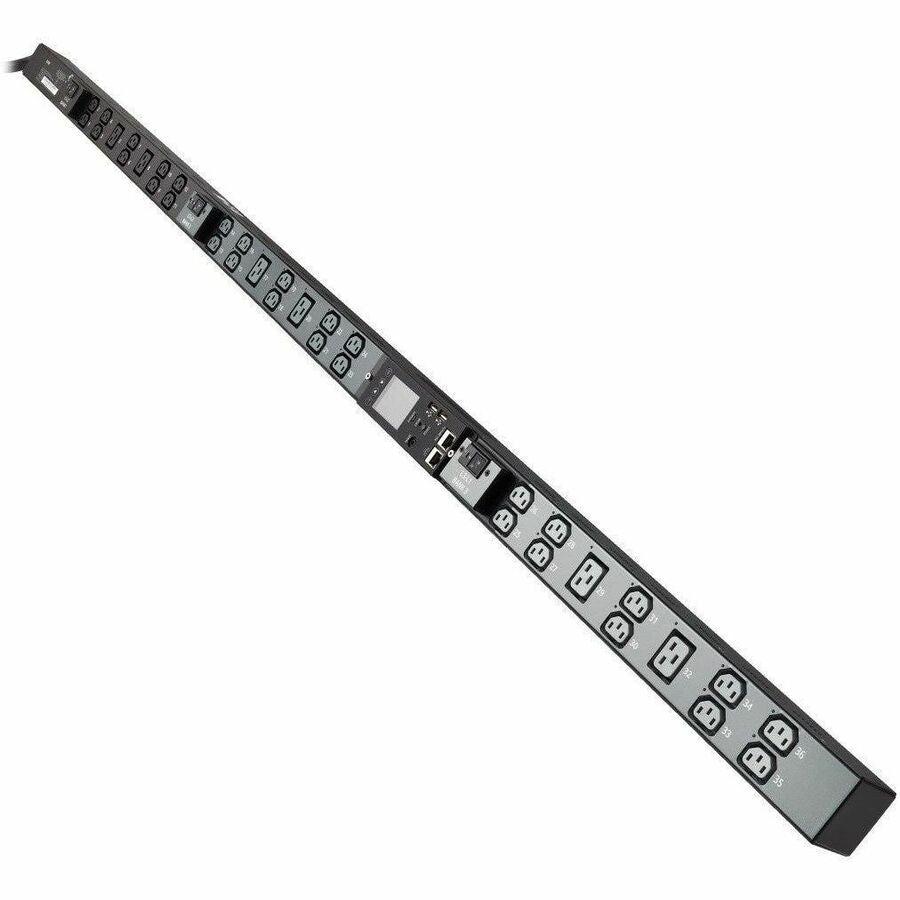

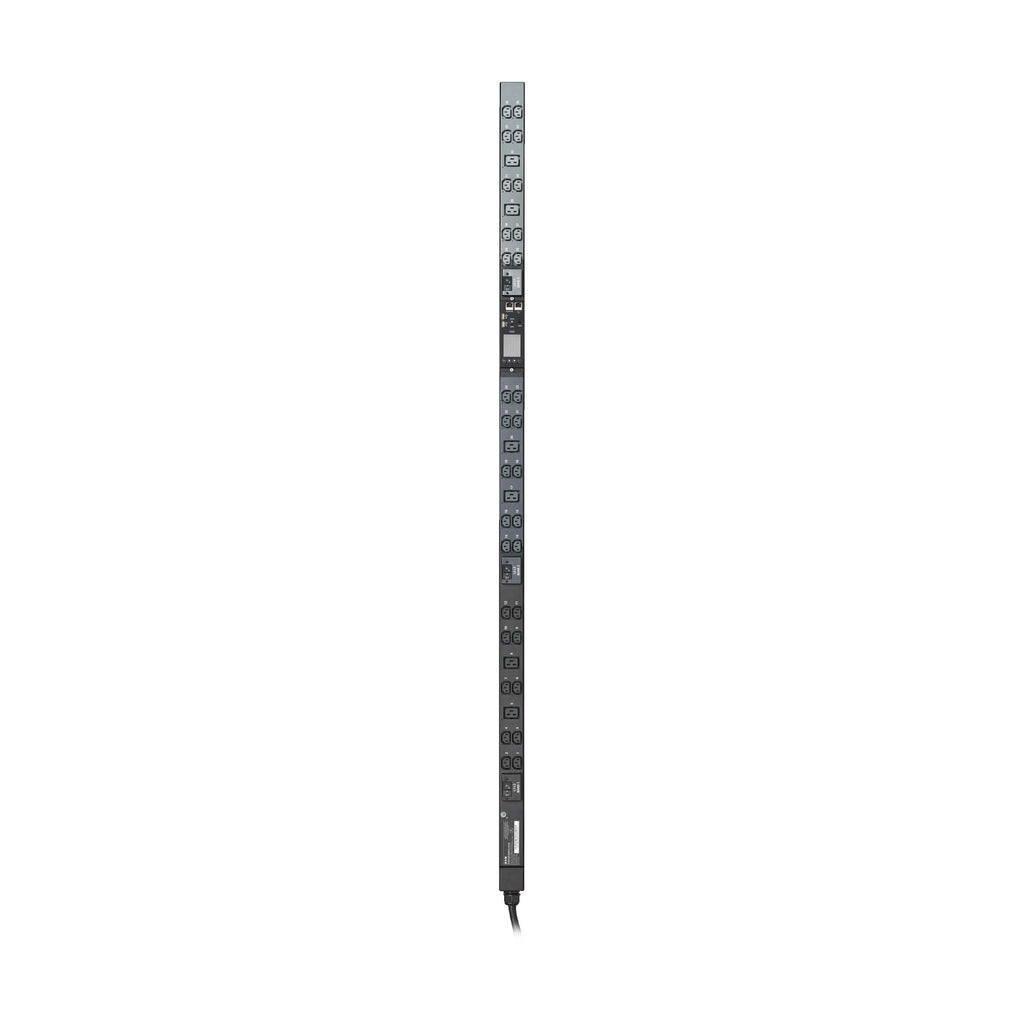

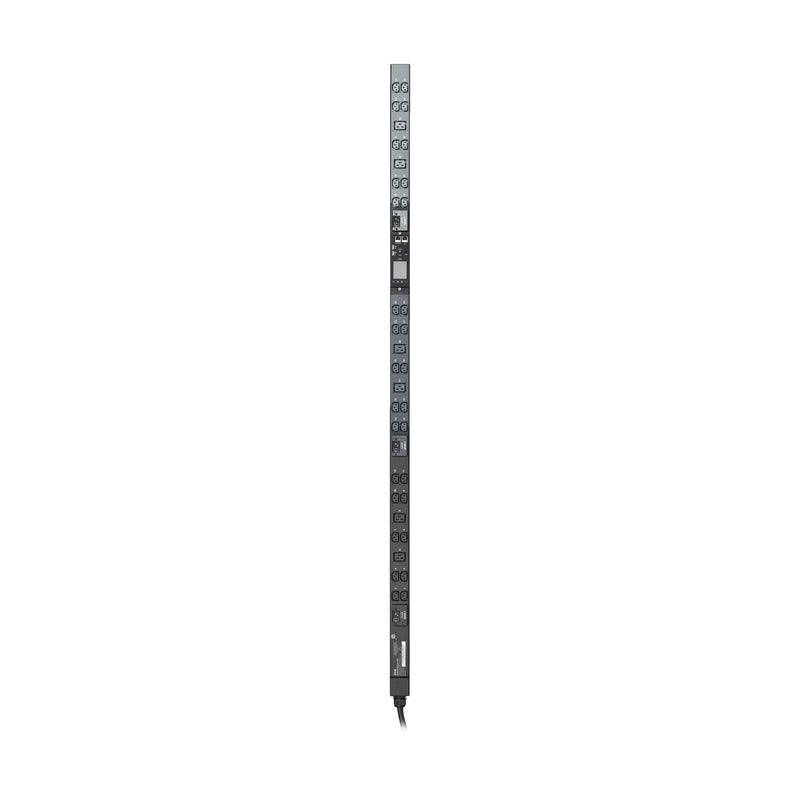

The Eaton Tripp Lite PDU3EVSR1L1530 is a high-capacity 8.6kW 200-240V 3-phase managed PDU with IsoBreaker™ technology designed to optimize power distribution and uptime in data centers, colocation facilities, and server rooms. Featuring 36 individually controllable outlets (30 C13 and 6 C19), a built-in gigabit-capable network card, and a 0U vertical form factor, this PDU enables precise load monitoring and remote power cycling. The LCD touchscreen displays real-time power metrics, and the TAA-compliant design meets federal procurement standards. Ideal for mission-critical environments where performance and remote management are paramount.
| Specification | Details |
|---|---|
| Model Number | PDU3EVSR1L1530 |
| Power Capacity | 8.6kW |
| Input Voltage Range | 200–240V 3-Phase |

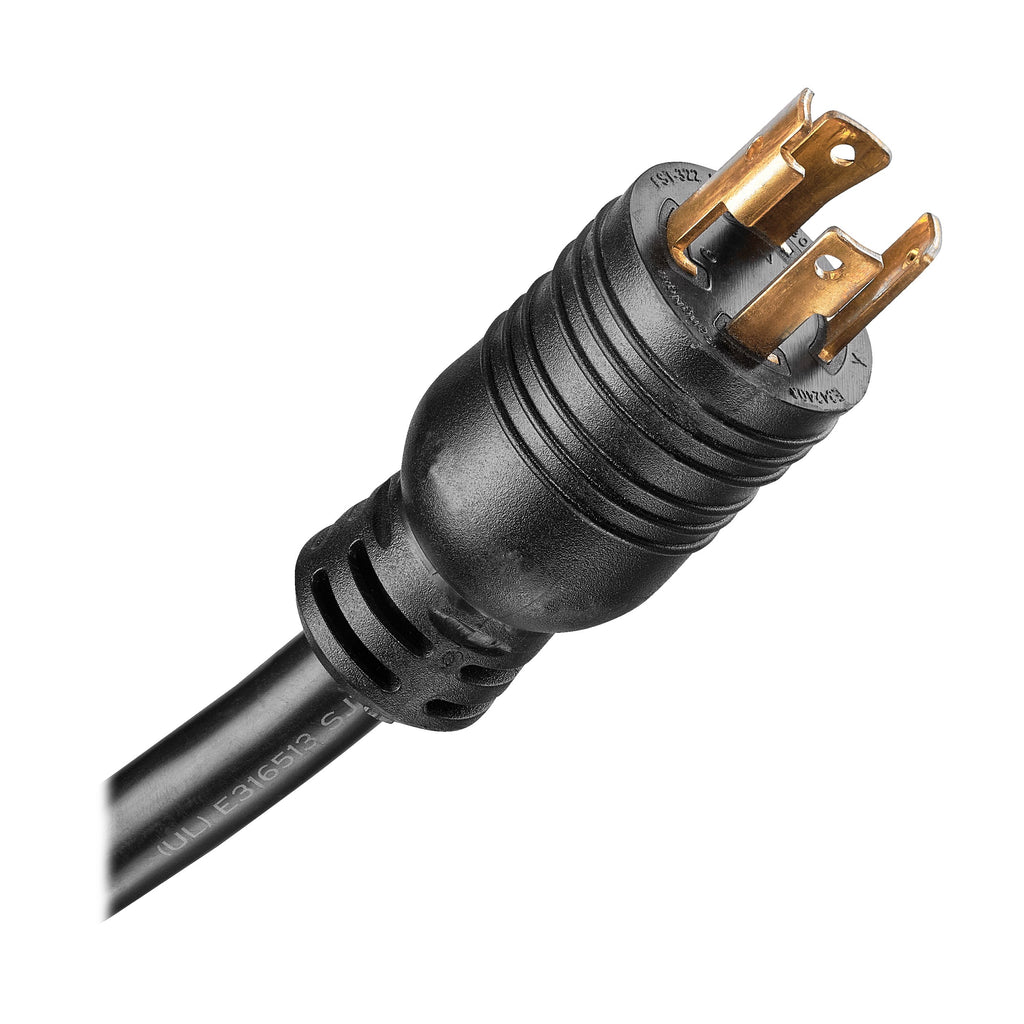

| Input Plug Type | NEMA L15-30P |

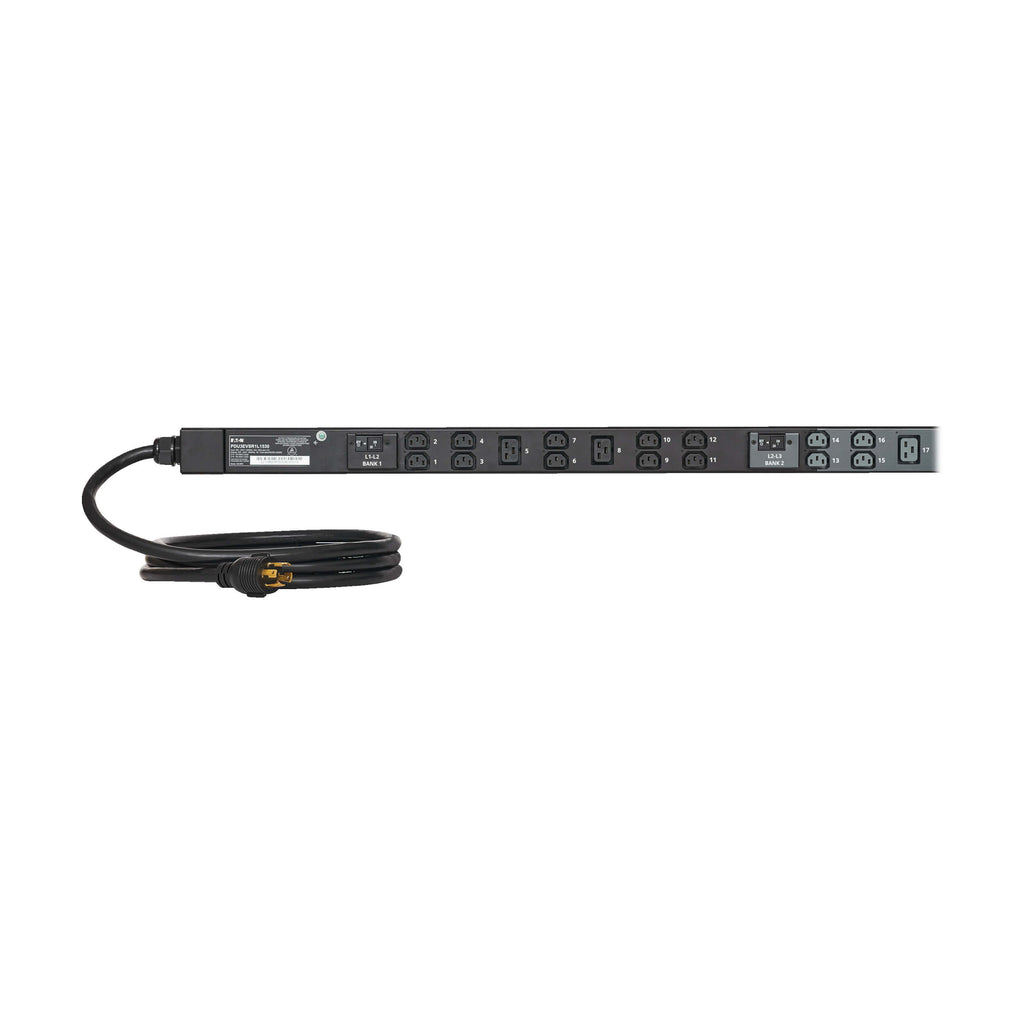

| Input Cord Length | 10 ft (3.05 m), 10GA (SJT) |
| Maximum Input Amps | 24A |
| Output Receptacles | 30 x C13, 6 x C19 |
| Outlet Control | Individually switchable |
| Rack Height / Mounting | 0U Vertical with mounting hardware included |
| Unit Dimensions (HxWxD) | 70 x 2.17 x 3.11 in (177.8 x 5.5 x 7.9 cm) |
| Unit Weight | 18.52 lbs (8.4 kg) |
| Display | Color LCD touchscreen |
| Network Interface | Gigabit Ethernet with PADM20 firmware |
| Monitoring Capabilities | Voltage, Current, Power, THDv waveform |
| Environment Monitoring Support | Optional EnviroSense2 module |
| Operating Temperature | 32° to 140°F (0° to 60°C) |
| Humidity Range | 5% to 95% RH, non-condensing |
| Compliance | TAA, UL 62368-1, RoHS, FCC Class A |
| Warranty | 2-Year Limited Warranty |
