Description

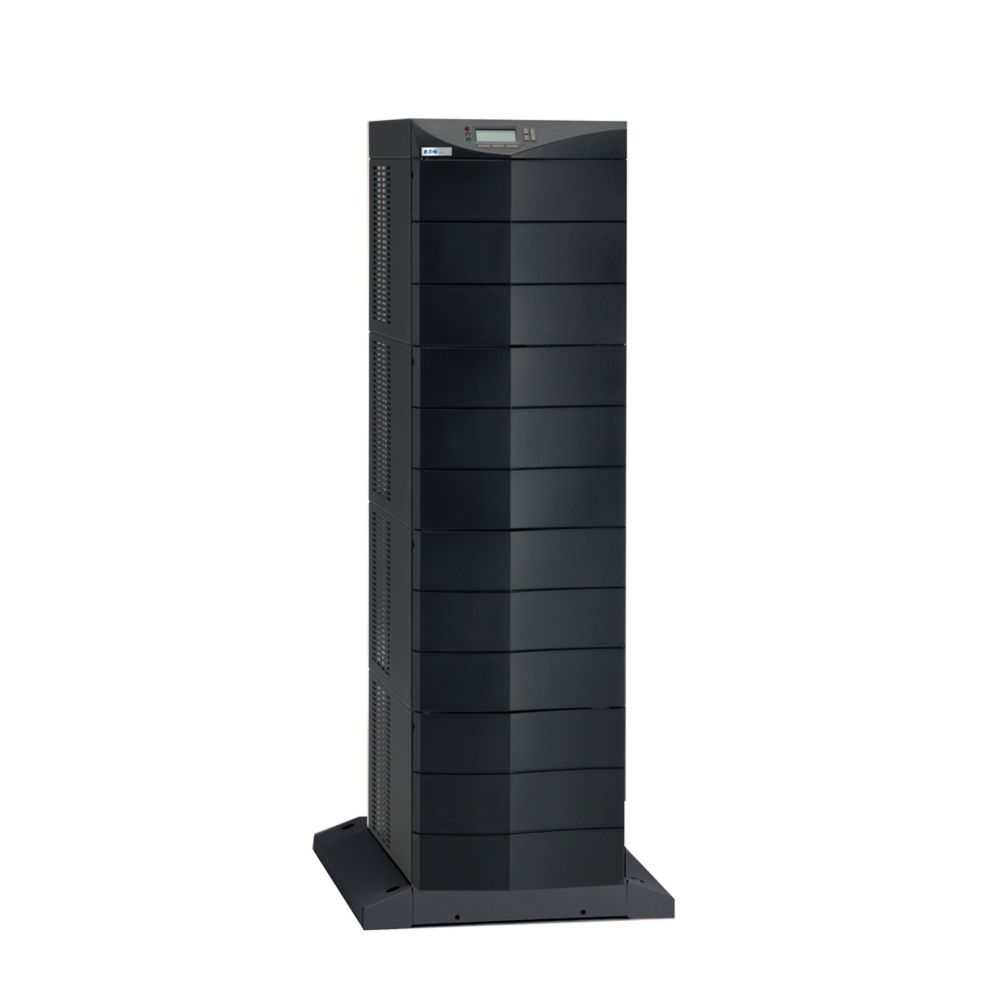

The Eaton 9170+ PW12S12K-PD is a scalable, high-performance uninterruptible power supply (UPS) system designed for mission-critical applications. With a true online double-conversion topology, this 12 kVA UPS delivers clean, reliable 10 kW power across single-phase inputs with an efficiency of up to 88%. The hot-swappable battery modules with advanced battery management (ABM) technology extend battery life by up to 50%. Housed in a 12-slot black enclosure, this UPS is built for high availability, reliability, and ease of maintenance. Ideal for IT infrastructure, healthcare, industrial, and retail environments.
| Specification | Details |
|---|---|
| Product Name | Eaton 9170+ UPS |
| Model / Part Number | PW12S12K-PD |
| UPC | 743172066169 |
| Power Rating | 12 kVA / 10 kW |
| Topology | Online / Double-Conversion |
| Input Voltage Range | 176–276 V |
| Input Connection | Fixed connection |
| Input Power Factor | 0.98 |
| Output Receptacles | (3) L14-30R, (3) L6-30R, (12) 5-20R |
| Battery Type | Sealed, Lead-Acid |
| Battery Replacement | Hot-swappable |
| Battery Management | ABM 3-stage charging |
| Efficiency at Max Load | 88% |
| Enclosure Type | 12-slot cabinet |
| Color | Black |
| Dimensions (H x W x D) | 60.7 in x 24 in x 28.5 in |
| Weight | 504 lbs |
| Display | 4x20 character backlit, programmable |
| Communication Interfaces | RS-232 (DB9), 2 Expansion Slots |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 50–90% (non-condensing) |
| Noise Level | <50 dB @ 1 meter |
| Phase (Input) | Single-phase |
| Certifications | UL Listed, cUL Listed, ANSI/IEEE C62.41, FCC Class A |
| Warranty | 2 Years |
