Description

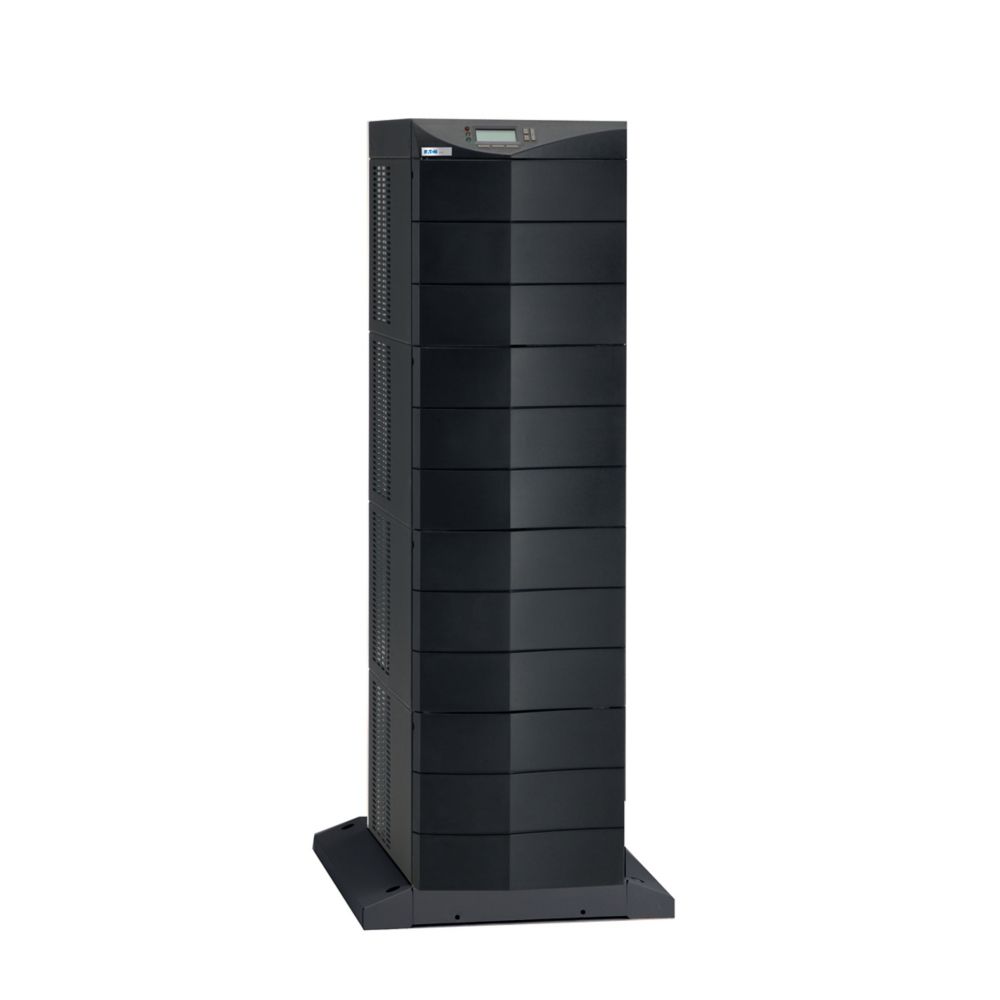

The Eaton 9170+ PW12S15K UPS delivers robust, scalable backup power with a true online double-conversion design, ideal for protecting mission-critical IT and industrial systems. With a 15 kVA / 12.5 kW capacity and a high-efficiency design (88% at max load), this unit ensures consistent power quality and minimized downtime. Its modular 12-slot black enclosure allows for easy configuration and expansion. Features like hot-swappable sealed lead-acid batteries, ABM technology for extended battery life, and programmable LCD interface make it a reliable, intelligent power management solution.
| Category | Specification |
|---|---|
| Brand | Eaton |
| Product Series | 9170+ Series |
| Model Number | PW12S15K |
| Power Capacity | 15 kVA / 12.5 kW |
| Topology | Online / Double-Conversion |
| Input Voltage Range | 176–276 V |
| Input Phase | Single-phase |
| Input Power Factor | 0.98 |
| Output Voltage | Fixed connection |
| Output Receptacle | Fixed connection |
| Efficiency (Full Load) | 88% |
| Battery Type | Sealed, lead-acid (hot-swappable) |
| Battery Management | ABM 3-stage charging with replacement alerts |
| Noise Level | <50 dB at 1 meter |
| Communication Interface | RS-232 (DB9) |
| Expansion Slots | 2 |
| User Interface | 4x20 character programmable backlit display |
| Certifications | UL Listed, cUL, FCC Class A, ANSI/IEEE C62.41 |
| Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Humidity | 50–90% non-condensing |
| Enclosure | 12-slot tower, black |
| Dimensions (HxWxD) | 60.7" x 24" x 28.5" |
| Weight | 581 lbs |
| Warranty | 2 Years |
