Description

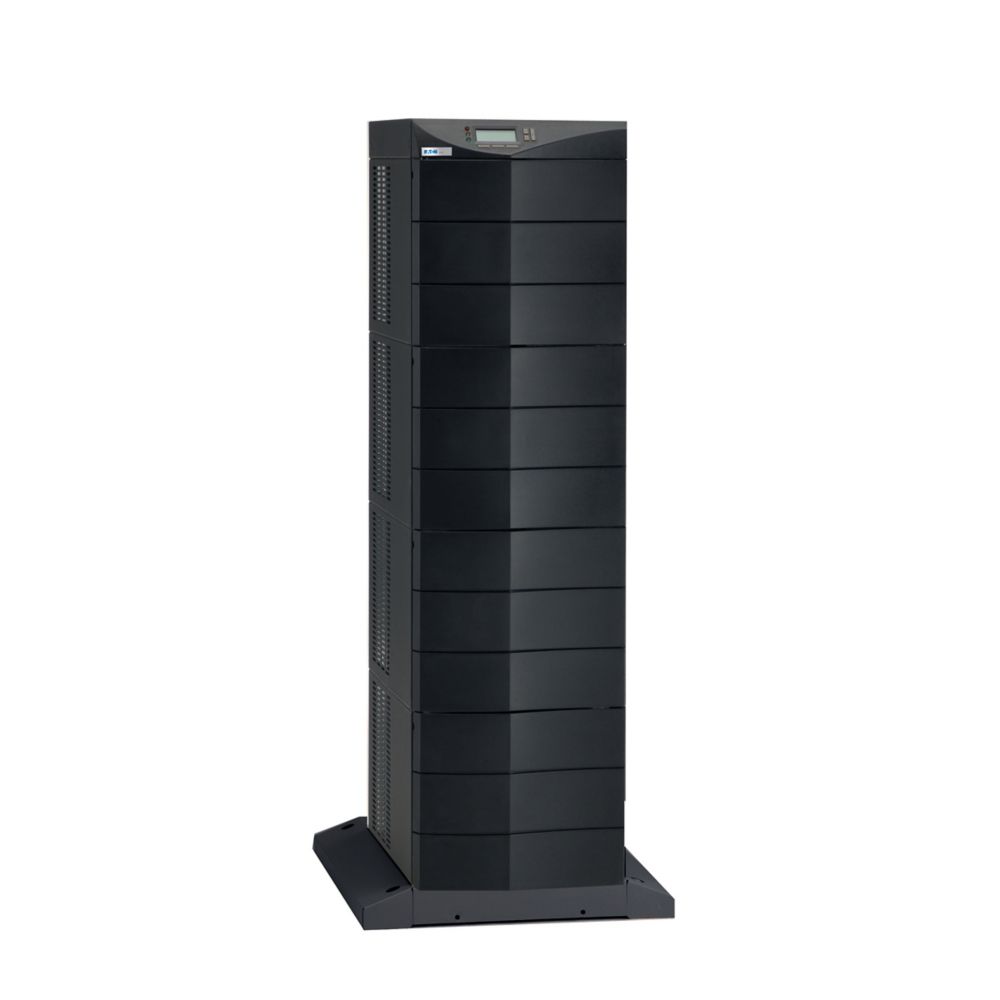

The Eaton 9170+ PW12S15K-PD UPS delivers premium, scalable power protection for mission-critical IT and electrical systems. Designed with a 12-slot black enclosure, this robust 15 kVA / 12.5 kW system features online double-conversion topology, hot-swappable sealed lead-acid batteries, and advanced ABM battery management to extend service life and provide early replacement alerts.
Engineered for efficiency and flexibility, the unit supports varied output receptacles, a quiet <50 dB operation, and a high input power factor (0.98). Its RS-232 communication and programmable LCD interface offer intuitive monitoring. Ideal for data centers, banking, healthcare, and industrial environments requiring compact yet powerful UPS solutions.
| Specification | Details |
|---|---|
| Product Name | Eaton 9170+ UPS |
| Model / Part Number | PW12S15K-PD |
| UPC | 743172066183 |
| Topology | Online / Double-Conversion |
| VA Rating | 15 kVA |
| Wattage Output | 12.5 kW |
| Input Voltage Range | 176–276 V |
| Input Power Factor | 0.98 |
| Input Phase | Single-phase |
| Input Connection | Fixed Connection |
| Output Receptacles | (3) L14-30R, (3) L6-30R, (12) 5-20R |
| Battery Type | Sealed Lead-Acid |
| Battery Replacement | Hot-swappable |
| Battery Management | ABM 3-stage charging (extends life by 50%) |
| Efficiency @ Max Load | 88% |
| Expansion Slots | 2 |
| Communication Interface | RS-232 (DB9) |
| User Interface | 4x20 character backlit display, programmable |
| Enclosure Size | 12-slot |
| Color | Black |
| Noise Level | <50 dB @ 1 meter |
| Operating Temp Range | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 50–90% non-condensing |
| Product Dimensions (HxWxD) | 60.7 x 24 x 28.5 in |
| Product Weight | 581 lb |
| Certifications | UL Listed, cUL, FCC Cat. A, ANSI/IEEE C62.41 |
| Warranty | 2 years |
