Description

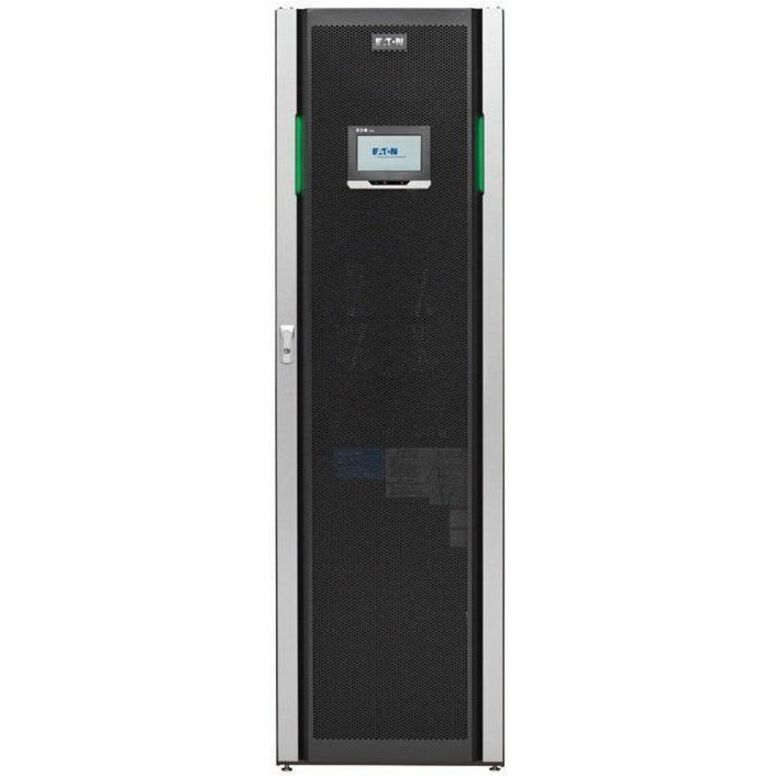

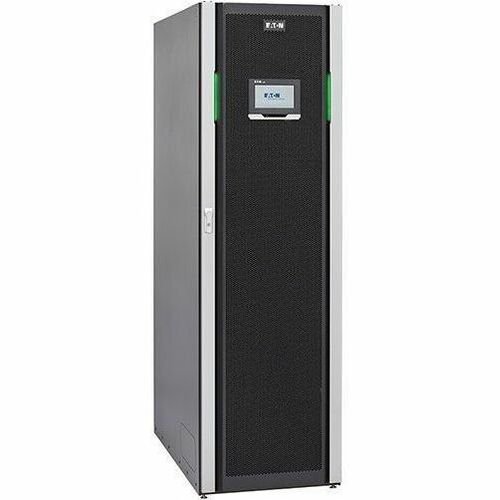

The Eaton 93PM 120kW Tower UPS offers advanced efficiency, scalability, and robust performance for mission-critical applications. Designed for modern data centers, it features a compact footprint, double-conversion technology, and vertical scalability. This three-phase UPS delivers 230V AC input and dual 220V/208V AC output, ensuring clean and continuous power. With an intuitive LCD display, USB connectivity, and flexible network management protocols (HTTPS, SNMP, Modbus, BACnet), it provides a comprehensive solution for remote monitoring and energy optimization. Backed by Eaton’s PredictPulse™ remote monitoring service, the 93PM 120kW UPS is engineered for uptime, reliability, and reduced total cost of ownership.
| Category | Details |
|---|---|
| Brand | Eaton |
| Series | 93PM |
| Model Number | 9GF624A029E20R1 |
| Form Factor | Tower |
| Topology | Double Conversion Online |
| Load Capacity | 120 kW |
| Input Voltage | 230 V AC |
| Output Voltage | 220 V AC, 208 V AC |
| Input Frequency | 50/60 Hz |
| Output Frequency | 50/60 Hz |
| Input Power Factor | 0.8 |
| Efficiency | Up to 95% (Double Conversion), 98.5% (ESS) |
| Phase | Three Phase |
| Connector Type | Hard Wire 4-wire |
| Receptacle Type | Hardwired |
| Display | LCD Touchscreen |
| Interfaces | USB, EPO Port |
| Network Management | HTTPS, SNMP, Modbus TCP/IP, Modbus RTU, BACnet IP |
| Battery System Voltage | 480 V DC |
| Certifications | UL 1778, cULus, FCC Part 15 Class A, IEC 61000-4-5 |
| Height | 74 in |
| Width | 22 in |
| Depth | 42 in |
| Product Condition | New and Factory Fresh |
| Shipping Weight | 47 lbs |
| Application | Data Center, Critical IT Environments |
