Description
The Eaton 93PM 40kW UPS is a high-performance, double-conversion online power protection solution designed for modern data centers and mission-critical environments. Engineered with N+1 redundancy and four internal battery strings, this system ensures continuous uptime and resilience against power disruptions while maintaining optimal operational efficiency.
With up to 97% efficiency in double-conversion mode and up to 99% in Energy Saver System (ESS) mode, the 93PM significantly reduces operating costs related to power consumption and cooling. Its compact tower design minimizes data center footprint while enabling scalable growth to support evolving infrastructure demands.
Equipped with a user-friendly LCD interface, advanced communication protocols, and remote monitoring capabilities, this UPS allows IT teams to maintain full visibility and control over their power environment. Integrated maintenance bypass functionality and robust circuit protection further enhance system reliability and simplify service operations.
| Specification | Details |
|---|---|
| Product Type | Double Conversion Online UPS |
| UPS Series | Eaton 93PM |
| Load Capacity | 40 kW |
| Topology | Double Conversion |
| Redundancy | N+1 |
| Input Voltage | 230V AC |
| Output Voltage | 208V AC |
| Input Frequency | 50/60 Hz |
| Output Power Factor | 0.8 |
| Efficiency | Up to 97% (Double Conversion), up to 99% (ESS Mode) |
| Phase | Three Phase |

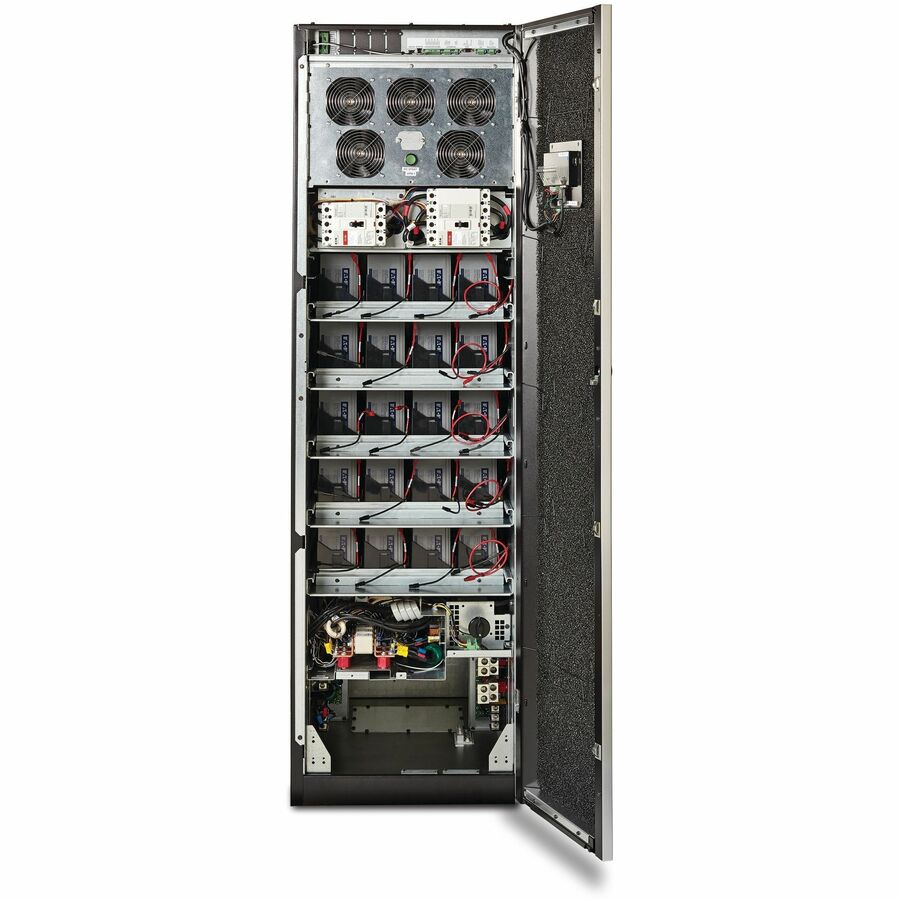

| Battery Configuration | 4 Internal Battery Strings |
| DC System Voltage | 432 V DC |
| Maintenance Bypass | 3-Breaker Maintenance Bypass (MBS) |

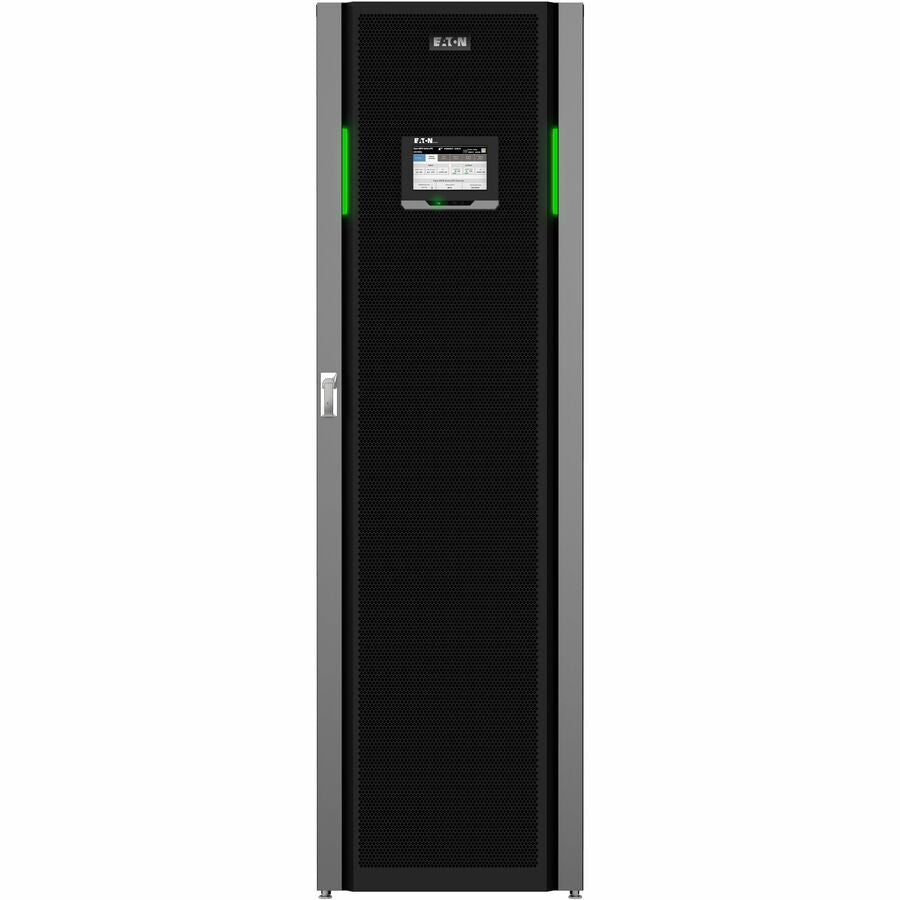

| Form Factor | Tower |
| Display | LCD with graphical interface |
| Status Indicators | LED light bars (green/yellow/red) |
| Communication Protocols | HTTPS, SNMP, Modbus TCP/IP, Modbus RTU, BACnet IP |
| Network Management | Supported via communication cards |
| USB Port | Yes |
| Emergency Power Off (EPO) | Yes |
| Plug / Connector Type | Hardwired (4-wire) |
| Receptacle Type | Hardwired (4-wire) |
| Application | Data centers and mission-critical systems |
| Height | 74 inches |
| Width | 32 inches |
| Depth | 42 inches |
| Weight | 593 lbs |
| Certifications | UL 1778, cULus, FCC Part 15 Class A, IEC 61000-4-5 |
| Cooling Efficiency | Optimized for reduced thermal output |
| Monitoring Software | Eaton Power Xpert and Intelligent Power Software Suite |
| Remote Monitoring | Supported via PredictPulse service |
| Condition | New and Factory Fresh |
