Description

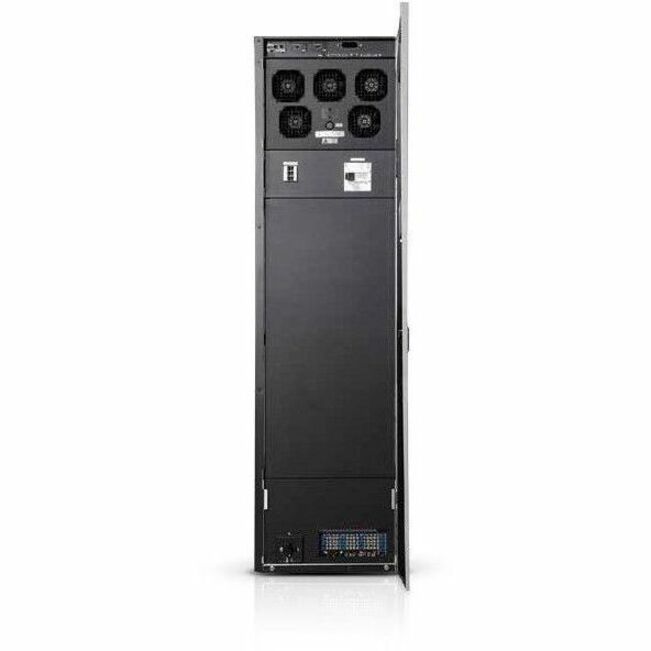

The Eaton 93PM 50kW UPS is a high-performance three-phase power protection solution engineered for modern data centers and critical infrastructure environments. Designed with a compact tower form factor, this double-conversion online UPS delivers consistent, clean power while maximizing energy efficiency and minimizing operational costs.
With up to 97% efficiency in double-conversion mode and up to 99% efficiency using Eaton’s Energy Saver System (ESS), the 93PM significantly reduces energy consumption and cooling requirements. Its scalable architecture supports future growth without requiring major infrastructure changes, making it ideal for evolving IT environments.
This configuration includes a 3-breaker maintenance bypass switch for simplified serviceability and uptime continuity, while intentionally excluding batteries and communication cards for flexible customization based on deployment needs. The intuitive LCD interface and LED status indicators provide clear system visibility, enabling efficient monitoring and management.
Built for reliability, flexibility, and long-term performance, the Eaton 93PM ensures uninterrupted operations for mission-critical applications.
| Specification | Details |
|---|---|
| Product Series | Eaton 93PM |
| UPS Type | Double Conversion Online UPS |
| Power Capacity | 50 kW |
| Input Voltage | 230V AC |
| Output Voltage | 208V AC |
| Input Frequency | 50/60 Hz |
| Output Power Factor | 0.8 |
| Phase Configuration | Three-Phase |
| Form Factor | Tower |
| Efficiency | Up to 97% (Double Conversion), up to 99% (ESS Mode) |
| Maintenance Bypass | 3-Breaker Maintenance Bypass Switch (MBS) Included |
| Communication Cards | Not Included (Optional Support Available) |
| Batteries | Not Included (External Battery Options Supported) |
| Input Connection | Hardwired (4-wire) |
| Output Connection | Hardwired (4-wire) |
| Display | LCD Interface with LED Status Indicators |
| Interfaces | USB, EPO Port |
| Network Management Support | HTTPS, SNMP, Modbus TCP/IP, Modbus RTU, BACnet IP (with optional cards) |
| DC System Voltage | 432 V DC |
| Application | Data Centers, Enterprise IT, Critical Infrastructure |
| Certifications | UL 1778, cULus, FCC Part 15 Class A, IEC 61000-4-5 |
| Dimensions (H x W x D) | 74" x 32" x 42" |
| Shipping Weight | 708 lbs |
| Condition | New and Factory Fresh |
