Description

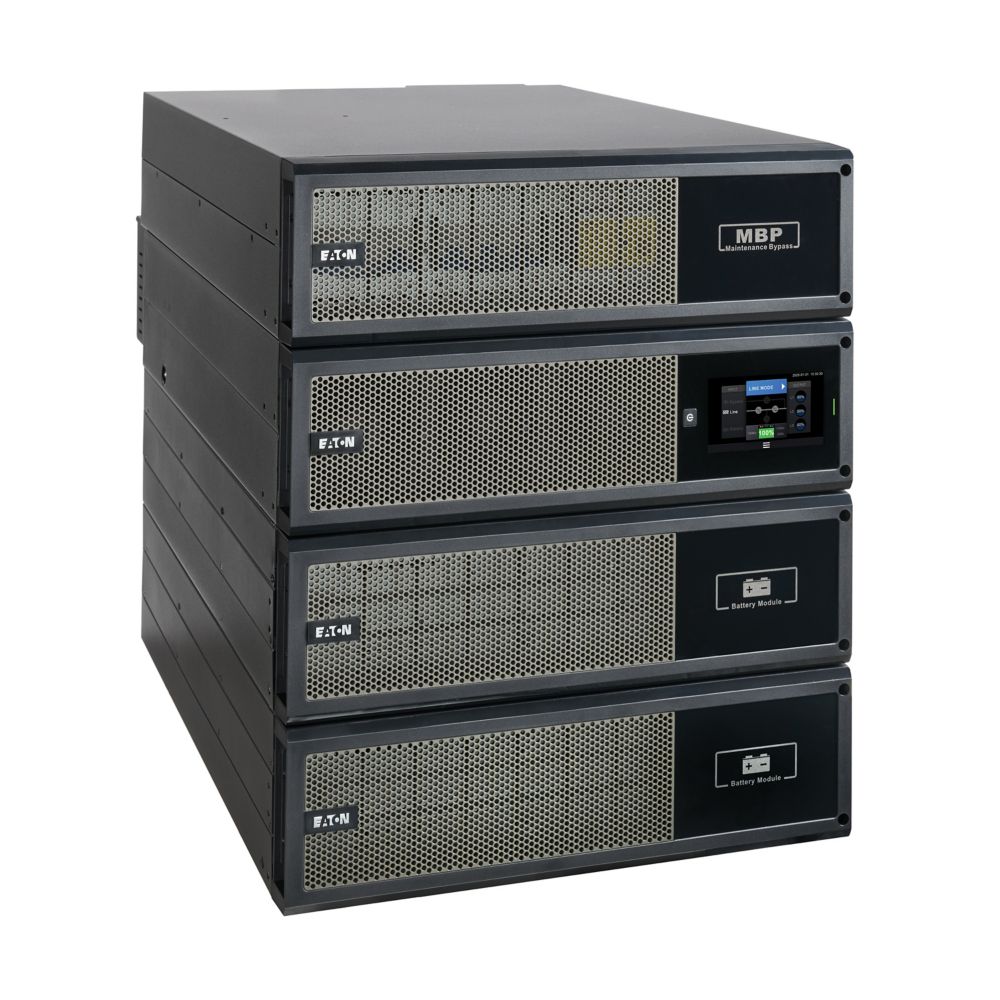

The Eaton 93PX15KIHWNDG is a high-performance 15kW / 15kVA online double-conversion UPS engineered to deliver continuous, clean power for mission-critical IT infrastructure, edge computing, healthcare facilities, commercial buildings, and industrial applications. Featuring hardwired input/output, a unity power factor (1.0), and up to 96% online efficiency (98.8% in ECO mode), it maximizes uptime while reducing operating costs.

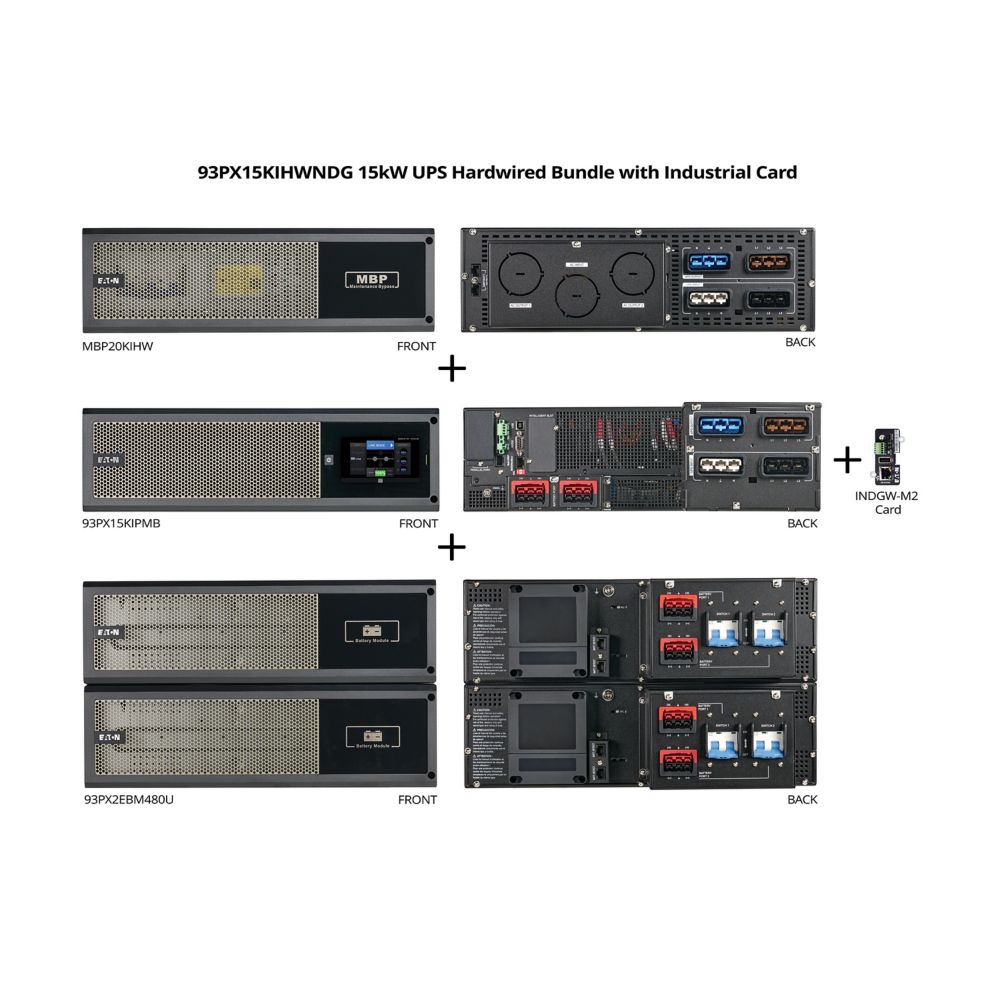

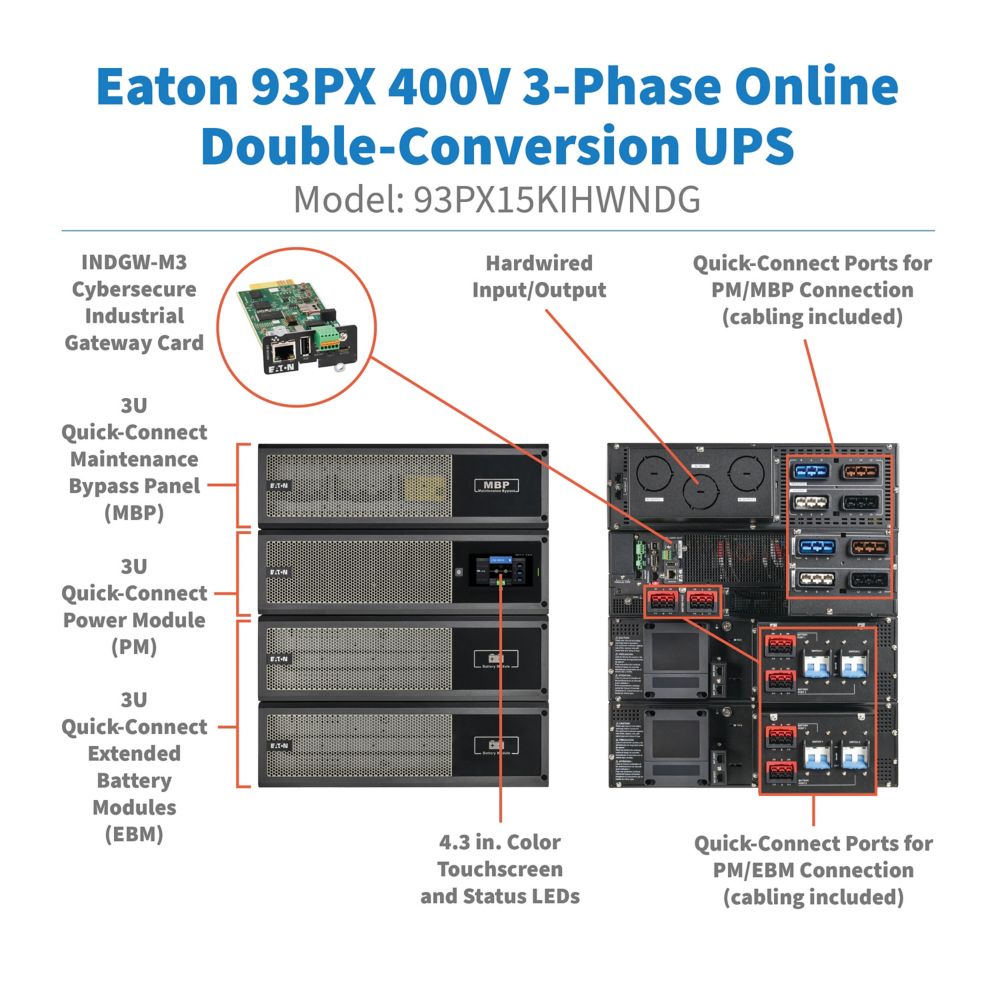

This 400V three-phase UPS includes a maintenance bypass panel (MBP), two extended battery modules (EBMs), and the INDGW-M3 Industrial Network Management Card, enabling secure remote monitoring and integration with Modbus, BACnet, SNMP, and web-based management systems. Its innovative quick-connect modular architecture simplifies installation, maintenance, and future expansion, while support for parallel operation provides increased capacity or N+1 redundancy for growing infrastructures.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton |
| Model | 93PX15KIHWNDG |
| Product Type | Online Double-Conversion UPS |
| UPS Topology | Online Double Conversion |
| Power Capacity | 15 kVA / 15 kW |
| Power Factor | 1.0 |
| Phase | 3-Phase Input / 3-Phase Output |
| Nominal Input Voltage | 380/400/415 VAC |

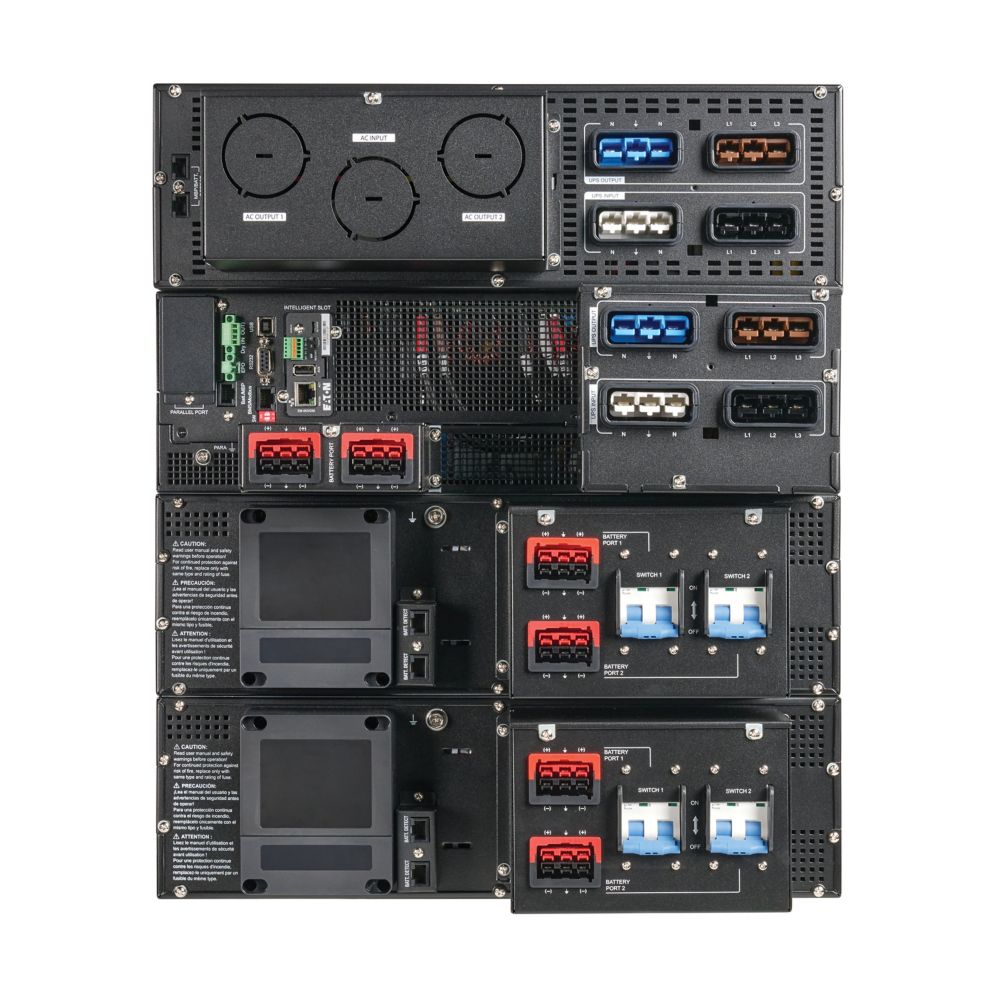

| Input Connection | Hardwired |
| Output Connection | Hardwired |
| Output Voltage | 380/400/415 VAC |
| Frequency | Auto-Sensing 50/60 Hz |
| Efficiency | Up to 96% Online, 98.8% ECO Mode |
| Waveform | Pure Sine Wave |
| Transfer Time | Zero |
| Battery Type | VRLA |
| Included Battery Modules | Two Extended Battery Modules (EBMs) |
| Maximum Battery Expansion | Up to 8 EBMs |
| Recharge Time | ≤3 Hours to 90% |

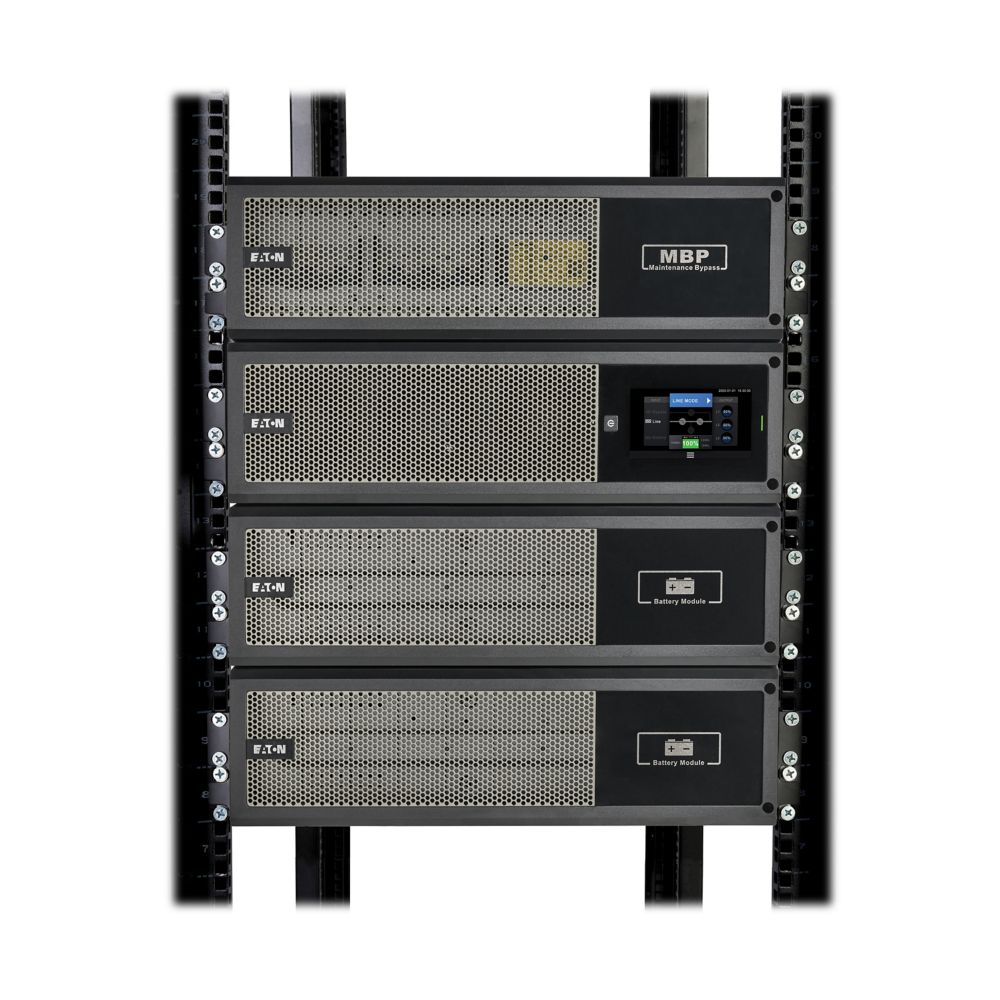

| Rack Size | 12U |
| Power Module Size | 3U |
| Display | 4.3-inch Color LCD Touchscreen |
| Network Management | INDGW-M3 (Modbus, SNMP, BACnet, Web) |
| Communication Ports | USB, RS-232, EPO, Dry Contact |
| Parallel Capability | Yes (N+1 Redundancy or 30kW Capacity) |
| Cooling | Intelligent Forced Air |
| Operating Temperature | 0°C to 40°C |
| Noise Level | ≤65 dB |
| Applications | Data Centers, Edge Computing, Industrial Facilities, Healthcare, Enterprise IT |
