Description
The Eaton 93PX15KHWNPAR is a high-performance 400V three-phase online double-conversion UPS designed to protect mission-critical IT infrastructure, edge computing environments, healthcare facilities, and industrial applications. This parallel rackmount configuration delivers 30kW capacity or 15kW with N+1 redundancy, ensuring maximum uptime and business continuity.

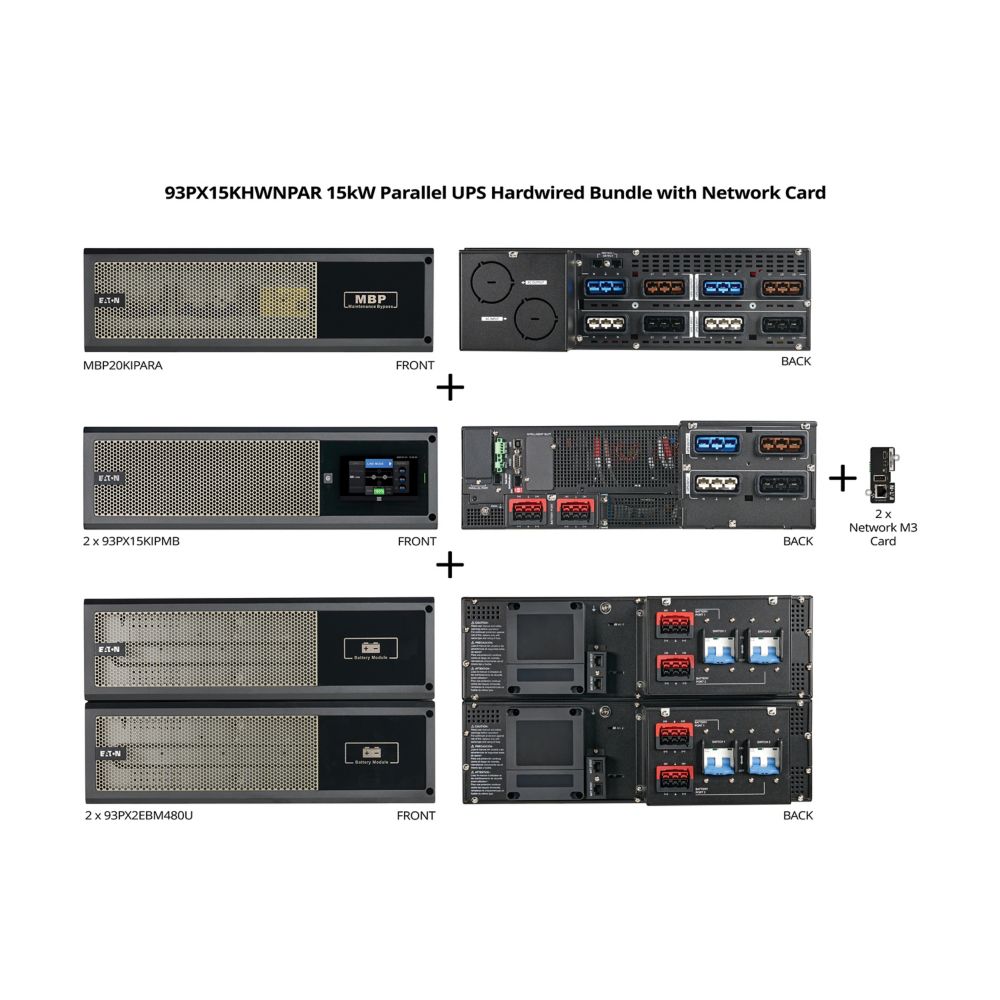

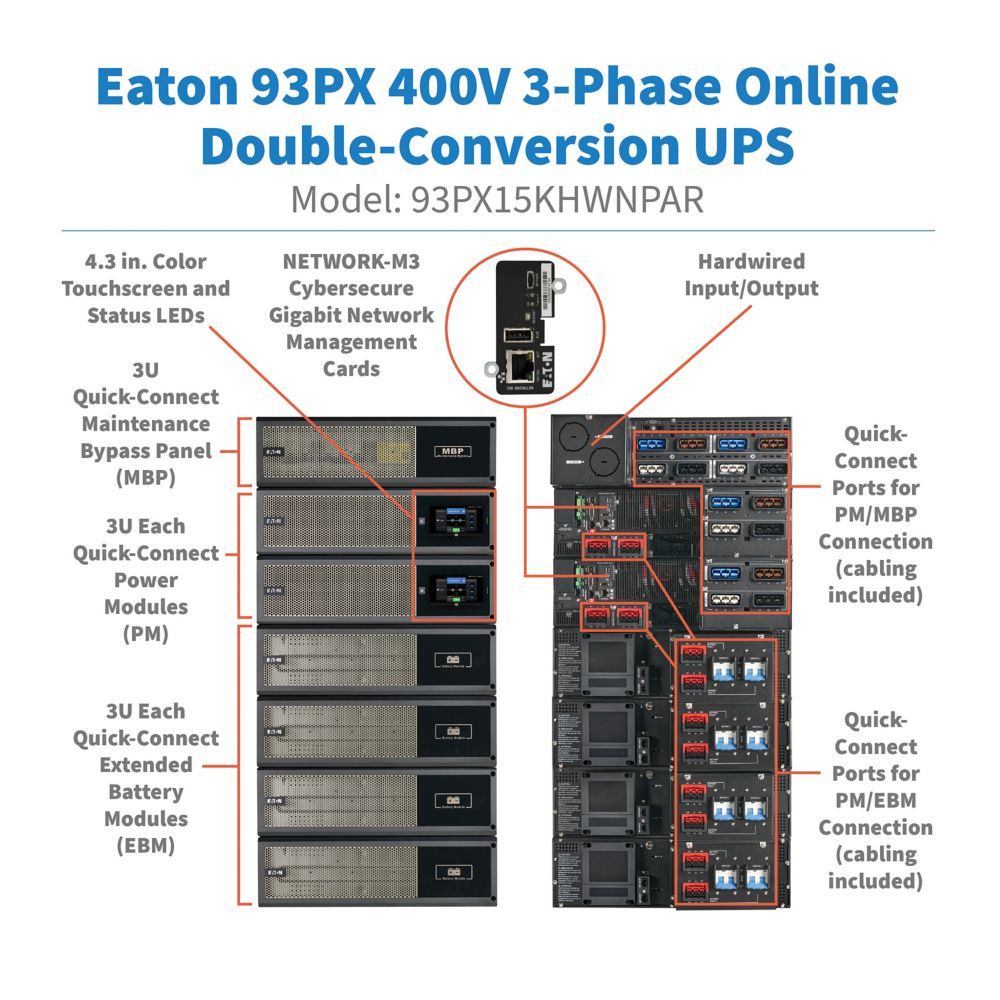

Featuring hardwired input and output connections, quick-connect architecture for simplified deployment, and Eaton's NETWORK-M3 cybersecure network management card, the 93PX15KHWNPAR provides intelligent remote monitoring, exceptional power quality, and industry-leading energy efficiency of up to 96% in online mode and 98.8% in ECO mode. The system includes dual power modules, a parallel maintenance bypass panel, and four extended battery modules, making it an ideal solution for demanding enterprise and data center environments.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton |
| Model | 93PX15KHWNPAR |
| Product Type | Online Double-Conversion UPS |
| UPS Topology | Online Double Conversion |
| Power Capacity | 30kW Parallel or 15kW N+1 Redundant |
| Power Rating | 30kVA / 30kW (Parallel) |
| Input Phase | 3-Phase |
| Output Phase | 3-Phase |
| Nominal Input Voltage | 380/400/415 VAC |
| Nominal Output Voltage | 380/400/415 VAC |
| Input Connection | Hardwired |
| Output Connection | Hardwired |
| Rack Size | 21U |
| Power Factor | 1.0 (Unity) |
| Efficiency (Online Mode) | Up to 96% |
| Efficiency (ECO Mode) | Up to 98.8% |
| Parallel Capability | Yes |
| Redundancy | N+1 Supported |
| Battery Modules Included | Four Extended Battery Modules (EBMs) |
| Battery Type | VRLA |
| Maximum Battery Expansion | Up to 8 EBMs |
| Display | 4.3-inch Color LCD Touchscreen |
| Network Management | NETWORK-M3 Included |
| Remote Management | Web, SNMP |
| Communication Ports | RS-232, USB, EPO, Dry Contact |
| Waveform | Pure Sine Wave |
| Transfer Time | Zero Transfer Time |
| Form Factor | Rackmount |
| Cooling | Intelligent Forced-Air Cooling |
| Applications | Data Centers, Edge Computing, Enterprise IT, Healthcare, Industrial Facilities |
| Warranty | 2-Year Limited Warranty |
