Description

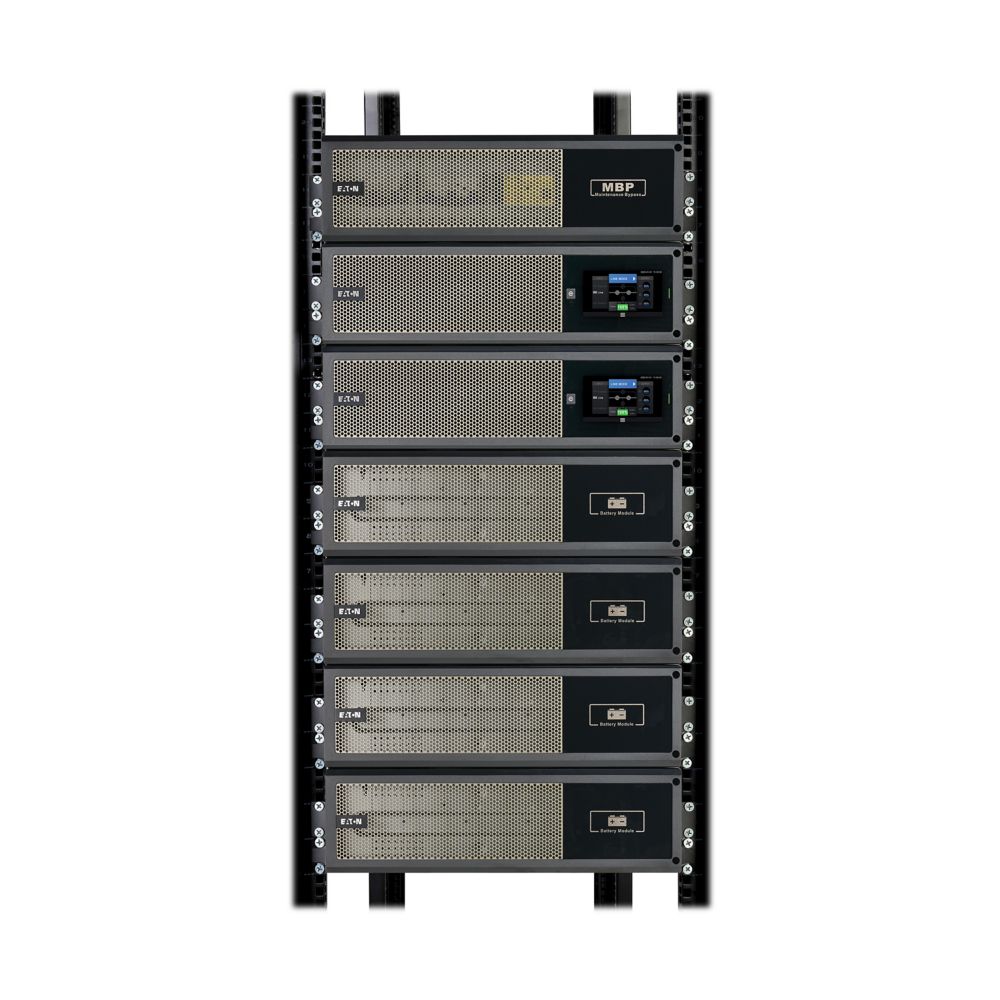

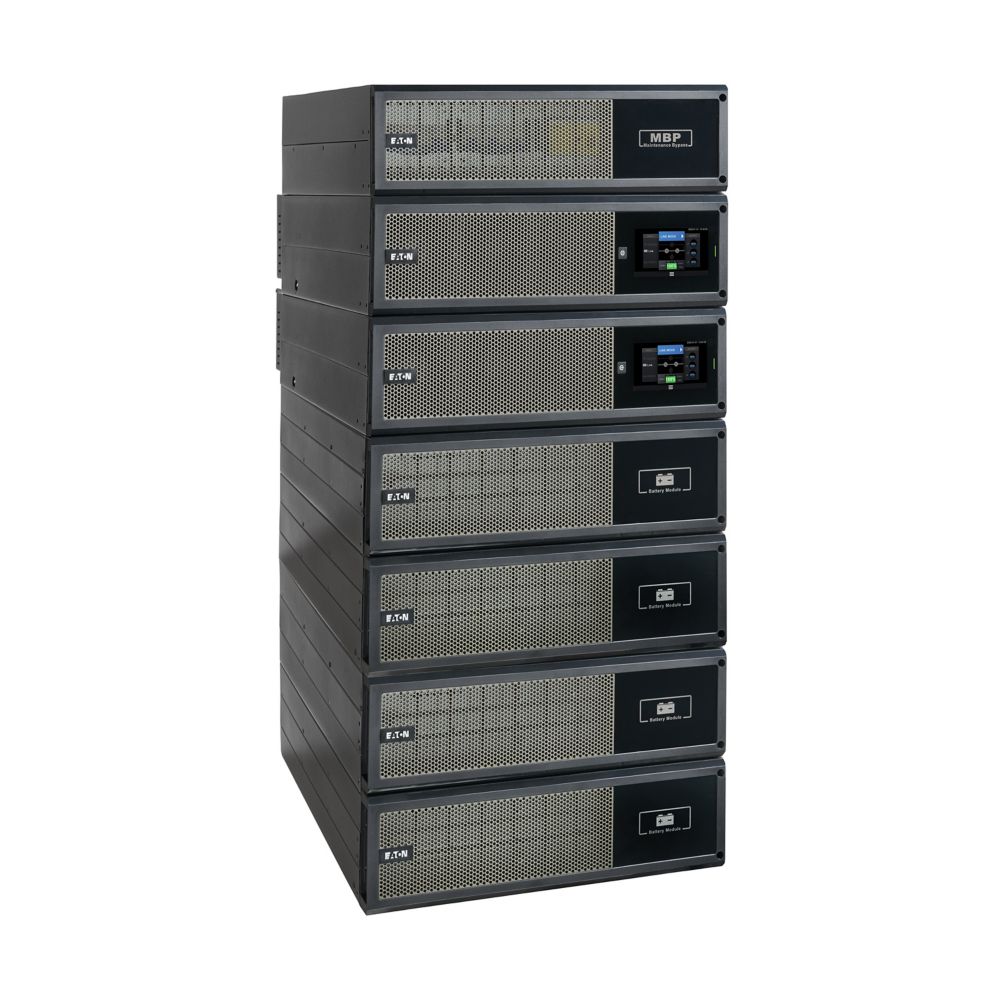

The Eaton 93PX15KHWNDGPAR is a high-performance 400V three-phase online double-conversion UPS engineered for mission-critical IT infrastructure, edge computing, healthcare, and industrial applications. This parallel-ready system supports either 30kW total capacity or 15kW N+1 redundant operation, delivering maximum uptime for demanding environments.

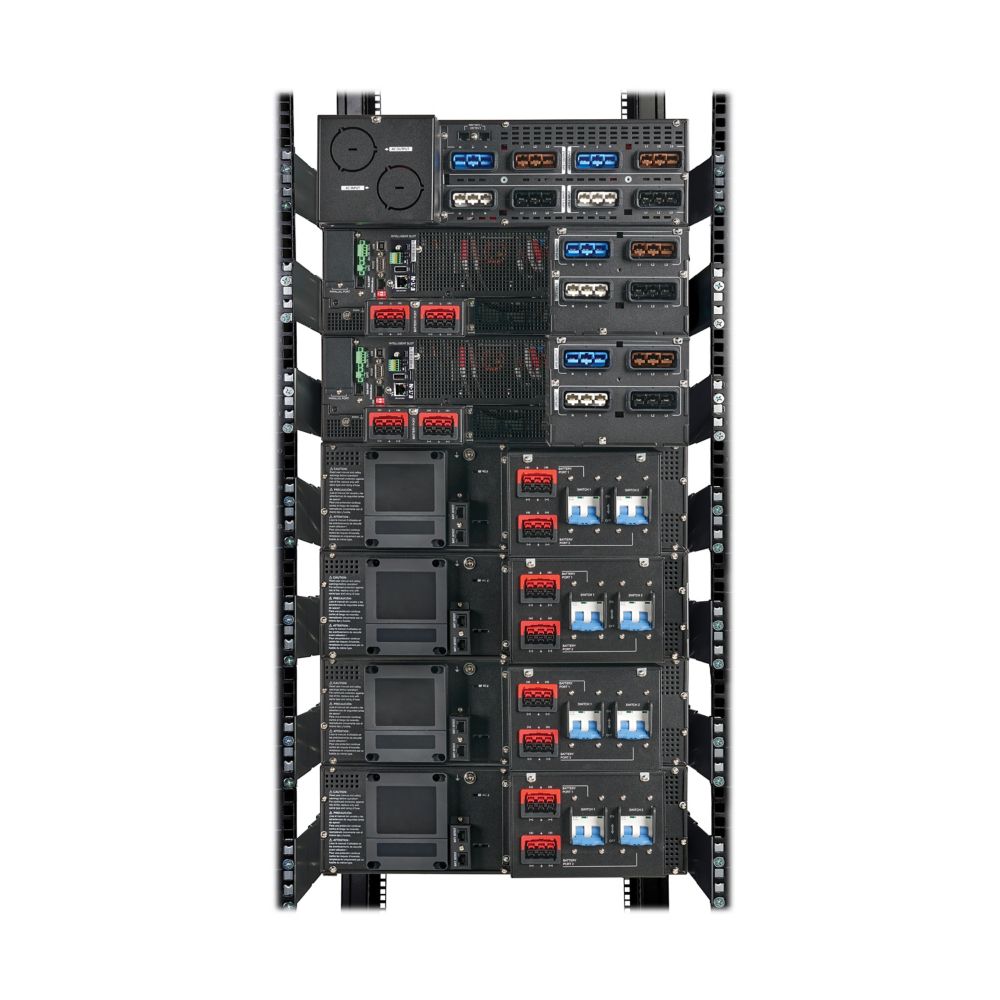

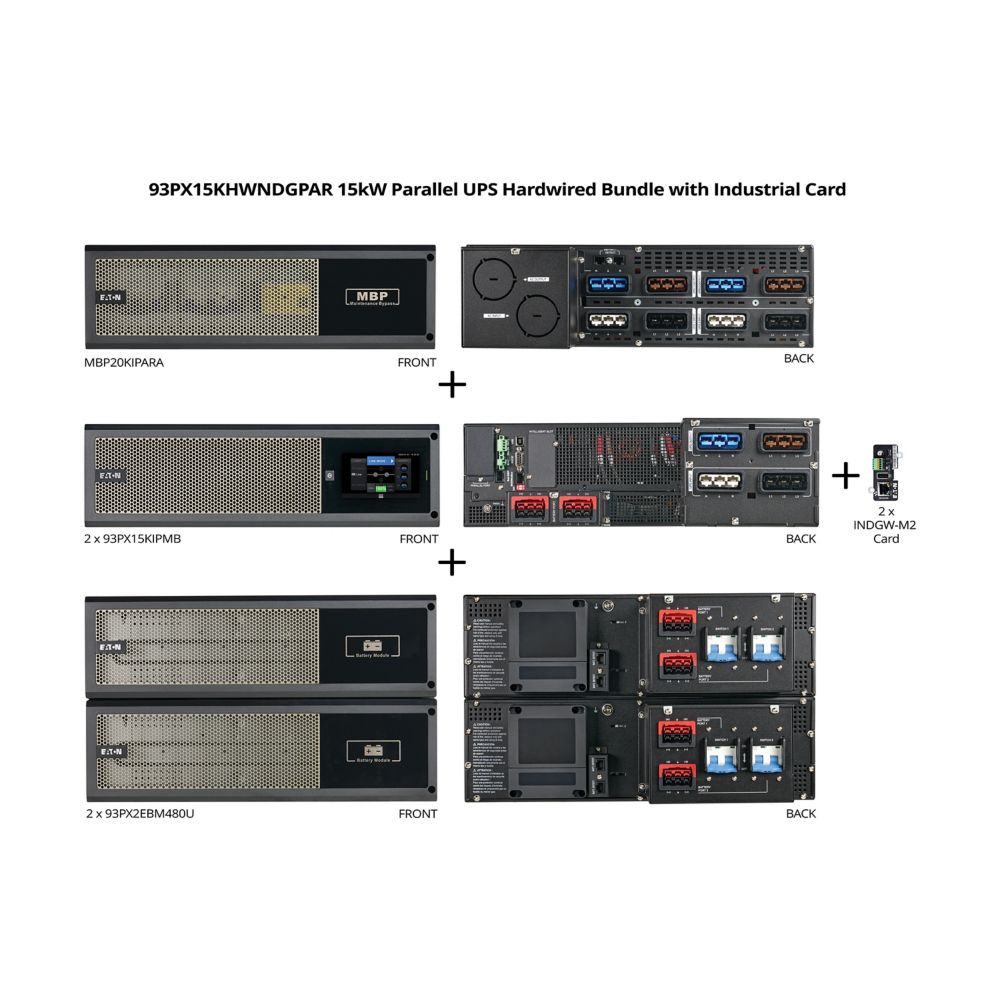

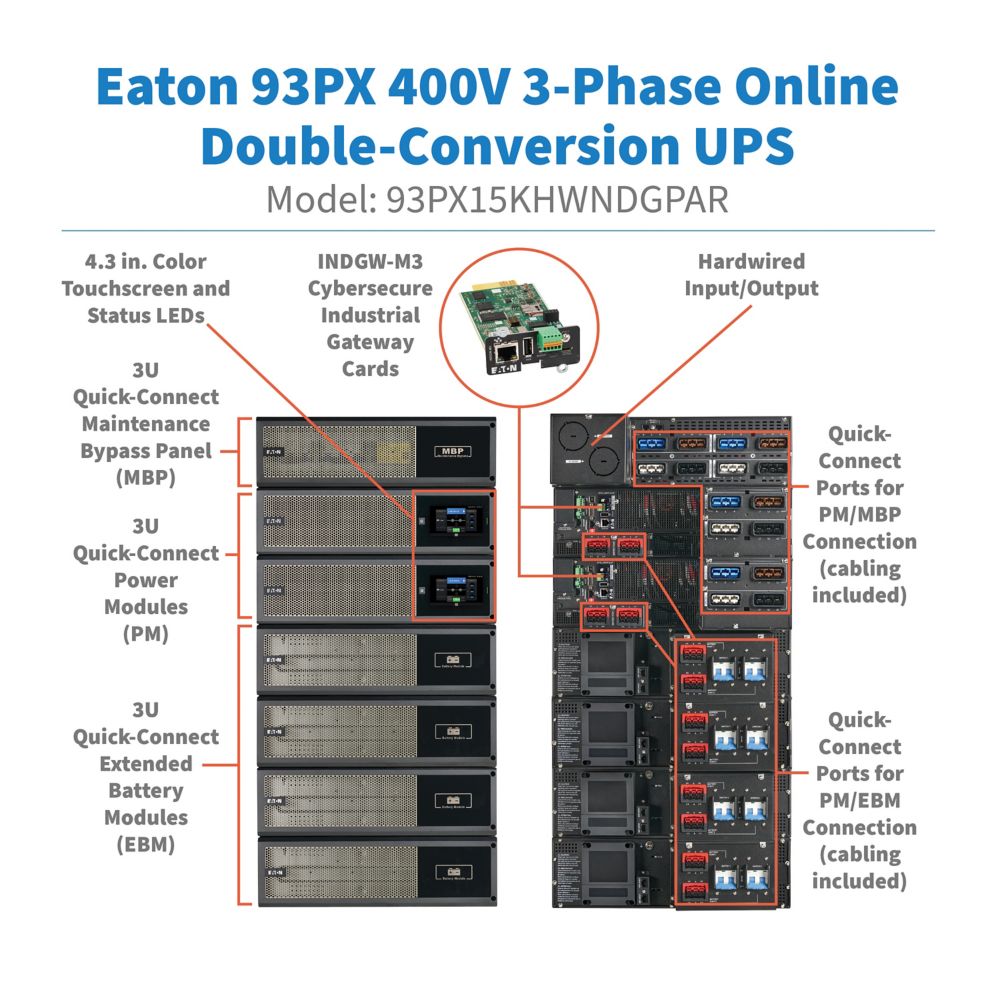

Featuring hardwired input and output, the system includes dual power modules, a parallel maintenance bypass panel, four extended battery modules, and two INDGW-M3 Industrial Network Management Cards for secure remote monitoring via Modbus, SNMP, Web, and BACnet. With unity power factor, up to 96% online efficiency (98.8% in ECO mode), and zero transfer time, the 93PX provides reliable, energy-efficient power protection while simplifying deployment through Eaton's modular quick-connect architecture.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton |
| Model | 93PX15KHWNDGPAR |
| Product Type | Online Double-Conversion UPS |
| UPS Topology | Online Double Conversion |
| Capacity | 30kW Parallel or 15kW N+1 Redundant |
| Output Power | 30,000W (Parallel) / 15,000W (N+1) |
| Input Voltage | 380/400/415 VAC, 3-Phase |
| Output Voltage | 380/400/415 VAC |
| Input Connection | Hardwired |
| Output Connection | Hardwired |
| Phase | 3-Phase, 4-Wire + Ground |
| Power Factor | Unity (1.0) |
| Maximum Online Efficiency | Up to 96% |
| ECO Mode Efficiency | Up to 98.8% |
| Transfer Time | Zero |
| Waveform | Pure Sine Wave |
| Parallel Capability | Yes (N+1 Redundancy or Capacity Expansion) |
| Rack Height | 21U |
| Battery Modules Included | Four Extended Battery Modules (EBMs) |
| Network Management | Dual INDGW-M3 Industrial Network Management Cards |
| Communication Protocols | Modbus, SNMP, Web, BACnet |
| Display | 4.3-inch Color LCD Touchscreen |
| Ports | RS-232, USB, EPO, Dry Contact |
| Battery Charger | Advanced 3-Stage Smart Charger |
| Maximum Battery Expansion | Up to 8 EBMs |
| Typical Applications | Data Centers, Edge Computing, Industrial Facilities, Healthcare, Enterprise IT |
| Warranty | Manufacturer Limited Warranty |
