Description

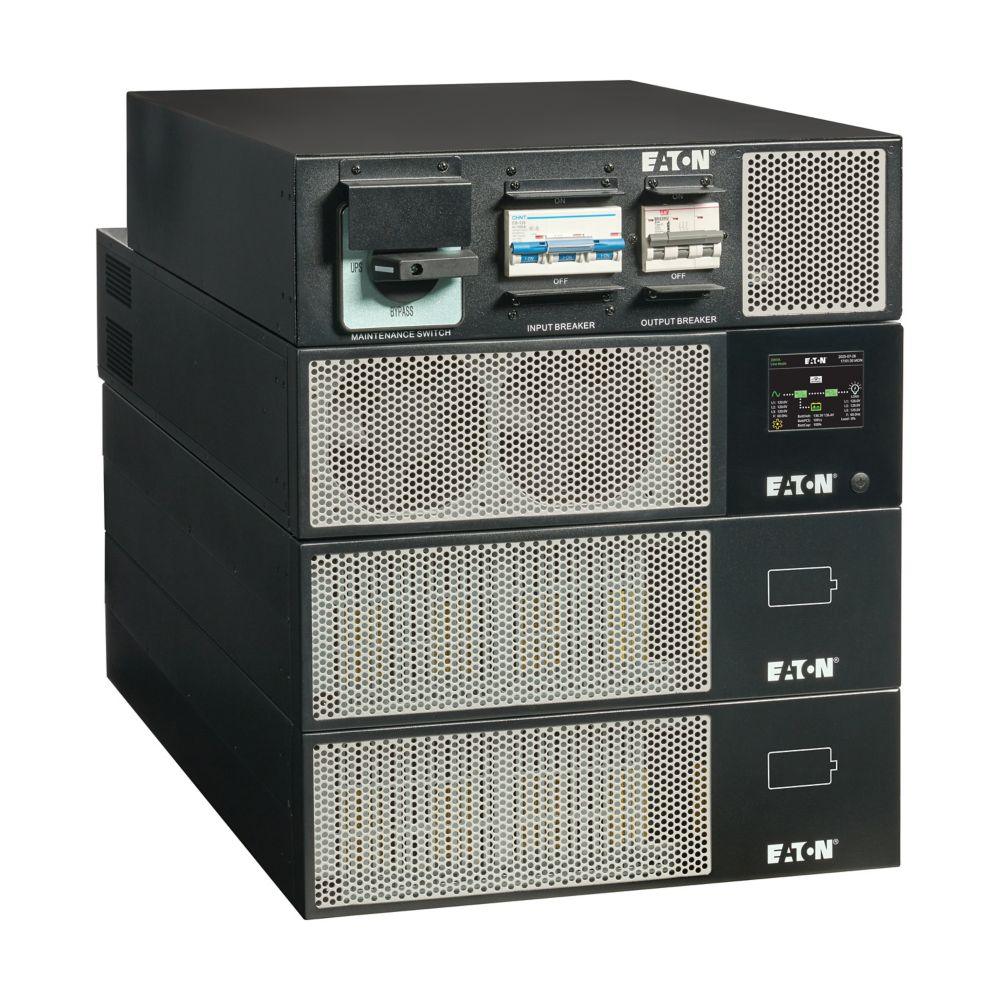

The Eaton 93PX20K is a high-performance 20kW / 20kVA online double-conversion UPS engineered to deliver continuous, clean power protection for mission-critical IT infrastructure, edge computing environments, and enterprise data centers. Its unity power factor maximizes usable output capacity, while the compact rackmount design provides exceptional power density without sacrificing valuable rack space.

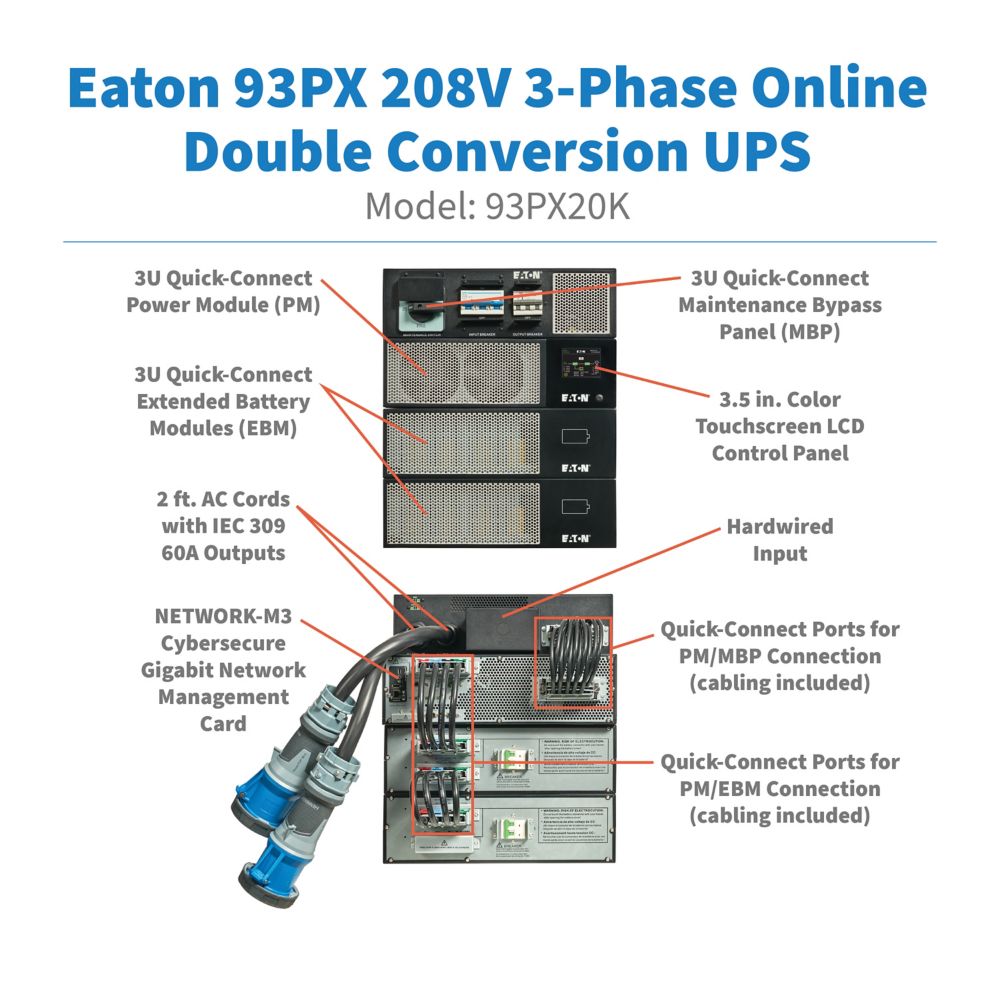

Designed for reliability and simplified deployment, the 93PX20K features Eaton's quick-connect architecture, advanced battery management, integrated cybersecurity-enabled network management, and hardwired 208V three-phase input. It supports zero transfer time, pure sine wave output, scalable battery runtime, and optional N+1 redundancy, making it an ideal solution for demanding business applications that require maximum uptime.
Key Features
- 20kW / 20kVA capacity with unity (1.0) power factor
- True online double-conversion topology
- 208V three-phase input/output
- Hardwired input
- Dual IEC 309 60A output connections

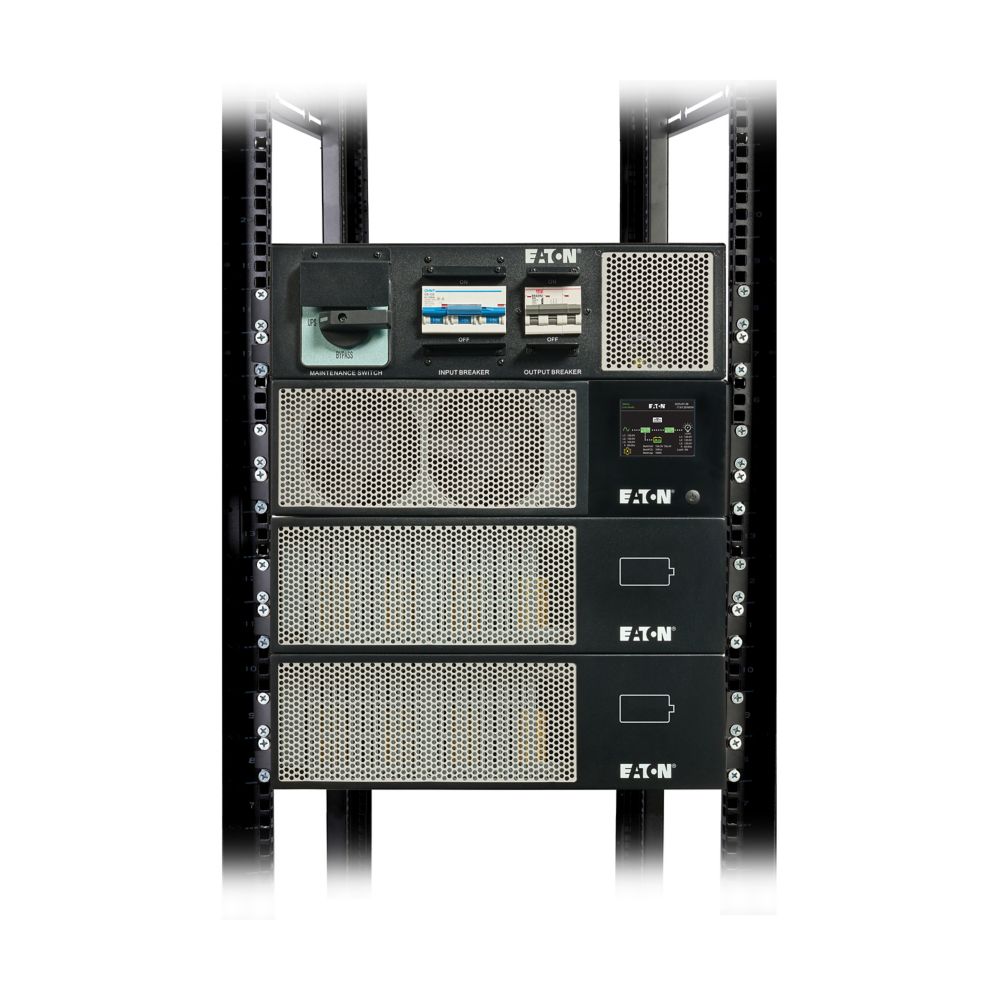

- High-density 12U rackmount design
- Up to 97% efficiency in ECO Mode
- Integrated NETWORK-M3 cybersecure network management card
- Zero transfer time for seamless power protection
- Supports scalable external battery modules
- Optional parallel operation for N+1 redundancy
- LCD color touchscreen interface
- Pure sine wave output
- Intelligent battery management with advanced charging
- Ideal for edge computing, enterprise IT, healthcare, and industrial applications
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton |
| Model | 93PX20K |
| Product Type | Online Double-Conversion UPS |
| UPS Topology | Online Double Conversion |
| Capacity | 20kW / 20kVA |
| Input Voltage | 208V AC Three-Phase |
| Output Voltage | 208V AC Three-Phase |
| Input Connection | Hardwired |

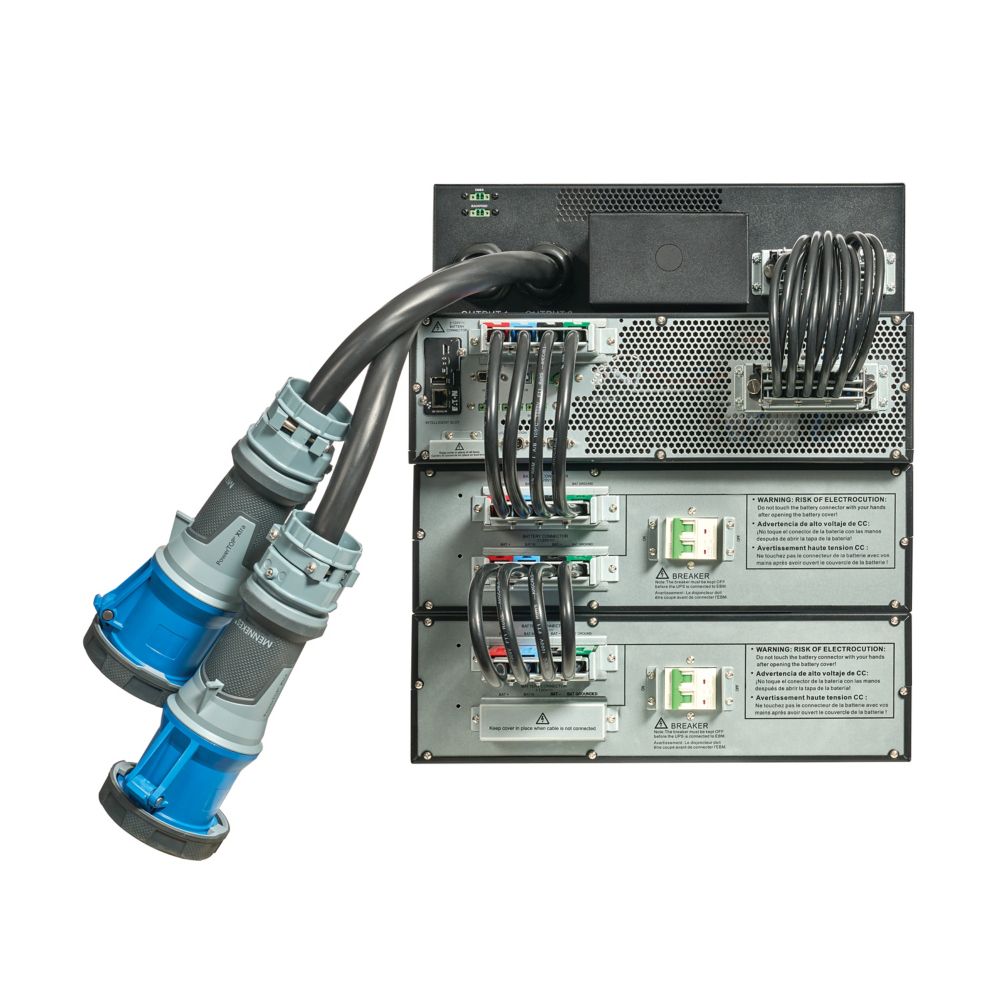

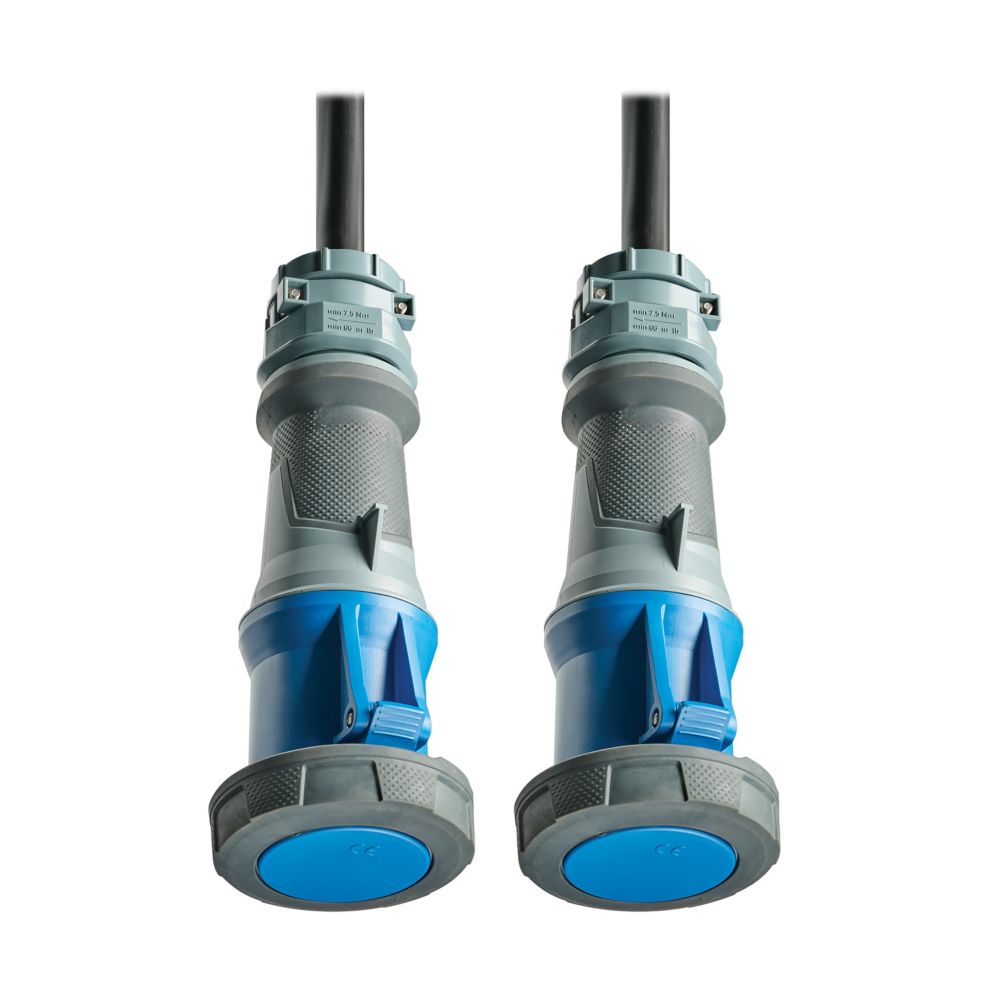

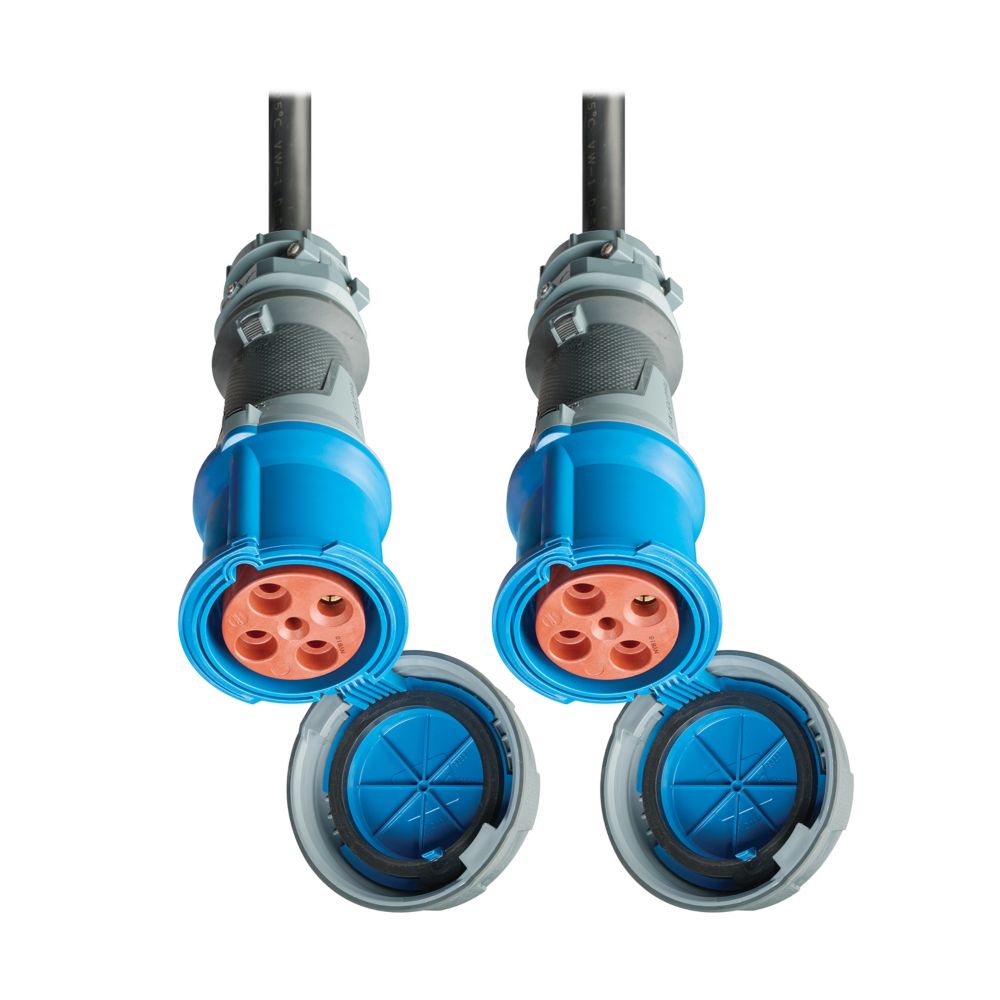

| Output Connections | (2) IEC 309 60A (4-wire) receptacles |
| Rack Height | 12U |
| Power Factor | 1.0 |
| Efficiency | Up to 92% Online, up to 97% ECO Mode |
| Transfer Time | Zero |
| Waveform | Pure Sine Wave |
| Network Management | NETWORK-M3 Included |
| Communication Ports | USB, RS-232, EPO |
| Display | 3.5-inch Color LCD Touchscreen |
| Battery Support | Expandable with External Battery Modules |
| Parallel Capability | Yes (N+1 Redundancy Models Available) |
| Form Factor | Rackmount |
| Application | Data Centers, Edge Computing, Enterprise IT, Healthcare, Industrial Facilities |
