Description

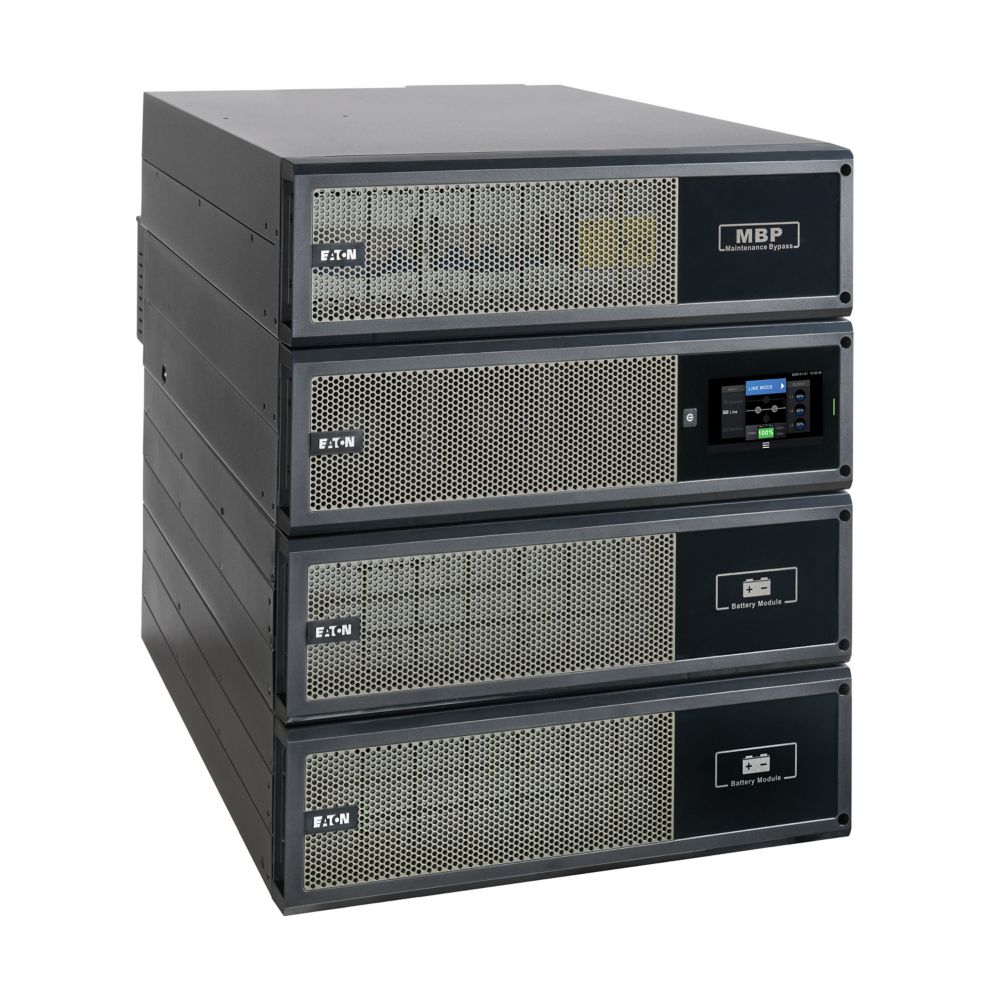

The Eaton 93PX20KIMBNDG is a high-performance 20kW / 20kVA 400V three-phase online double-conversion UPS engineered for edge computing, enterprise IT, healthcare, commercial facilities, and data center environments. Delivering a unity power factor (1.0), this rackmount UPS provides maximum usable power while maintaining continuous protection against power disturbances.

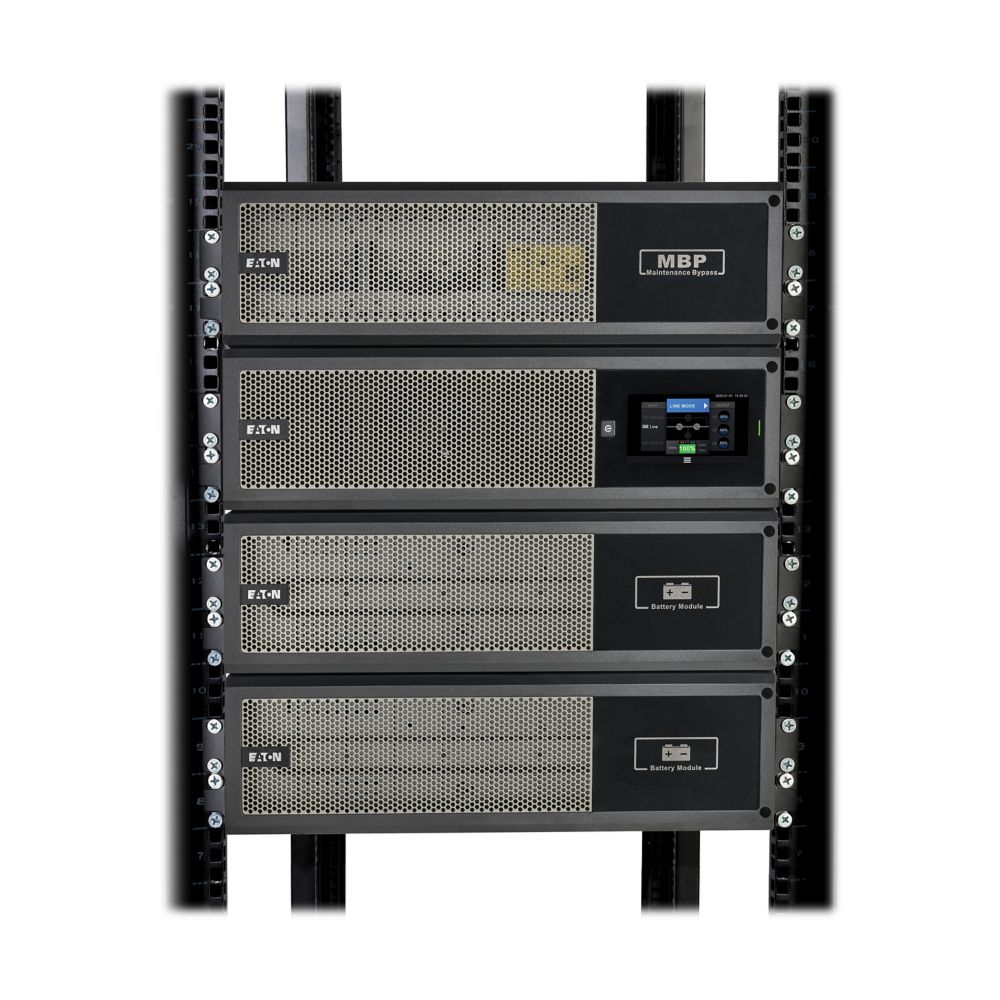

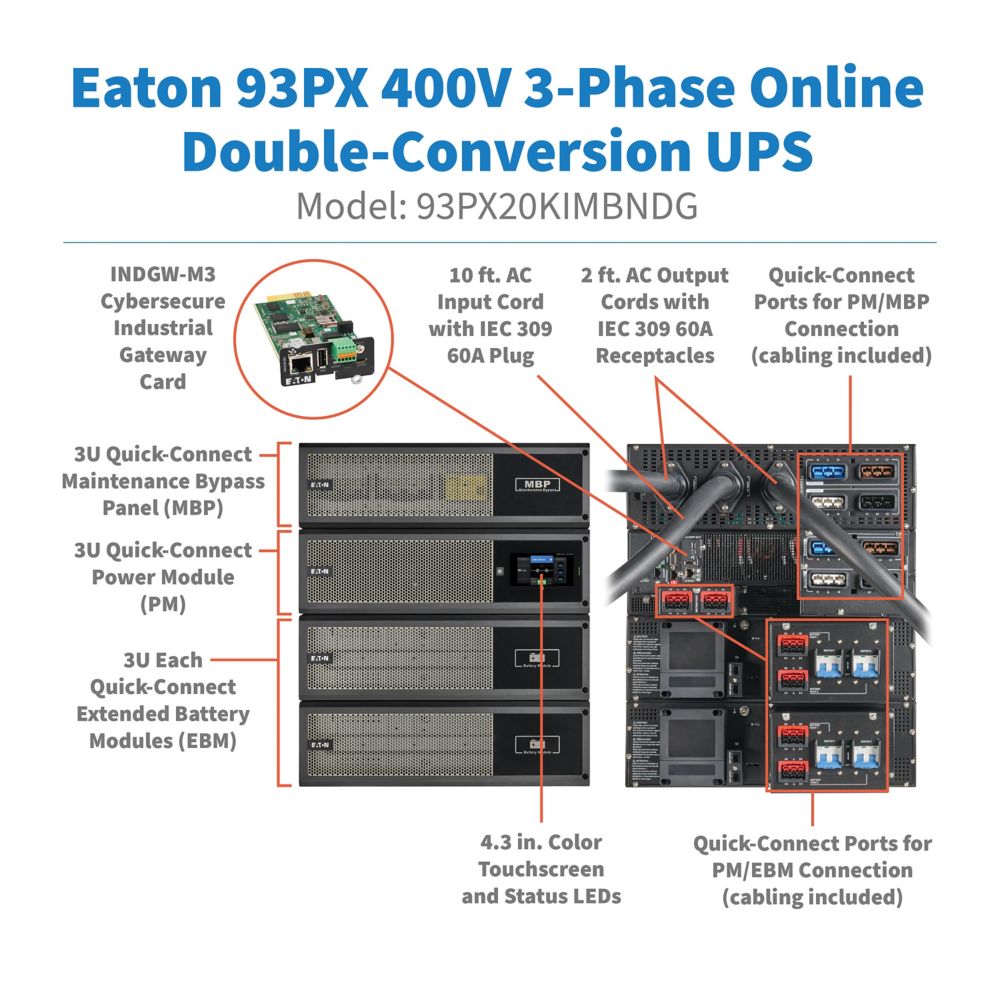

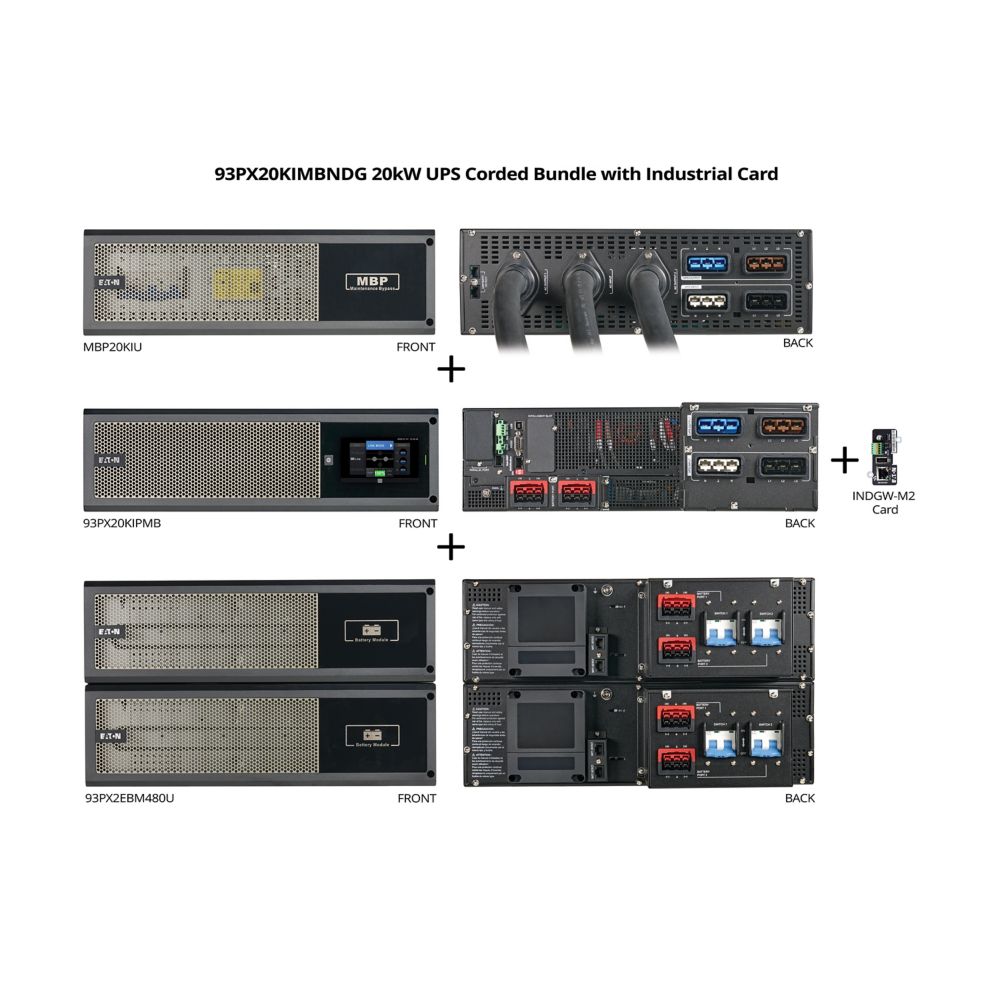

This bundle includes a 3U power module, maintenance bypass panel (MBP), two extended battery modules (EBMs), and the INDGW-M3 Industrial Network Management Card with support for Modbus, SNMP, BACnet, and Web management, making it ideal for industrial automation and building management applications. Its innovative quick-connect architecture simplifies installation and maintenance, while advanced energy efficiency helps reduce operating costs.
Designed for mission-critical applications, the Eaton 93PX20KIMBNDG combines exceptional reliability, high efficiency, scalable battery runtime, and secure remote monitoring in a compact 12U rackmount solution.
Key Features
- 20kW / 20kVA true online double-conversion UPS
- Unity power factor (1.0) delivers full rated power
- Up to 98.8% efficiency in ECO mode
- Includes maintenance bypass panel and two battery modules
- INDGW-M3 Industrial Network Management Card included
- Supports Modbus, BACnet, SNMP, and Web management
- Zero transfer time with pure sine wave output
- Parallel operation for increased capacity or N+1 redundancy
- Quick-connect modular design for rapid deployment
- 4.3-inch color LCD touchscreen
- Expandable battery runtime with up to eight EBMs
- Rackmount 12U design for enterprise environments
Applications
- Enterprise Data Centers
- Edge Computing
- Server Rooms
- Network Closets
- Healthcare Facilities
- Industrial Automation
- Manufacturing
- Commercial Buildings
- Telecommunications
- Mission-Critical IT Infrastructure
| Specification | Details |
|---|---|
| Manufacturer | Eaton |
| Model | 93PX20KIMBNDG |
| Product Type | Online Double-Conversion UPS |
| UPS Capacity | 20 kVA / 20 kW |
| Topology | Online Double Conversion |
| Input Phase | 3-Phase |
| Output Phase | 3-Phase |
| Input Voltage | 380/400/415 VAC |
| Output Voltage | 380/400/415 VAC |

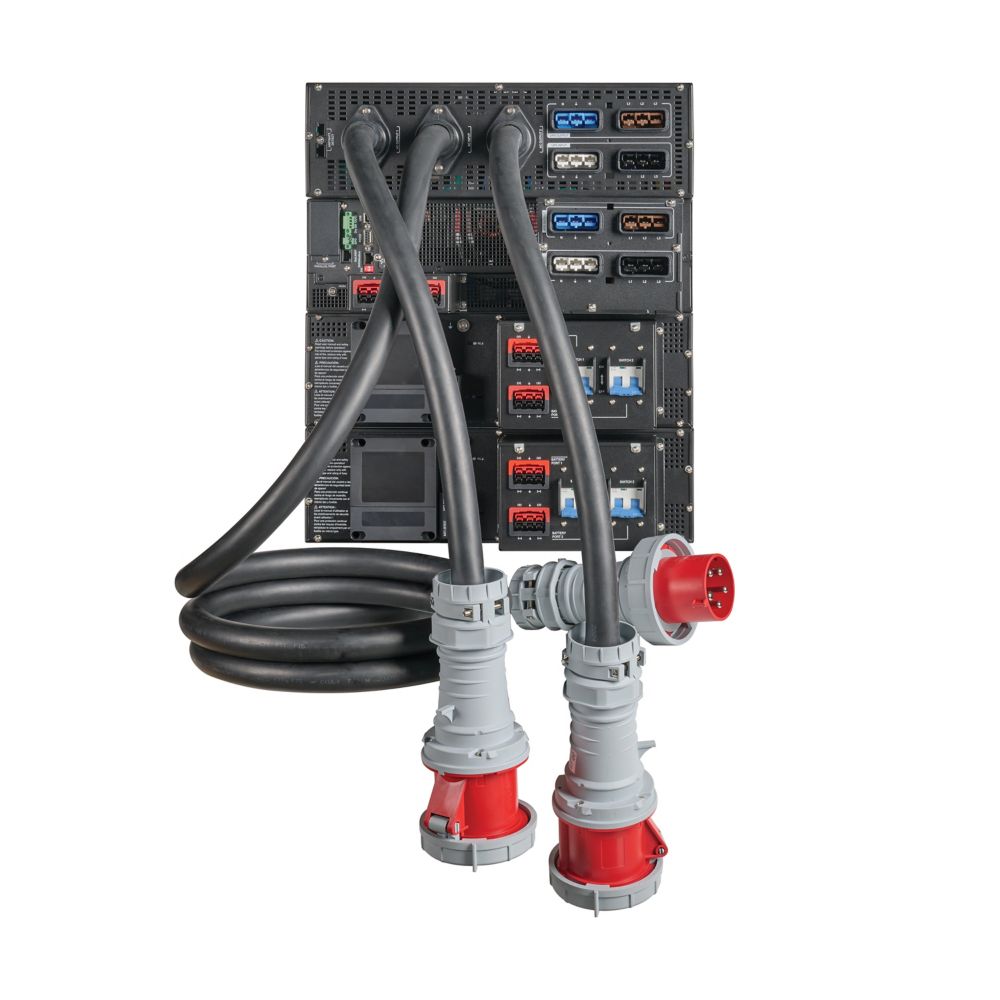

| Input Connection | IEC 309 60A Plug with 10 ft Cord |
| Output Connections | (2) IEC 309 60A Receptacles with 2 ft Cords |
| Power Factor | 1.0 |
| Efficiency | Up to 96% Online Mode |
| ECO Mode Efficiency | Up to 98.8% |
| Battery Modules Included | 2 Extended Battery Modules (EBMs) |
| Maximum Battery Expansion | Up to 8 EBMs |
| Network Management | INDGW-M3 (Modbus, SNMP, Web, BACnet) |
| Display | 4.3-inch Color LCD Touchscreen |
| Communication Ports | RS-232, USB, EPO, Dry Contact |
| Rack Size | 12U |
| Installation | Rackmount |
| Parallel Capability | Yes, up to 40kW or N+1 Redundancy |
| Waveform | Pure Sine Wave |
| Transfer Time | Zero |
| Operating Temperature | 0°C to 40°C |
| Certifications | IEC 62040, UL1778, RoHS |
| Warranty | 2-Year Limited Warranty |
