Description

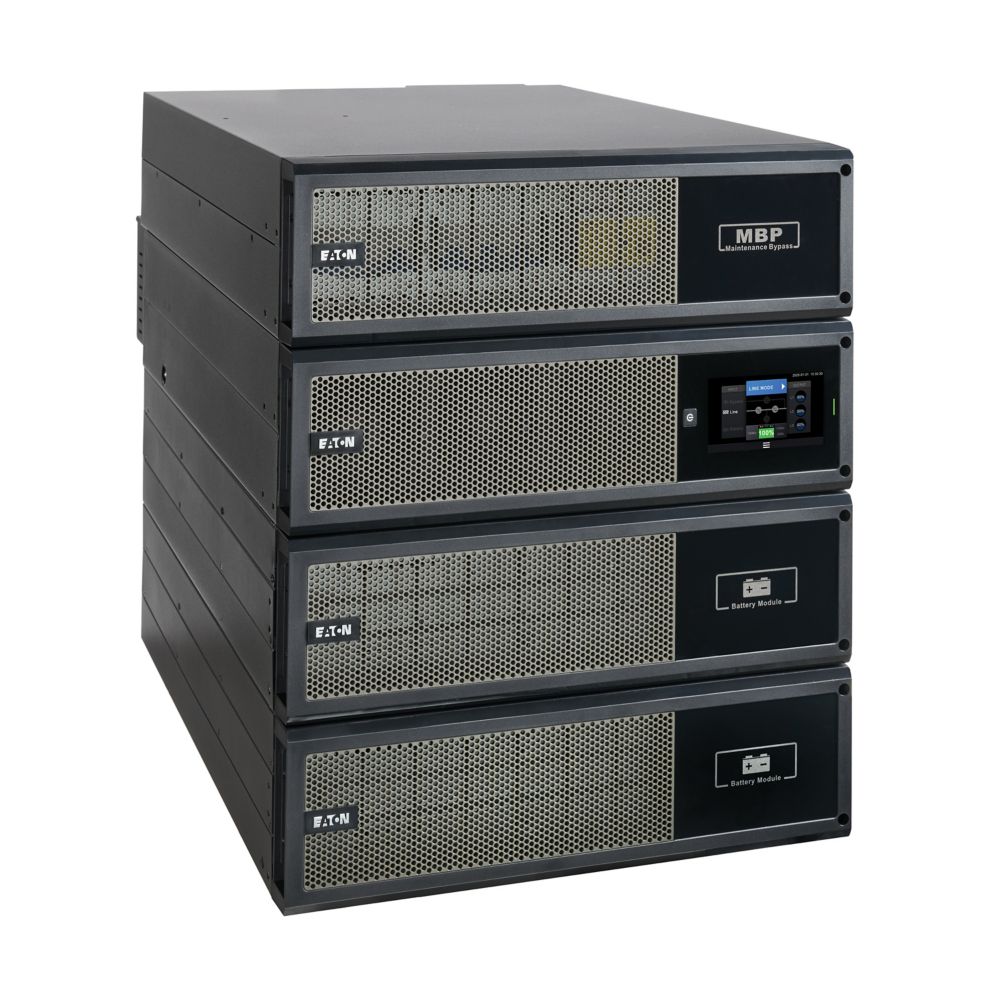

The EATON 93PX20KIHWNDG is a high-performance 20kW / 20kVA online double-conversion UPS engineered for mission-critical power protection in data centers, edge computing, industrial environments, healthcare facilities, and enterprise IT infrastructure. Featuring hardwired input and output, a unity power factor (1.0) design, and the INDGW-M3 Industrial Network Management Card, it delivers reliable backup power with advanced remote monitoring and industrial communication capabilities.

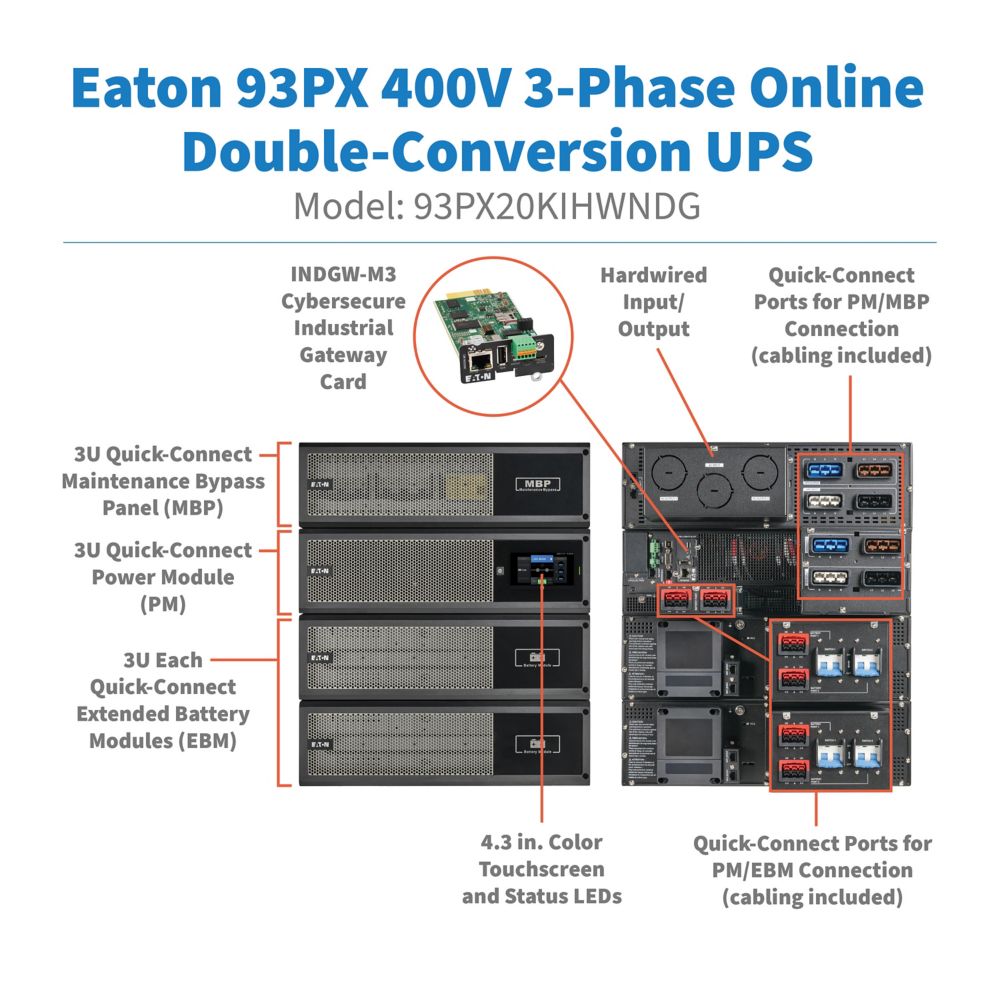

Designed for maximum efficiency and simplified deployment, the 93PX20KIHWNDG includes a maintenance bypass panel, two extended battery modules, quick-connect architecture, and support for N+1 redundancy or 40kW parallel expansion. With up to 96% efficiency in online mode and 98.8% in ECO mode, it helps reduce operating costs while maintaining continuous protection for critical equipment.
Key Features
- 20kW / 20kVA online double-conversion UPS
- Unity power factor (1.0) for maximum usable power
- Hardwired input and output configuration
- Includes INDGW-M3 industrial network management card
- Supports Modbus, BACnet, SNMP, and web-based monitoring
- Up to 96% efficiency in online mode and 98.8% in ECO mode
- Quick-connect architecture for simplified installation and maintenance

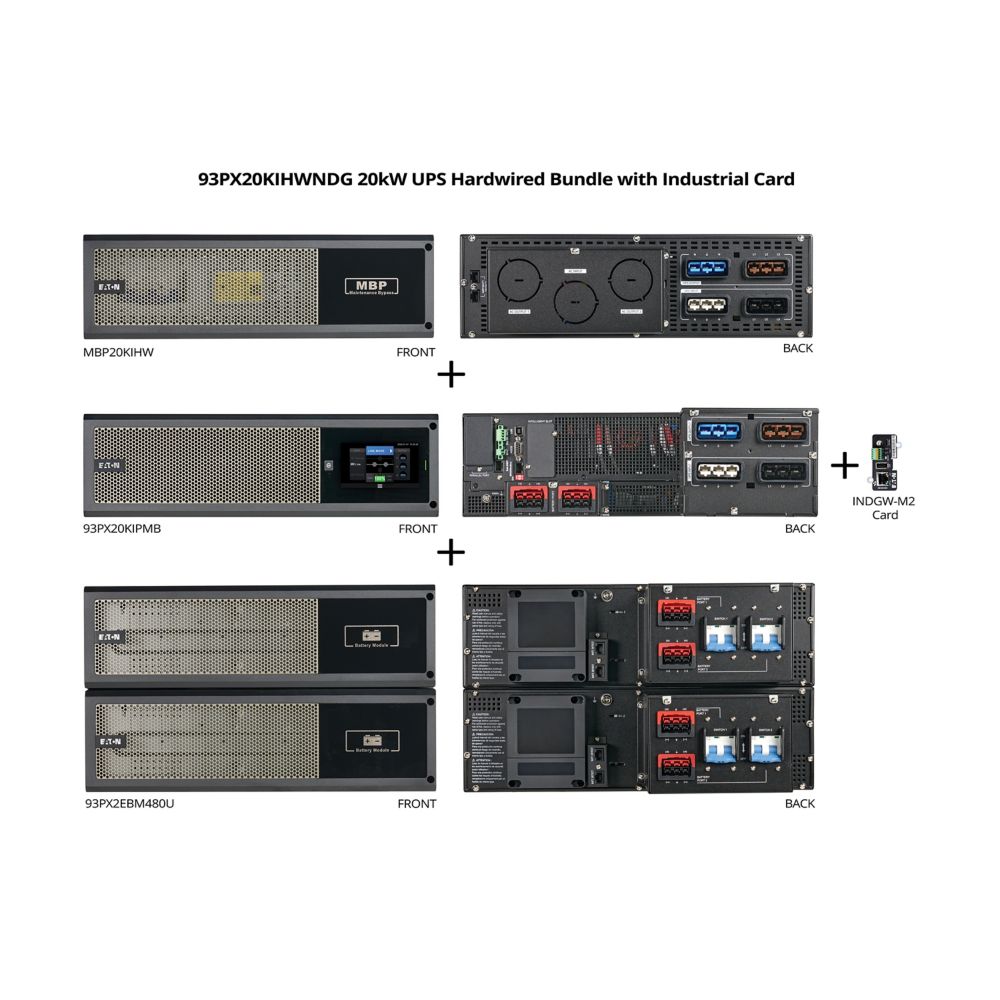

- Includes maintenance bypass panel and two extended battery modules
- Expandable up to eight battery modules
- Parallel operation for N+1 redundancy or 40kW capacity
- Pure sine wave output with zero transfer time
- Ideal for enterprise IT, industrial automation, healthcare, and edge computing
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton |
| Model | 93PX20KIHWNDG |
| SKU | 93PX20KIHWNDG |
| Product Type | Online Double-Conversion UPS |
| UPS Capacity | 20kVA / 20kW |
| Power Factor | 1.0 |
| Topology | Online Double-Conversion |
| Input Voltage | 380/400/415VAC, 3-Phase |
| Output Voltage | 380/400/415VAC |

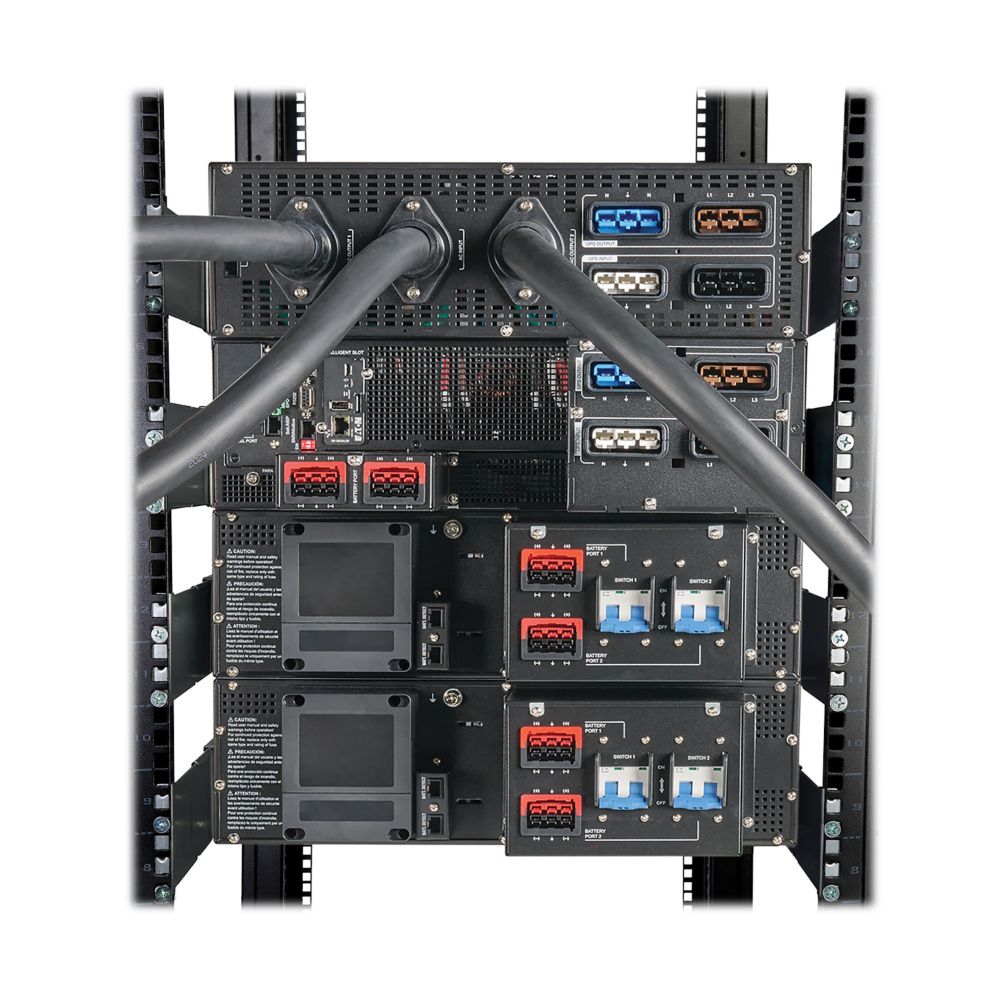

| Input Connection | Hardwired |
| Output Connection | Hardwired |

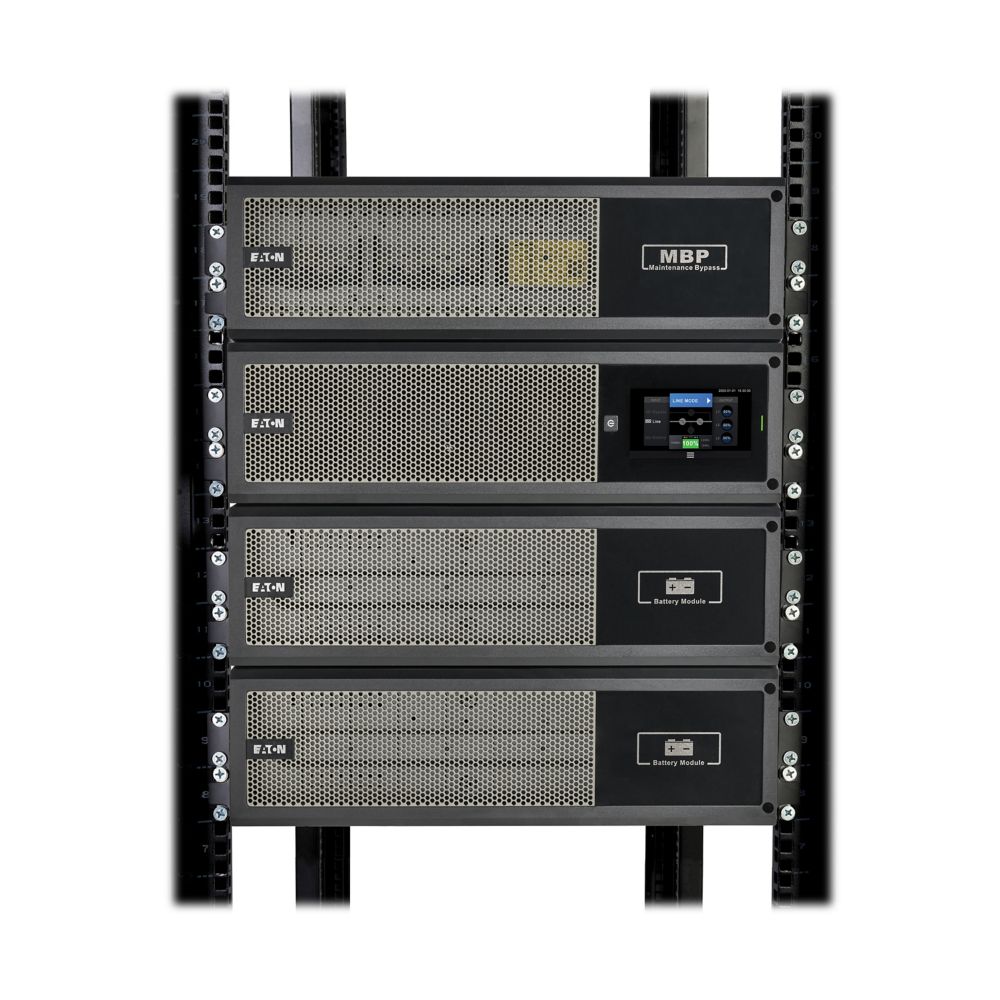

| Rack Size | 12U |
| Form Factor | Rackmount |
| Battery Configuration | Includes 2 Extended Battery Modules (EBMs) |
| Maximum Battery Expansion | Up to 8 EBMs (installed in pairs) |
| Battery Type | VRLA, 9Ah |
| Typical Recharge Time | ≤3 hours to 90% |
| Online Efficiency | Up to 96% |
| ECO Mode Efficiency | Up to 98.8% |
| Battery Mode Efficiency | Up to 94% |
| Network Management | INDGW-M3 Industrial Network Management Card |
| Communication Protocols | Modbus, SNMP, BACnet, Web |
| Additional Ports | USB, RS-232, EPO |
| LCD Display | 4.3-inch Color Touchscreen |
| Parallel Capability | Supports N+1 Redundancy or 40kW Parallel Capacity |
| Waveform | Pure Sine Wave |
| Transfer Time | Zero Transfer Time |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Noise Level | ≤65 dB |
| Warranty | 2-Year Limited Warranty |
