Description

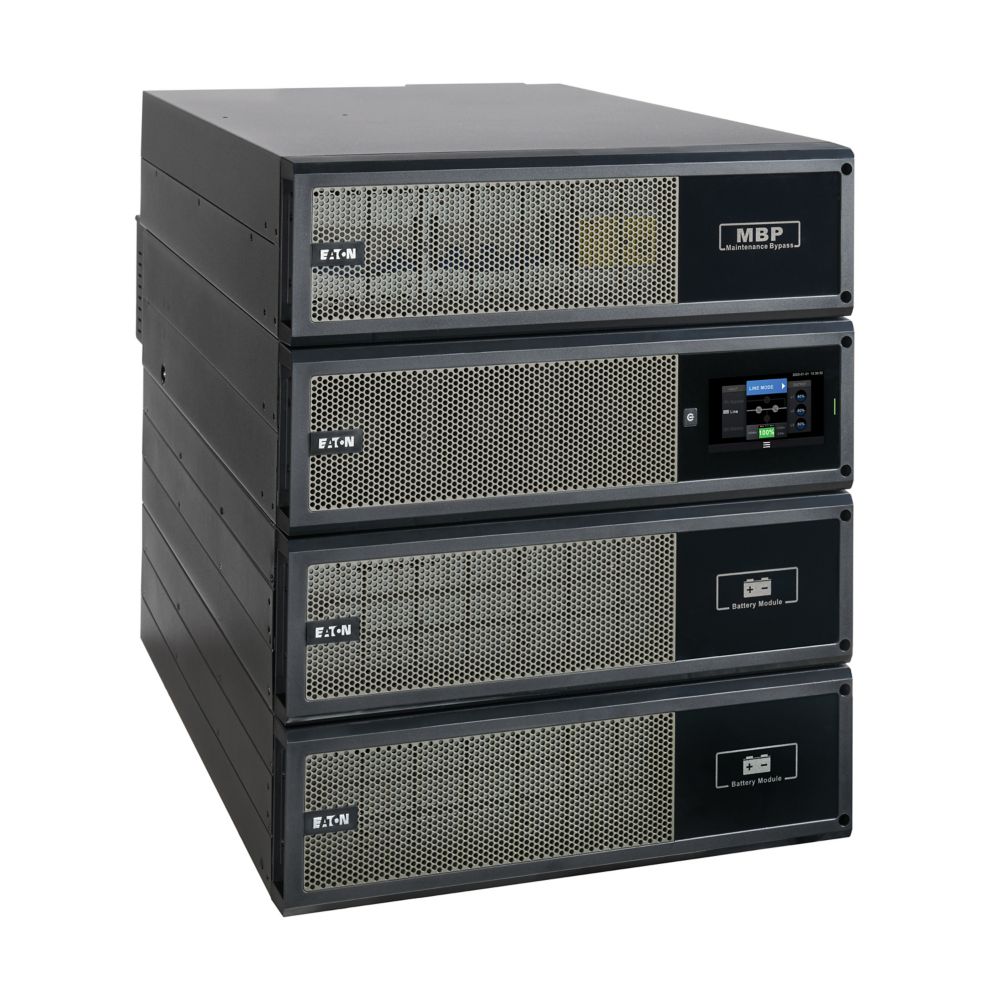

The Eaton 93PX20KIHWN is a high-performance 20kW / 20kVA online double-conversion UPS engineered for mission-critical IT infrastructure, edge computing, data centers, healthcare environments, and industrial applications. Designed for 400V three-phase power systems, this rackmount UPS delivers continuous, clean sine wave power while protecting critical equipment from outages, voltage fluctuations, and power disturbances.

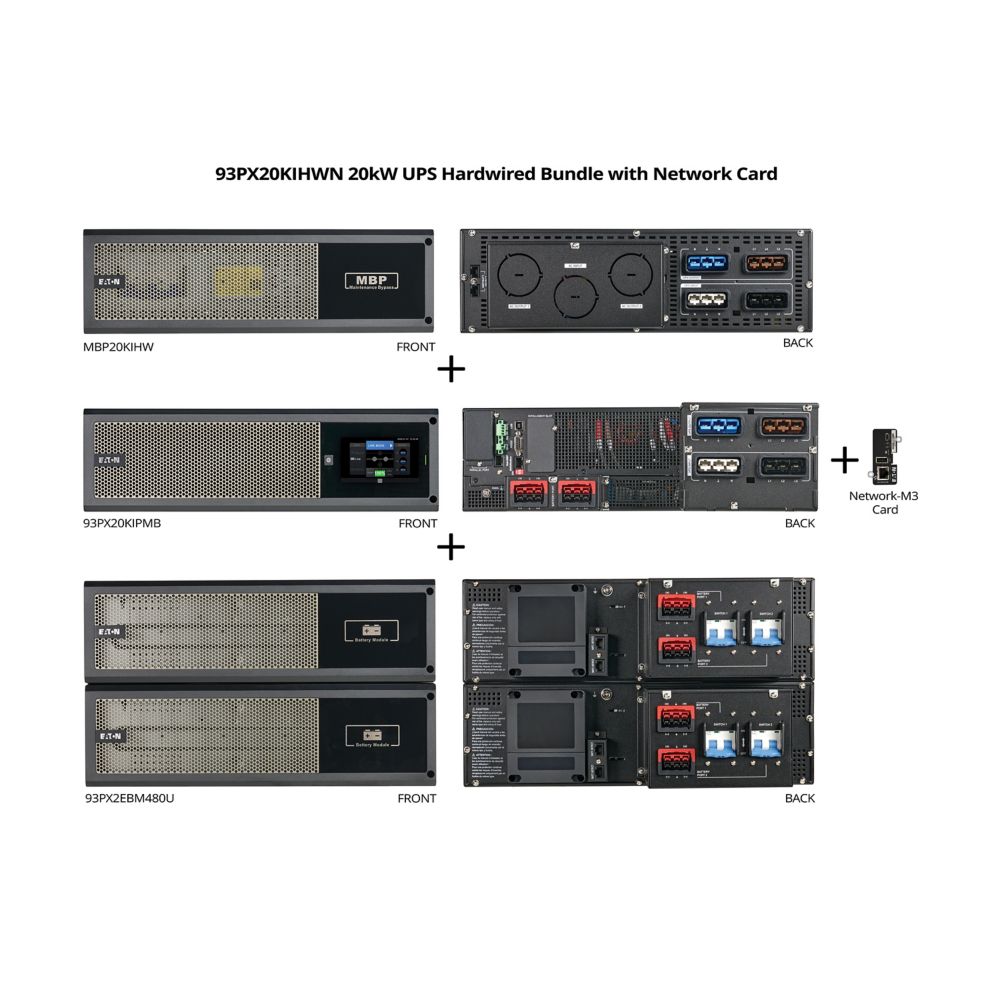

Featuring a unity power factor (1.0), the 93PX20KIHWN maximizes usable power without oversizing infrastructure. Its innovative quick-connect architecture simplifies deployment and maintenance, while the included NETWORK-M3 network management card enables secure remote monitoring and management. The system ships with a maintenance bypass panel and two extended battery modules, with support for additional battery expansion and parallel operation for increased capacity or N+1 redundancy.
Ideal for organizations that demand high efficiency, advanced cybersecurity, and reliable business continuity, the Eaton 93PX20KIHWN provides enterprise-grade power protection with a compact rackmount footprint.
Key Features
- 20kW / 20kVA online double-conversion UPS
- 400V three-phase input and output
- Unity power factor (1.0) delivers full rated power
- Hardwired input and output connections
- Includes NETWORK-M3 network management card
- Up to 96% efficiency in online mode
- Up to 98.8% efficiency in ECO mode
- Zero transfer time to battery operation
- Pure sine wave output

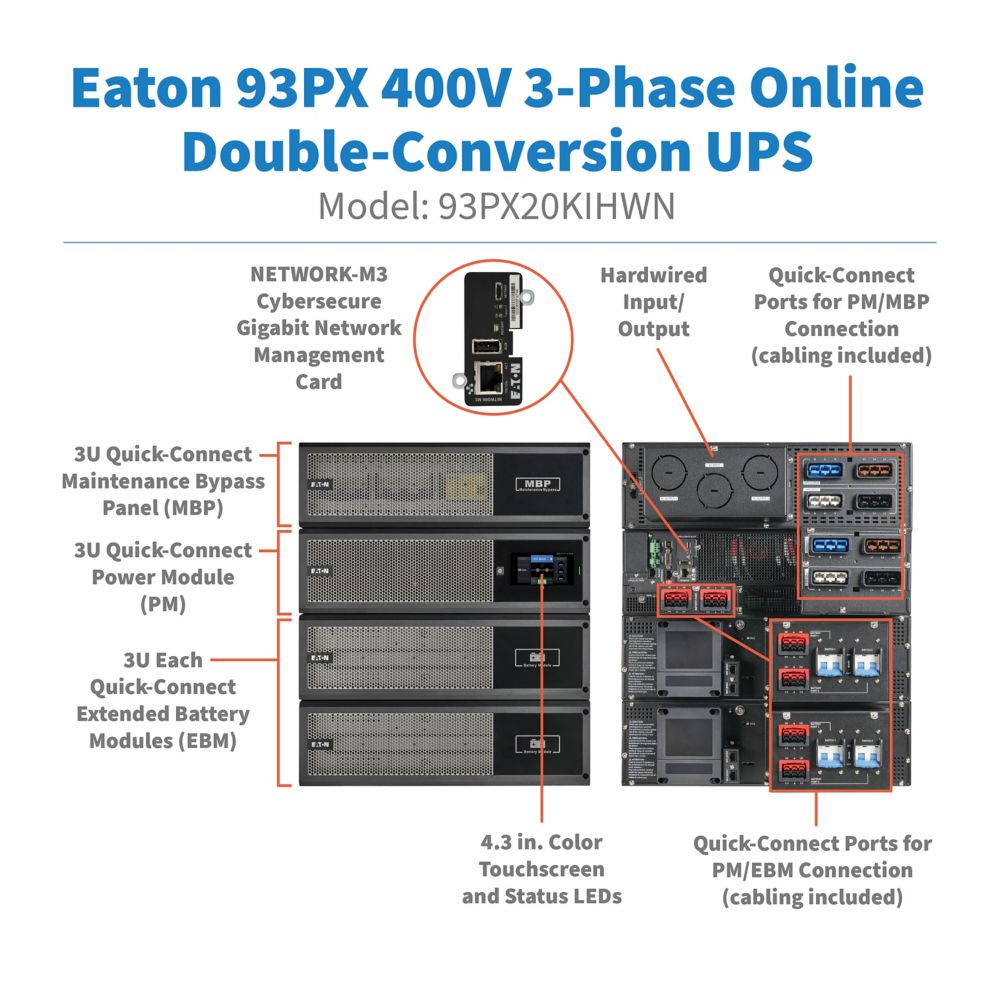

- Plug-and-play quick-connect design for easier installation and servicing
- Parallel capability for increased capacity or N+1 redundancy
- Expandable runtime with additional battery modules
- Color LCD touchscreen with multilingual interface
- Advanced cybersecurity features with secure remote management
- Ideal for data centers, healthcare, edge computing, industrial automation, and enterprise IT
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Eaton |
| Model | 93PX20KIHWN |
| SKU | 93PX20KIHWN |
| Product Type | Online Double-Conversion UPS |
| UPS Topology | Online Double Conversion |
| Power Capacity | 20kVA / 20kW |
| Input Voltage | 380/400/415 VAC 3-Phase |
| Output Voltage | 380/400/415 VAC 3-Phase |
| Power Factor | 1.0 |
| Frequency | 50/60 Hz Auto-Sensing |

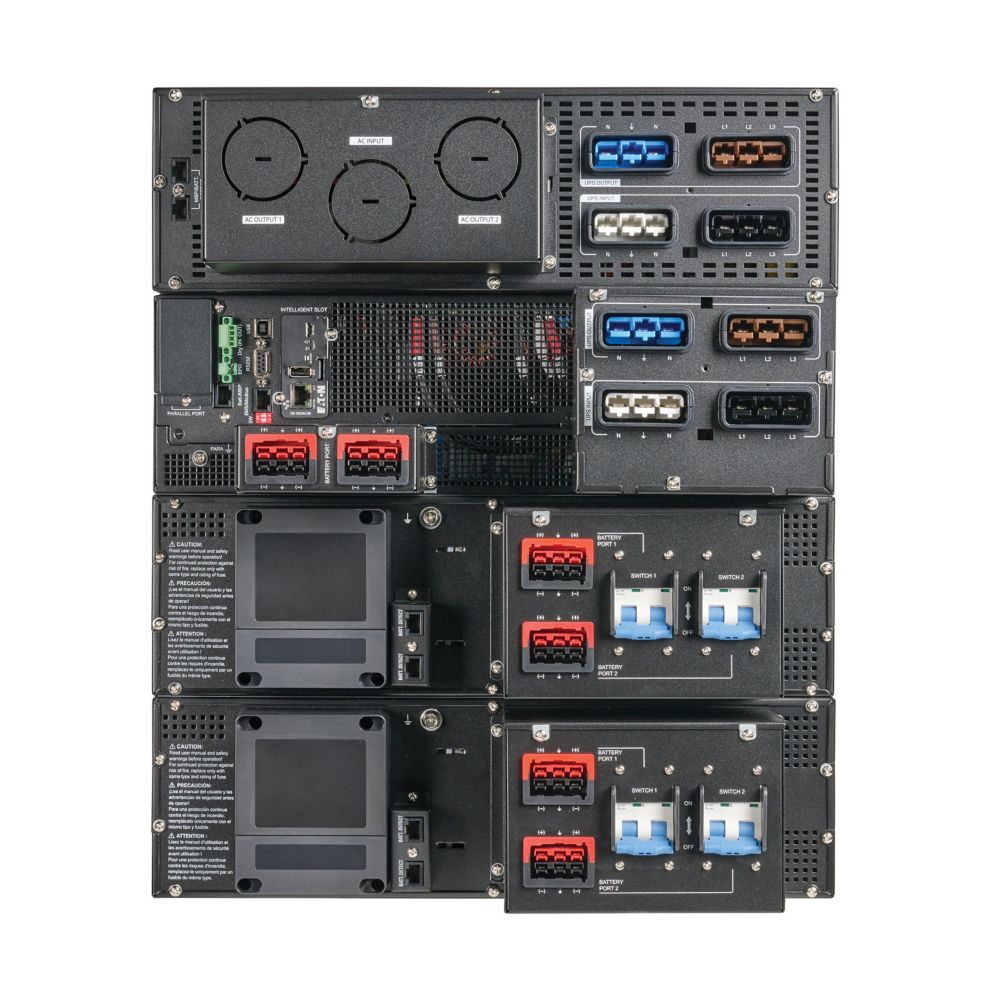

| Input Connection | Hardwired |
| Output Connection | Hardwired |
| Waveform | Pure Sine Wave |
| Efficiency (Online) | Up to 96% |
| Efficiency (ECO Mode) | Up to 98.8% |
| Battery Type | VRLA |
| Included Battery Modules | 2 Extended Battery Modules (EBMs) |
| Expandable Batteries | Up to 8 EBMs |
| Network Management | NETWORK-M3 |
| Remote Management | Web, SNMP |
| Display | 4.3-inch Color LCD Touchscreen |
| Communication Ports | RS-232, USB, EPO, Dry Contact |
| Parallel Capability | Yes (N+1 Redundancy / Capacity Expansion) |

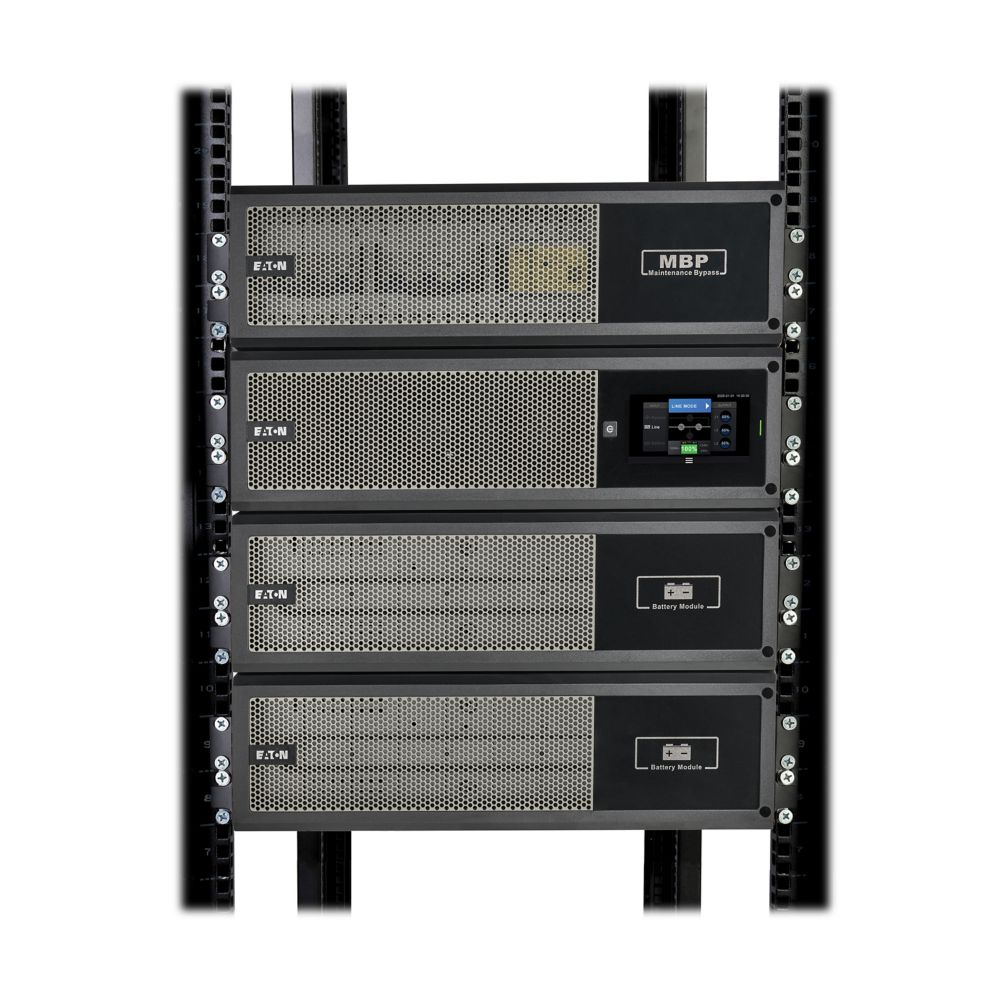

| Rack Height | 12U |
| Form Factor | Rackmount |
| Cooling | Intelligent Forced-Air Cooling |
| Applications | Data Centers, Edge Computing, Healthcare, Enterprise IT, Industrial Facilities |
