Description
The Eaton 93PX20KIMBN is a high-performance 20kW 400V rackmount 3-phase online double-conversion UPS engineered for edge computing, enterprise IT, healthcare, industrial facilities, and modern data centers. Delivering a unity power factor (1.0), up to 96% online efficiency (98.8% in ECO mode), and advanced cybersecure remote management through the NETWORK-M3 card, it provides reliable power protection for mission-critical equipment.

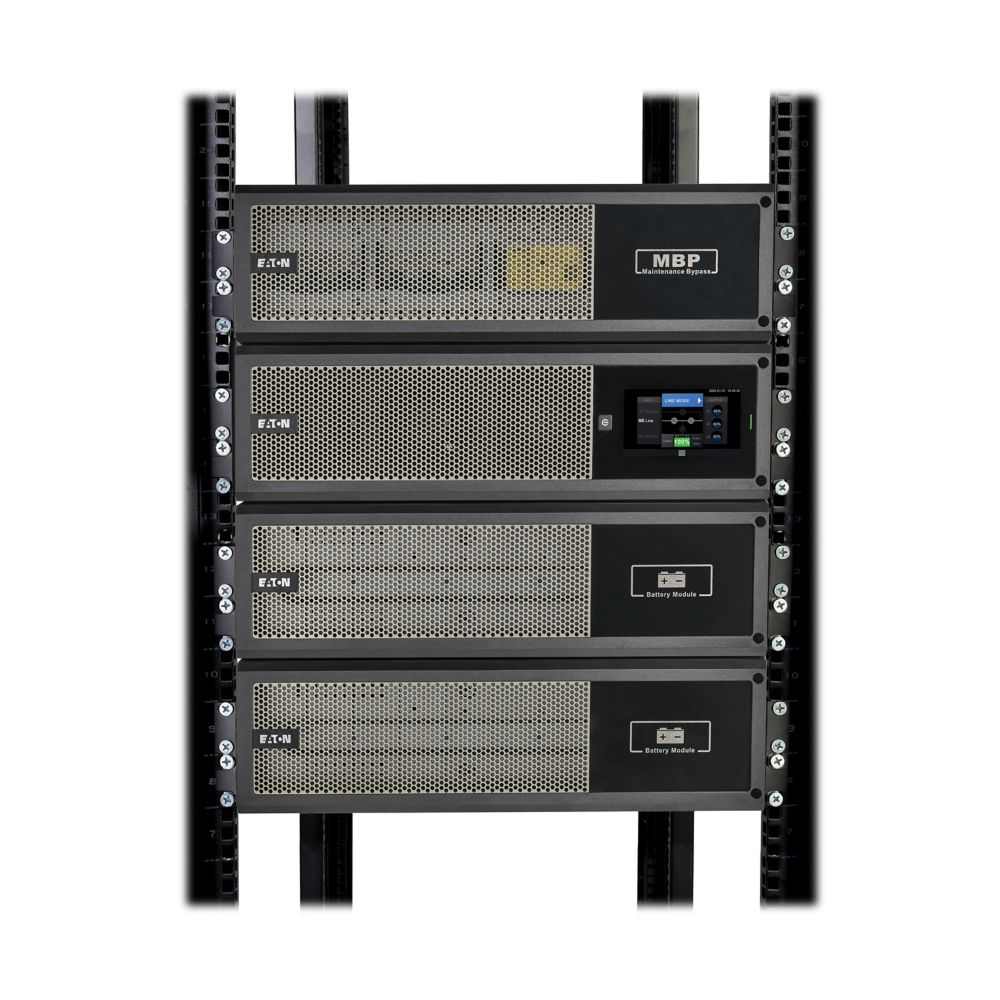

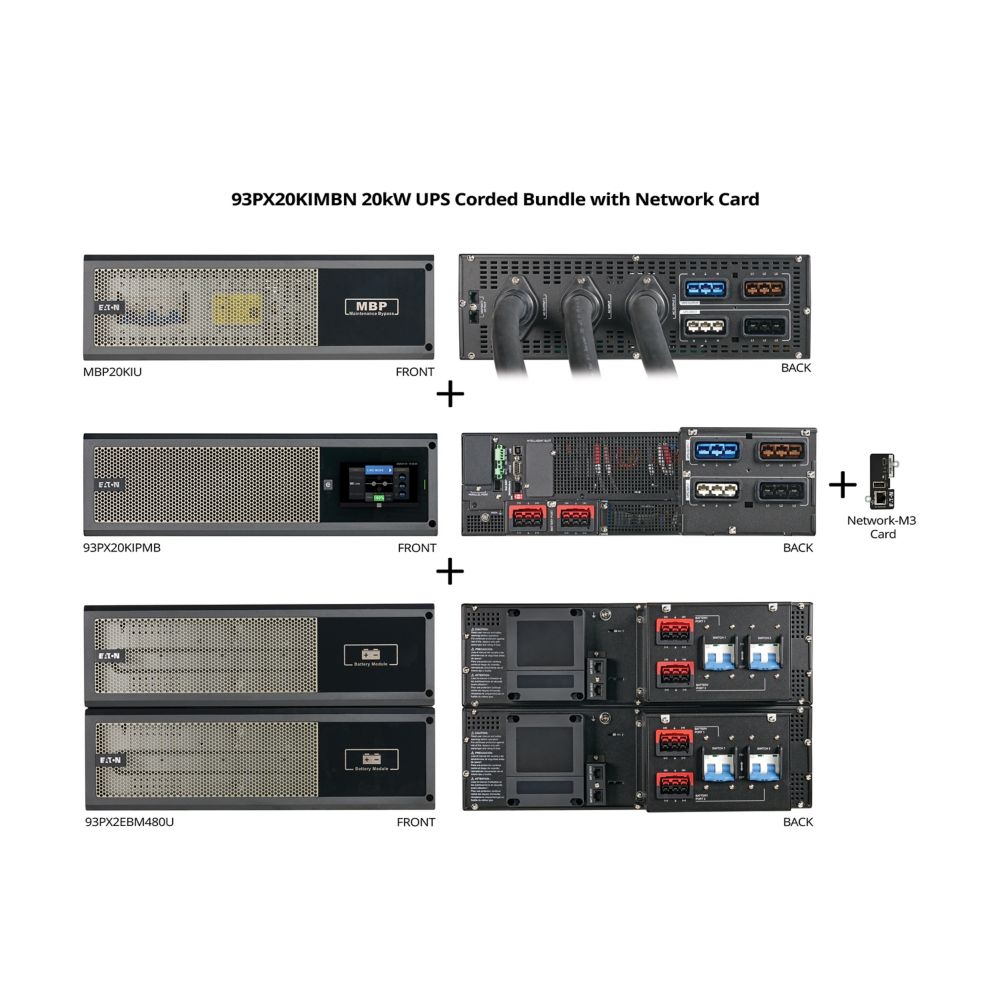

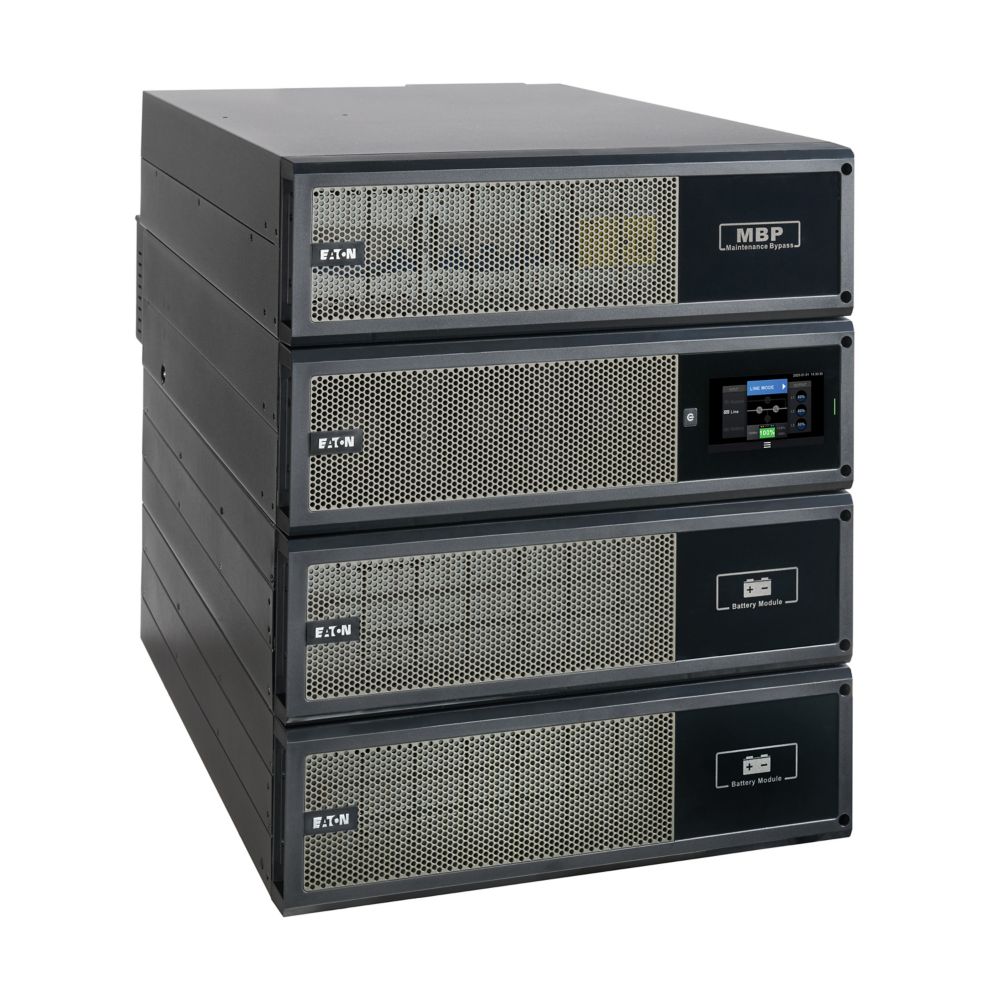

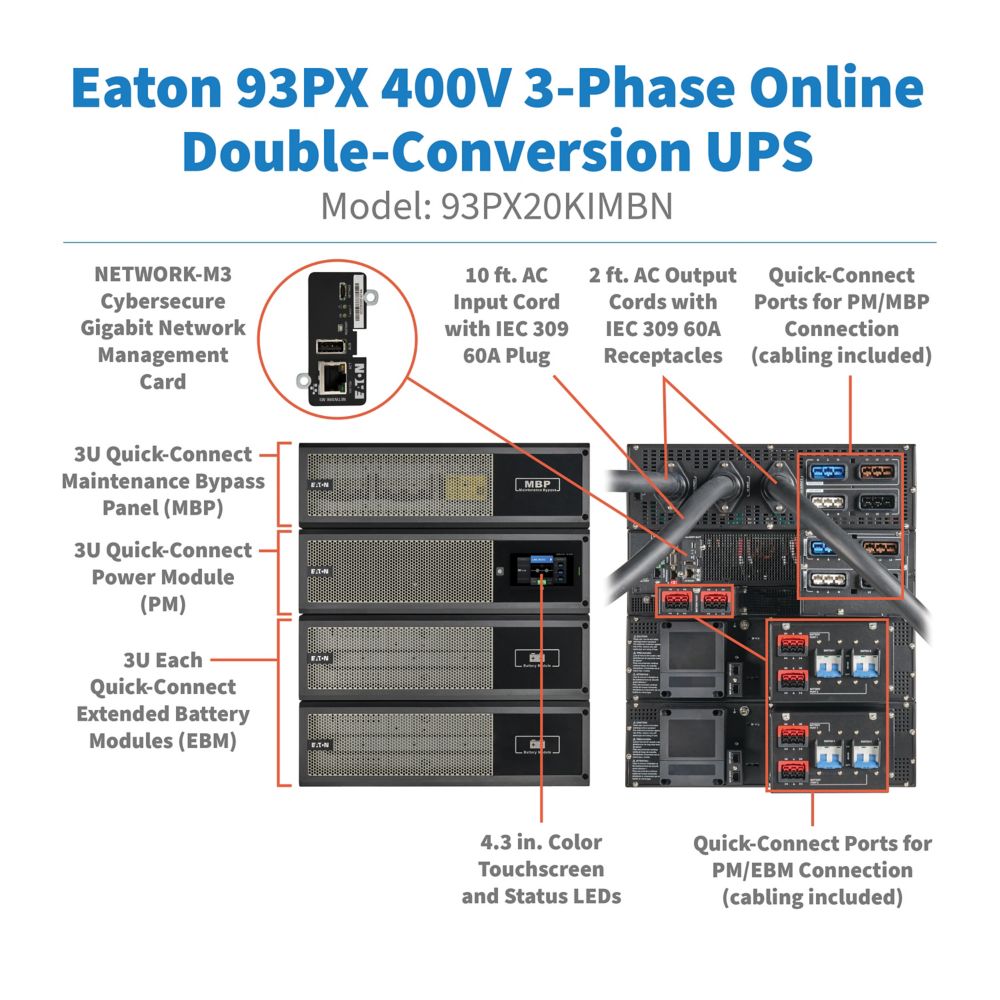

This complete 12U UPS bundle includes a quick-connect power module, maintenance bypass panel, and two extended battery modules for simplified deployment and maintenance. Its scalable architecture also supports parallel operation for increased capacity or N+1 redundancy, making it an ideal solution for growing infrastructure.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton |
| SKU | 93PX20KIMBN |
| Product Series | 93PX |
| Product Type | Online Double-Conversion UPS |
| Topology | Double Conversion (Online) |
| Power Capacity | 20 kW |
| Power Factor | 1.0 (Unity) |
| Input Phase | 3-Phase |
| Output Phase | 3-Phase |
| Nominal Input Voltage | 380/400/415 VAC |
| Nominal Output Voltage | 380/400/415 VAC |

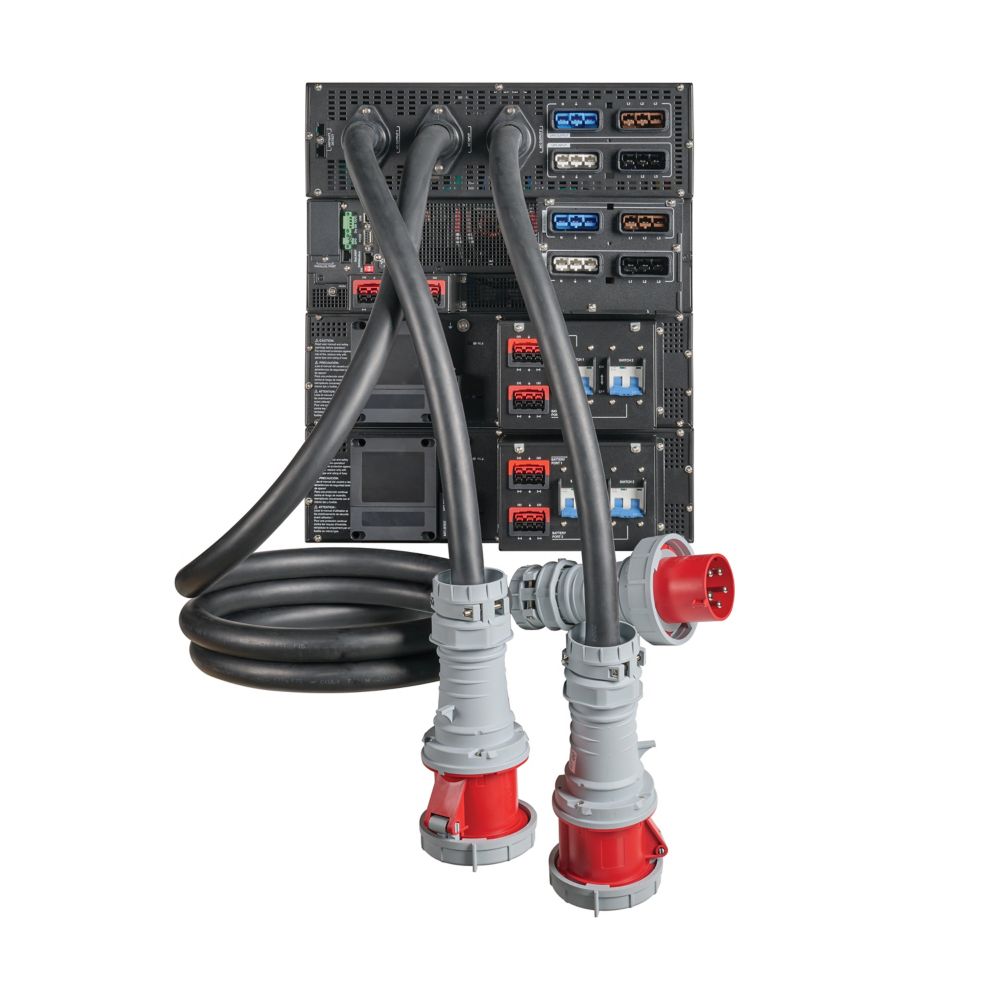

| Input Connection | IEC 309 60A Plug with 10 ft Cord |
| Output Connections | (2) IEC 309 60A Receptacles with 2 ft Cords |
| Rack Height | 12U |
| Form Factor | Rackmount |
| Included Battery Modules | 2 Extended Battery Modules (EBMs) |
| Maximum Battery Expansion | Up to 8 EBMs (added in pairs) |
| Runtime Expansion | Yes |
| Online Efficiency | Up to 96% |
| ECO Mode Efficiency | Up to 98.8% |
| Battery Type | VRLA |
| Recharge Time | ≤3 Hours to 90% |
| Network Management | NETWORK-M3 (Web/SNMP) Included |
| Communication Ports | USB, RS-232, EPO, Dry Contact |
| Display | 4.3-inch Color LCD Touchscreen |
| Parallel Capability | Yes (Capacity Expansion or N+1 Redundancy) |
| Waveform | Pure Sine Wave |
| Transfer Time | Zero Transfer Time |
| Installation | Rackmount |
| Typical Applications | Data Centers, Edge Computing, Enterprise IT, Healthcare, Industrial Facilities |
| Warranty | 2-Year Limited Warranty |
