Description
The Eaton 93PX20KHWNPAR is a high-performance 400V three-phase online double-conversion UPS designed for mission-critical IT, edge computing, healthcare, industrial, and data center environments. This hardwired parallel bundle delivers 40kW total capacity or 20kW with N+1 redundancy, ensuring maximum uptime and power protection for demanding applications.

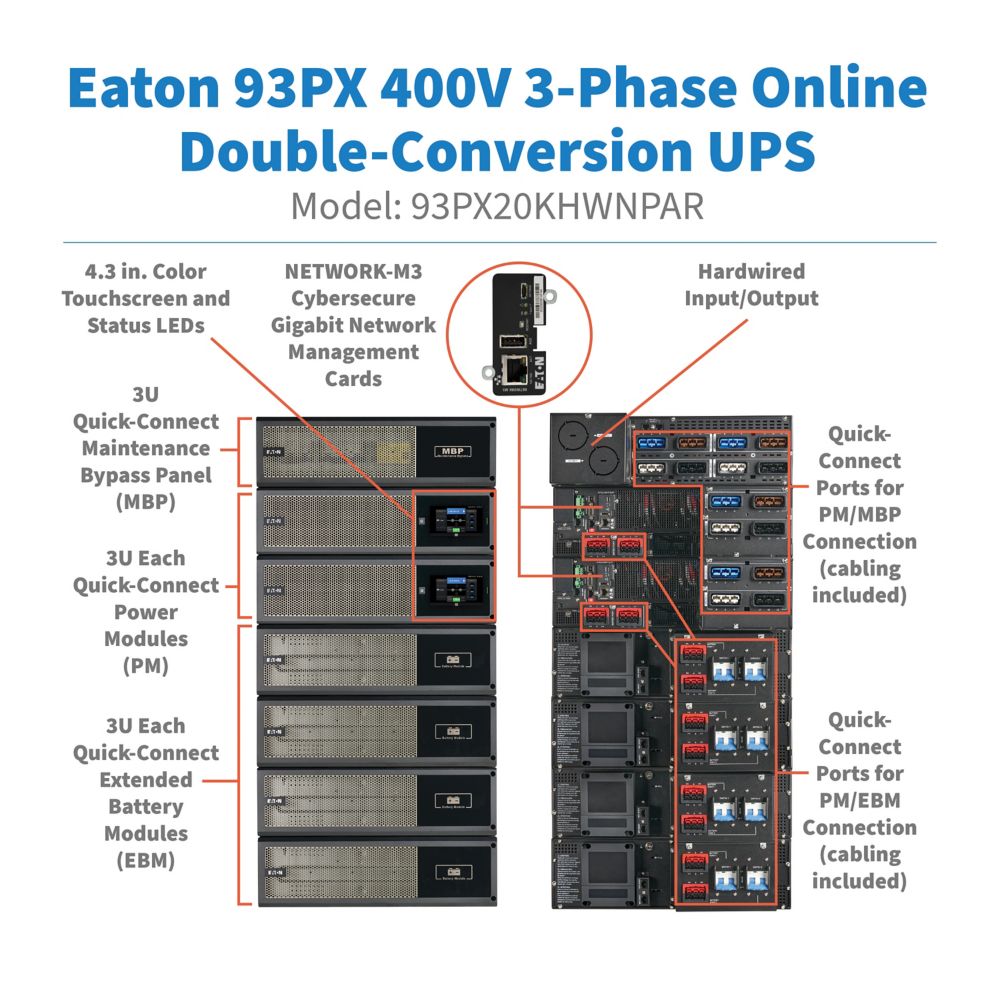

Featuring a unity power factor (1.0), up to 96% online efficiency (98.8% in ECO mode), and an innovative quick-connect architecture, the system simplifies installation while reducing operating costs. The included NETWORK-M3 cybersecurity-certified network management cards, maintenance bypass panel, and extended battery modules provide secure remote monitoring, simplified maintenance, and scalable runtime for growing infrastructure.
| Specification | Details |
|---|---|
| Manufacturer | Eaton |
| Model | 93PX20KHWNPAR |
| Product Type | Online Double-Conversion UPS |
| UPS Topology | Online Double Conversion |
| Input Voltage | 380/400/415 VAC Three-Phase |
| Output Voltage | 380/400/415 VAC Three-Phase |
| Capacity | 40 kW Parallel or 20 kW N+1 Redundant |
| Power Factor | 1.0 Unity |
| Frequency | 50/60 Hz Auto-Sensing |
| Efficiency (Online) | Up to 96% |
| Efficiency (ECO Mode) | Up to 98.8% |
| Parallel Capability | Yes (2 Units) |
| Redundancy | N+1 Supported |
| Input Connection | Hardwired |
| Output Connection | Hardwired |
| Rack Size | 21U |
| Battery Configuration | Four Extended Battery Modules Included |
| Battery Type | VRLA |
| Recharge Time | ≤3 Hours to 90% |
| Network Management | Dual NETWORK-M3 Cards Included |
| Communication Ports | RS-232, USB, EPO, Dry Contact |
| LCD Display | 4.3-inch Color Touchscreen |
| Waveform | Pure Sine Wave |
| Transfer Time | Zero Transfer Time |
| Surge Protection | Yes |
| Backfeed Protection | Yes |
| Cybersecurity | UL/IEC Certified Network Management |
| Applications | Data Centers, Edge Computing, Healthcare, Industrial Facilities, Enterprise IT |
| Warranty | 2-Year Limited Warranty |
