Description

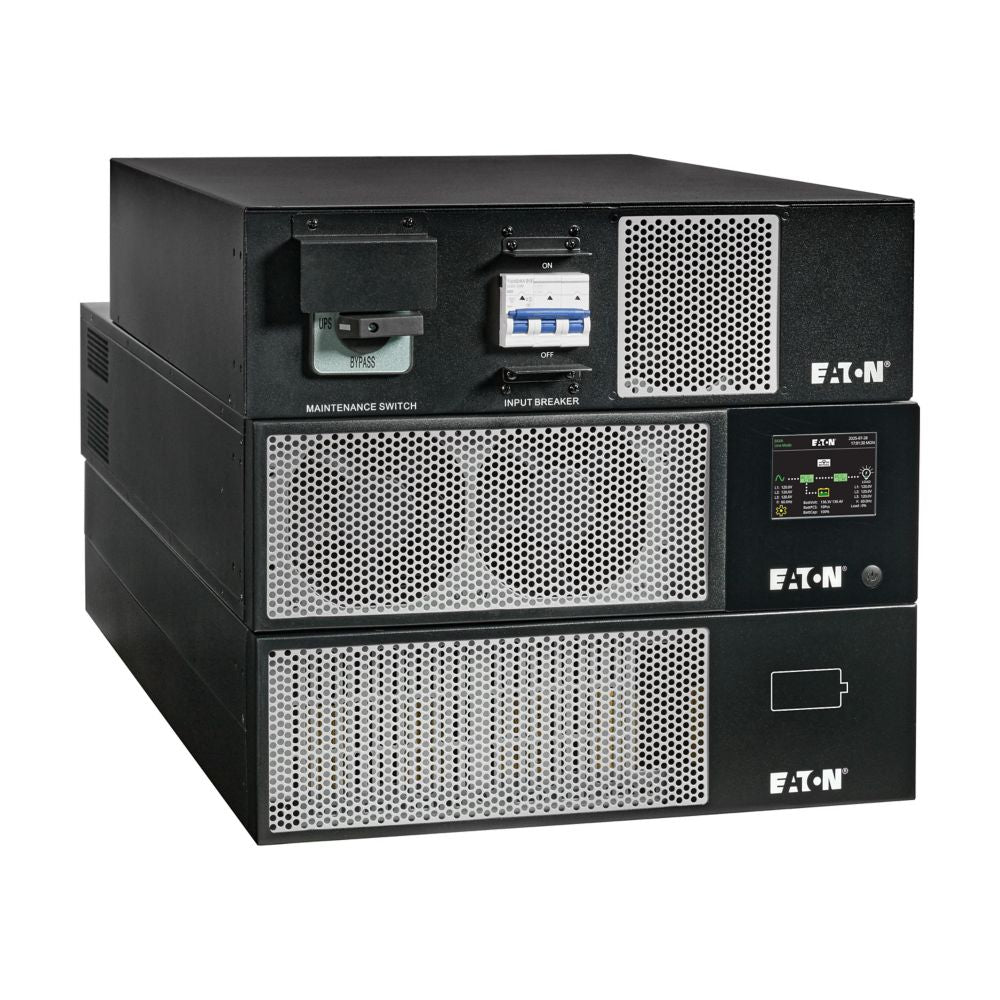

The Eaton 93PX5KINDA is a TAA-compliant 5 kW, 208V three-phase online double-conversion UPS designed to provide reliable backup power for edge computing, data centers, commercial facilities, healthcare environments, and other critical IT applications.

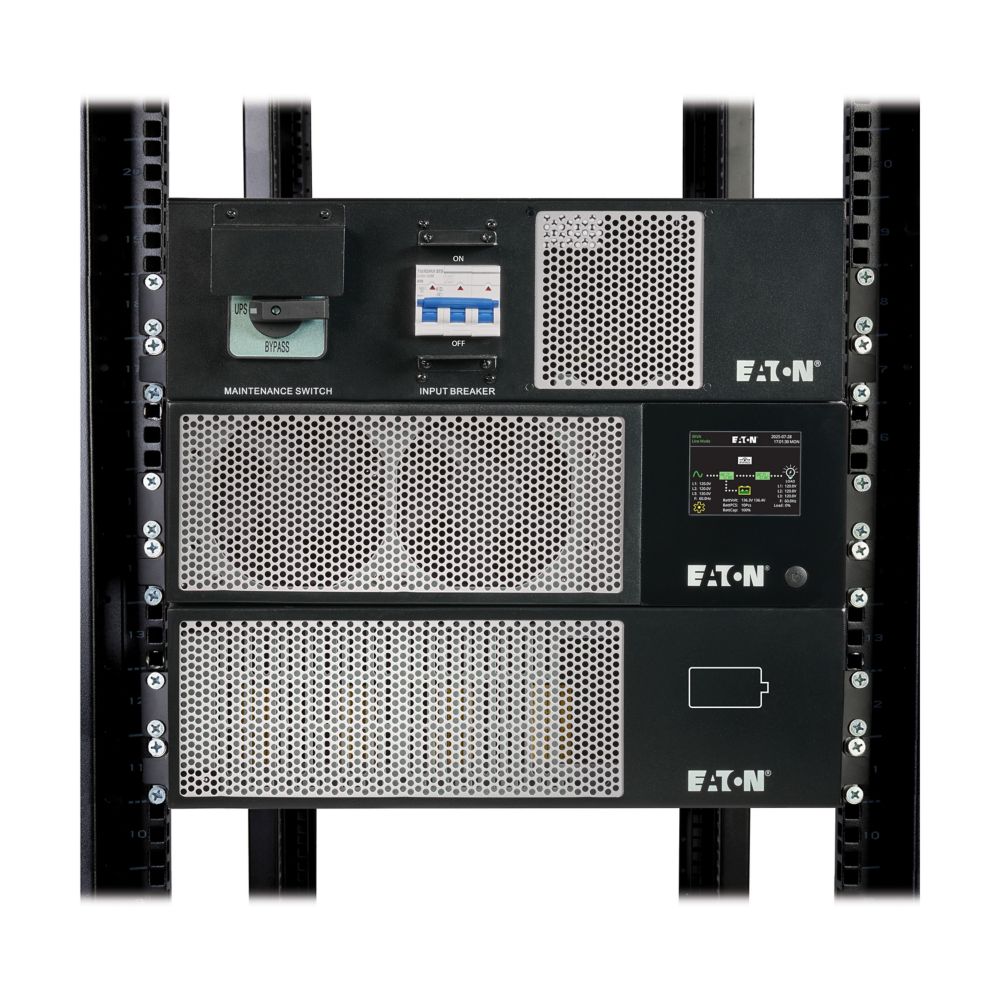

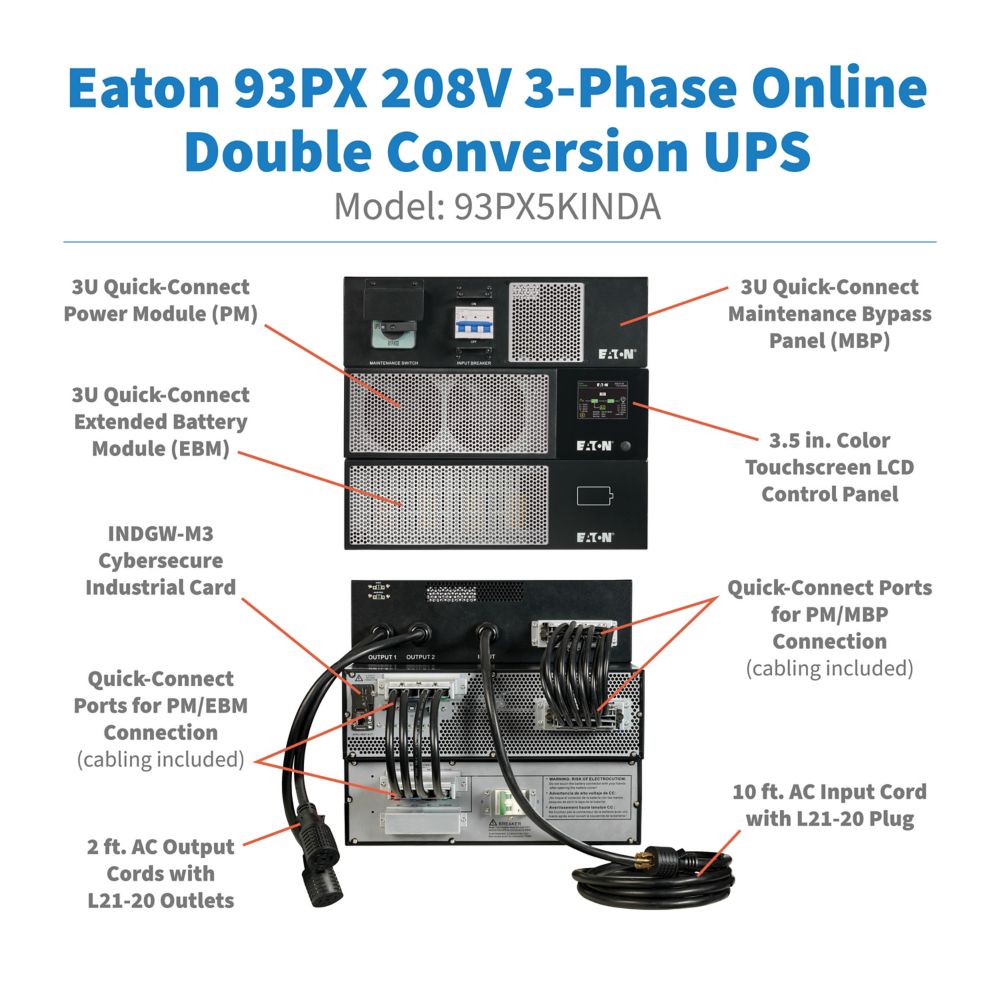

Featuring a compact 9U rackmount design, the 93PX5KINDA combines a 3U power module, 3U maintenance bypass panel, and 3U extended battery module. Its quick-connect architecture simplifies installation and servicing, while the included INDGW-M3 industrial network management card provides Modbus, SNMP, Web, and BACnet connectivity for remote monitoring and integration.
The UPS delivers a 1.0 output power factor, pure sine-wave output, zero transfer time to battery, and up to 97% efficiency in ECO mode. A 3.5-inch color touchscreen provides convenient local monitoring and control, while integrated backfeed and surge protection help safeguard connected equipment.

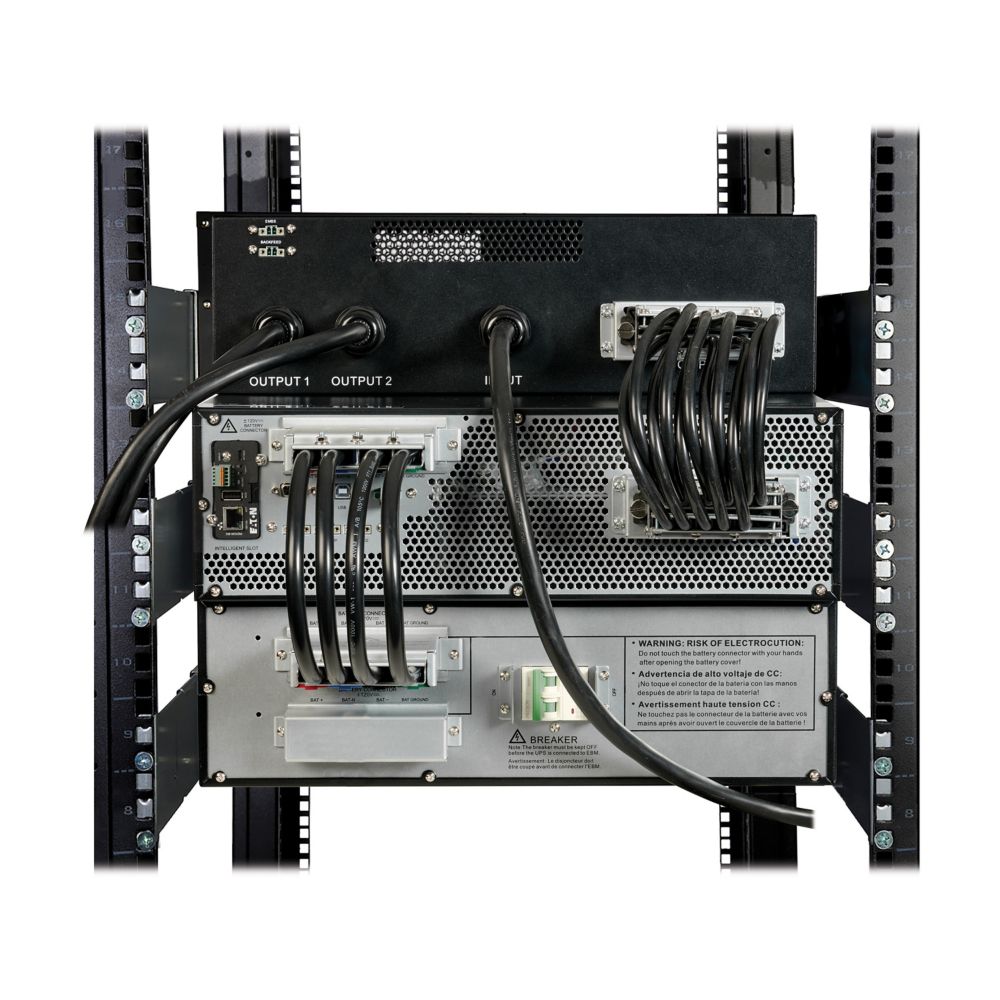

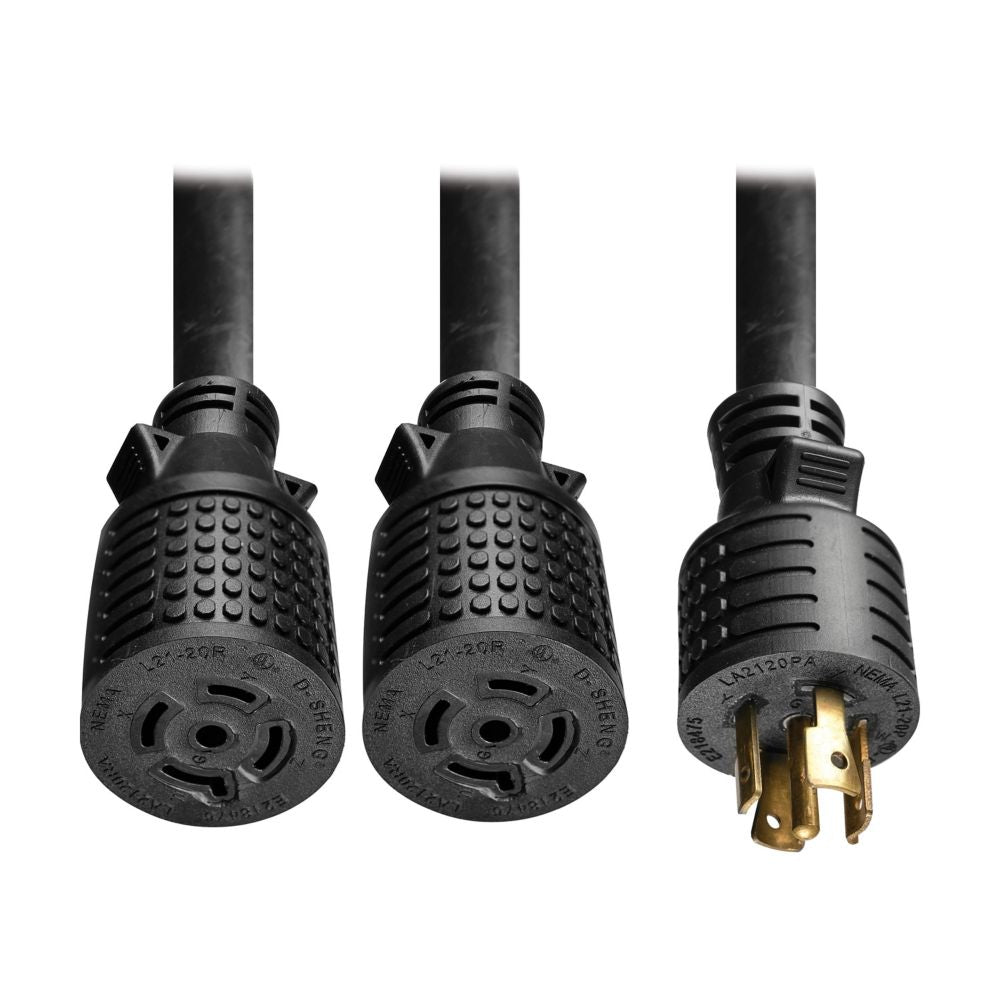

The 93PX5KINDA uses an L21-20P input plug with a 10-foot cord and provides two L21-20R output receptacles with 2-foot cords, making it a practical plug-and-play power protection solution for standard 19-inch IT racks.
Key Features
- 5 kW / 5 kVA power capacity with unity 1.0 output power factor
- 208V three-phase online double-conversion UPS
- TAA compliant
- Compact 9U rackmount configuration
- L21-20P input plug with 10 ft. cord
- Two L21-20R output receptacles with 2 ft. cords
- Included INDGW-M3 industrial network management card
- Modbus, SNMP, Web, and BACnet communications
- 3.5-inch color LCD touchscreen
- Pure sine-wave output with zero transfer time to battery
- Up to 97% efficiency in ECO mode
- Quick-connect modular design for simplified deployment and service
- Backfeed and surge protection
- Auto-restart after extended utility outages
- One extended battery module included in the standard 5 kW configuration
- Compatible with standard 19-inch rack enclosures
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Eaton |
| SKU / Catalog Number | 93PX5KINDA |
| Product Series | Eaton 93PX |
| Product Type | Online Double-Conversion UPS |
| TAA Compliant | Yes |
| Power Capacity | 5 kW / 5 kVA |
| Nominal Voltage | 208 VAC Phase-to-Phase / 120 VAC Phase-to-Neutral |
| Phase | 3-Phase |
| Output Power Factor | 1.0 |
| Input Voltage Range | 121–270 VAC at 50% Load; 161–253 VAC at 100% Load |
| Input Frequency | 50/60 Hz ±4 Hz, Auto-Sensing |
| Nominal Input Current | 16A |
| Input Power Factor | >0.99 at 100% Load |
| Input Connection | L21-20P Plug with 10 ft. Cord |
| Output Voltage | 208 VAC Phase-to-Phase / 120 VAC Phase-to-Neutral |
| Nominal Output Current | 13.9A |
| Output Connections | (2) L21-20R Receptacles with 2 ft. Cords |
| Output Waveform | Pure Sine Wave |
| Transfer Time to Battery | Zero |
| Online Mode Efficiency | ≥92% at 50% Load / ≥91% at 100% Load |
| ECO Mode Efficiency | ≥96% at 50% Load / ≥97% at 100% Load |
| Rack Size | 9U |
| Power Module Size | 3U |
| Power Module Dimensions | 31.7 × 17.2 × 5.2 in. |
| Power Module Weight | 73.9 lb. (33.5 kg) |
| Included Battery Modules | 1 EBM |
| Battery Type | VRLA, 10 Ah |
| Battery Runtime at 100% / 50% Load | Approx. 13 / 31 Minutes with 1 EBM |
| Maximum EBMs Supported | 5 |
| Battery Charger | Advanced 3-Stage Smart Charger |
| Network Management Card | INDGW-M3 |
| Network Protocols | Modbus, SNMP, Web, BACnet |
| Control Panel | 3.5-inch Color LCD Touchscreen |
| Communication Ports | RS-232, USB, EPO |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Relative Humidity | <95%, Non-Condensing |
| Backfeed Protection | Yes |
| Rack Compatibility | Standard EIA 19-inch Rack Enclosures |
