Description

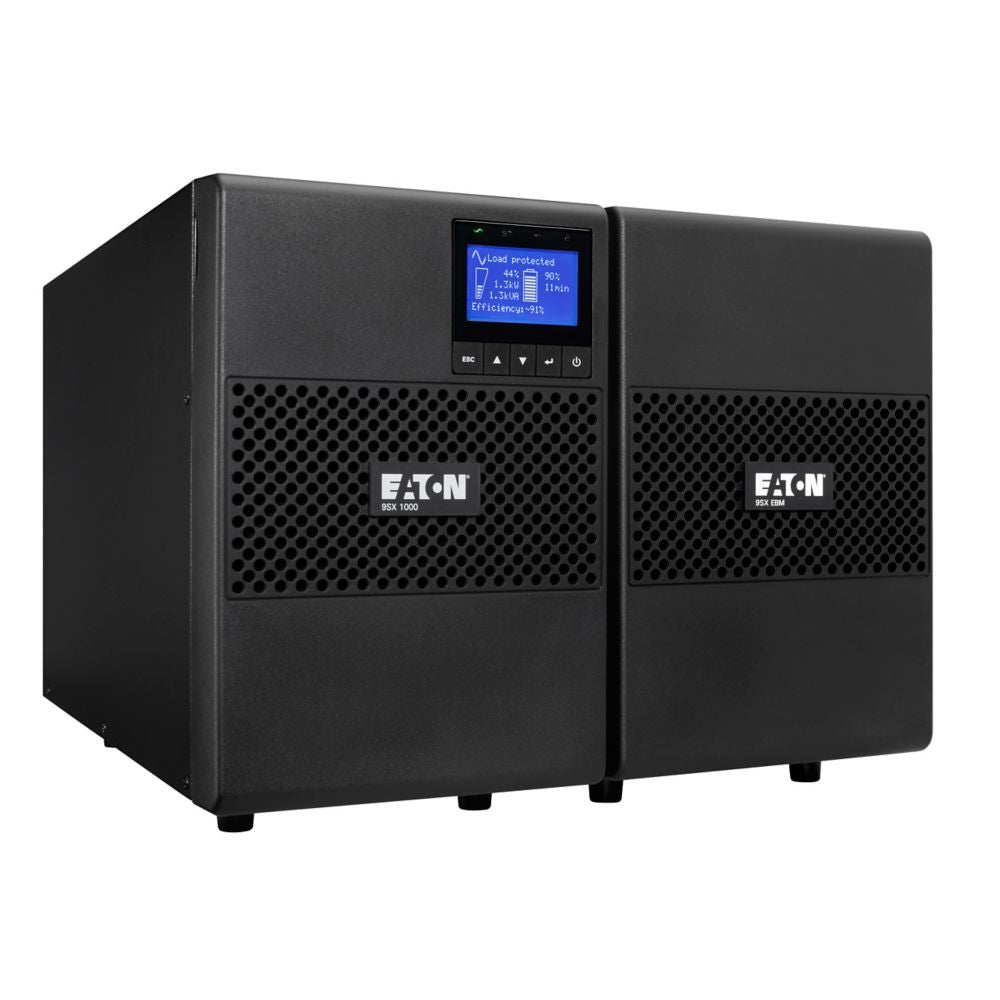

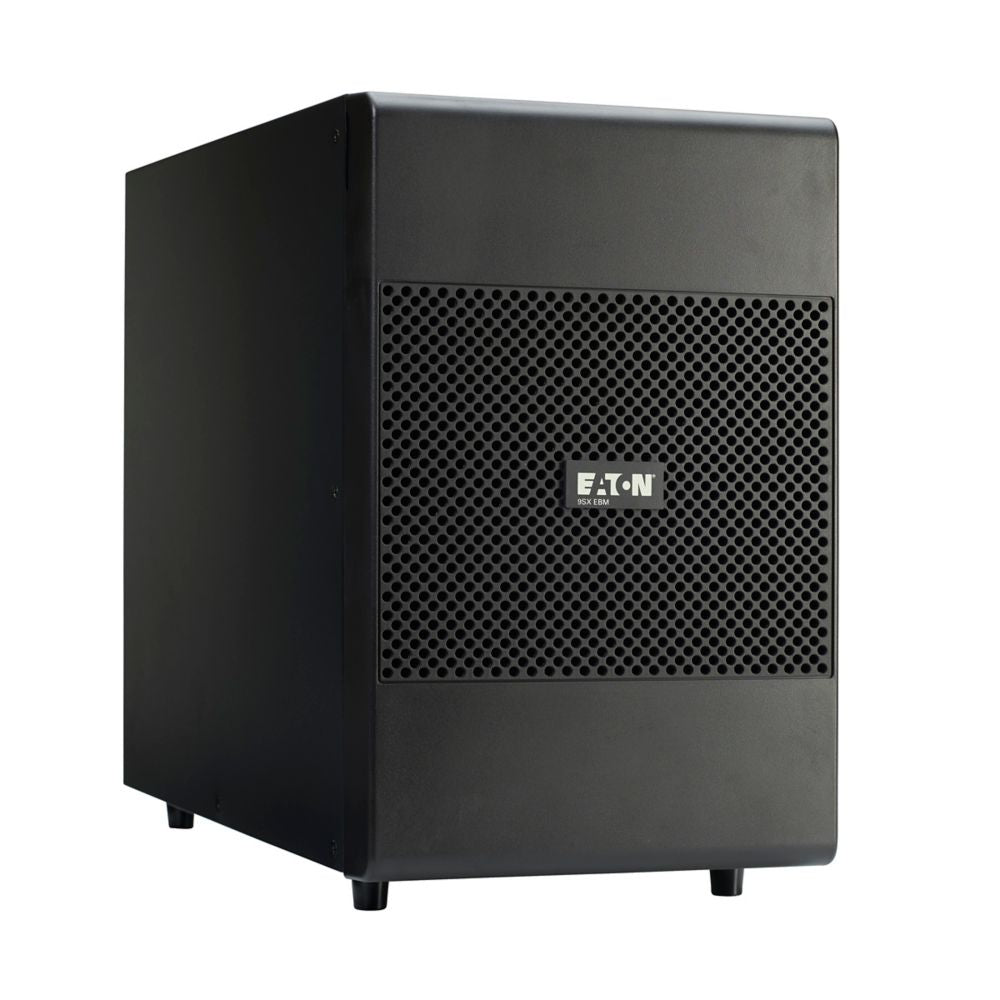

The Eaton 9SXEBM96 is a 96V extended battery module designed to increase runtime for select Eaton 9SX UPS systems in mission-critical environments. Ideal for medical facilities, light industrial operations, automation systems, and IT infrastructure where downtime is not an option, this external battery pack ensures continued power availability during extended outages.

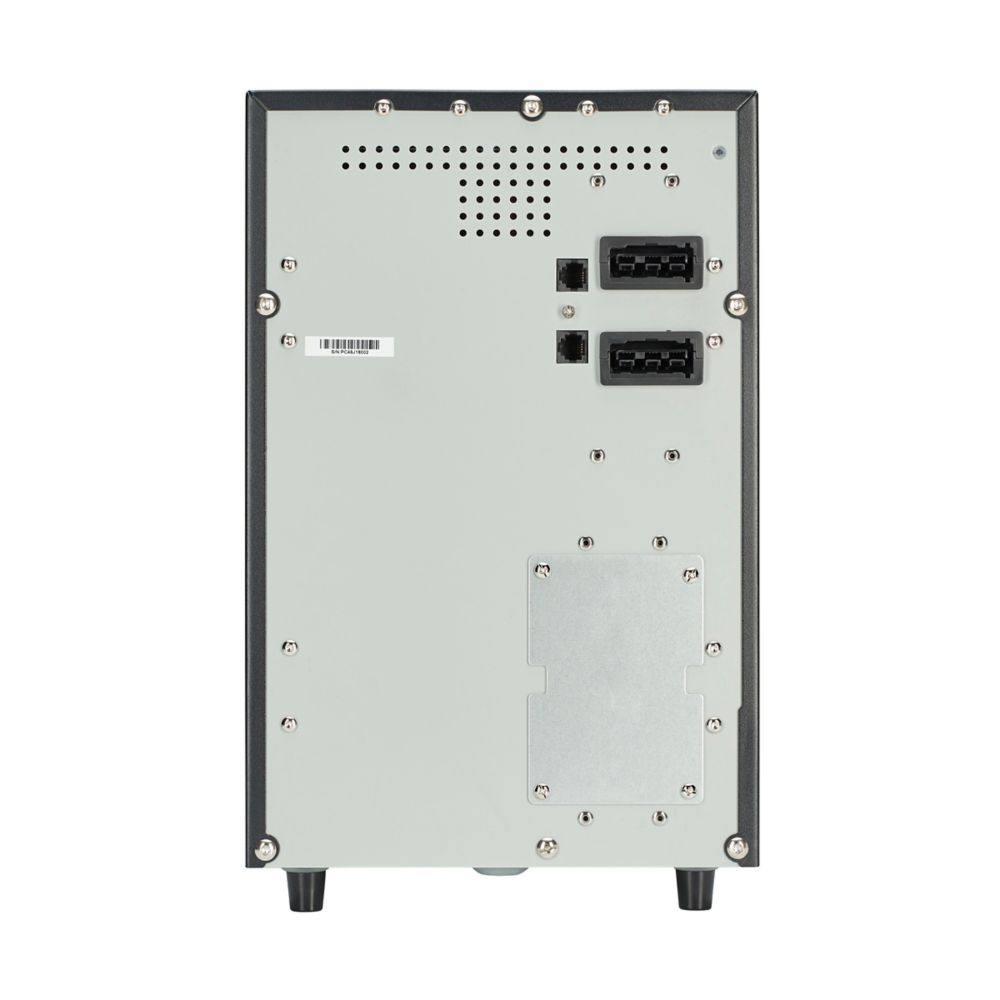

Built with valve-regulated lead-acid (VRLA) batteries, the 9SXEBM96 integrates seamlessly with compatible Eaton 9SX UPS models using included heavy-gauge, high-current DC cabling for safe and reliable installation. Multiple battery modules can be daisy-chained—up to four units—to deliver even longer extended-run operation as power demands grow.
Its tower form factor and compact footprint make it well-suited for space-constrained deployments, while Eaton’s proven battery technology and compliance standards provide dependable performance for critical applications.
| Specification | Details |
|---|---|
| Brand | Eaton |
| Model | 9SXEBM96 |
| Product Type | Extended Battery Module (EBM) |
| DC System Voltage | 96V |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Compatible UPS Models | Eaton 9SX2000, 9SX2000G, 9SX3000, 9SX3000G, 9SX3000GL, 9SX3000HW |
| Expandability | Daisy-chain support (up to 4 battery modules) |
| Form Factor | Tower |
| Rack Height | 0U |
| Color | Black |

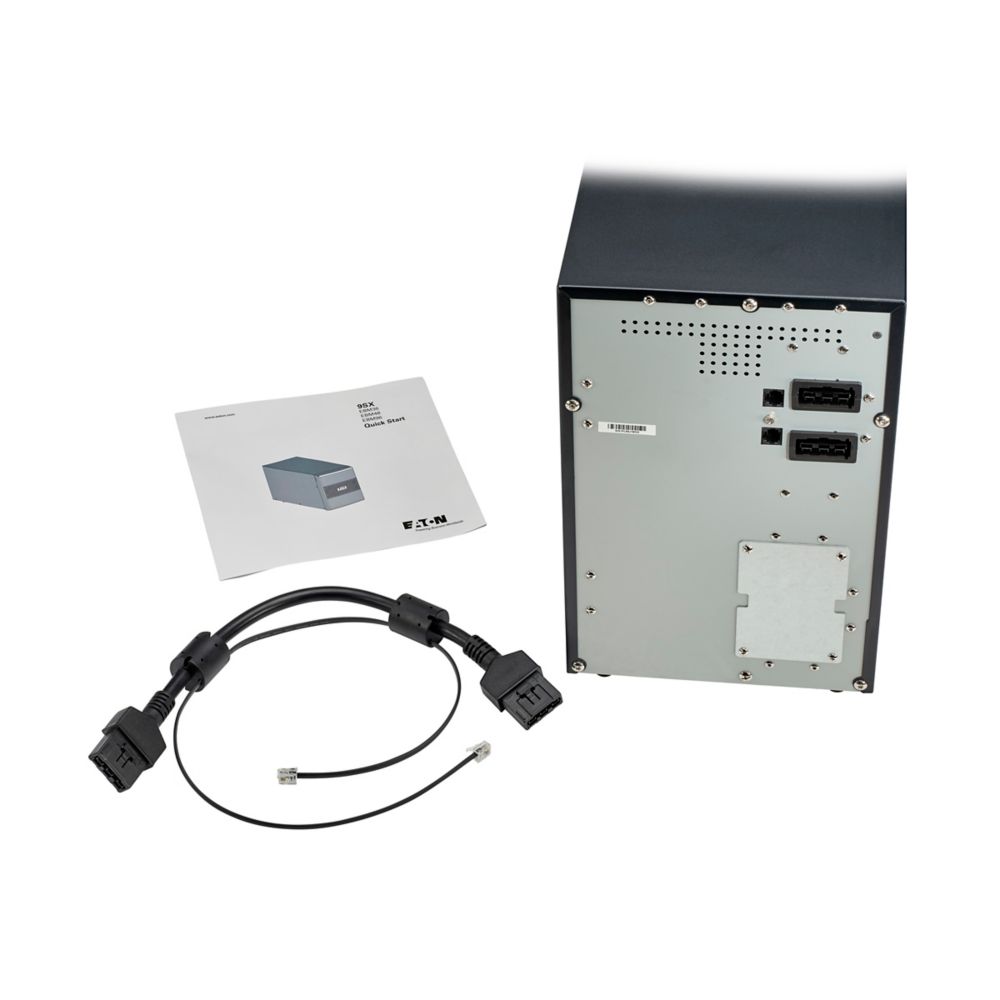

| Included Accessories | External battery cable, quick start guide |
| Input Phase | Single-phase |
| Dimensions (H x W x D) | 13.6 x 8.4 x 16.2 in |
| Weight | 110 lb (49.9 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Compliance | RoHS, REACH, FCC |
| Warranty | 3-Year Limited Warranty |
