Description

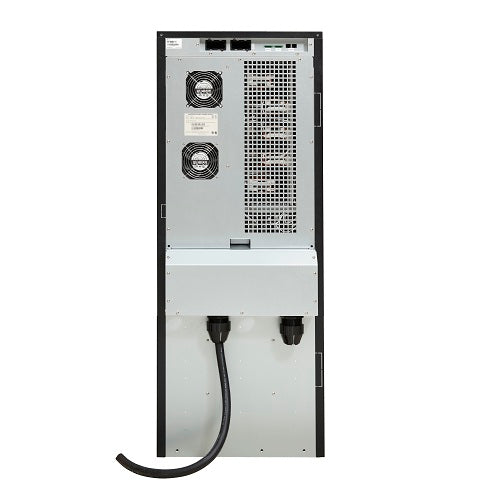

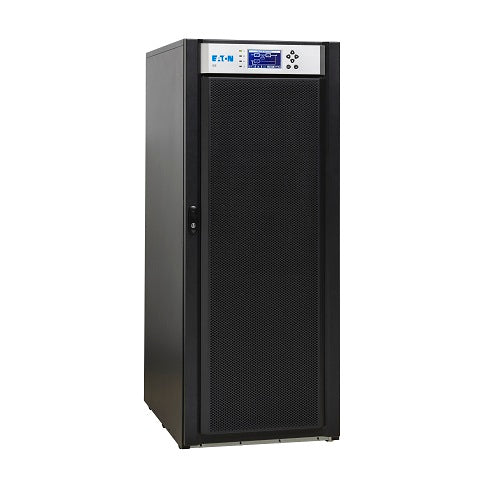

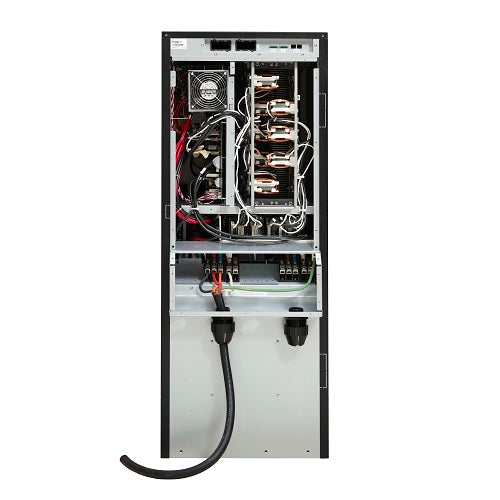

The Eaton 93E UPS (Model: 9EA02GG05001003) delivers reliable double-conversion backup power in a compact footprint ideal for small data centers and critical infrastructure. Designed for high-efficiency power protection, this 20 kVA / 16 kW UPS features internal batteries with 21 minutes runtime at full load, hardwired 208/220V three-phase single feed input/output, and online topology for clean, continuous power. It does not include an internal bypass switch but is compatible with optional bypass and distribution cabinets. This rugged and compact unit offers outstanding power quality and comes with a 12-month warranty from the date of purchase.
| Specification | Details |
|---|---|
| Model Number | 9EA02GG05001003 |
| Topology | Online Double Conversion |
| Power Rating | 20 kVA / 16 kW |
| Efficiency | Up to 98% (high-efficiency mode)Up to 92% (double-conversion mode) |
| Input Voltage | 208 / 220V, 3-phase |
| Input Connection | Hardwired terminal |
| Output Voltage | 208 / 220V, 3-phase |
| Output Connection | Hardwired terminal |
| Bypass | No internal bypass switch |

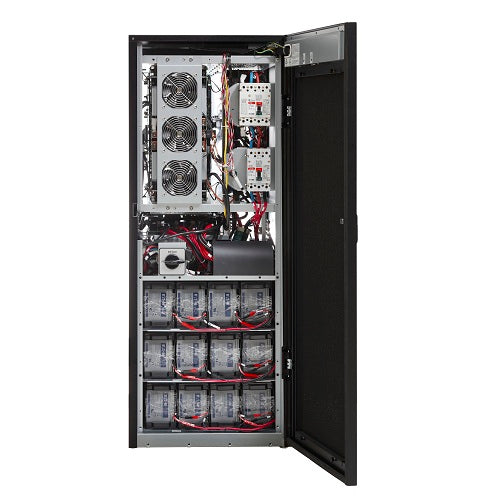

| Battery Type | Internal battery configuration |
| Runtime (Full Load) | 21 minutes |
| Runtime (Half Load) | 47 minutes |
| Extended Runtime | Not supported |
| Dimensions (H x W x D) | 53.5 x 20.9 x 31.5 in |
| Weight | 1049 lbs |
| Standard Warranty | 12 months from purchase with startup by Eaton engineer6 months for labor without startup |
| Optional Accessories | M1BAAX0X1XXXXXX External Bypass SwitchNetwork CardRelay Card |
| Optional Transformers | 480V input/output transformers available |
