Description

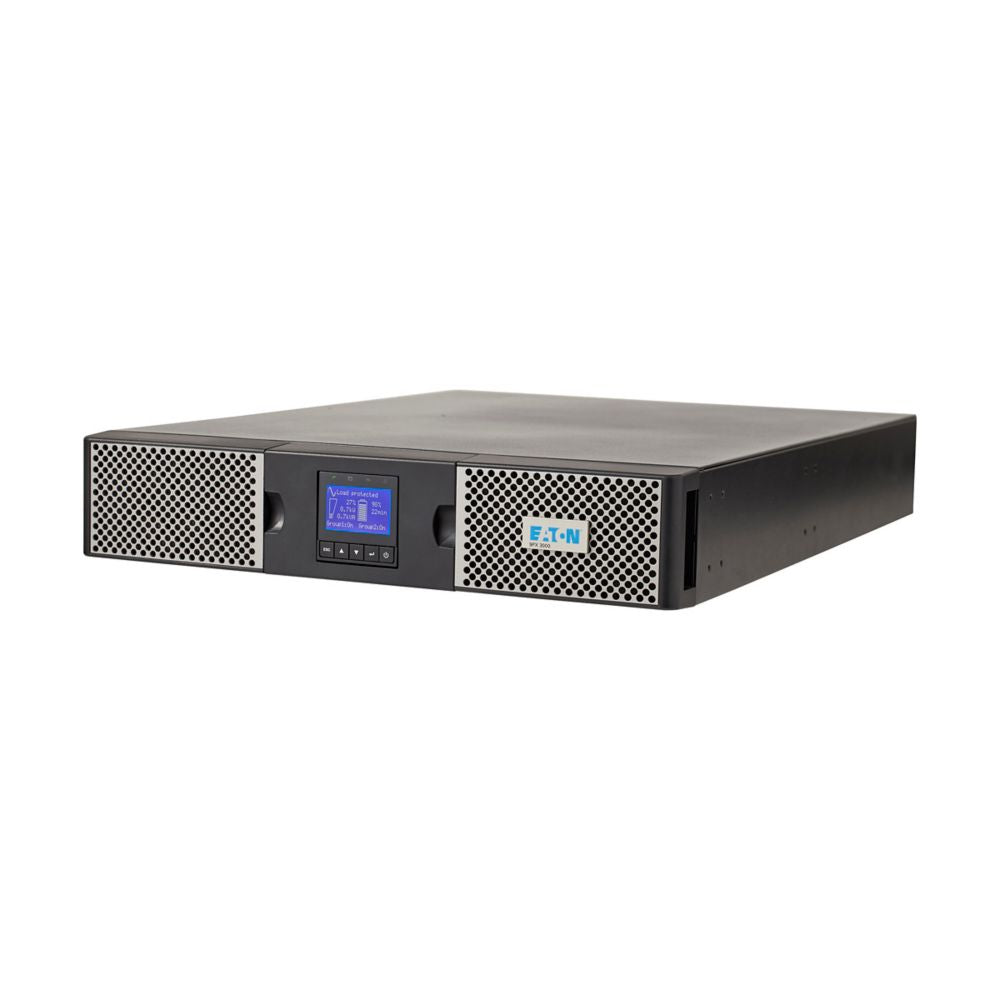

The Eaton 9PX1000RT UPS delivers premium online double-conversion power protection for servers, networking gear, and critical IT systems. Designed for efficiency and reliability, this 1000VA/900W UPS ensures continuous, clean power even in demanding environments. Featuring ABM® battery management for longer battery life, hot-swappable sealed lead-acid batteries, and a graphical LCD interface for easy monitoring, the 9PX1000RT is ideal for rack or tower installations.
With true sine-wave output, a 0.9 power factor, and high efficiency up to 90.3%, it supports sensitive electronics with precision voltage regulation. The unit includes a full complement of USB, RS-232, and MiniSlot expansion ports for network connectivity via optional SNMP, Modbus, or relay cards. Designed for scalability, up to four extended battery modules (9PXEBM36RT) can be added for longer runtime.
The 9PX1000RT ships ready for deployment with a complete accessory package, including rail kits, cables, and software—backed by a 3-year factory warranty with options for extended on-site service plans.
| Category | Specification |
|---|---|
| Model / SKU | 9PX1000RT |
| Topology | Online (Double-conversion) |
| Power Rating | 1000 VA / 900 W |
| Power Factor | 0.9 |
| Output Voltage | 120V nominal (configurable to 100/110/120/125V) |
| Output Voltage Regulation | ±1% steady-state |
| Output Frequency | 50/60 Hz |
| Output Waveform | True sine wave |
| Output Receptacles | (8) NEMA 5-15R |
| Input Connection | NEMA 5-15P |
| Input Voltage Range | 100–125V nominal |
| Input Frequency Range | 50–70 Hz (60 Hz) / 40–60 Hz (50 Hz) |
| Input Power Factor | >0.99 typical |
| Battery Type | Sealed, lead-acid; hot-swappable |
| Battery Management | ABM® three-stage charging technology |
| Extended Battery Capability | Supports up to 4 × 9PXEBM36RT modules |
| Efficiency (Max Load) | 90.3% |

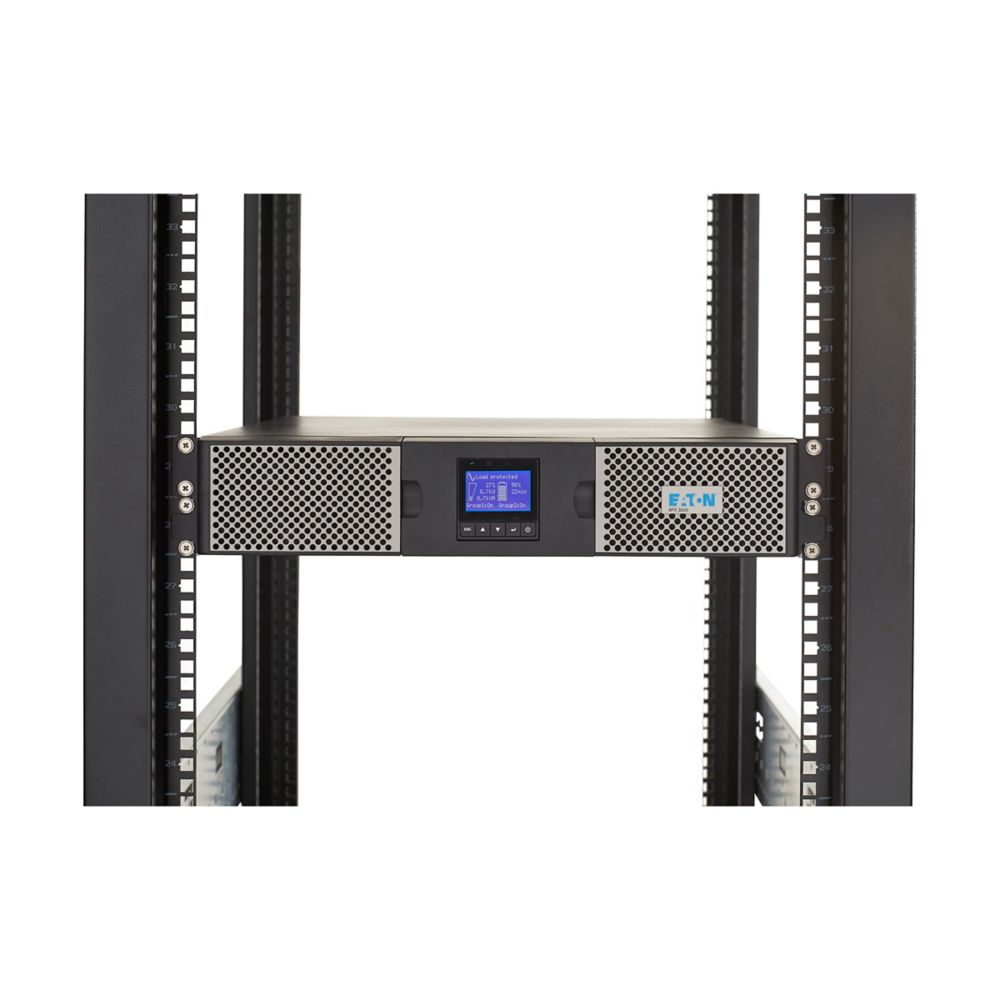

| Form Factor | 2U Rack/Tower convertible |
| Dimensions (H × W × D) | 3.4 × 17.3 × 17.7 in |
| Weight | 36.4 lb |

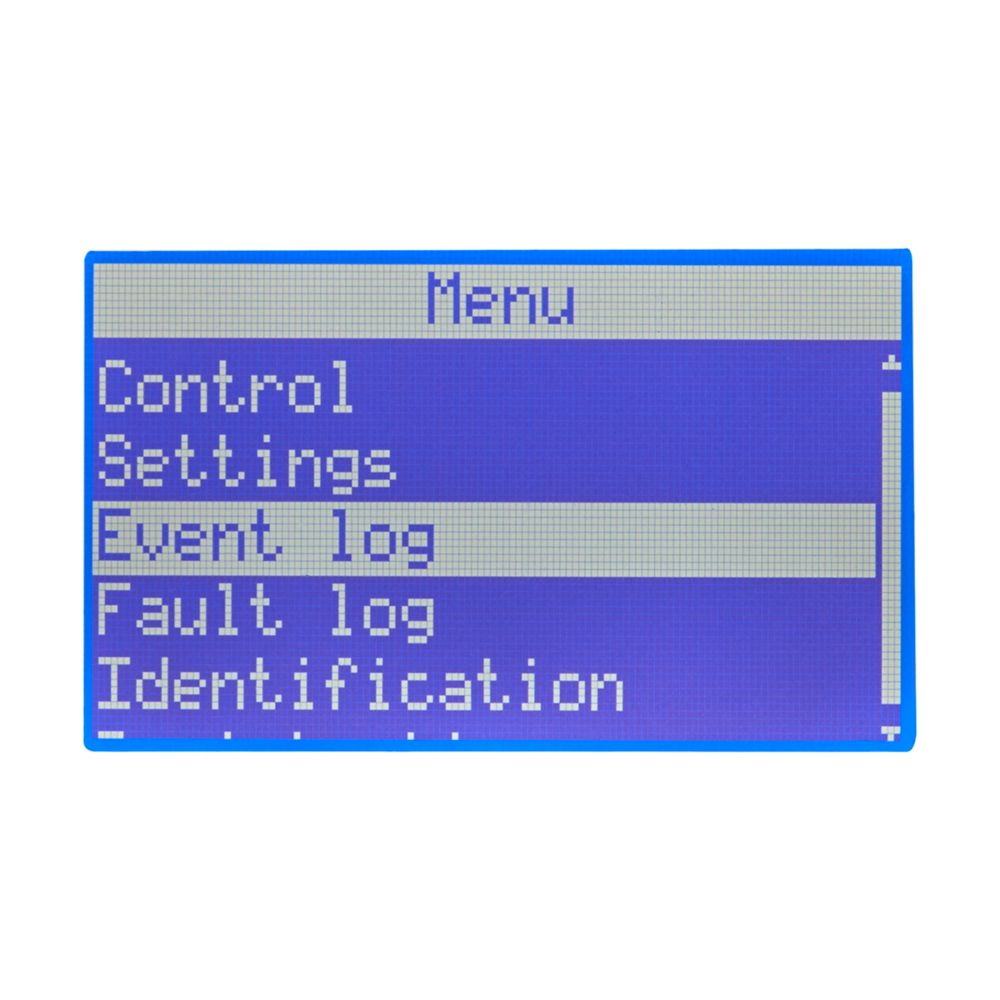

| Display / Interface | Graphical LCD, 5-button programmable menu |

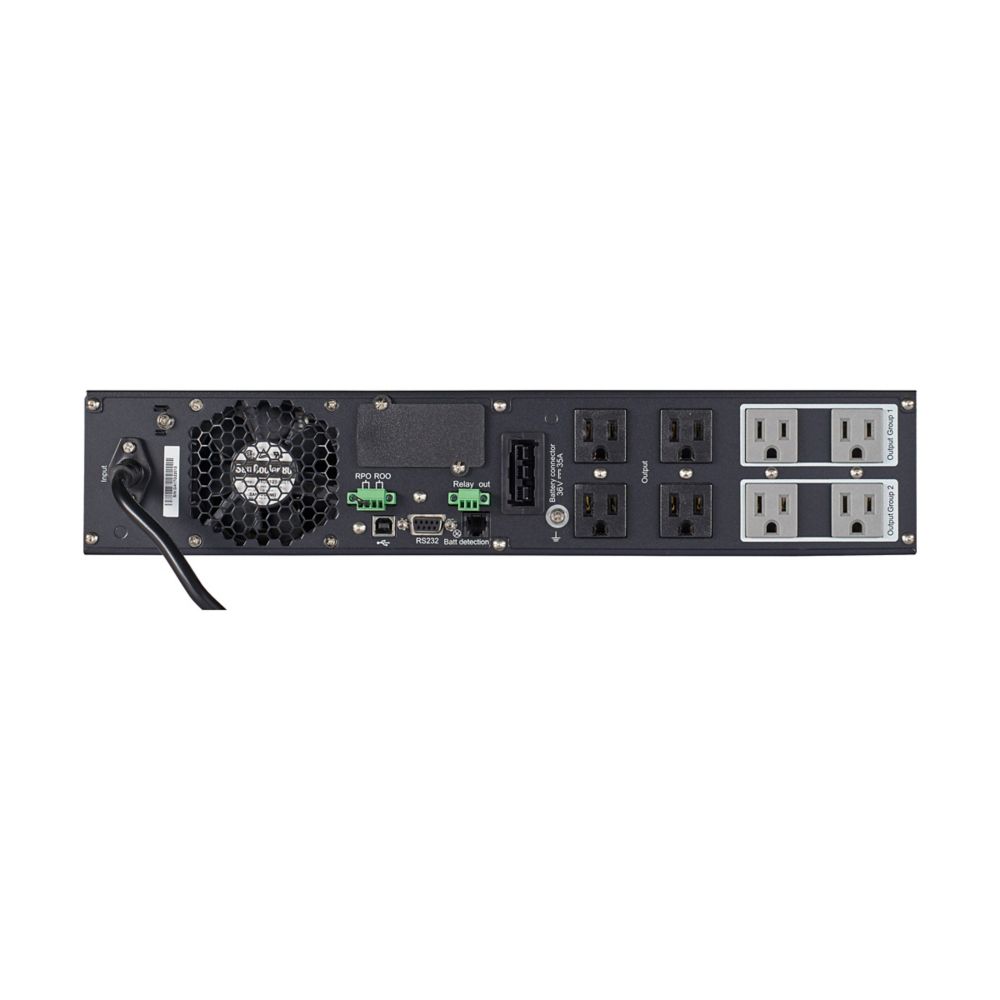

| Communication Ports | 1 × USB, 1 × RS-232, 1 × MiniSlot expansion, remote on/off terminal block |
| Optional Network Cards | NETWORK-M3 (SNMP/Web), INDGW-M2 (Modbus), RELAY-MS |
| Noise Level | <40 dB at 1 meter |
| Operating Temperature | 0°–40°C (32°–104°F) |
| Relative Humidity | 0–96% non-condensing |
| Altitude | 0–1500 m (full load), 1500–3000 m (derated) |
| Compliance | IEC 62040-2 Cat C1, CISPR22 Class B, FCC Part 15 Class B, VCCI Class B |
| Certifications | cULus Listed, NOM |
| Included Accessories | 4-post rail kit, tower pedestals, safety & user manuals, RS-232 & USB cables, Intelligent Power Software Suite CD |
| Warranty | 3-Year factory warranty (parts, electronics, and batteries) |
| Extended Service Options | 5-Year Advanced Depot Exchange (9SW5Y-1000UC) / 5-Year On-Site Plan (WFLN75XX-2509UC) |
