Description

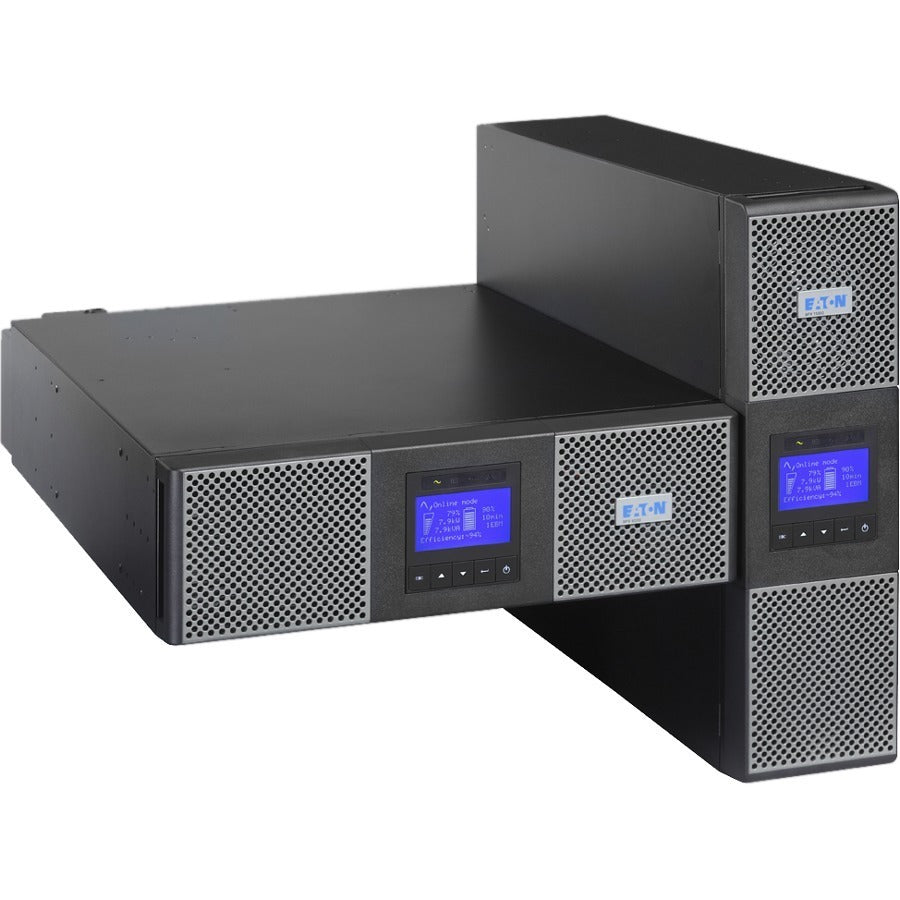

The Eaton 9PX10KSP delivers robust, energy-efficient, double-conversion backup power with a high power factor of 0.9, ideal for critical IT and electrical systems. Designed in a 6U convertible rack/tower form factor, this 10kVA/9kW UPS supports hardwired input and multiple output options including (1) L6-30R, (2) L14-30R, and hardwired terminals.
With a built-in Gigabit Network Card (NETWORK-M2), graphical LCD interface, and ABM battery management technology, the 9PX10KSP enhances visibility, efficiency, and battery life. Optional extended battery modules (up to 4) provide scalability for longer runtimes. ENERGY STAR® certified and equipped for 3-year warranty support, this unit ensures reliable power continuity for enterprise-grade applications.
| Specification | Details |
|---|---|
| Model | Eaton 9PX10KSP |
| Topology | Online Double Conversion |
| Power Rating | 10 kVA / 9 kW |
| Form Factor | Rack/Tower Convertible |
| Rack Height | 6U |
| Input Voltage | Hardwired, 120/208V default (Configurable) |
| Output Voltage | 208V default (Configurable 200–250V) |
| Receptacles | (1) L6-30R, (2) L14-30R, Hardwired |
| Waveform Output | True Sine Wave |
| Output Power Factor | 0.9 |
| Runtime (Full Load) | 5 minutes |
| Battery Type | Sealed Lead-Acid, Hot-Swappable |
| Extended Battery Modules | Up to 4 (9PXEBM360SP) |
| Efficiency (Max Load) | 93% |
| Communication Ports | USB, RS-232, SNMP, Relay, Remote On/Off |
| Network Card | Included (Gigabit NETWORK-M2) |
| Display | Graphical LCD with 5-button menu |
| Noise Level | <55 dB at 1m |
| Certifications | ENERGY STAR, cULus, NOM, CE, FCC Class A |
| Dimensions (W x D x H) | 17.3" x 32" x 10.3" |
| Weight | 225 lb |
| Warranty | 3-Year Factory (Parts, Electronics, Battery) |
