Description

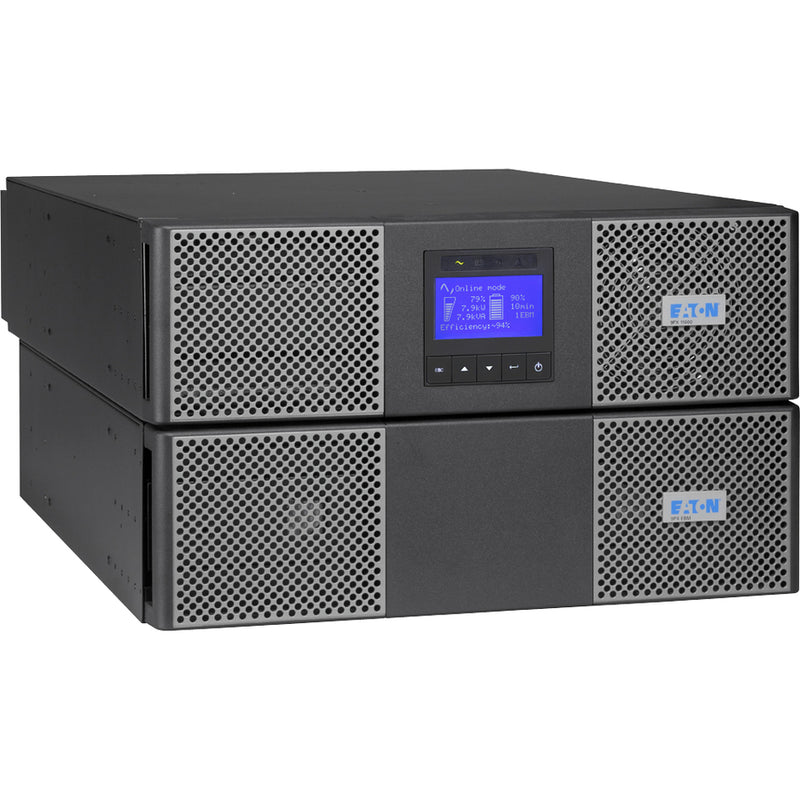

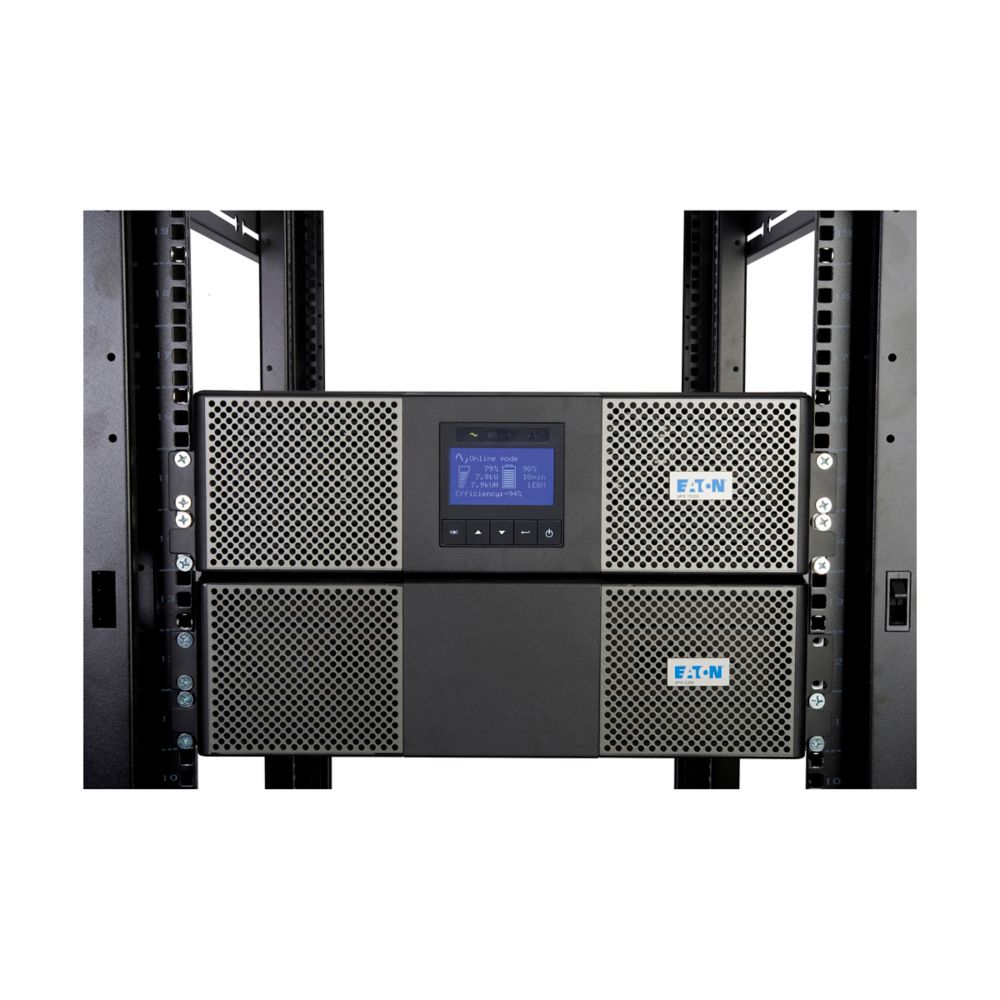

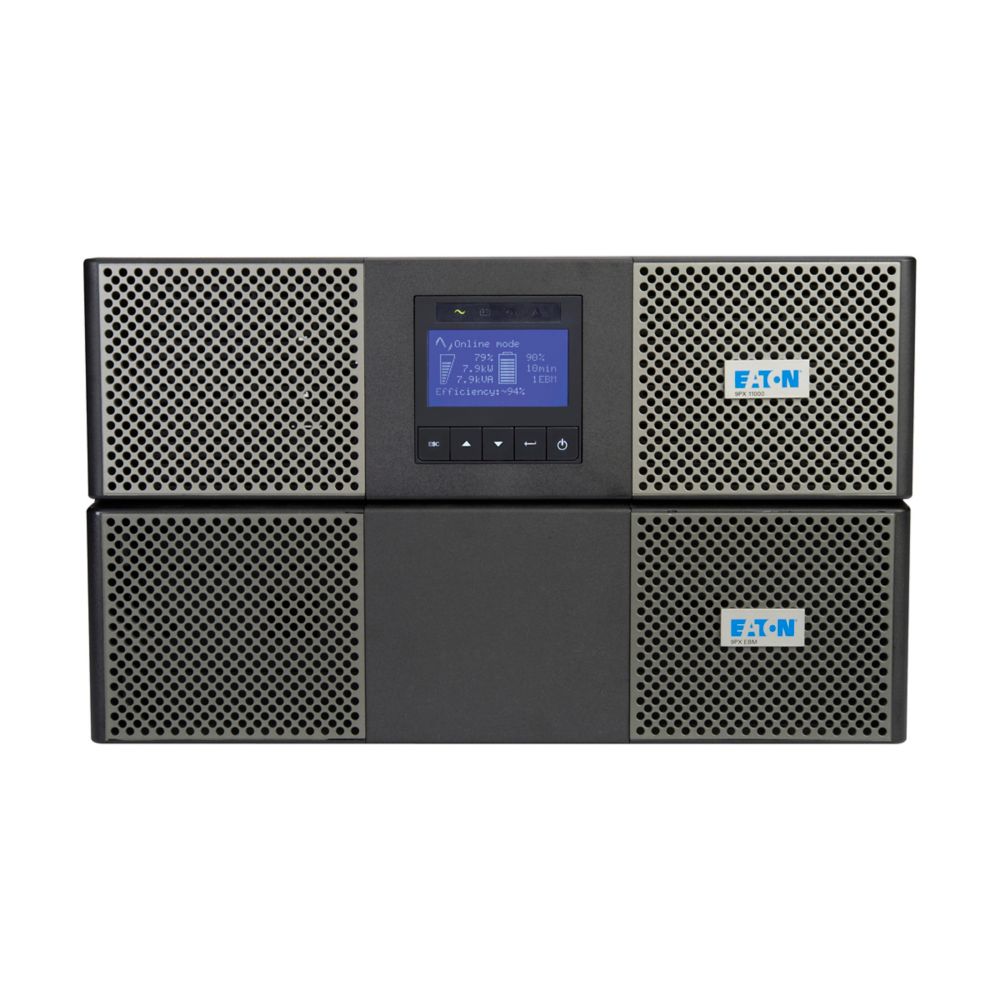

The Eaton 9PX11K UPS delivers premium online double-conversion backup power for IT, data center, and industrial applications. Rated at 11 kVA/10 kW, this 6U rack/tower convertible unit ensures efficient power protection with a high output power factor of 0.91 and an ENERGY STAR® certified 94% efficiency. It features a hot-swappable internal battery, advanced battery management (ABM) for extended life, and a Gigabit Network-M3 card for remote monitoring and control. With (3) L6-30R outlets and hardwired input/output at 208V, it offers flexible power distribution for mission-critical equipment. Includes maintenance bypass, extended battery module, and full installation accessories.
| Category | Details |
|---|---|
| Model | Eaton 9PX11K |
| Part Number | 9PX11K |
| Form Factor | 6U Rack/Tower convertible |
| Power Rating | 11 kVA / 10 kW |
| Topology | Online / Double-conversion |
| Input Voltage | 208V (200–250V selectable) |
| Input Connection | Hardwired |
| Output Voltage | 208V (200/208/220/230/240/250V selectable) |
| Output Receptacles | (3) L6-30R + Hardwired |
| Output Power Factor | 0.91 |
| Waveform | True sine wave |
| Efficiency | 94% (at full load) |
| Battery Type | Sealed lead-acid, hot-swappable |
| Battery Runtime Extension | Supports up to 5 EBMs (9PXEBM240RT), or 12 with SC240RT |
| Battery Management | ABM Technology (3-stage charging) |
| Bypass | Internal static + Rear-mount maintenance bypass |
| Interface | Graphical LCD + 5-button programmable menu |
| Network Management | Gigabit Network-M3 card, USB, RS-232, relay I/O |
| Software | Intelligent Power Software Suite |
| Certifications | ENERGY STAR, CE, FCC Part 15, UL, NOM, Seismic |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Altitude | Up to 3000m (with power derating) |
| Noise Level | < 45 dB at 1 meter |
| Dimensions (W x D x H) | 17.3 x 30 x 10.2 in |
| Weight | 205 lb |
| Warranty | 3-Year factory warranty (including battery) |
