Description

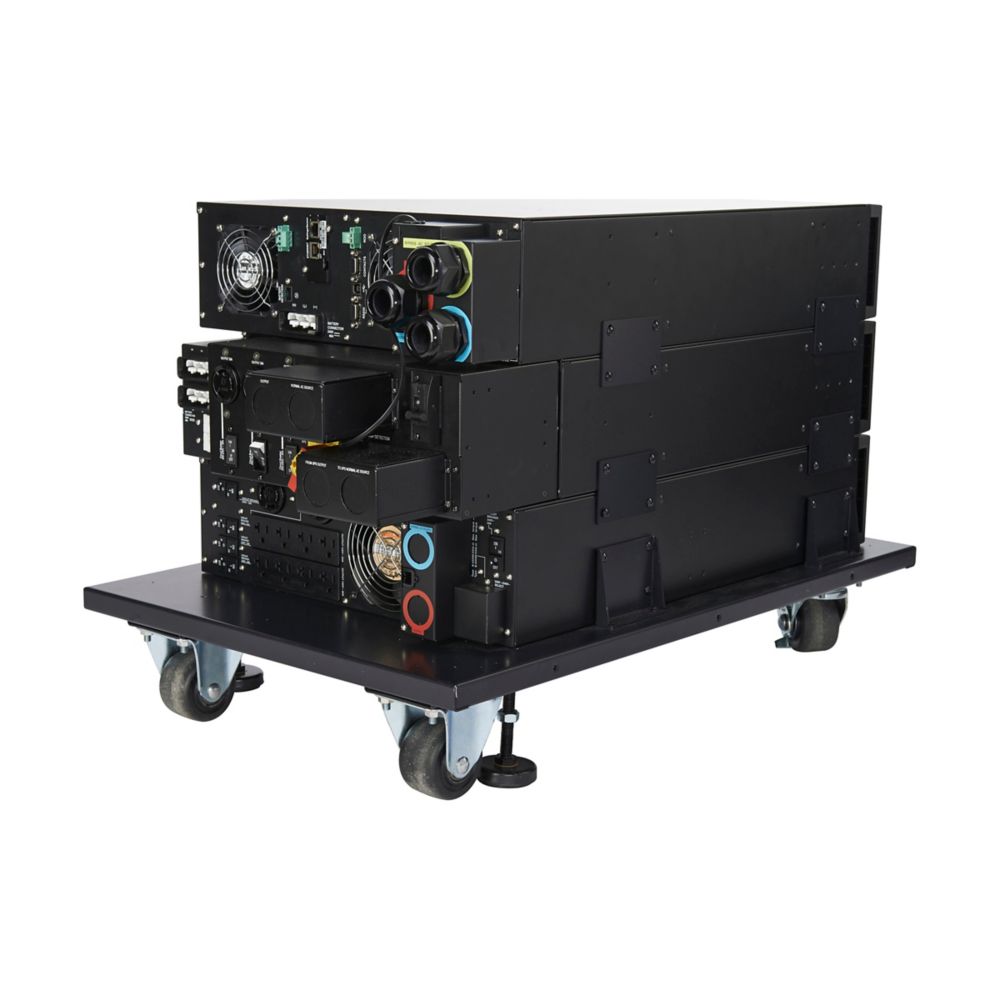

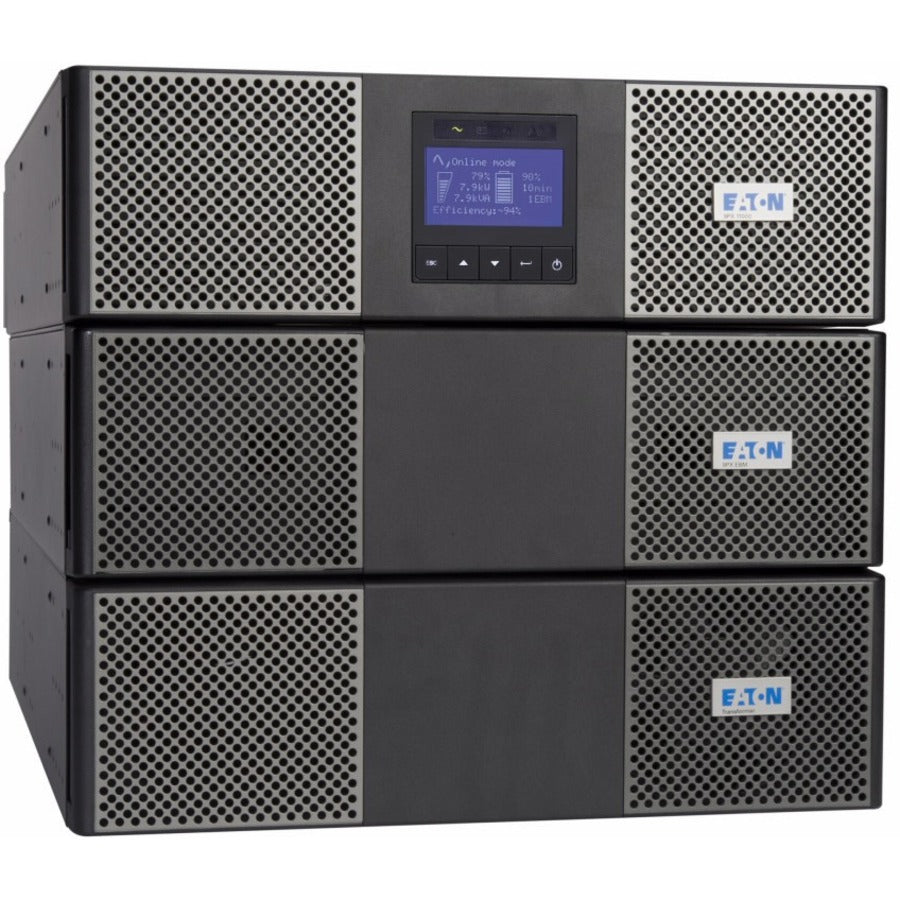

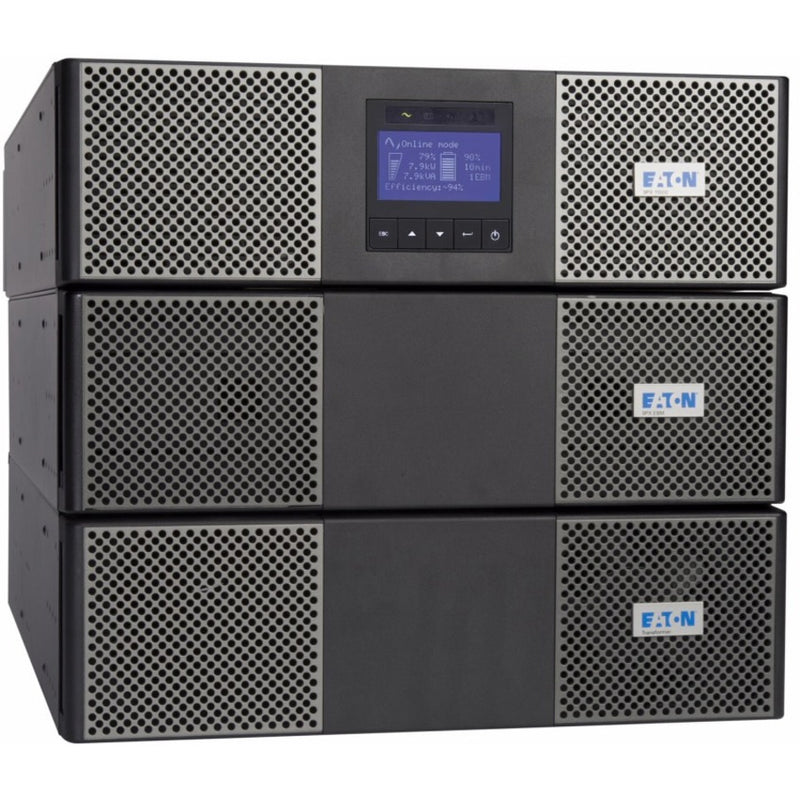

The Eaton 9PX11KTF11M delivers robust, double-conversion power protection with 11 kVA / 10 kW capacity, making it ideal for enterprise IT and critical applications. Housed in a compact 9U rack/tower form factor, it includes a Gigabit Network Card (NETWORK-M3) for advanced remote monitoring and integrates a step-down transformer and maintenance bypass for a fully managed power backup system.
Designed for efficiency and uptime, this UPS features hot-swappable batteries, scalable runtime with EBMs, and Eaton’s patented ABM technology to extend battery life. Output options include a mix of 5-20R, L6-30R, L14-30R, and hardwired connections, all supporting 208V. With ENERGY STAR certification, a 94% efficiency rating, and versatile communication ports, the 9PX UPS ensures intelligent, sustainable power for mission-critical environments.
| Category | Details |
|---|---|
| Model Number | 9PX11KTF11M |
| Power Capacity | 11 kVA / 10 kW |
| Topology | Online, Double-Conversion |
| Output Voltage | 208V default (configurable: 200–250V) |

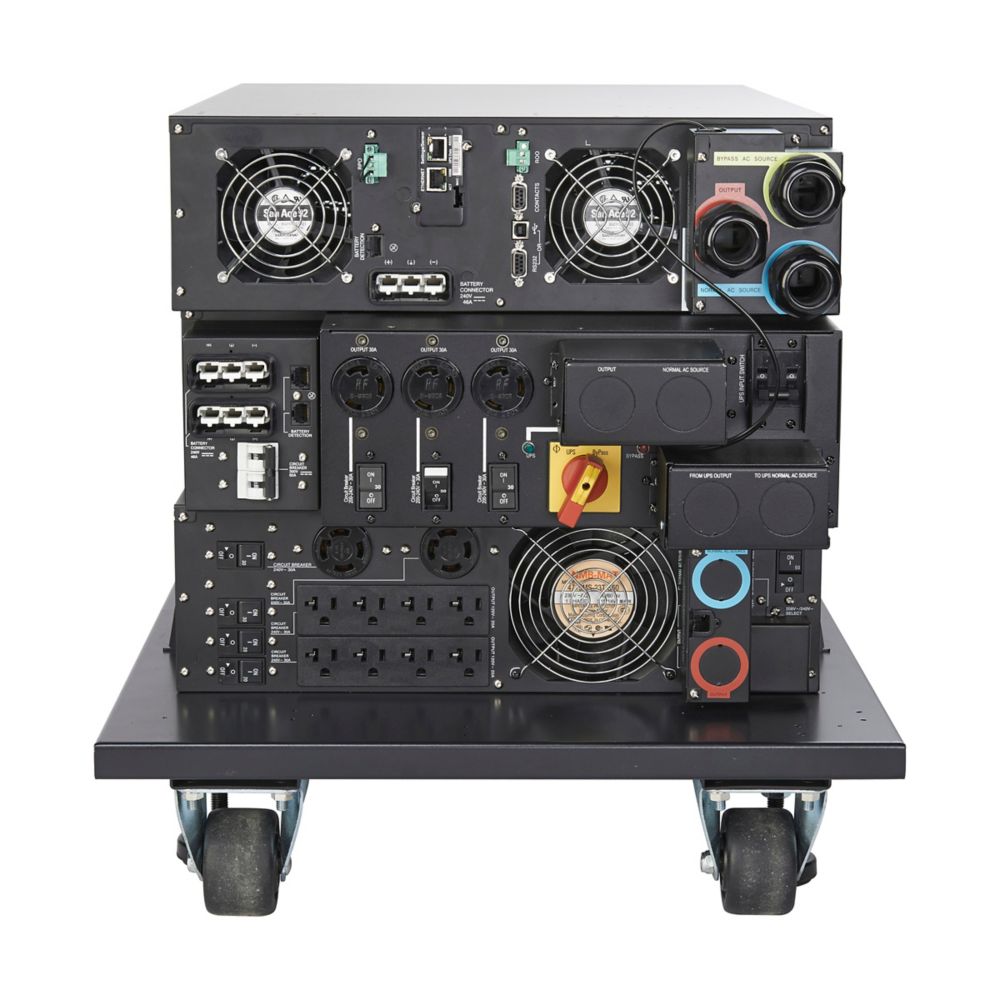

| Output Connections | (8) 5-20R, (3) L6-30R, (2) L14-30R, Hardwired |
| Input Voltage | 208V default (200–250V range), Hardwired |
| Output Frequency | 50/60 Hz |
| Power Factor | 0.91 |
| Output Waveform | True Sine Wave |
| Efficiency | Up to 94% at full load |
| Battery Type | Sealed, lead-acid; hot-swappable; expandable (up to 12 EBMs) |
| Included Modules | UPS, 3U Battery Module, 11kVA Transformer, Maintenance Bypass |
| Form Factor | 9U Rack/Tower Convertible |
| Network Card | Gigabit Network-M3 included (Web/SNMP) |
| User Interface | Graphical LCD with 5-button menu |
| Mounting | 4-post rail kit and tower pedestals included |
| Dimensions (H x W x D) | 15.3 in x 17.3 in x 30 in |
| Weight | 392 lb |
| Certifications | ENERGY STAR, cULus, NOM, FCC Part 15 Class A |
| Environmental Range | 0–40°C, <45 dB noise, 0–95% RH |
| Warranty | 3-Year factory warranty on UPS, parts, and batteries |
