Description

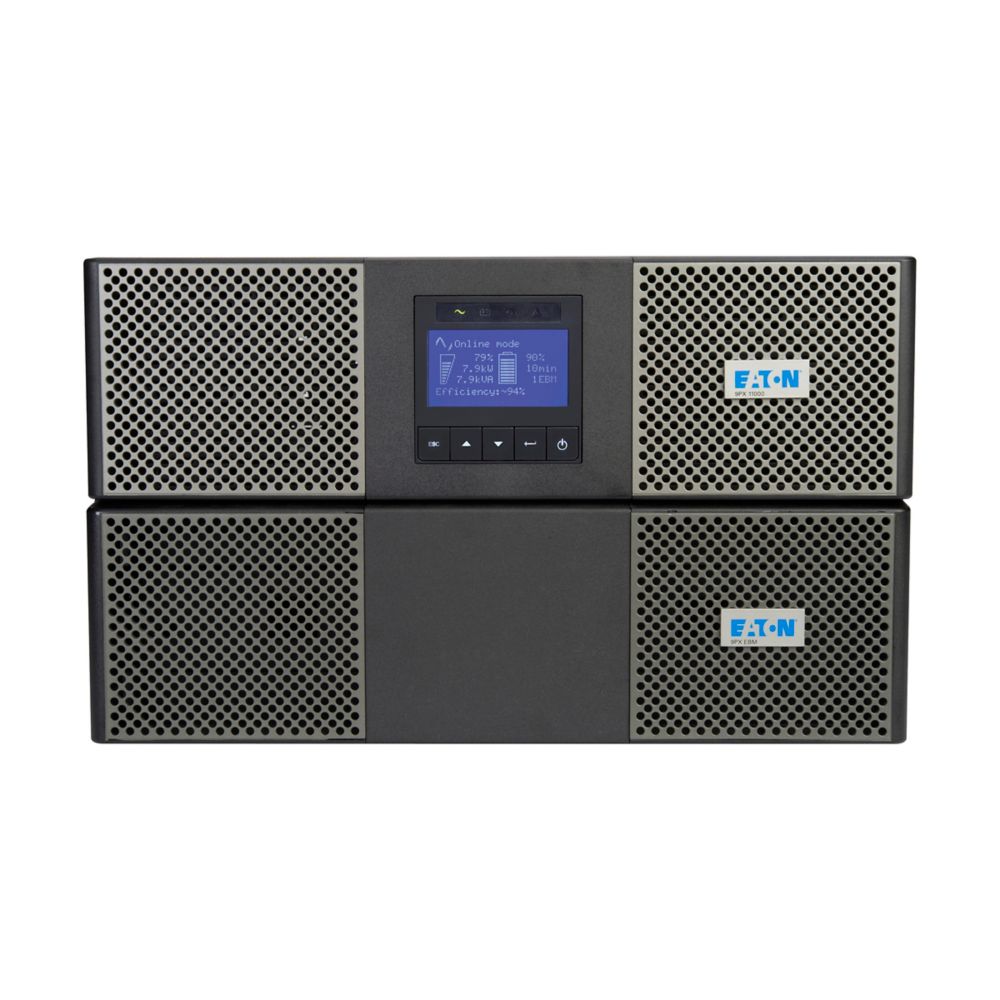

The Eaton 9PX11KHW is a high-performance, double-conversion online UPS delivering 11 kVA / 10 kW of reliable backup power in a compact 6U form factor. Ideal for IT, networking, and industrial applications, it includes a hot-swappable battery module, extended runtime capability, and a pre-installed Gigabit Network Card (Network-M3) for seamless remote monitoring and management.
Its ABM® technology extends battery life by 50%, while its 94% efficiency at full load helps reduce energy costs. The 9PX11KHW offers hardwired input and output, graphical LCD interface, and intelligent power software compatibility for enhanced control.
| Category | Details |
|---|---|
| Model | Eaton 9PX11KHW |
| Power Rating | 11 kVA / 10 kW |
| Topology | Online / Double-conversion |
| Output Voltage | 208V (Configurable: 200/208/220/230/240/250V) |
| Input Voltage | 208V (Configurable: 200/208/220/230/240/250V) |

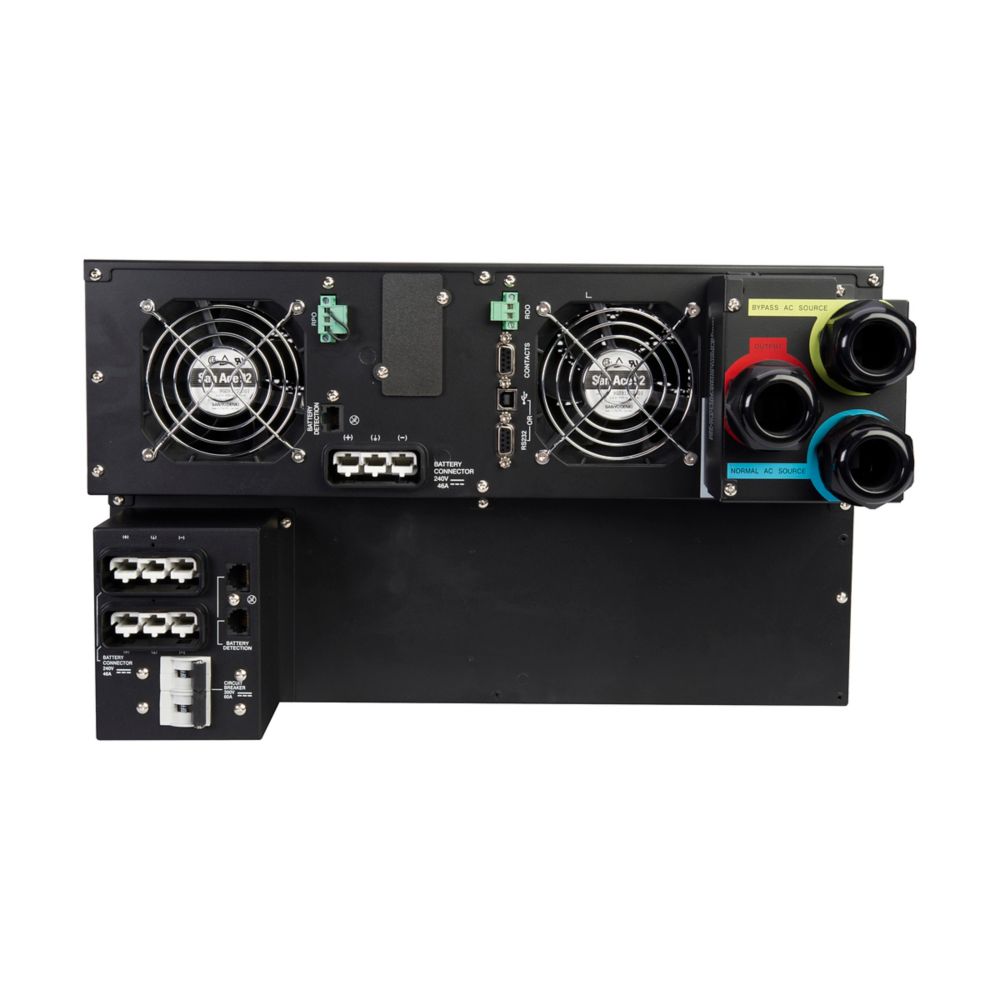

| Input/Output Type | Hardwired |
| Output Waveform | True Sine Wave |

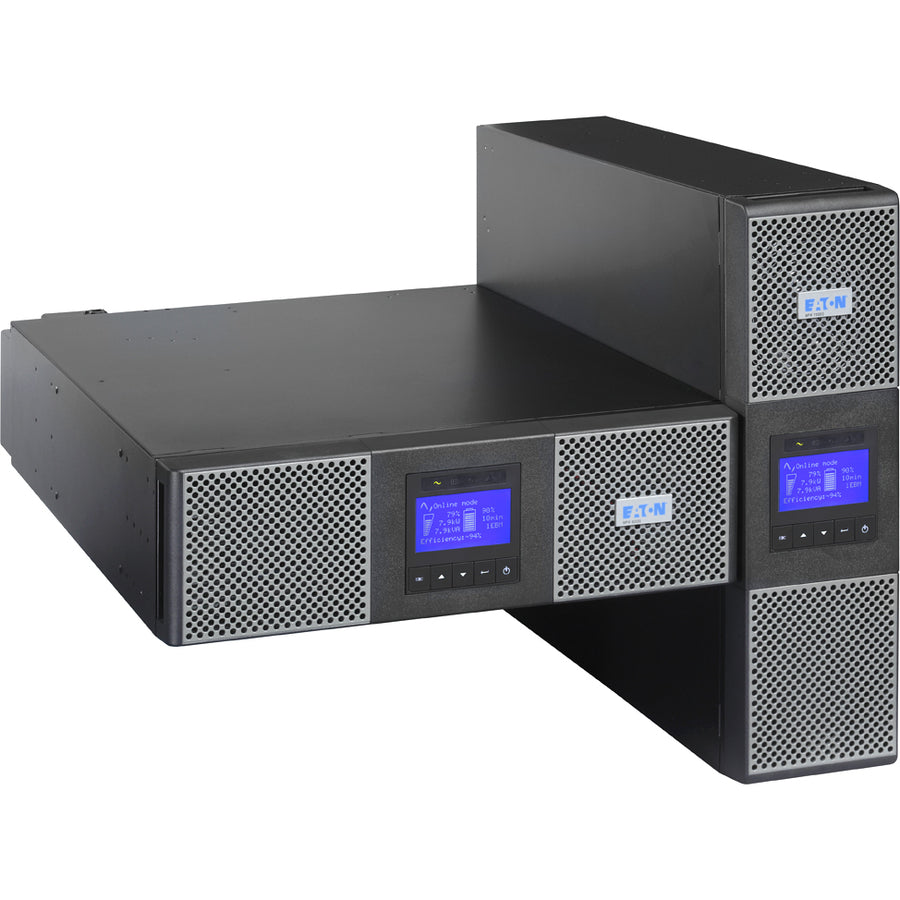

| Form Factor | Rack/Tower Convertible |

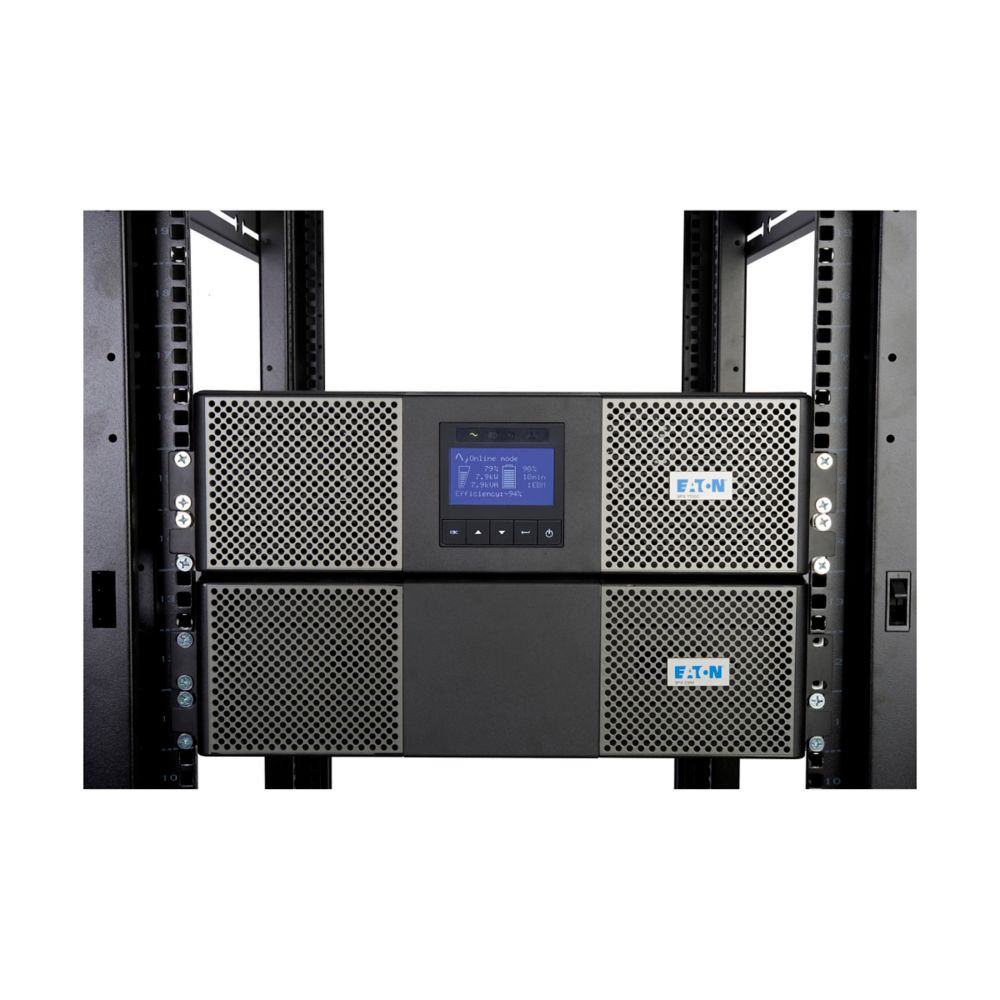

| Rack Height | 6U |
| Efficiency | Up to 94% at full load |
| Battery Type | Sealed Lead-Acid, Hot-swappable |
| Extended Battery | Supports up to 5 EBMs (12 with supercharger) |
| Network Card | Gigabit Network Card (NETWORK-M3) included |
| Communication Ports | SNMP/Web, USB, RS232, terminal block relays |
| Dimensions (LxWxH) | 27.6 x 17.3 x 10.2 in |
| Weight | 190 lbs |
| Noise Level | <45 dB at 1 meter |
| Operating Temp. | 0° to 40°C (32° to 104°F) |
| Relative Humidity | 0–95% non-condensing |
| Certifications | ENERGY STAR, cULus, NOM, CE, IEC 62040-2 |
| Warranty | 3-Year Factory Warranty (UPS, Electronics, Battery) |
| Included Accessories | Rail kit, tower pedestals, USB & RS232 cable |
