Description

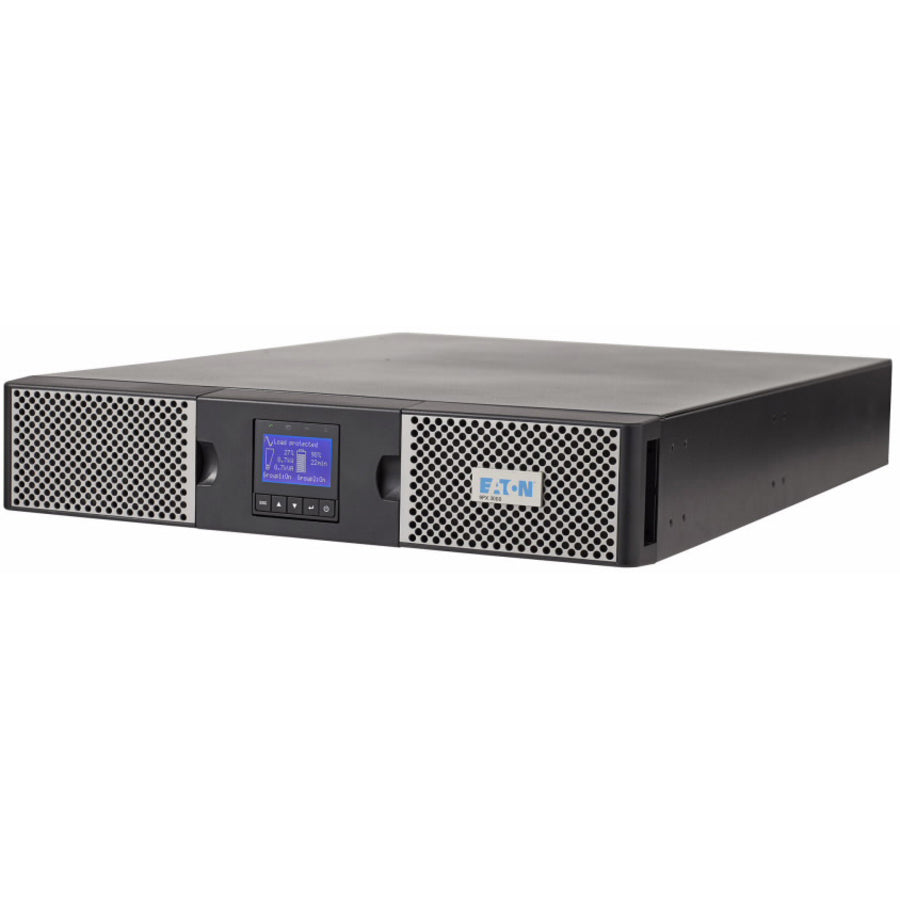

The Eaton 9PX1500RTN is a highly efficient, rack/tower convertible online UPS delivering 1500 VA/1350 W of pure sine wave power for critical IT and networking infrastructure. Designed with energy efficiency and maximum uptime in mind, it includes a Gigabit Network-M3 card for intelligent remote management, hot-swappable batteries, and ABM technology for extended battery life. The unit features 8 ft 5-15P input, 8 output 5-15R receptacles, a graphical LCD interface, and versatile mounting with a 2U rack form factor. Ideal for servers, networking gear, and VoIP systems requiring consistent power and proactive monitoring.
| Category | Details |
|---|---|
| Model | Eaton 9PX1500RTN |
| Topology | Online/Double-conversion |
| Form Factor | Rack/Tower, 2U |
| Power Rating | 1500 VA / 1350 W |
| Input Voltage | 120V (100–125V) |
| Input Connection | 5-15P |
| Input Cord Length | 8 ft |
| Output Voltage | 120V (100–125V selectable) |
| Output Receptacles | (8) 5-15R |
| Output Waveform | True sine wave |
| Output Frequency | 50/60 Hz |
| Output Power Factor | 0.9 |
| Efficiency at Full Load | 90% |
| Runtime (Full Load) | 5 minutes |
| Battery Type | Sealed lead-acid |
| Battery Management | ABM 3-stage charging, hot-swappable |
| Extended Battery | Supports up to 4 EBMs (9PXEBM48RT) |
| Network Management | Gigabit Network-M3 Card, SNMP/Web, USB, RS232 |
| User Interface | Graphical LCD, 5-button menu |
| Mount Kit Included | 4-post rail kit, tower pedestals |
| Color | Black/Silver |
| Noise Level | <40 dB at 1 meter |
| BTU Rating | Online: 512 BTU/hr, Battery: 897 BTU/hr |
| Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 0–96%, non-condensing |
| Altitude | Up to 3000m |
| Certifications | cULus, NOM, CE, FCC Class B, VCCI, IEC 62040-2 |
| Warranty | 3-Year factory warranty on UPS and batteries |
| Dimensions (H x W x D) | 3.4 x 17.3 x 17.7 in |
| Weight | 42.5 lb |
