Description

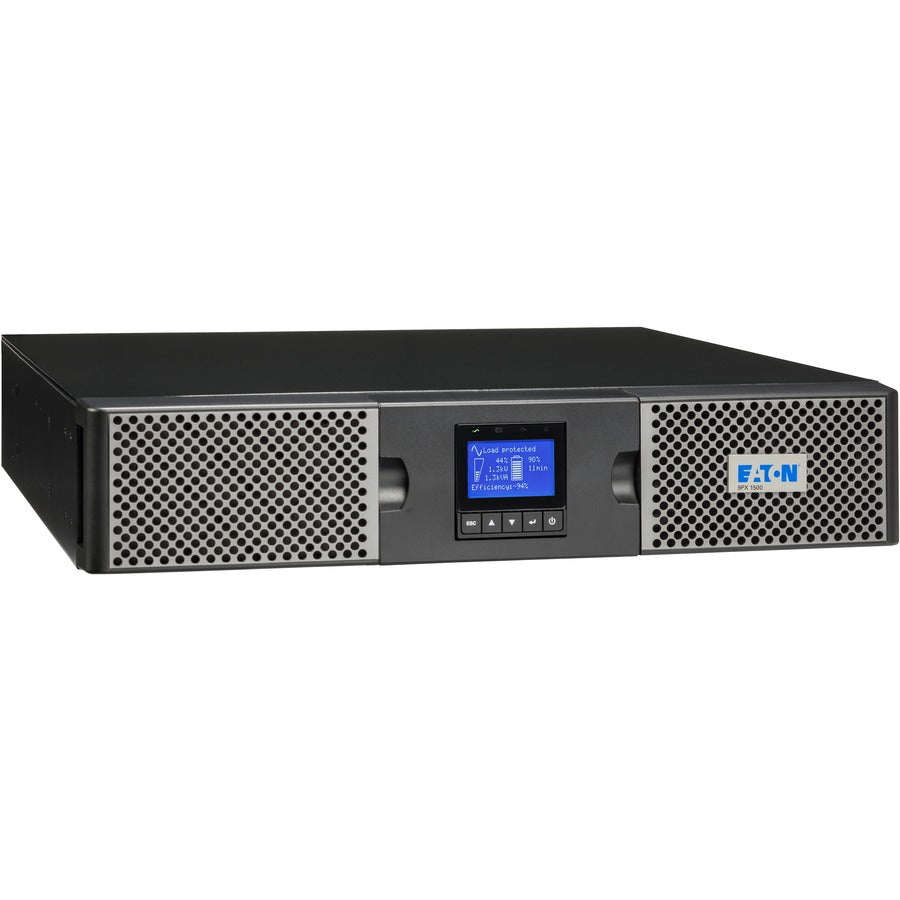

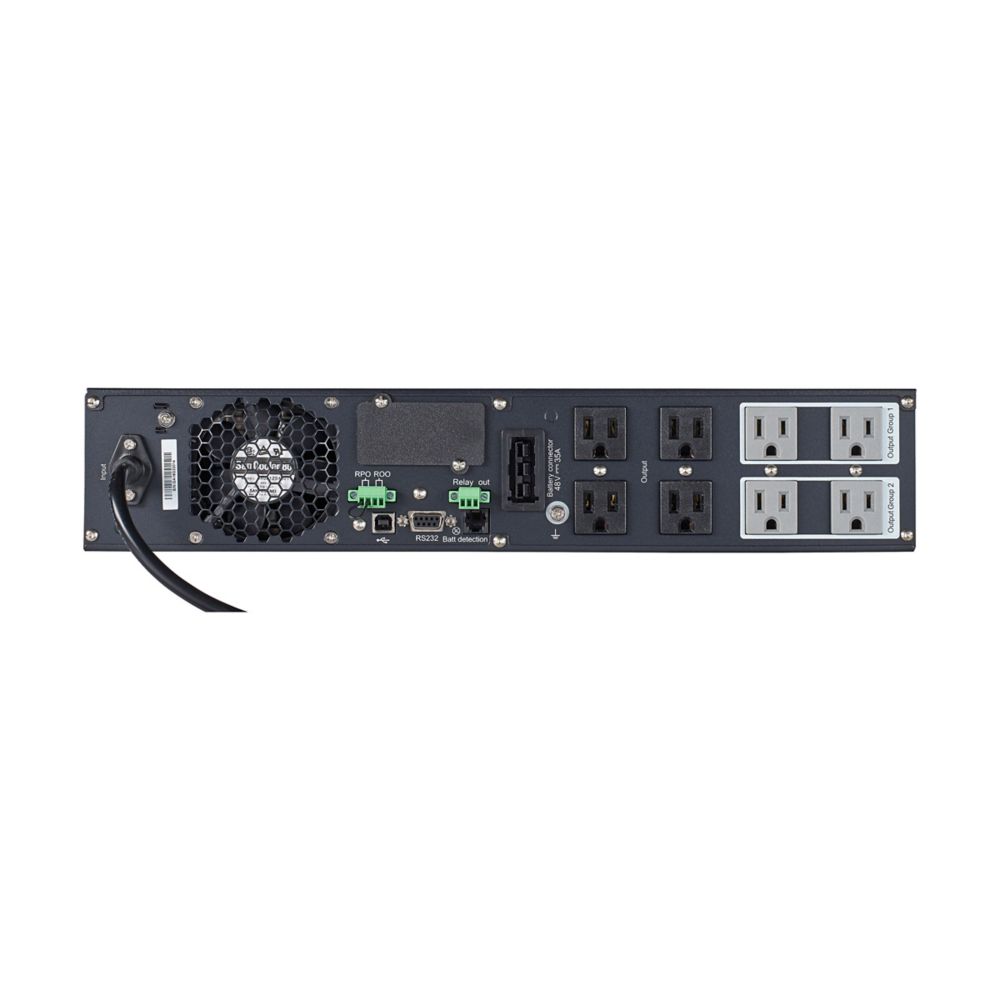

The Eaton 9PX1500RT is a high-efficiency 2U rack/tower UPS delivering 1500 VA / 1350 W of true sine wave double-conversion backup power. With 8x 5-15R outlets, a 5-15P input plug, and hot-swappable batteries, it’s ideal for servers, networking devices, and storage systems in small-to-medium business environments. ABM technology extends battery life by 50%, while the intuitive LCD interface and extended battery module support provide advanced control and runtime scalability. Compatible with Eaton’s Intelligent Power Software Suite and designed for reliability with a 3-year limited warranty.
| Specification | Details |
|---|---|
| Model | Eaton 9PX1500RT |
| Form Factor | Rack/Tower (2U) |
| Power Rating | 1500 VA / 1350 W |
| Input Voltage | 120V (100/110/120/125V configurable) |
| Input Plug Type | NEMA 5-15P |
| Input Cord Length | 8 ft |
| Output Voltage | 120V (±1% regulation) |
| Output Frequency | 50/60 Hz |
| Output Receptacles | (8) NEMA 5-15R |
| Topology | Online, Double Conversion |
| Output Waveform | True Sine Wave |
| Output Power Factor | 0.9 |
| Efficiency (at full load) | 90% |
| Battery Type | Sealed, lead-acid |
| Battery Replacement | Hot-swappable (EBP-1613) |
| Extended Battery Support | Up to 4 x EBM (9PXEBM48RT) |
| User Interface | Graphical LCD with 5-button control |
| Communications | USB, RS-232, MiniSlot, Remote I/O |
| Expansion Slot | (1) MiniSlot (supports NETWORK-M3, etc.) |
| Noise Level | <40 dB @ 1 meter |
| Dimensions (HxWxD) | 3.4" x 17.3" x 17.7" |
| Weight | 42.5 lb |
| Compliance & Certifications | cULus Listed, NOM, FCC Part 15 Class B |
| Warranty | 3-Year Limited Warranty |
