Description

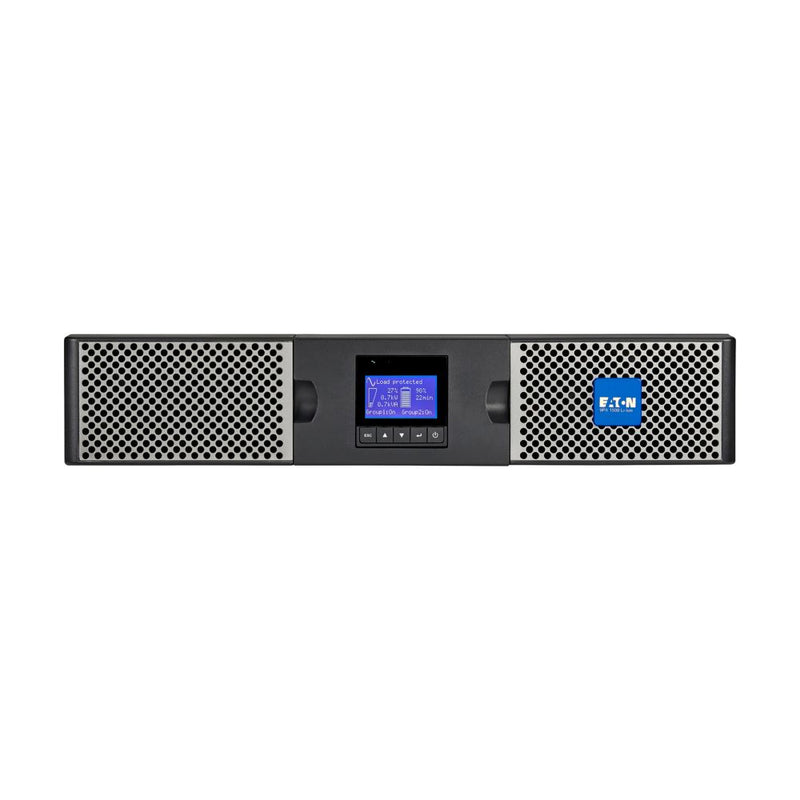

The Eaton 9PX1500RTN-L is a high-efficiency, lithium-ion uninterruptible power supply (UPS) delivering 1500 VA and 1350 W of reliable backup power in a compact 2U rack/tower form factor. Featuring double-conversion online technology and true sine wave output, this UPS ensures clean, consistent power for critical IT and edge environments.
Equipped with an integrated Gigabit Network Card (NETWORK-M3), it provides remote monitoring and control capabilities. Its lithium iron phosphate (LiFePO4) battery chemistry offers longer life, lower total cost of ownership, and up to four extended battery modules (EBMs) for scalable runtime. Backed by a 5-year comprehensive warranty, the 9PX1500RTN-L is ideal for high-performance power protection with minimal maintenance.
| Category | Details |
|---|---|
| Model | Eaton 9PX1500RTN-L |
| VA / Wattage | 1500 VA / 1350 W |
| Form Factor | 2U Rack/Tower |
| Input Connection | 5-15P, 8 ft cord |
| Output Receptacles | (8) 5-15R |
| Input / Output Voltage | 120V (configurable: 100/110/120/125V) |
| Topology | Online / Double-Conversion |
| Output Waveform | True Sine Wave |
| Efficiency (Max Load) | 90% |
| Battery Type | Lithium-ion (LiFePO4), Hot-swappable |

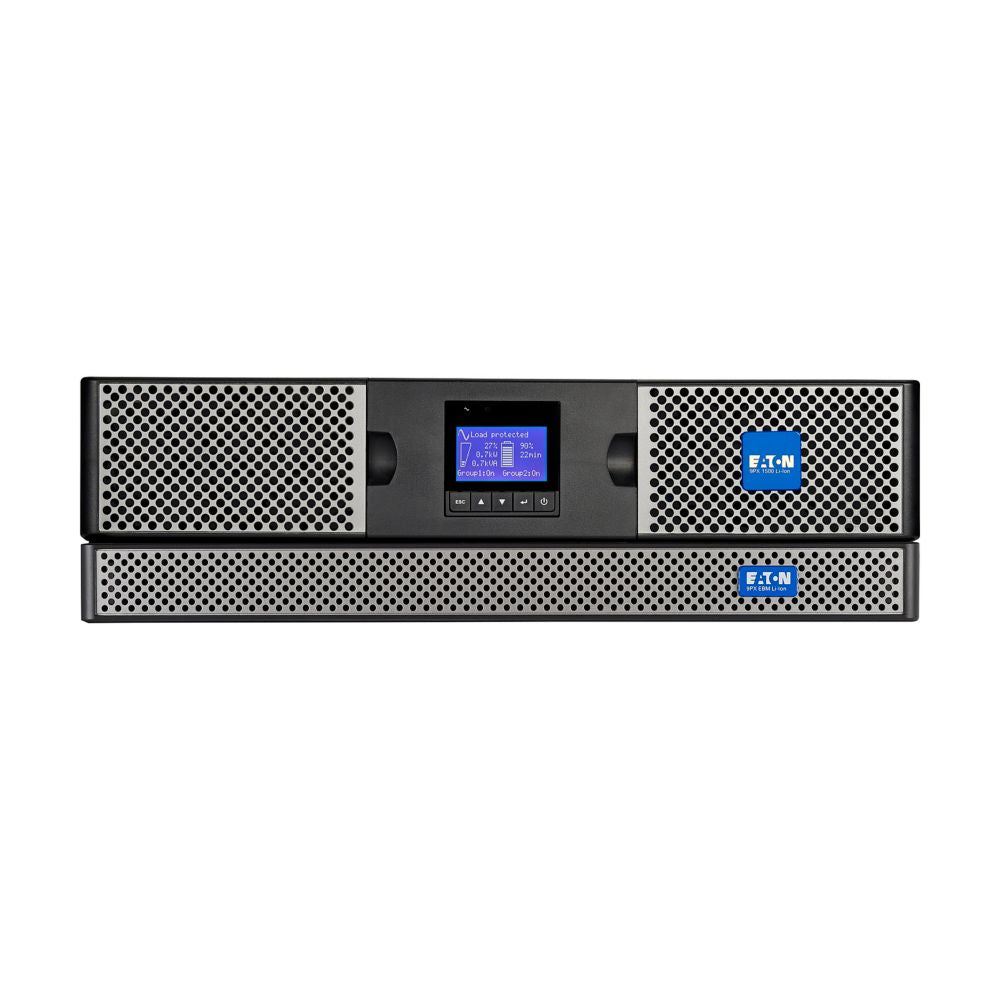

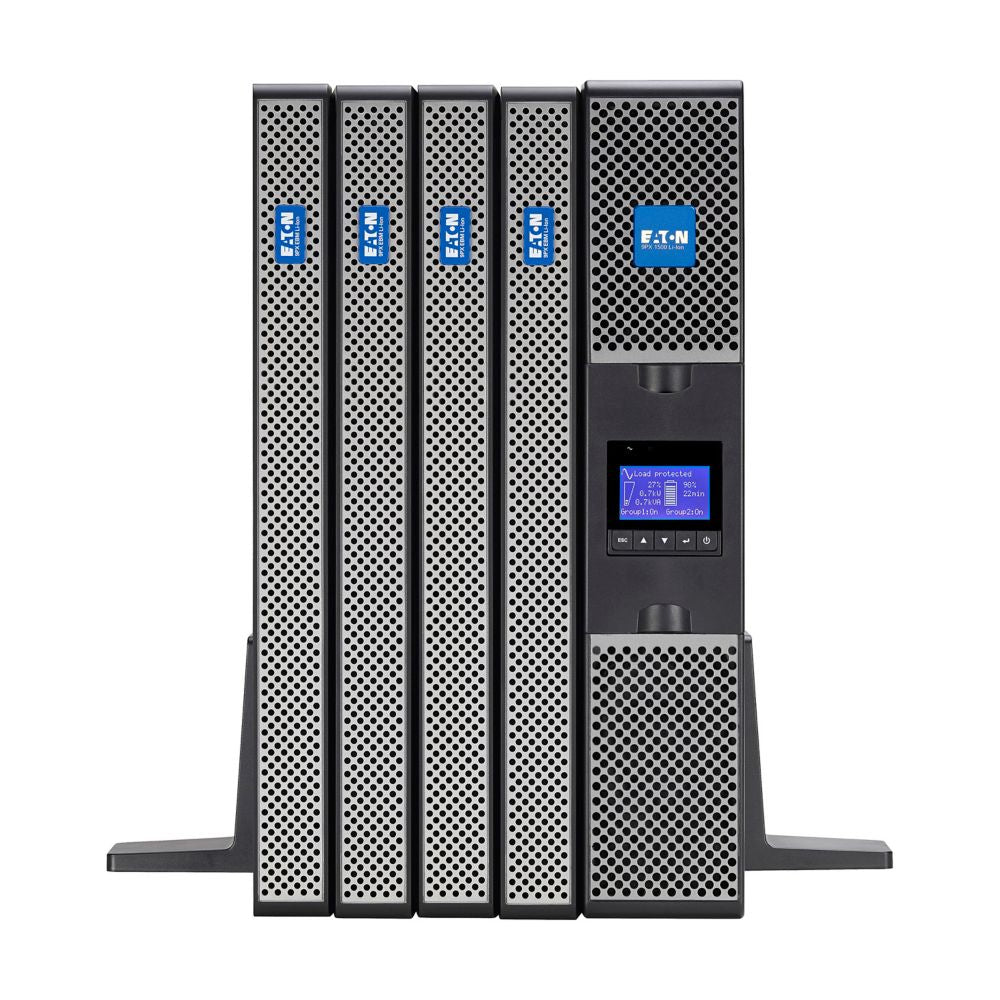

| Extended Battery Option | Supports up to 4 EBMs (Model: 9PXEBM48RT-L) |
| Network Management | Gigabit Network Card (NETWORK-M3) included |
| Communication Ports | USB, RS-232 (RJ45), Intelligent Power Software Suite |
| User Interface | Graphical LCD with 5-button programmable menu |
| Bypass | Internal Bypass |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Altitude Range | Up to 3000m |
| Noise Level | <47 dB at 1 meter |
| Humidity | 0–96% non-condensing |
| Dimensions (L x W x H) | 17.7 in x 17.3 in x 3.4 in |
| Weight | 36.5 lb |
| Certifications | cULus Listed, NOM, OSHPD Seismic, FCC Part 15 Class B |
| Compliance | CE, IEC 62040-2 Cat C1 |
| Warranty | 5-Year Factory (Parts, Batteries, Electronics) |
